StarTech.com 1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included
Regular price
$269.43
Sale price
Regular price
Tax included.
Hurry up, only 1 item left in stock.
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.

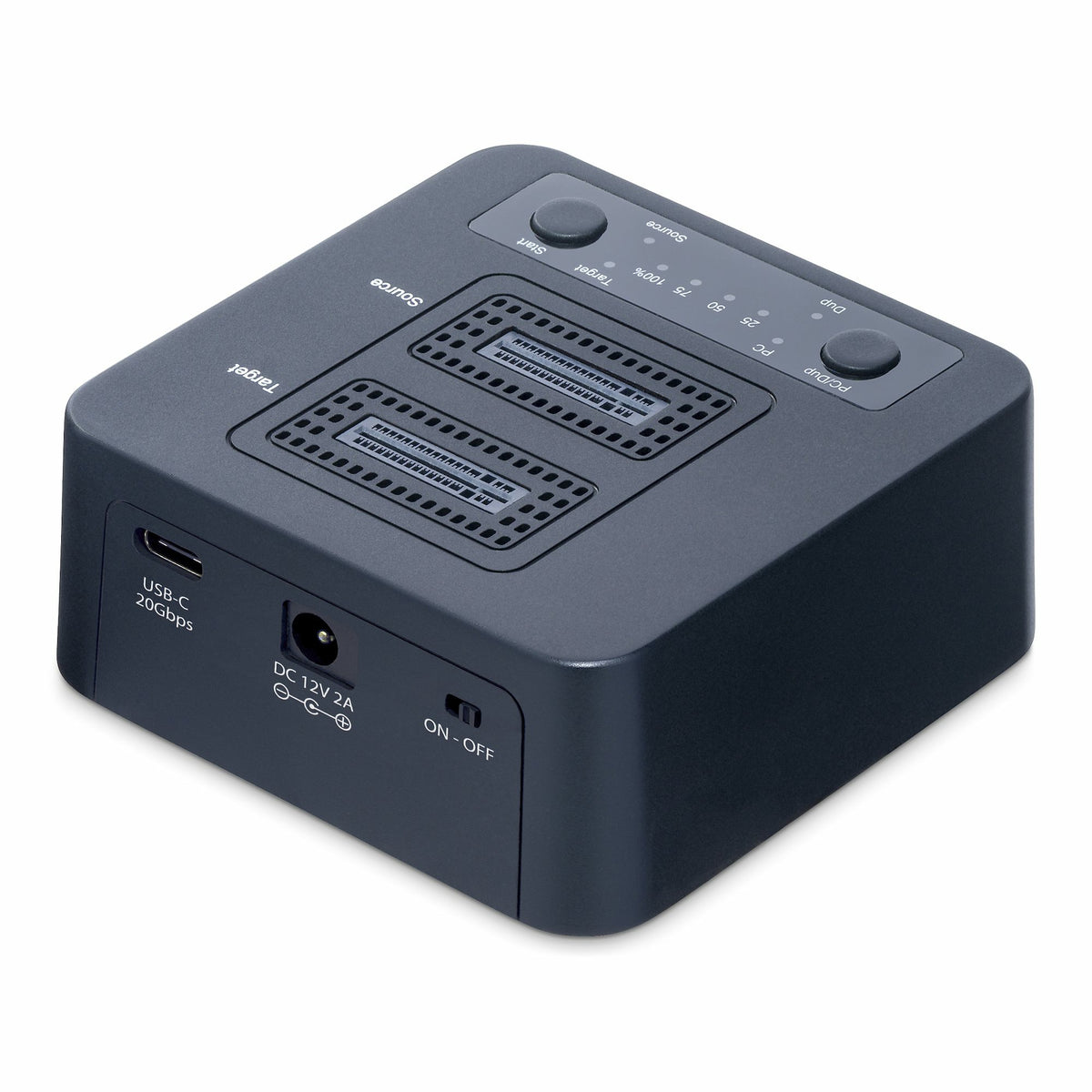

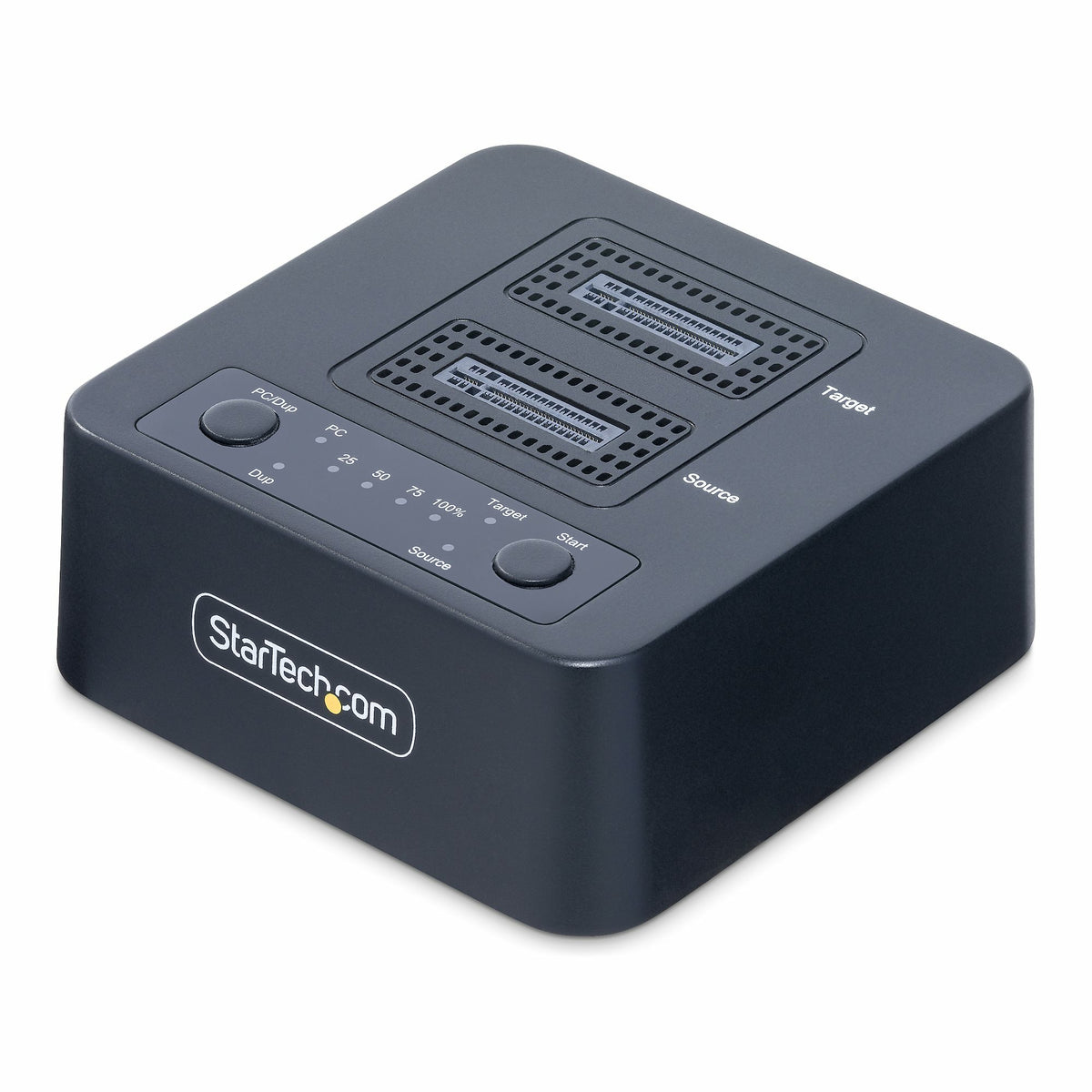

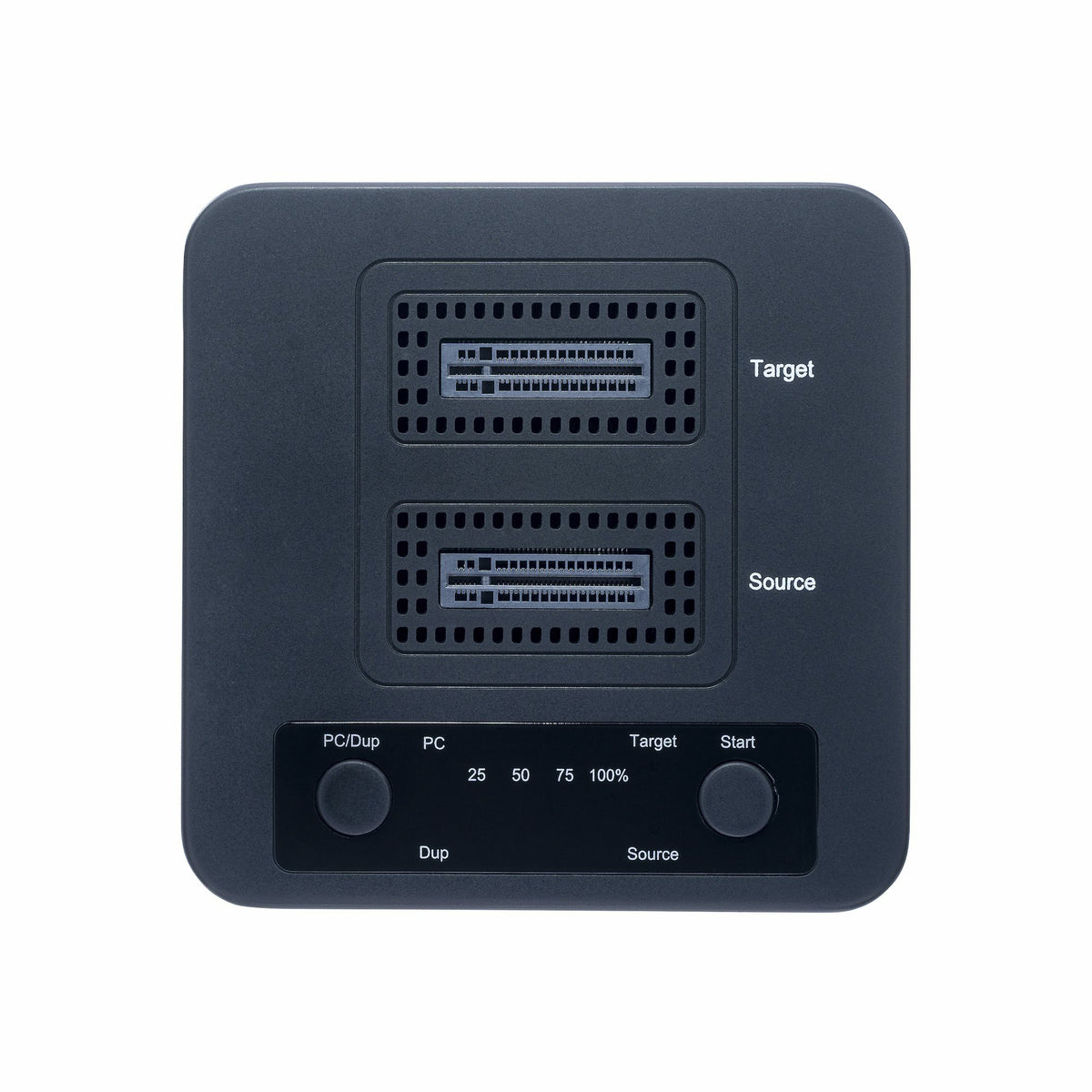

The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC input voltage: 100 - 240 V
- Product type: HDD/SSD duplicator
- Products per master (outer) case: 20 pc(s)
- Operating relative humidity (H-H): 20 - 80%
- Master (outer) case width: 50 cm
- Master (outer) case height: 22.8 cm
- LED indicators: Yes
- Compliance certificates: RoHS
- Master (outer) case length: 34.3 cm
- Interface: USB 3.2 Gen 2 (3.1 Gen 2)
- Number of simultaneous copies: 1 copies
- Duplicator operating modes: Copy
- Manual: Yes
- Included power plug types: ANZ, EU, NA, UK
- AC adapter included: Yes
- Transfer rate: 90 GB/min
- Chipset: JMS586U
- Power consumption (typical): 0.1 W
- Housing material: Plastic
Features
- Fan diameter
- 6 cm
- Hot-swap drive bays
- No
- Number of fans
- 1 fan(s)
- Plug and Play
- Yes
- USB connector type
- USB Type-C
General
- Video/mp4
- https://www.youtube.com/watch?v=ThIv6mm-394
Hard drive
- SSD interface
- M.2
- SSD support
- Yes
Operational conditions
- Operating temperature (T-T)
- 5 - 55 °C
- Storage temperature (T-T)
- -20 - 55 °C
Packaging content
- Cables included
- USB Type-A to USB Type-C, USB Type-C to USB Type-C
Packaging data
- Package depth
- 9 cm
- Package height
- 9.5 cm
- Package weight
- 0.14 kg
- Package width
- 16 cm
Power
- Input current
- 0.6 A
- Output current
- 2 A
- Output voltage
- 12 V
- Power plug type
- Type M
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Dimensions (WxDxH)
- 77 x 77 x 44 mm
- Weight
- 0.13 kg
AC adapter included
Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Manual
Included power plug types: ANZ, EU, NA, UK
Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Manual
Included power plug types: ANZ, EU, NA, UK
Materials
Housing material: Plastic
Compare With Similar Items
|
|
|
|
|
|
| Description | Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices. High-Speed M.2 NVMe Duplication Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive. NVMe Drive Access over USB 3.2 Gen2x2 The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation. Compact and User-Friendly The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance. The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk. |

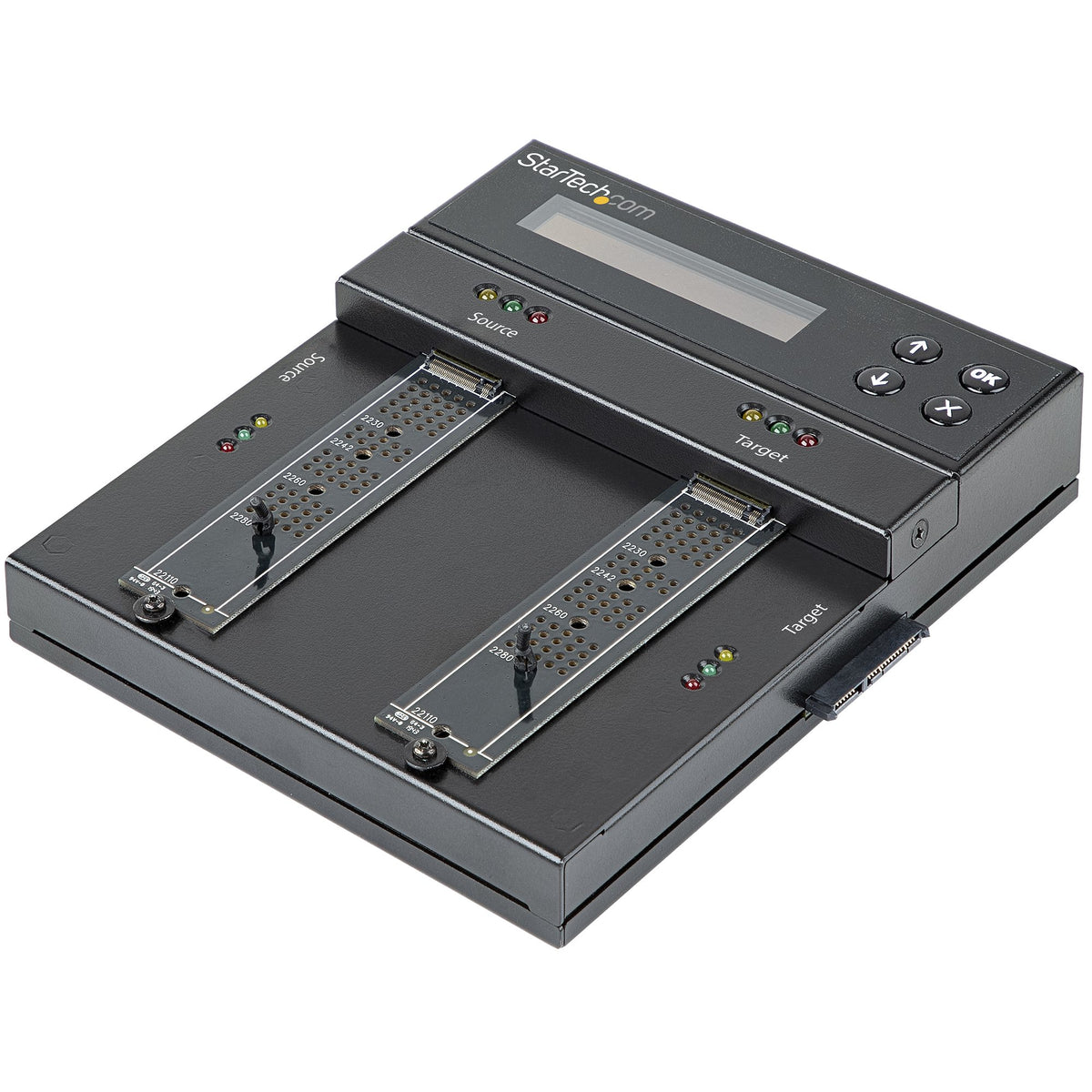

Hostless Drive Duplicator and Eraser | PCIe M.2 | SATA M.2 | 2.5 in. SATA | 3.5 in. SATA This flexible 1-to-1 drive duplicator and eraser provides a standalone solution for cloning and sanitizing hard drives (HDD) and solid state drives (SSD) without computers or software. The drive duplicator/sanitizer can clone drives at up to 7.5GB per minute, and supports a wide variety of drive types: • M.2 PCIe drives (sized 2230/2242/2260/2280/22110) • M.2 SATA drives (sized 2230/2242/2260/2280/22110) • 2.5 in. SATA drives • 3.5 in SATA drives Broad Drive Compatibility Supporting different types of drives including M.2 PCIe (M-Key), M.2 SATA (B+M-Key), and SATA 2.5/3.5 in. drives, this HDD/SSD cloner and wiper provides a versatile solution for drive cloning and deleting applications. The drive cloner enables duplication with any combination of drives, supporting duplication between M.2 (NVMe/AHCI), M.2 SATA, and 2.5/3.5" SATA drive interfaces. You can also expand the capabilities of the device to supporting IDE and mSATA drives using StarTech.com drive adapters: SATA to IDE Adapter (SAT2IDEADP) / SATA to mSATA Adapter (SAT32MSAT257) (each sold separately). To ensure compatibility with your drives the duplicator and eraser has been rigorously tested with a wide variety of drive models from different drive manufacturer including Samsung 850, 860, 870, 950, 960, 970, WD, HP, and Intel. Configurable Duplication and Erase Modes To support a wide variety of applications this drive cloner and sanitizer supports different duplication and erasing modes with Adjustable Host Protected Area (HPA) settings to include/exclude partitions. When duplicating the device supports: System & File, All Partitions, Whole Drive and Percentage Duplication. When erasing the device supports: Quick Erase, Full Erase (Single & 3-Pass) and Secure Erase (Clear/Purge, meets NIST SP 800-88 Rev 1). Easy to Use Featuring an intuitive button-operated interface, and full on-screen display (OSD) for increased manageability, this drive duplicator and cloner is easy to operate. To monitor and observe your duplication and erasing processes the device features LED indicators for Power/Activity, Status and Errors, and the OSD Menu options include Error Reporting, and Presenting Drive Info. The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales |

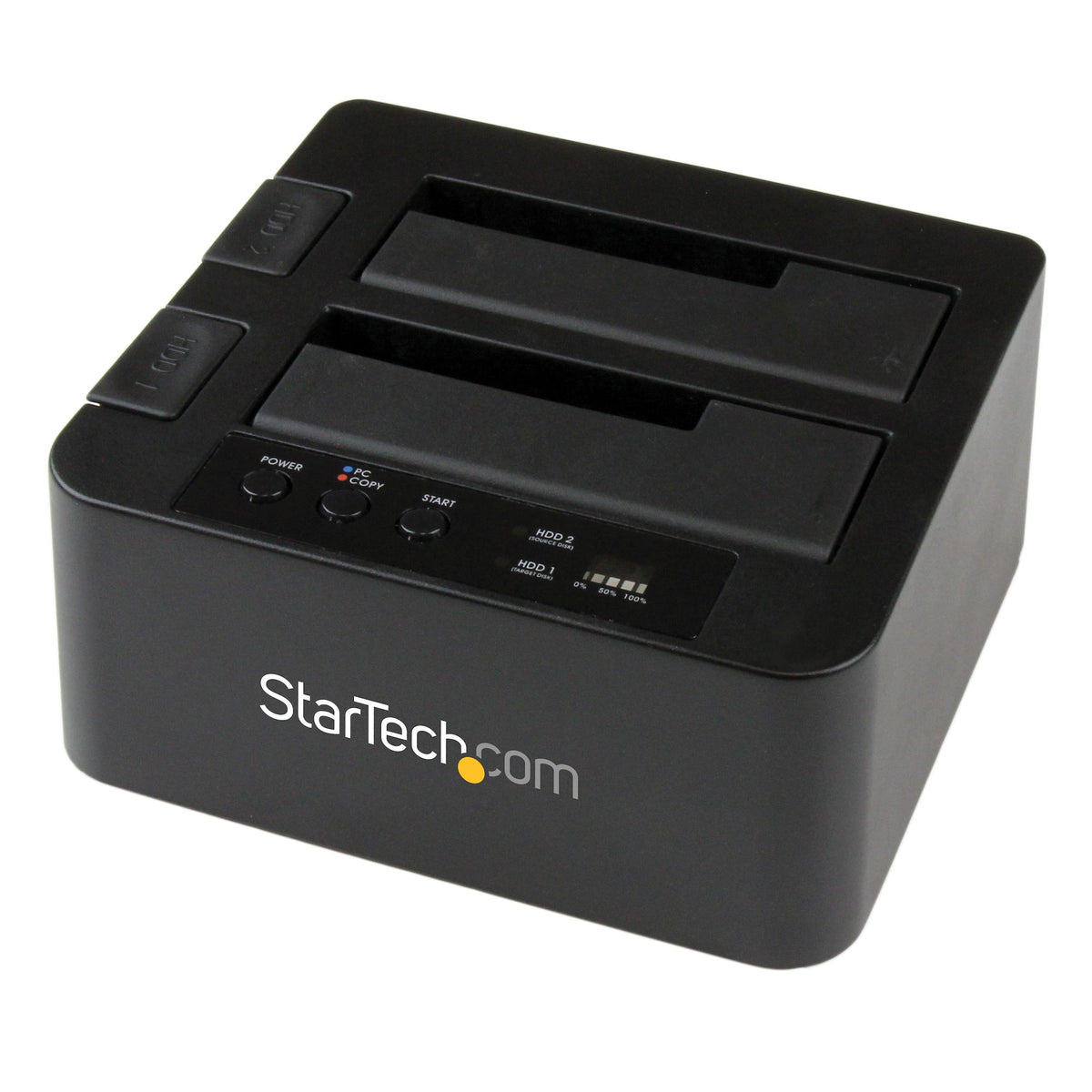

Hard Drive Cloner | 2.5"/3.5" HDD/SSD | USB 3.2 Gen 1 (5 Gbps) / eSATA | SATA The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port. Versatile Features The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB. Fast Performance With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details. Hassle-free Operation With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation. The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll know exactly when it's time to start your next operation. For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator: 2.5/3.5in IDE drives - SAT2IDEADP mSATA drives - SAT2MSAT25 M.2 (NGFF) drives - SAT32M225 SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive. |
