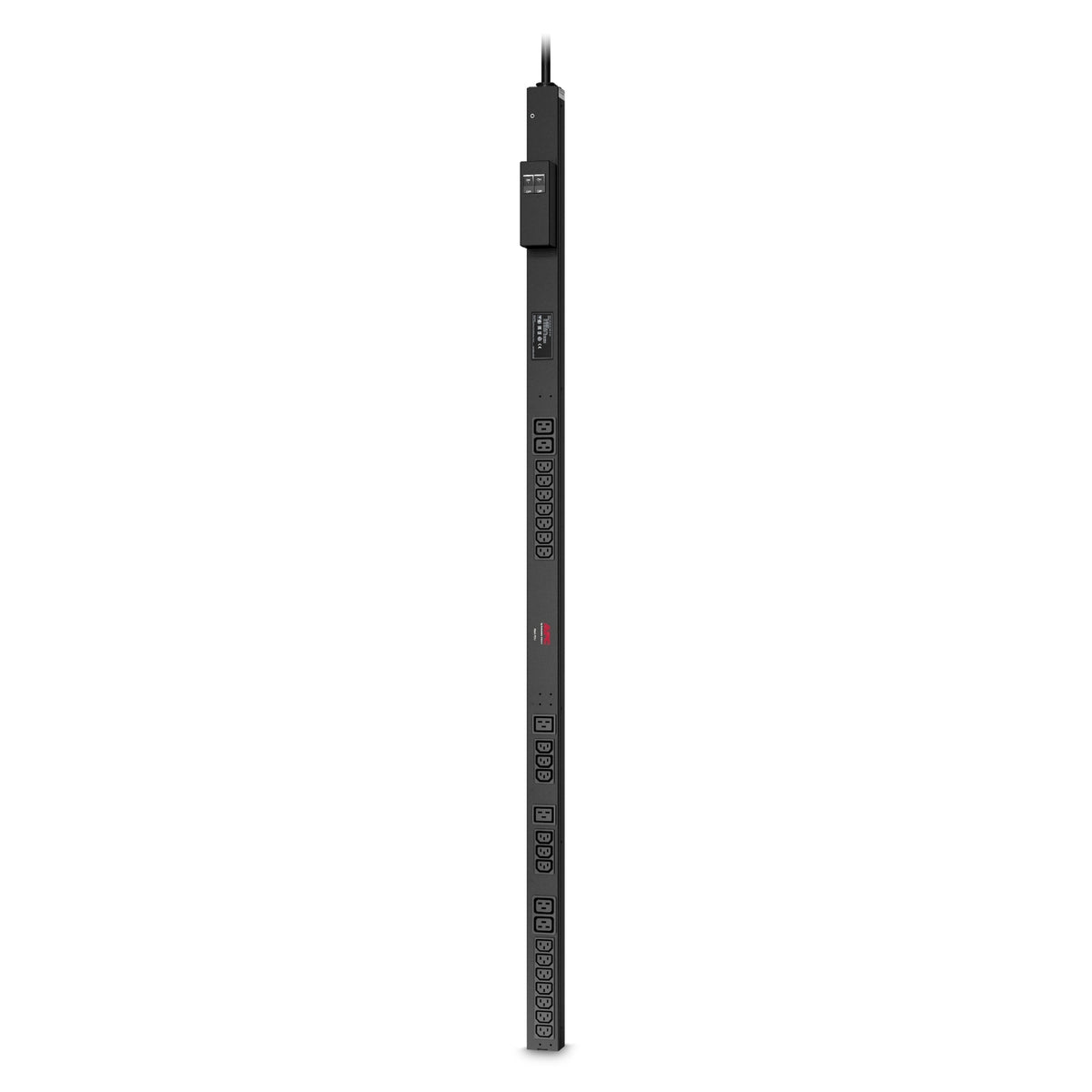

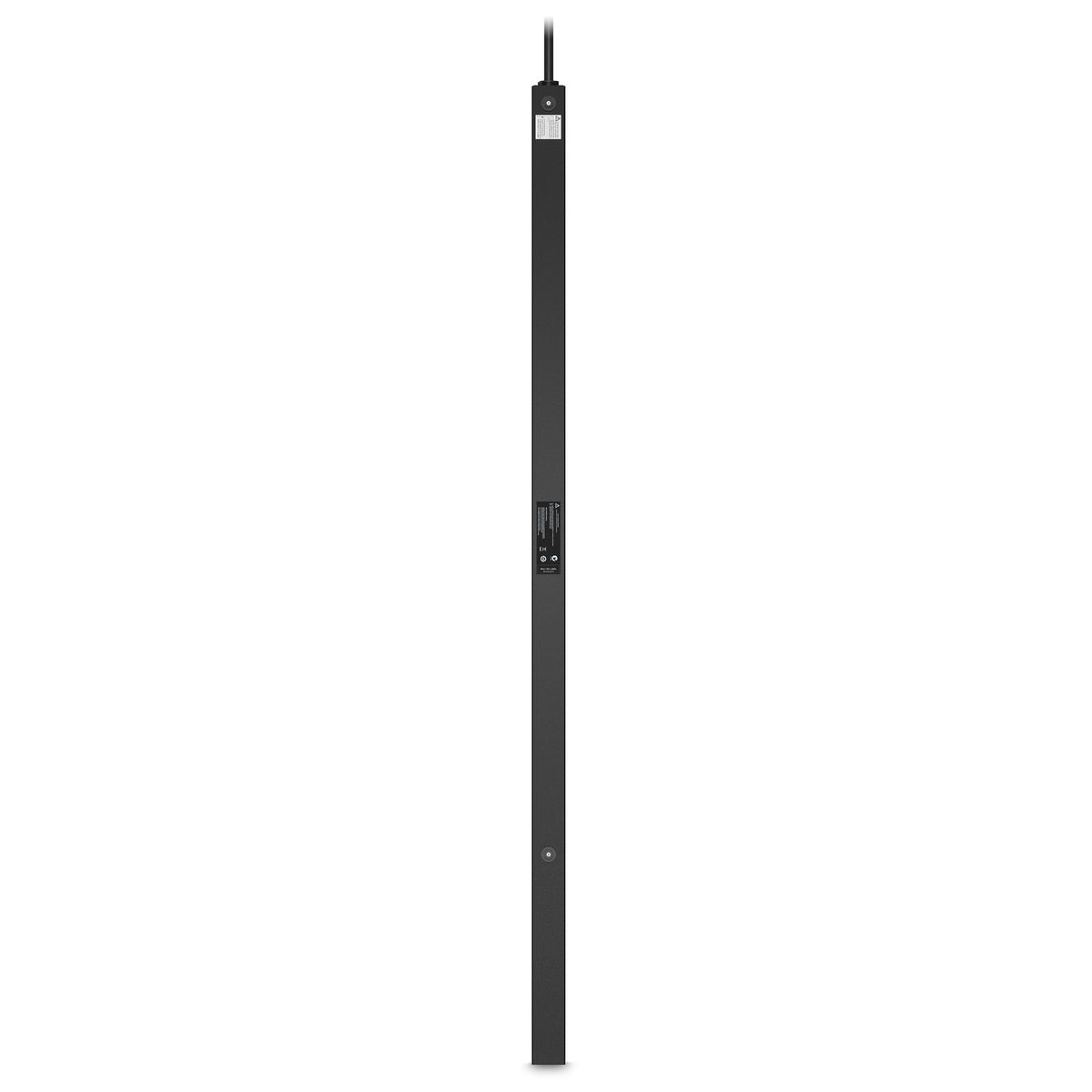

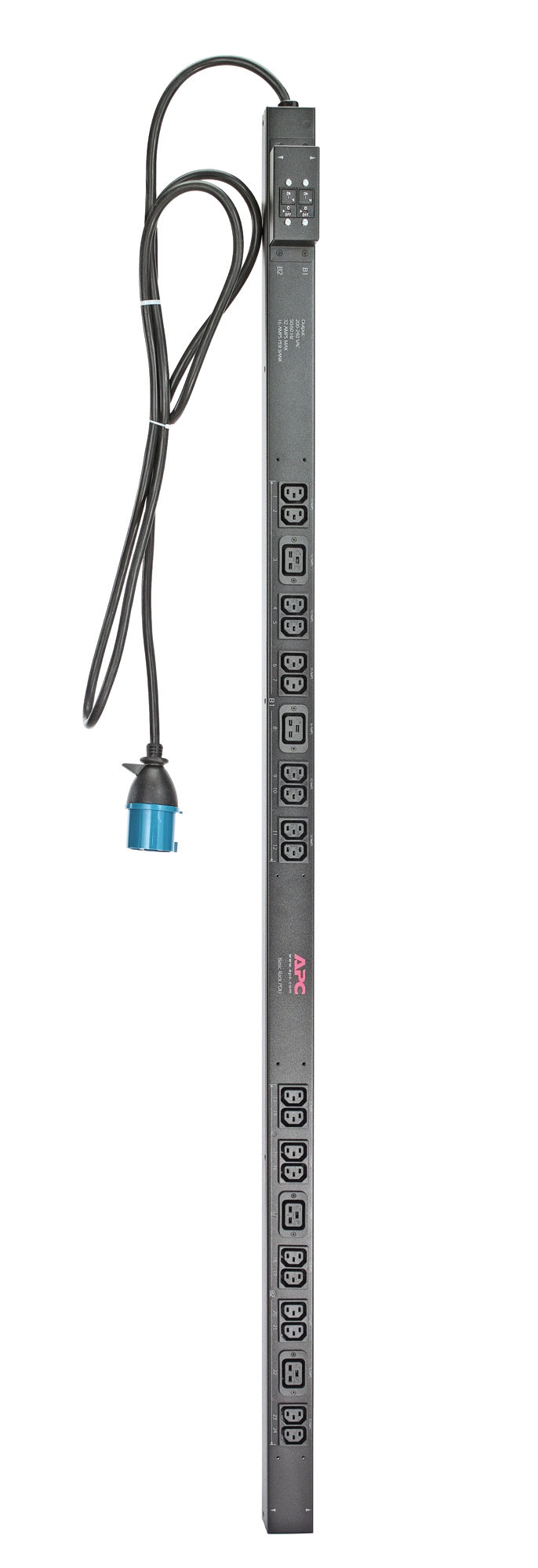

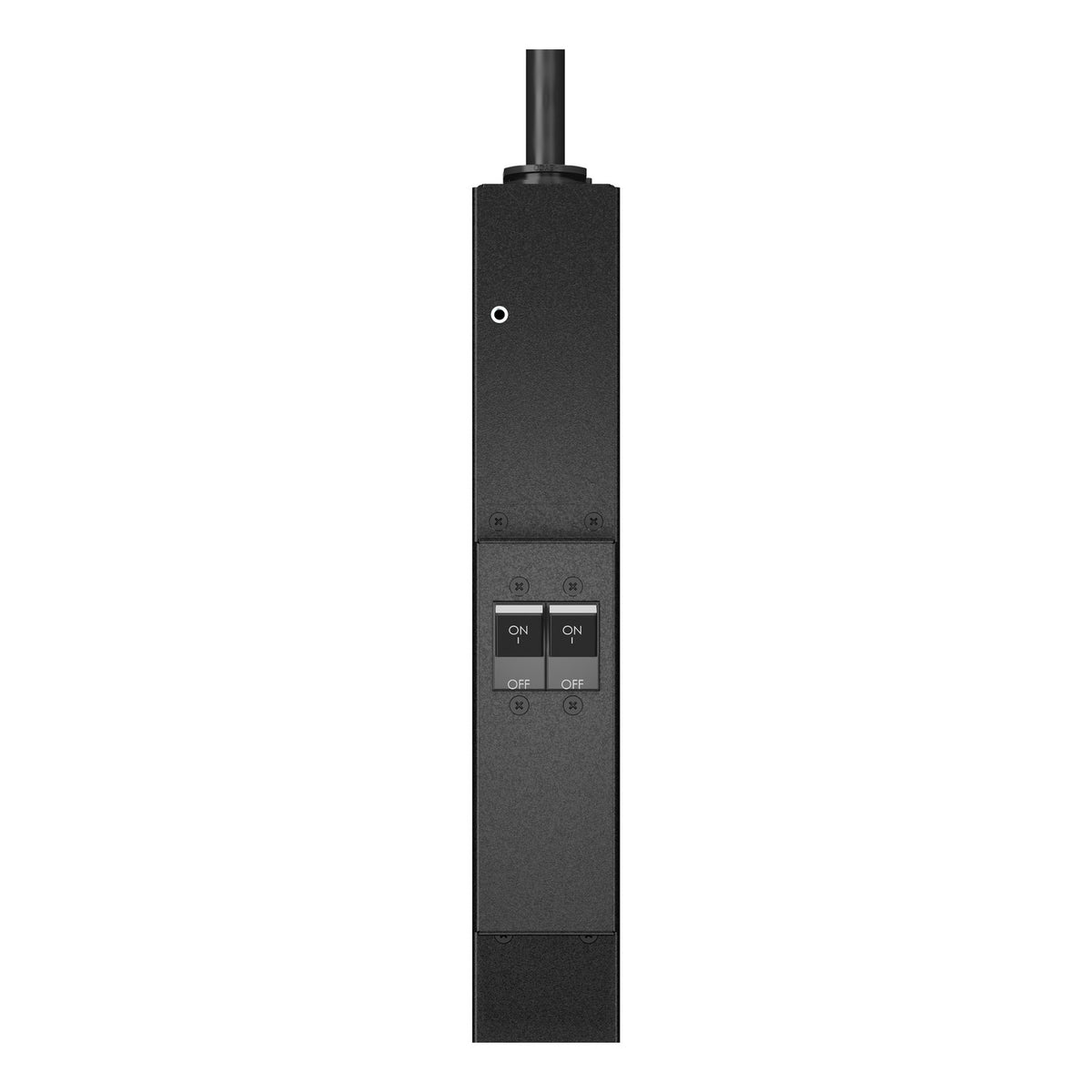

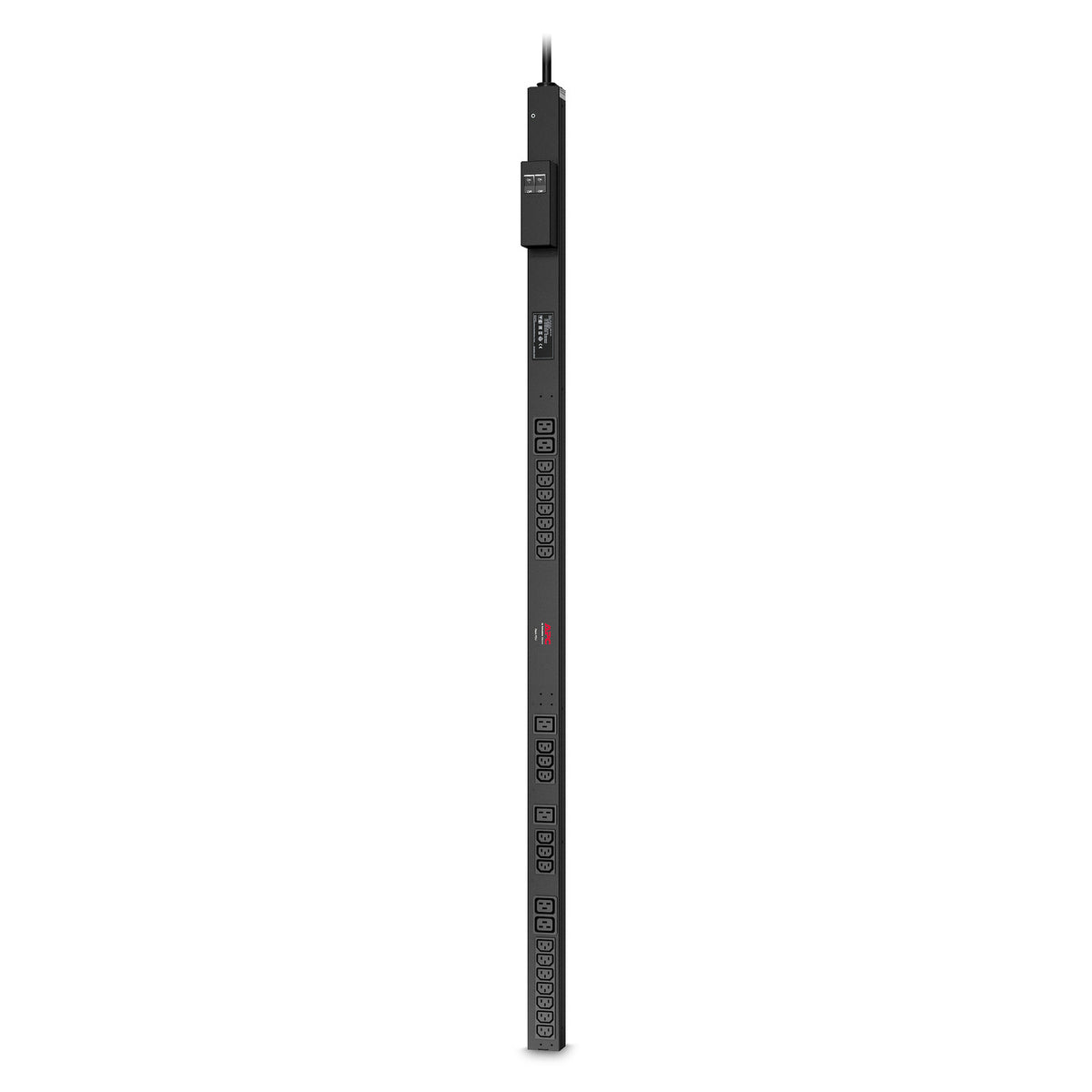

APC RACK PDU, BASIC, VERTICAL, 220-240V, 32A, (20) C13, (6) C19
Hurry up, only 4 items left in stock.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 26 AC outlet(s)
- PDU types: Basic
- Rack capacity: 0U
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 230 V
- Operating temperature (T-T): 0 - 50 °C
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Mounting: Vertical
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Power plug: IEC309
- Nominal output voltage: 230 V
- Certification: CE; EAC; IRAM; VDE
- Compliance certificates: RoHS, REACH, WEEE
- Operating altitude: 0 - 3000 m
- Total carbon footprint (kg of CO2e): 4481.3674802844
- Non-operating altitude: 0 - 15000 m
- Input connection type: IEC 60309 32 A 2P + E
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
Features
- Cable length
- 3 m
Logistics data
- Country of origin
- India
- Customs product code (TARIC)
- 8544429090
Operational conditions
- Storage temperature (T-T)
- -15 - 65 °C
Packaging data
- Package depth
- 13.5 cm
- Package height
- 187.5 cm
- Package weight
- 8 kg
- Package width
- 22.6 cm
Power
- Output voltage
- 230 V
- Power protection features
- Overload
Technical details
- Halogen free
- No
- Packaging recycled materials
- Recycled cardboard
- SCIP number
- 1cdb2fed-a06f-4574-913d-8df8e70936b2
- Sustainable packaging
- No
Weight & dimensions
- Depth
- 4.3 cm
- Height
- 162.6 cm
- Weight
- 6.18 kg
- Width
- 5.6 cm
Materials
Packaging recycled materials: Recycled cardboard
Compare With Similar Items
|
|
|
|
|
|
|
| Description | It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 32A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with an IEC 60309 32A 2P + E plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide. |

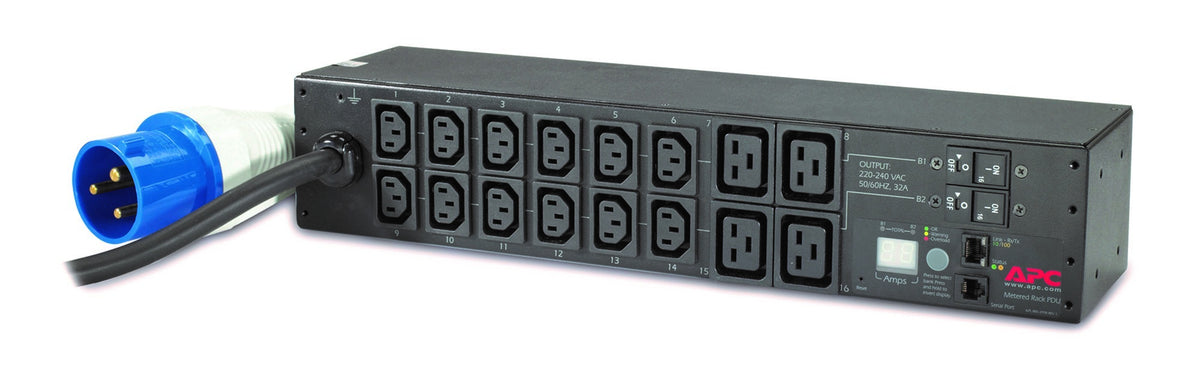

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions. |
Features: Single input power source Toolless Mounting Capabilities Vertical Mounting Capabilities |

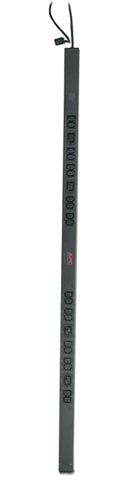

APC Basic Rack PDU , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 10 feet ( 3.05 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19. Includes: Installation guide, Rack Mounting brackets, Toolless Mounting Kit. |

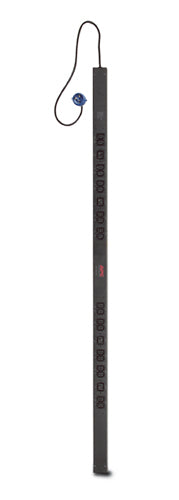

APC Basic Rack PDU, Input: 230V, Input Connections: IEC 309 16A 2P+E, Cord Length: 3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19. Includes: Installation guide, Toolless Mounting Kit. |
