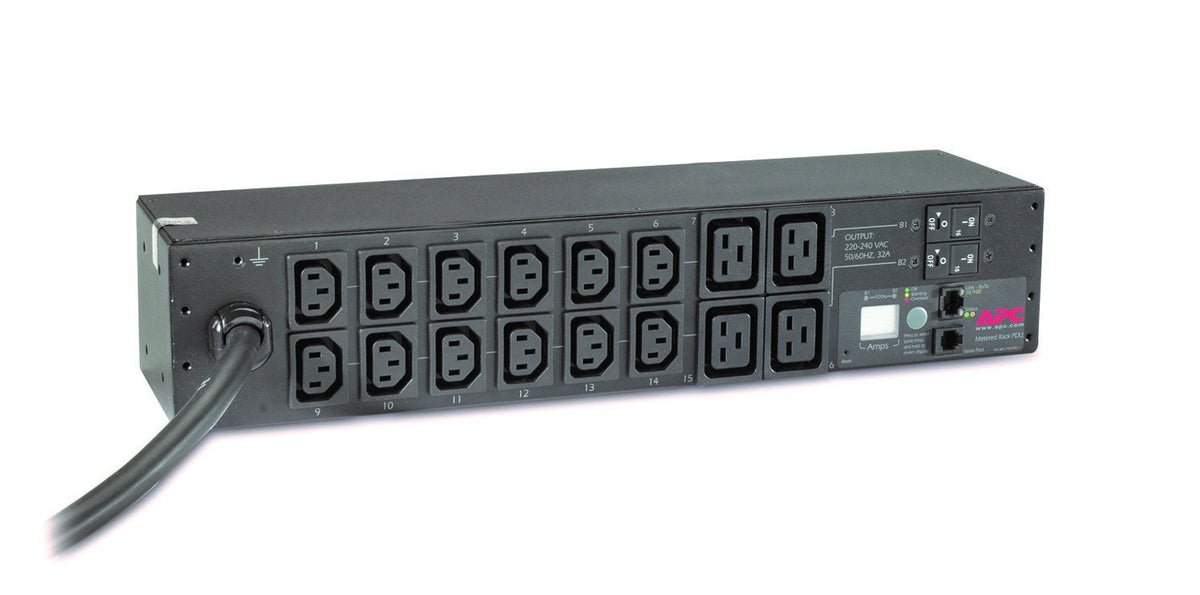

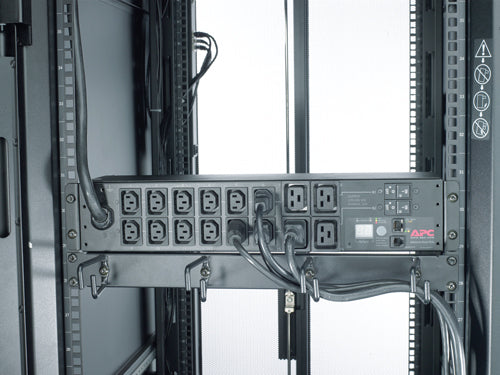

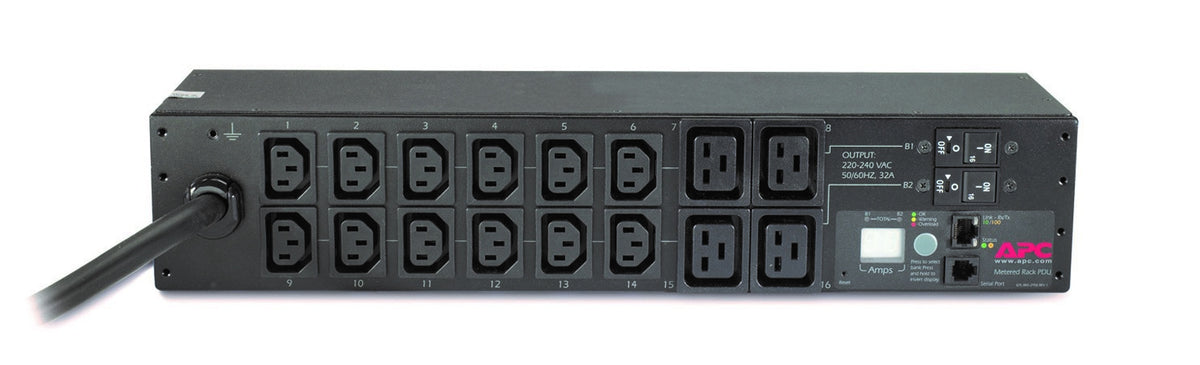

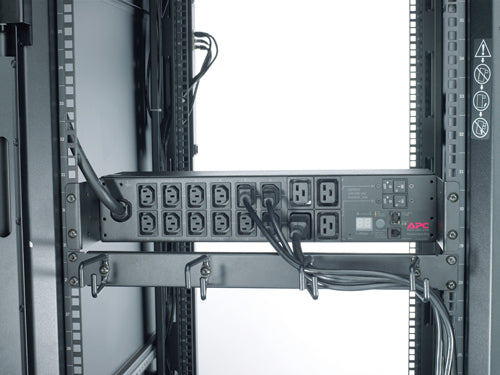

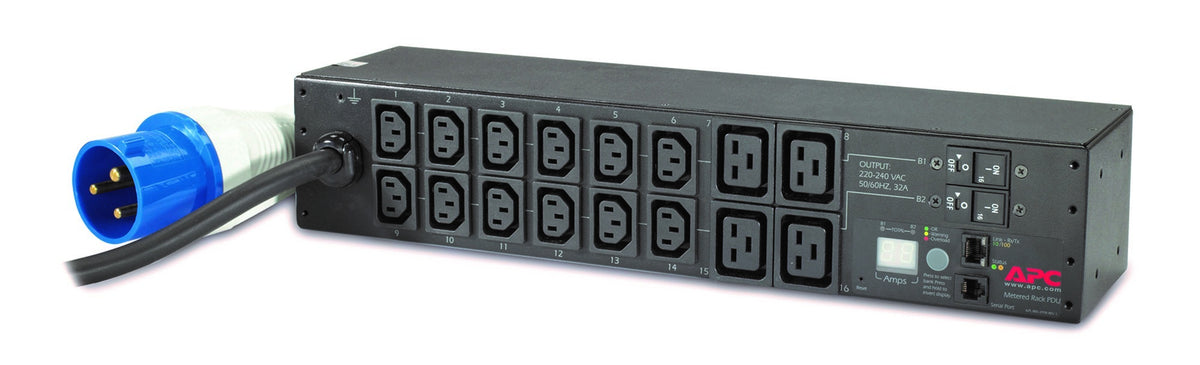

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black
Hurry up, only 9 items left in stock.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 16 AC outlet(s)
- PDU types: Metered
- Rack capacity: 2U
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 208-230 V
- Operating temperature (T-T): -5 - 45 °C
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Mounting: Horizontal/Vertical
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Power plug: IEC309
- Certification: C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
- Compliance certificates: RoHS
- Type: Single-phase
- Maximum power: 7680 W
- Maximum input current per phase: 32 A
- Total carbon footprint (kg of CO2e): 8952.07
- Maximum total current draw per phase: 32 A
Design
- On/off switch
- Yes
Features
- Cable length
- 3.66 m
- LED indicators
- Yes
Management features
- Monitoring
- Current, Power, Voltage
Operational conditions
- Storage temperature (T-T)
- -25 - 65 °C
Packaging data
- Package depth
- 36.8 cm
- Package height
- 14 cm
- Package weight
- 5.41 kg
- Package width
- 50.8 cm
Ports & interfaces
- Input connection type
- IEC 309 32A 2P+E
- Output connections
- 12 x C13\n4 x C19
Power
- Load capacity
- 7680 VA
- Power protection features
- Overload
Weight & dimensions
- Depth
- 11.2 cm
- Height
- 8.8 cm
- Weight
- 3.36 kg
- Width
- 44.4 cm
Materials
