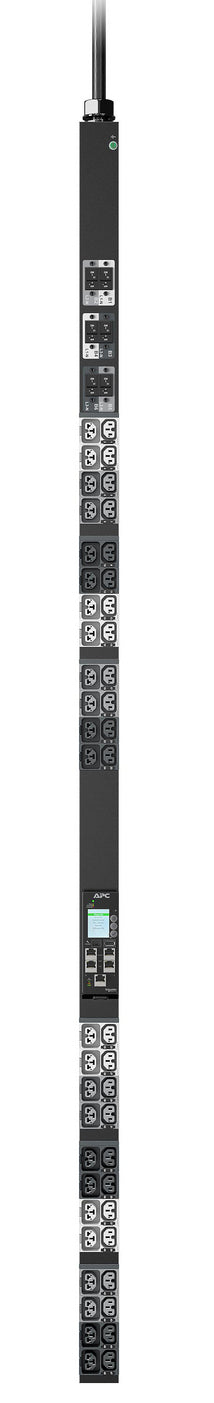

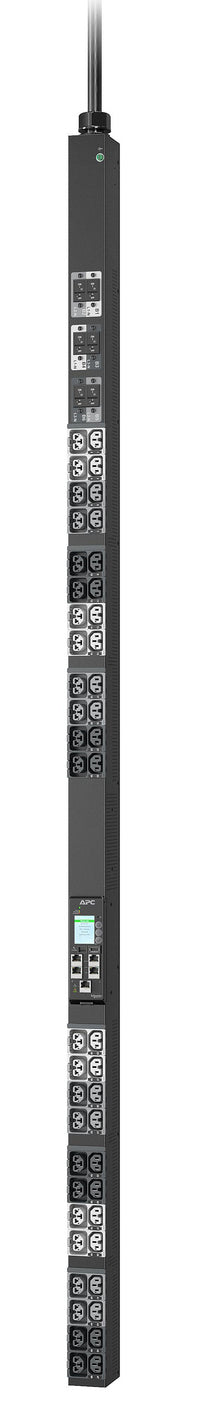

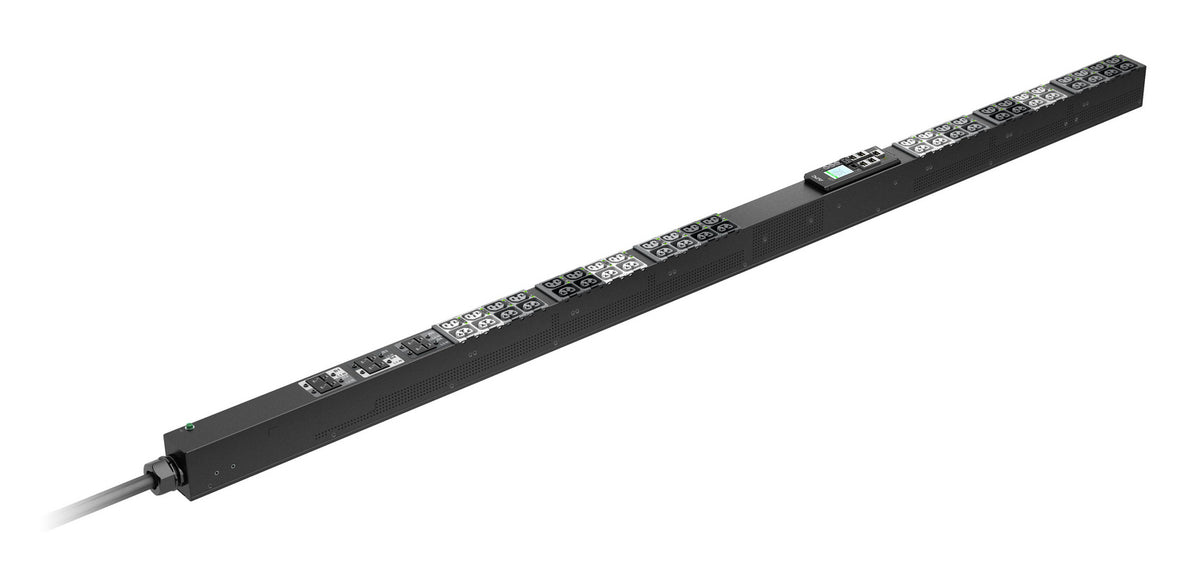

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet
Regular price
$6,615.33
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

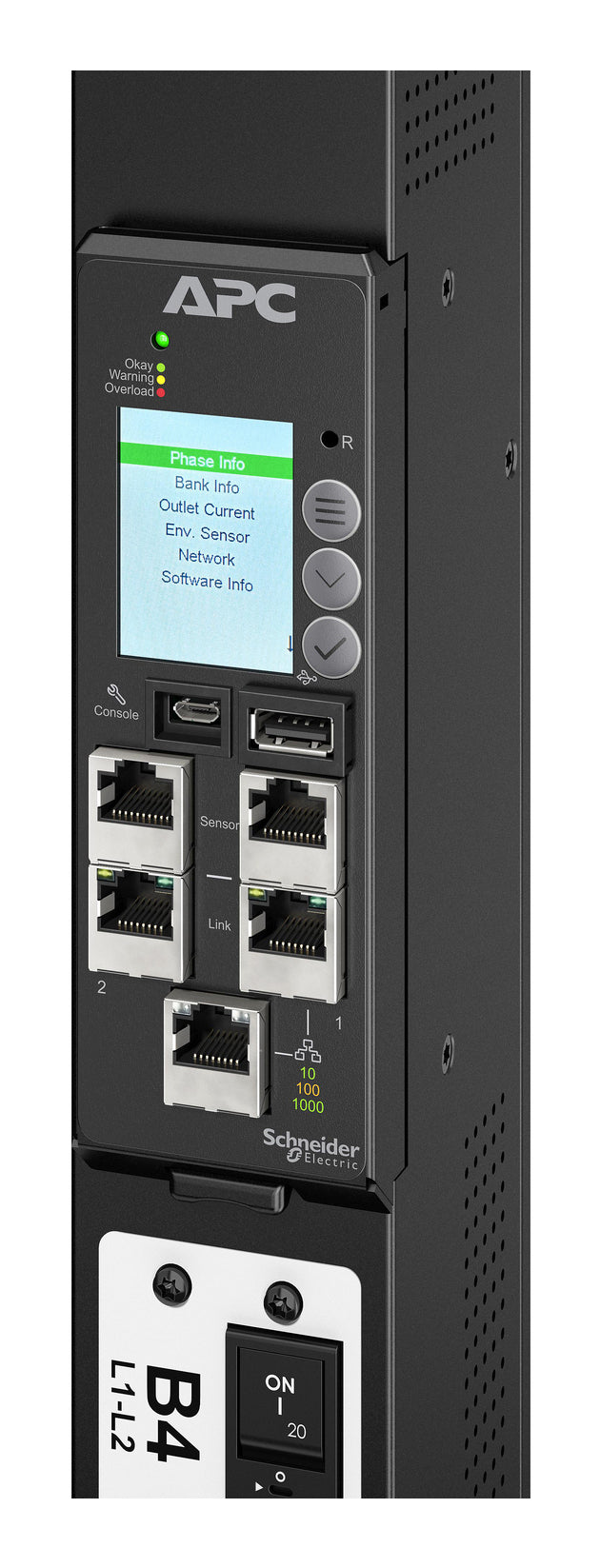

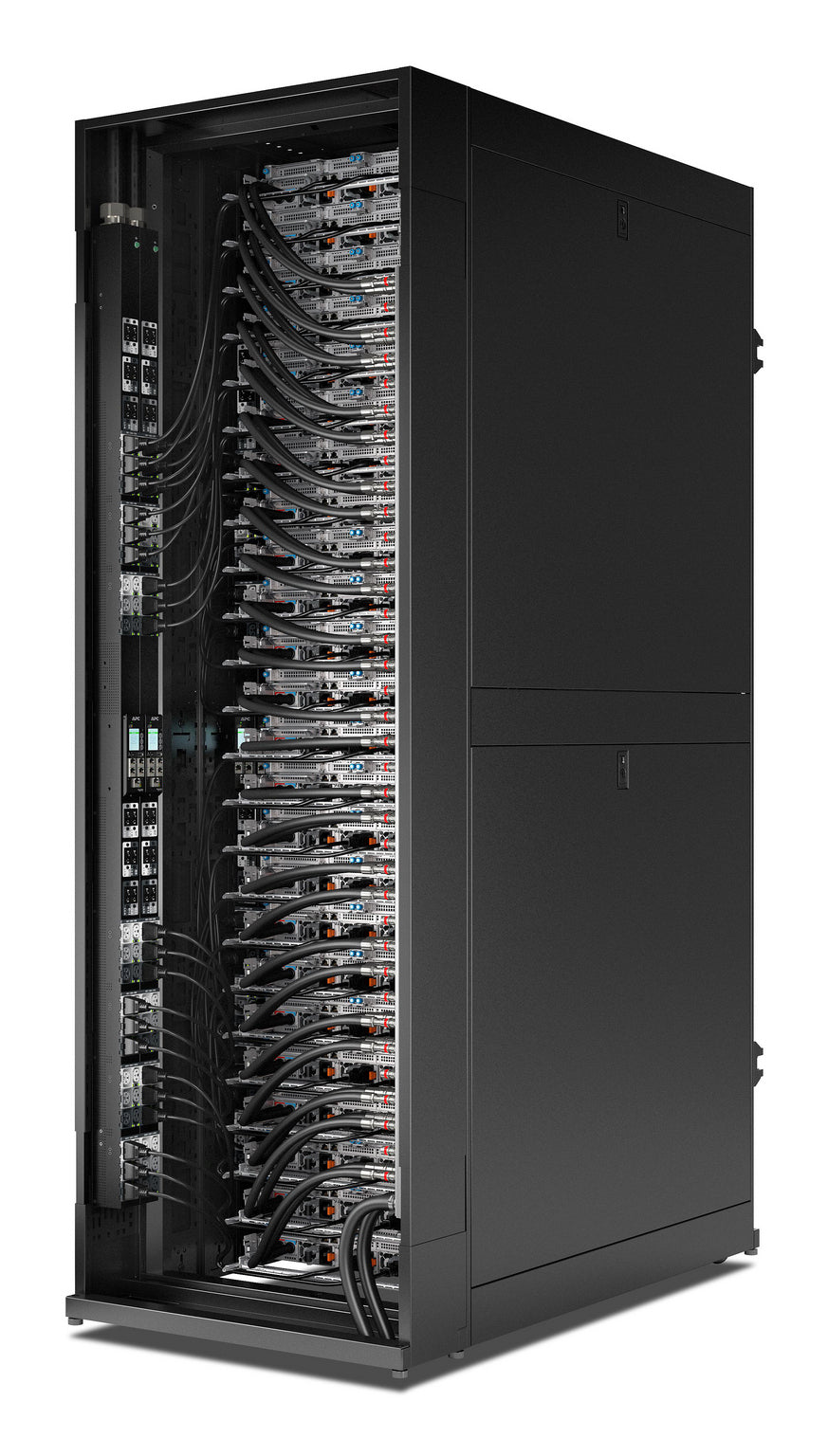

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 42 AC outlet(s)
- PDU types: Metered
- Rack capacity: 0U
- AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler
- Nominal input voltage: 415 3 phases; 400 3 phases
- AC input frequency: 50/60 Hz
- Maximum current: 60 A
- Nominal output voltage: 400 V
- Certification: UKCA
- Compliance certificates: RoHS, REACH, WEEE
- Type: Three-phase
- Input connection type: IEC 60309 30 A 3P + N + PE
- Ethernet LAN (RJ-45) ports: 5
- Number of phases: 3
- USB ports quantity: 1
- Country of origin: Ireland
- Sustainable packaging: No
- SCIP number: 31346aed-552c-4a16-81d9-e683a383b6da
- Waste Electrical and Electronic Equipment (WEEE) compliance: Yes
Features
- Cable length
- 3 m
Logistics data
- Customs product code (TARIC)
- 8537109899
Management features
- Management platform
- NMC3
Packaging data
- Package depth
- 26.2 cm
- Package height
- 211 cm
- Package weight
- 17 kg
- Package width
- 13.2 cm
Power
- Load capacity
- 34600 VA
- Output voltage
- 240 V
Technical details
- Removable battery
- No
Weight & dimensions
- Depth
- 7.5 cm
- Height
- 178 cm
- Weight
- 9.6 kg
- Width
- 5.6 cm
Materials
