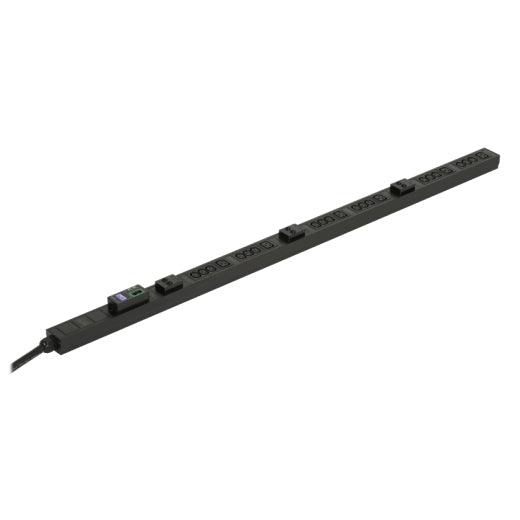

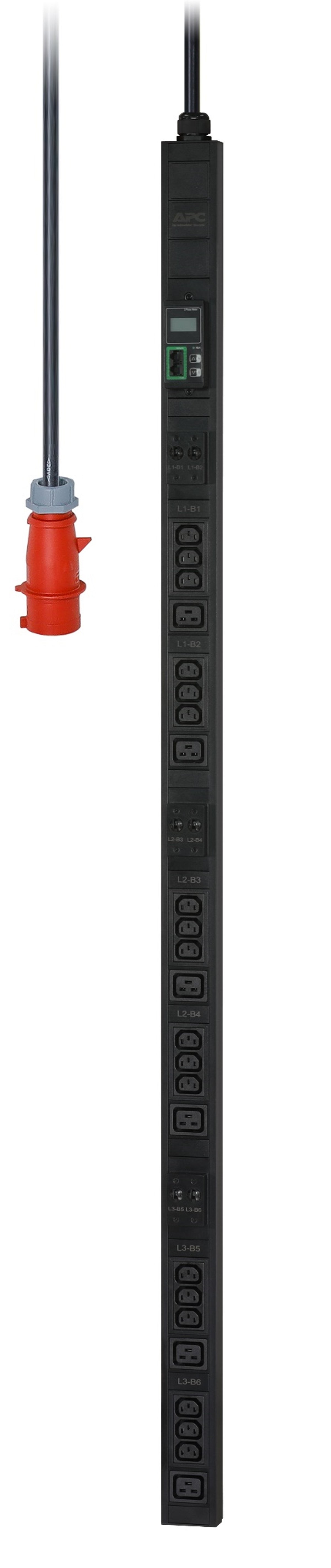

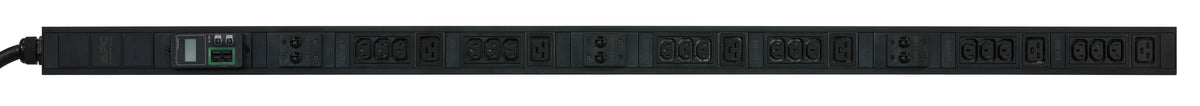

APC Easy Rack PDU, Metered, 0U, 3 Phase, 22kW, 230V, 32A, 18 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet
Out of stock
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 32 AC outlet(s)
- PDU types: Metered
- Rack capacity: 0U
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 400 V
- Operating temperature (T-T): -5 - 45 °C
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Mounting: Vertical
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Power plug: C13 coupler
- Nominal output voltage: 230 V
- Certification: CE, EAC, RCM, TUV
- Compliance certificates: RoHS
- Type: Three-phase
- Maximum power: 22000 W
- Total carbon footprint (kg of CO2e): 37789.25

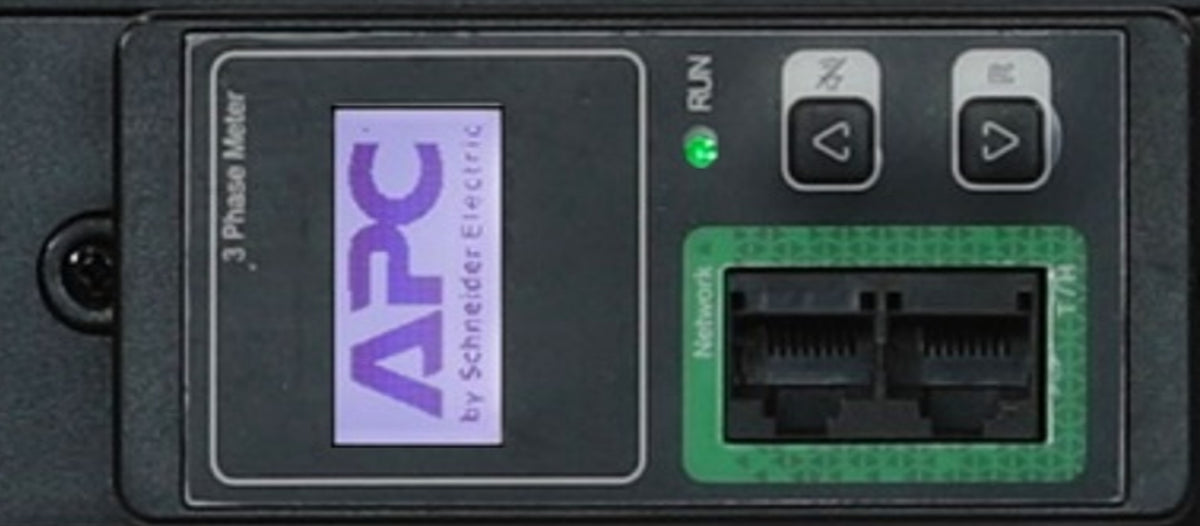

- Display: LCD
Design
- Housing material
- Aluminium
- On/off switch
- No
Features
- Daisy chain
- No
- LED indicators
- Yes
- Reset button
- Yes
Management features
- Monitoring
- Current, Power, Voltage
Operational conditions
- Storage temperature (T-T)
- -25 - 65 °C
Power
- Load capacity
- 22080 VA
- Output voltage
- 230 V
Weight & dimensions
- Depth
- 4.4 cm
- Height
- 150.6 cm
- Weight
- 4.64 kg
- Width
- 6.2 cm
Materials
Housing material: Aluminium
Compare With Similar Items
|
|
|
|
|
|
|
| Description | APC Easy Metered Rack PDU EPDU1232M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1232M has IEC 309 32A 3P+N+E type inlet, eighteen IEC C13 and six IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. |
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13. |
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager |
Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13 Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit
|
Description: APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19 Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual
|
