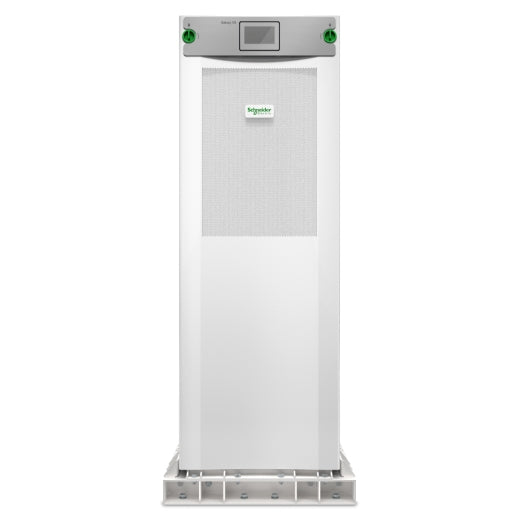

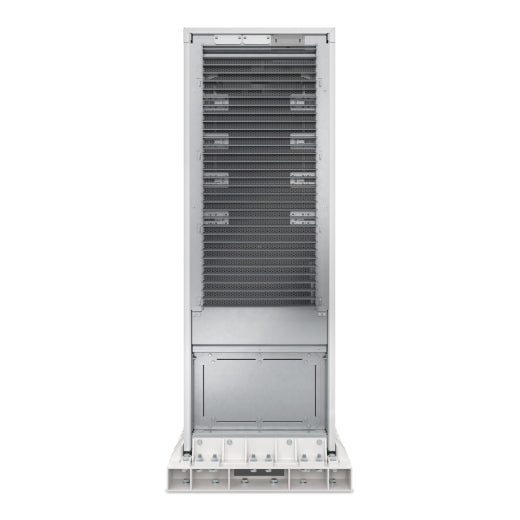

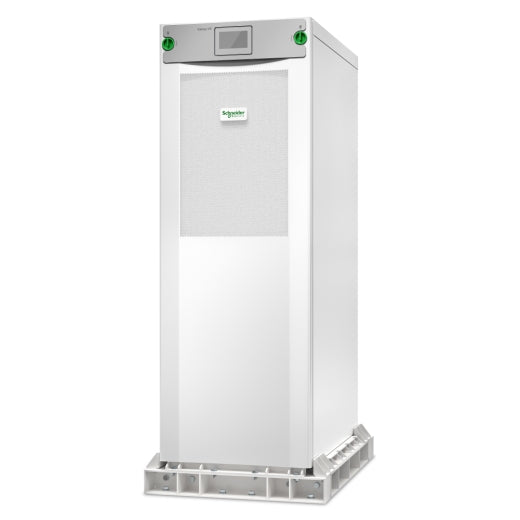

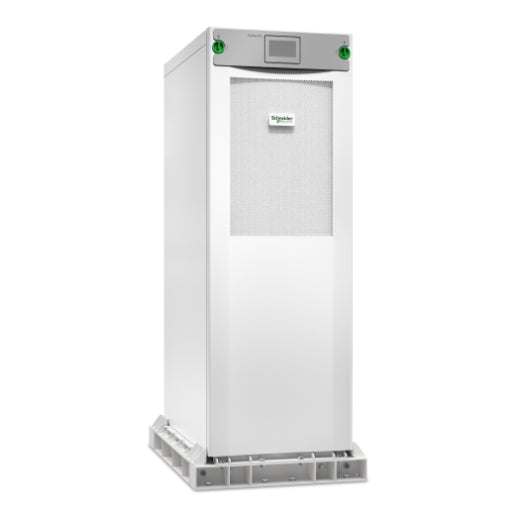

APC Galaxy VS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Out of stock
Includes: Dust filter, EcoStruxure IT ready (UPS), Installation guide, Integrated network management, Power modules ship installed, Start-up service
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
EcoStruxure IT Expert
From your smartphone or computer, connect to our cloud-based, do-it-yourself monitoring system that collects, organizes, and distributes critical alerts and key information in real time, providing a unified view of even highly distributed physical infrastructure environments. Optimize your uptime and maintenance planning, and anticipate infrastructure issues before they occur with advanced analytics and performance benchmarking. Available in select countries.
Multiple levels of service offers
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like Schneider Electric to do for you.

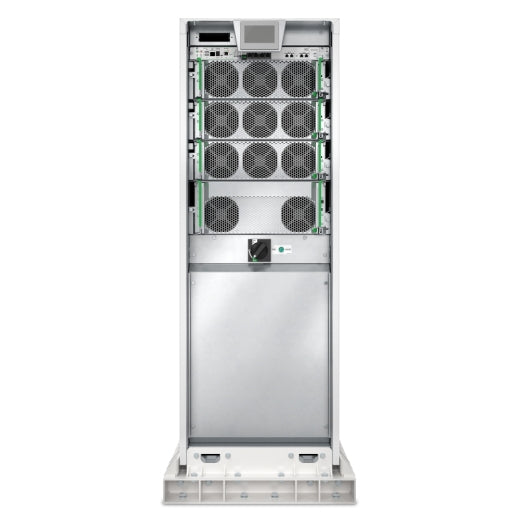

Modular UPS design
Provides design redundancy and fast serviceability with improved mean time to repair, via self-diagnosing, field-replaceable modules.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
High efficiency in double conversion mode
Consistently high power quality at high efficiency, even at low load levels. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Robust operation
No power derating in kW up to 40°C or 104°F.
ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
Compatible with Galaxy Lithium-ion Battery Cabinets
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability. Galaxy VS UPSs for external batteries are compatible with Galaxy Lithium-ion Battery Cabinets.
Compact UPS
High-density technology and full front access make this UPS a footprint saver well suited for confined spaces.
Flexible DC bus
Optimizes battery sizing and supports a wide range of energy storage technologies, including VRLA, Li-ion, and NiCd batteries.
Embedded Network Management Card
Allows you to remotely manage alert thresholds and monitor your UPS over EcoStruxure IT, Web, SNMP, or Modbus TCP and Modbus RTU.
Parallel-redundant capability
Powers the connected equipment with multiple uninterruptible power supplies and redundant fan design to increase system redundancy.
Built-in backfeed protection
Full built-in backfeed contactor ensures that no electricity is sent back to the grid.
Parallel-capacity capability
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: White
- Output power capacity: 20 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Input frequency: 40 - 70 Hz
- Waveform: Sine
- Storage relative humidity (H-H): 10 - 80%
- Input operation voltage (max): 460 V
- Input operation voltage (min): 340 V
- Form factor: Tower
- UPS topology: Double-conversion (Online)
- Battery technology: Lithium-Ion (Li-Ion)
- Operating altitude: 0 - 1005.84 m
- Certification: EN/IEC 62040-1, EN/IEC 62040-2, FCC, IEC 60721-4-2, UL\n1778
- Output operation voltage (max): 400 V
- Audible alarm(s): Yes
- Display type: LCD
- Output frequency: 50/60 Hz
- Crest factor: 2.5:1
- International Protection (IP) code: IP21
Battery
- Battery voltage
- 576 V
Design
- Built-in fan
- Yes
- Control type
- Touch
- Cooling type
- Active
Features
- ECO mode
- Yes
- Input current Total Harmonic Distortion (THD)
- 5%
- Management protocols
- SNMP, Modbus TCP, Modbus RTU
- Maximum current
- 30 A
- Noise level
- 68 dB
- Number of input phases
- 3
- Number of output phases
- 3
- Output power
- 20000 W
- Output voltage Total Harmonic Distortion (THD)
- 1%
- Power protection features
- Overload, Short circuit
Operational conditions
- Storage temperature (T-T)
- -25 - 55 °C
Other features
- Bypass
- Static
Packaging content
- Quick installation guide
- Yes
Packaging data
- Package depth
- 99 cm
- Package height
- 168 cm
- Package type
- Box
- Package weight
- 250 kg
- Package width
- 64 cm
Weight & dimensions
- Depth
- 84.7 cm
- Height
- 148.5 cm
- Weight
- 206 kg
- Width
- 52.1 cm
Materials
