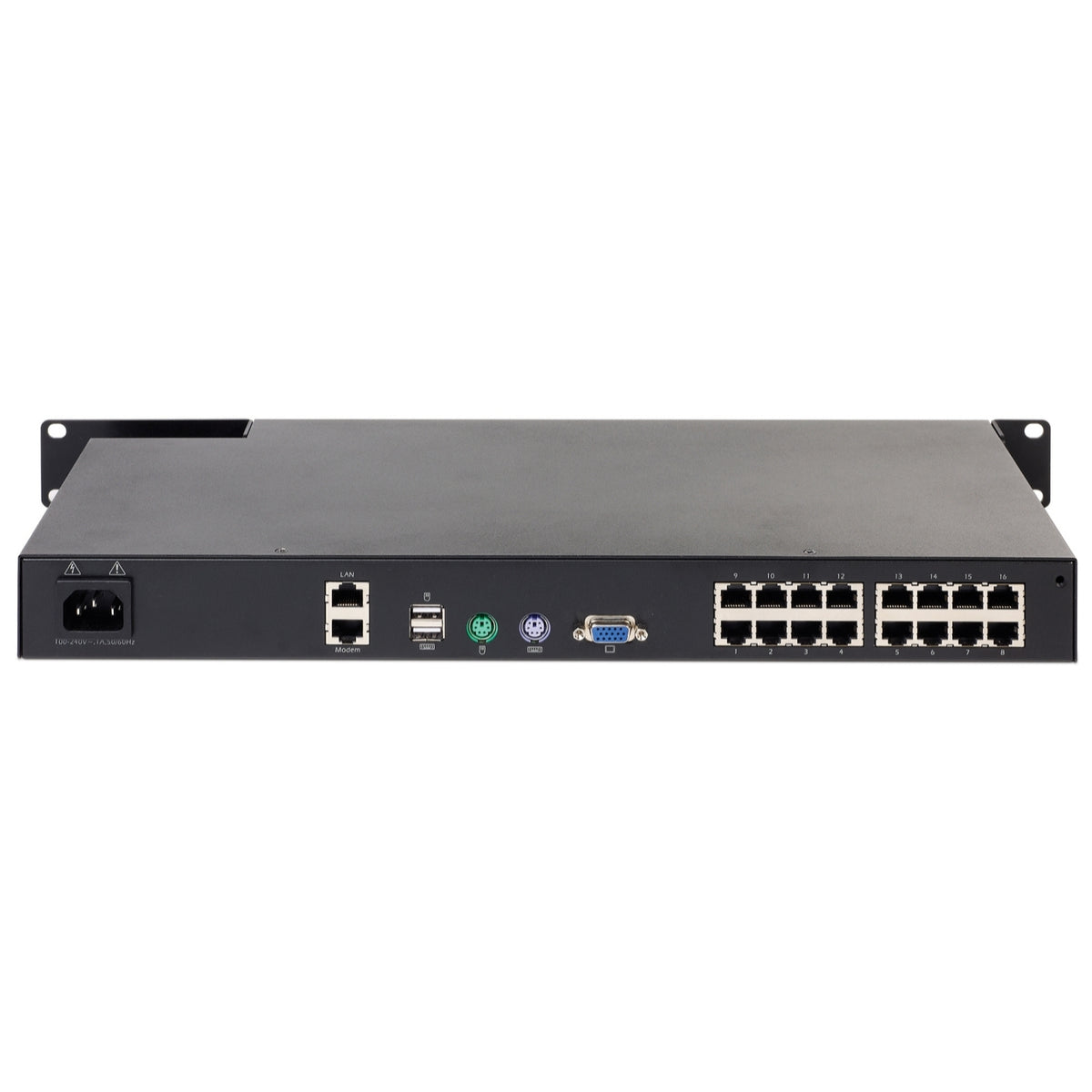

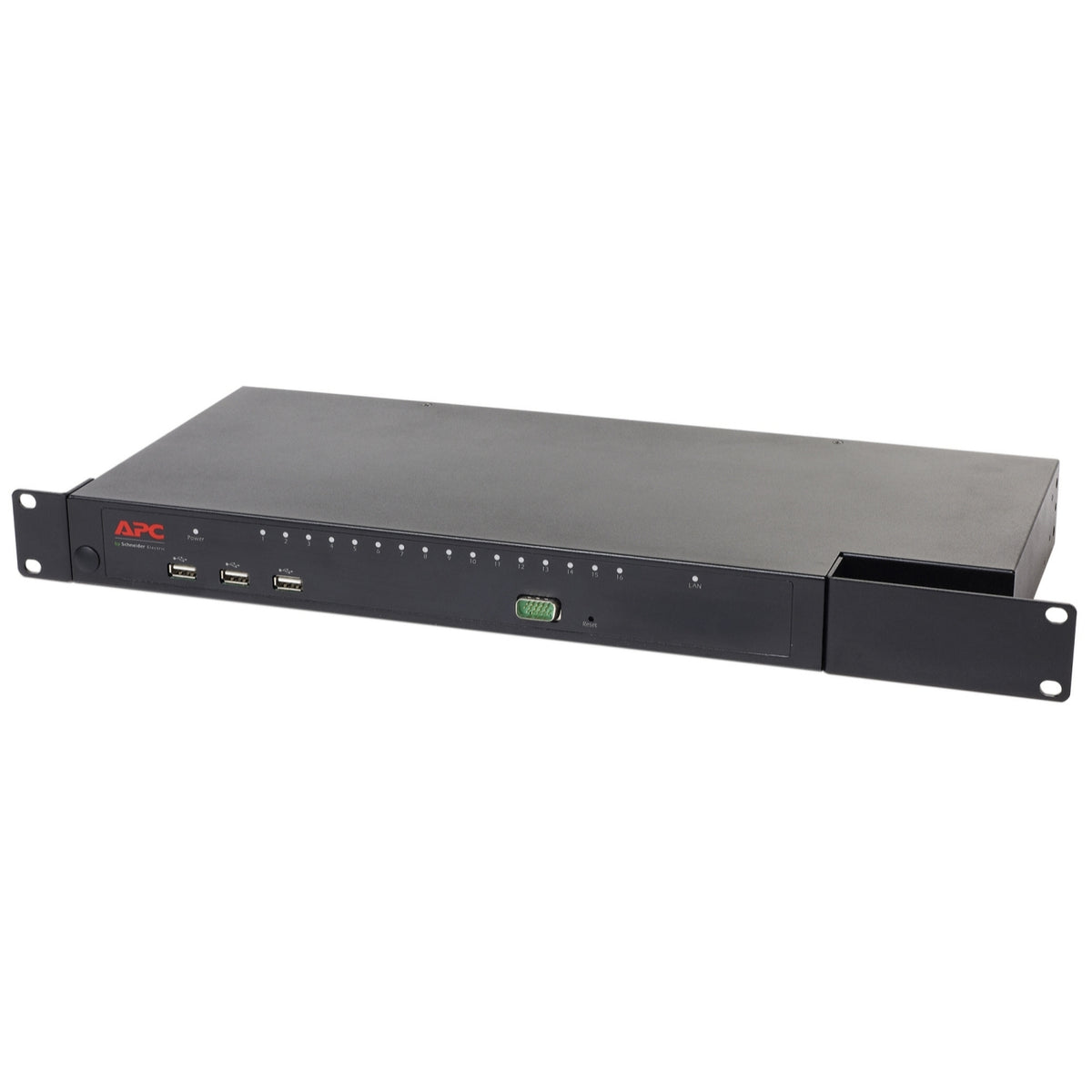

APC KVM1116R KVM switch Rack mounting Black
Regular price
$3,158.14
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The APC KVM 2G Digital/IP Switch supports one remote and one local user, with sixteen ports and virtual media. It is a 1U rack-mountable device. It supports various input voltages and frequencies, and includes a CD with software, installation guide and rack-mount brackets.
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Occupies 1U of rack space
Conserve valuable rack space in the data center.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support
Windows, Sun, Unix and Linux compatible.
Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: PS/2
- Mouse port type: PS/2
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 0 - 80%
- Video port type: VGA
- Number of computers controlled: 16
- Built-in display: No
- Rack mounting: Yes
- Harmonized System (HS) code: 85176200
- Compliance certificates: RoHS
- Certification: C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE
- Ethernet LAN: Yes
- Storage relative humidity (H-H): 0 - 80%
- Ethernet LAN (RJ-45) ports: Yes
- VGA (D-Sub) ports quantity: 1
- AC input frequency: 50 - 60 Hz
- Rack capacity: 1U
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 33 cm
- Package height
- 14.6 cm
- Package weight
- 3.99 kg
- Package width
- 61.9 cm
Weight & dimensions
- Depth
- 18.8 cm
- Height
- 4.3 cm
- Weight
- 2.59 kg
- Width
- 42.4 cm
Materials
