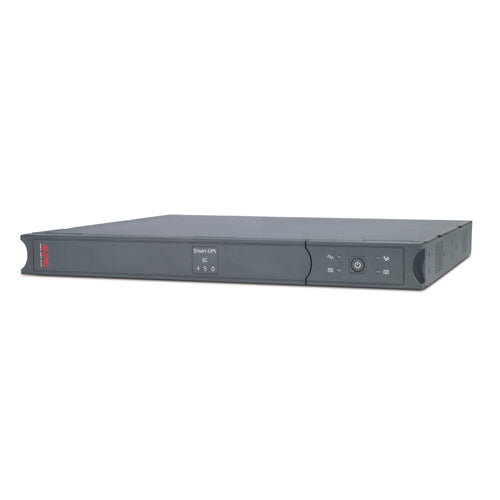

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
Regular price
$495.34
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.

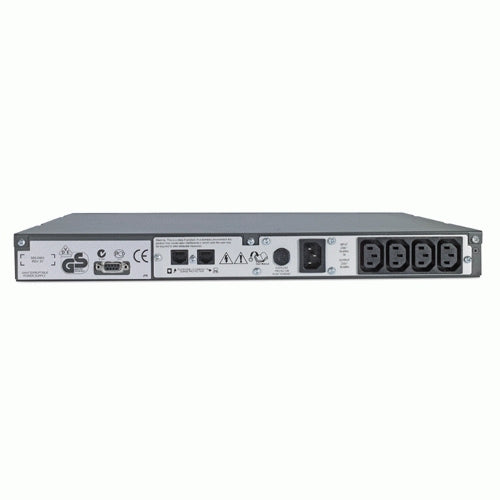

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Grey
- Output power capacity: 0.45 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Input frequency: 50/60 Hz
- Waveform: Sine
- Storage relative humidity (H-H): 0 - 95%
- Input operation voltage (max): 302 V
- Input operation voltage (min): 151 V
- Form factor: Rackmount/Tower
- UPS topology: Line-Interactive
- AC outlet types: C13 coupler
- Battery technology: Sealed Lead Acid (VRLA)
- Operating altitude: 0 - 3000 m
- Certification: C-tick, CE, GOST, VDE, PEP, EOLI
- Harmonized System (HS) code: 85078000
- Battery recharge time: 5 h
- Audible alarm(s): Yes
- Non-operating altitude: 0 - 15000 m
- Compliance certificates: RoHS
Battery
- Automatic battery test
- Yes
- Battery capacity
- 108 VAh
- Battery life (max)
- 5 year(s)
- Hot-swap battery
- Yes

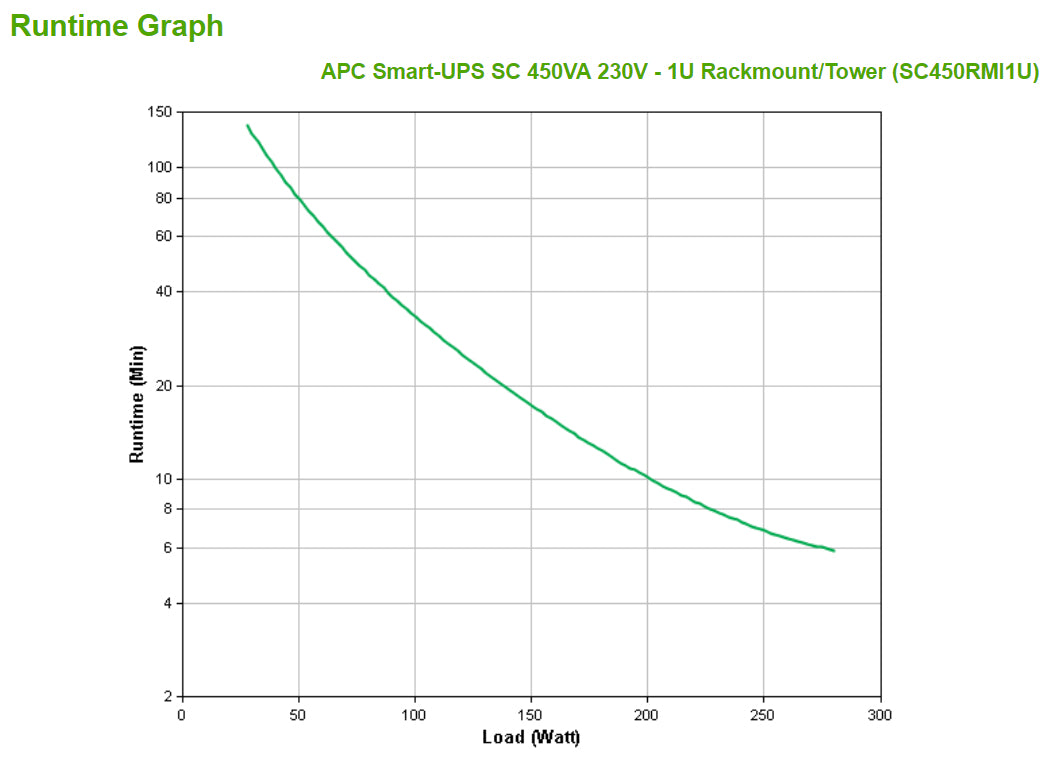

- Typical backup time at full load
- 5.9 min
- Typical backup time at half load
- 19.4 min
Design
- LED indicators
- Battery replacement
- Rack capacity
- 1U
Features
- Audible alarm modes
- Low battery alarm, Overload alarm
- Auto-restart
- Yes
- Automatic Voltage Regulation (AVR)
- Yes
- Hold time (max)
- 8 ms
- Hold time (min)
- 4 ms
- Noise level
- 38 dB
- Output power
- 280 W
- Surge energy rating
- 320 J
- Surge protection
- Yes
- Surge protection features
- Digital Subscriber Line (DSL), Fax, Modem, Network
Logistics data
- Products per pallet
- 24 pc(s)
- Total carbon footprint (kg of CO2e)
- 484.92
Operational conditions
- Storage temperature (T-T)
- -15 - 45 °C
Other features
- Nominal output voltage
- 230 V
Packaging content
- Cables included
- RS-232
- Management card included
- No
- Manual
- Yes
- Rack mount kit
- Yes
Packaging data
- Package depth
- 58.9 cm
- Package height
- 16.4 cm
- Package weight
- 11.7 kg
- Package width
- 47.6 cm
- Software CD
- Yes
Ports & interfaces
- AC outlets quantity
- 4 AC outlet(s)
- Number of output IEC jumpers
- 2
- Power plug
- C14 coupler
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- SmartConnect port
- No
- SmartSlot
- No
Weight & dimensions
- Depth
- 38.3 cm
- Height
- 4.4 cm
- Weight
- 10.2 kg
- Width
- 43.2 cm
Cables included: RS-232
Manual
Manual
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. |
Stay always online and prevent data loss An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures do not affect this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the included Powershute Network Shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner. This prevents data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SRT6KRMXLI can independently supply emergency power by connecting external battery packs (SRT192RMBP). A runtime of several hours is even possible. Availability The Smart-UPS On-Line has an internal bypass and uses double conversion, which maximizes the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used. Safety In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Rackmount The APC Smart-UPS SRT is easy to operate in the rack thanks to a tiltable graphic LCD screen. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack(4U). Manage your Smart-UPS Thanks to the integrated network card, you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software. PowerChute Network Shutdown PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines in the correct manner and the preconfigured boot sequence ensures that they are turned on again. *For HCI and virtual machine support an additional license is required: 1 year: SWPCNS1Y-DIGI 3 years: SWPCNS3Y-DIGI 5 years: SWPCNS5Y-DIGI Remote management and monitoring of your network The network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below. Support contract The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with: • New and improved functions • Security updates • Advanced support (The functionality of the support contract is included free of charge in the first year of the UPS) *The above license and available in the variants: 1 year: SWNMC3SU-1Y-DIGI Up to (Replace the bold number in the article number with the desired variant) 6 years: SWNMC3SU-6Y-DIGI Extend the lifespan The internal battery cartridge (APCRBC140) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT6KRMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online. Warranty extension The factory warranty of the SRT6KRMXLI is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS. It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely. You can also switch off non-critical loads; this extends the runtime for critical equipment. This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. |
Stay always online and prevent data loss An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the included Powershute Network Shutdown software you can even have critical IT hardware shut down in an automated and controlled manner. This prevents data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SRT5KRMXLI can independently supply emergency power by connecting external battery packs (SRT192RMBP). A runtime of several hours is even possible. Availability The Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un- Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used. Safety In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Rack mount The APC Smart-UPS SRT is easy to operate in the rack thanks to a tiltable graphic LCD screen. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack. Manage your Smart-UPS Thanks to the integrated network card, you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software. PowerChute Network Shutdown PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on. *An additional license is required for HCI and virtual machine support: 1 year: SWPCNS1Y-DIGI 3 years: SWPCNS3Y-DIGI 5 years: SWPCNS5Y-DIGI Remote management and monitoring of your network The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below. Support contract The optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with: • New and improved features • Security updates • Advanced support *The above license is available in the variants: 1 year: SWNMC3SU-1Y-DIGI 3 years: SWNMC3SU-3Y-DIGI 5 years: SWNMC3SU-5Y-DIGI Extend the lifespan The internal battery cartridge (APCRBC140) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT5KRMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online. Warranty extension The manufacturer's warranty of the SRT5KRMXLI is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05). Maximize availability Or instead of extending the warranty, opt for the even more complete 5-year Monitoring & Dispatch Service (WMD5YOSNBD-SP-05) to maximize the availability of your APC UPS. In addition to a 5-year warranty, it also includes 24/7 remote monitoring through the Schneider Electric Connected Services Hub and SE's on-site repair service (replacement parts, labor, installation and call-out charges). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS. It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely. You can also eliminate non-critical loads; Like this extend the runtime for critical equipment. Green Premium This label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products. Green Premium: - Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average. - Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/ - Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh) Included in the box 1x SRT5KRMXLI 1x C13 to C14 power cord 1.2 meters 1x C13 to C14 power cord 2 meters 1x PowerChute Network Shutdown (CD) 1x Installation manual 1x Rack mounting brackets 1x temperature sensor (AP9335T) 1x USB cable 1x 2.5MM to DB9 cable |
Stay always online and prevent data loss An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the APC PowerChute Network Shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SRT3000RMXLI-NC can independently supply emergency power by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible. Availability The Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un- Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used. Safety In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Ease of use The APC Smart-UPS SRT is easy to operate thanks to a tilting graphic LCD screen and physical buttons. This makes it possible to set and read the basic functionalities. Because the background color of the screen changes depending on the type of warning, the severity of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack. Manage your Smart-UPS Thanks to the pre-installed APC Network Management Card (AP9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software. PowerChute Network Shutdown PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on. *An additional license is required for HCI and virtual machine support: 1 year: SWPCNS1Y-DIGI 3 years: SWPCNS3Y-DIGI 5 years: SWPCNS5Y-DIGI Remote management and monitoring of your network The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below. Support contract The optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with: • New and improved features • Security updates • Advanced support *The above license is available in the variants: 1 year: SWNMC3SU-1Y-DIGI 3 years: SWNMC3SU-3Y-DIGI 5 years: SWNMC3SU-5Y-DIGI Extend the lifespan The internal battery cartridge (APCRBC152) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT3000RMXLI-NC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online. Warranty extension The manufacturer's warranty of the SRT3000RMXLI-NC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS. It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely. You also cannot eliminate critical loads; This way you extend the runtime for critical equipment. Green Premium This label is Schneider Electric's commitment to products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products. Green Premium: - Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average. - Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/ - Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh) Included in the box 1x SRT3000RMXLI-NC 1x USB cable 1x C13 to C14 power cord 1.2M 1x Software CD with Powershute Network Shutdown Edition 1x Documentation CD 1x Schuko to C19 input power cord 2M 1x British BS1363A to C19 input power cord 1x C19 to C20 input power cord 2.5M 2x Rackmount mounting brackets 1x Temperature sensor |
Stay always online and prevent data loss An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the free APC PowerChute software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SRT3000RMXLI can independently supply emergency power by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible. Availability The Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un- Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used. Safety In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use. Ease of use The APC Smart-UPS SRT is easy to operate thanks to a tilting graphic LCD screen and physical buttons. This makes it possible to set and read the basic functionalities. Because the background color of the screen changes depending on the type of warning, the severity of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack. Network Management Card If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can easily be managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software associated with the network card can even be differentiated in the shutdown moment and the order in which this happens. Extend the lifespan The internal battery cartridge (APCRBC152) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT3000RMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online. Warranty extension The manufacturer's warranty of the SRT3000RMXLI is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS. It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely. You also cannot eliminate critical loads; This way you extend the runtime for critical equipment. Green Premium This label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products. Green Premium: - Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average. - Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/ - Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh) Included in the box 1x SRT3000RMXLI 1x USB cable 1x C13 to C14 power cord 1.2M 1x Software CD with Powershute Business Edition 1x Documentation CD 1x Schuko to C19 input power cord 2M 1x British BS1363A to C19 input power cord 1x C19 to C20 input power cord 2.5M 2x Rack mounting brackets |
