APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth
Hurry up, only 3 items left in stock.
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

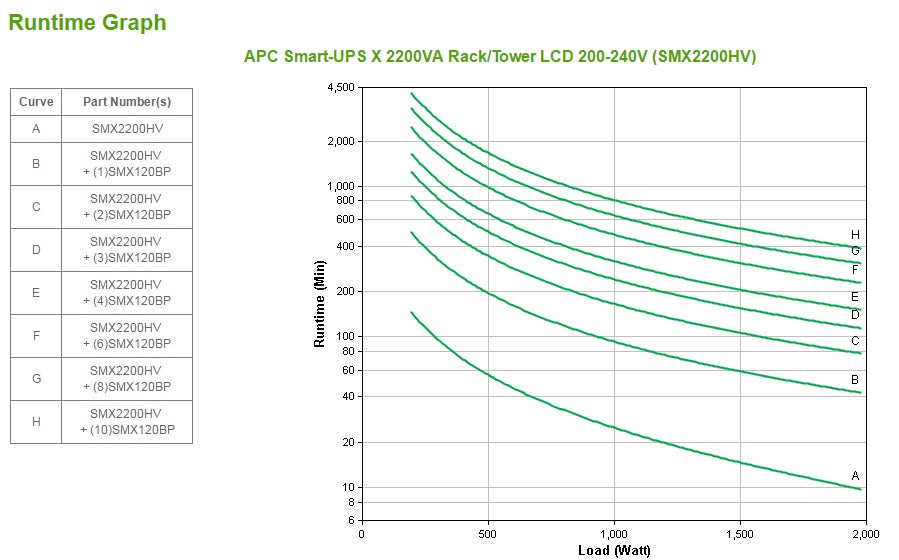

Extend the runtime
You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120BP).
A runtime of several hours is even possible.
Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.
Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.
Easy to use
This APC Smart-UPS SMX is easy to operate thanks to the LCD screen.

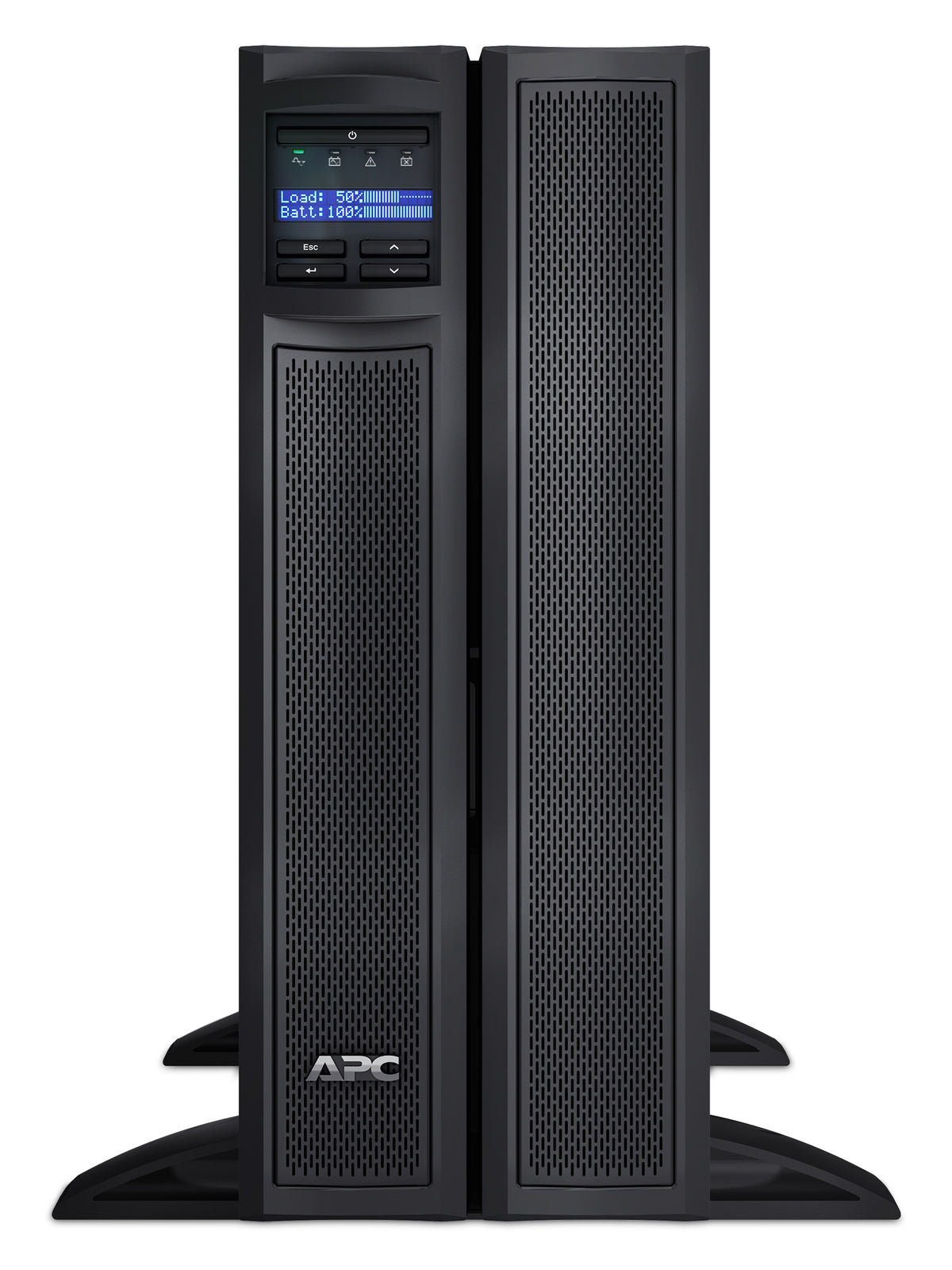

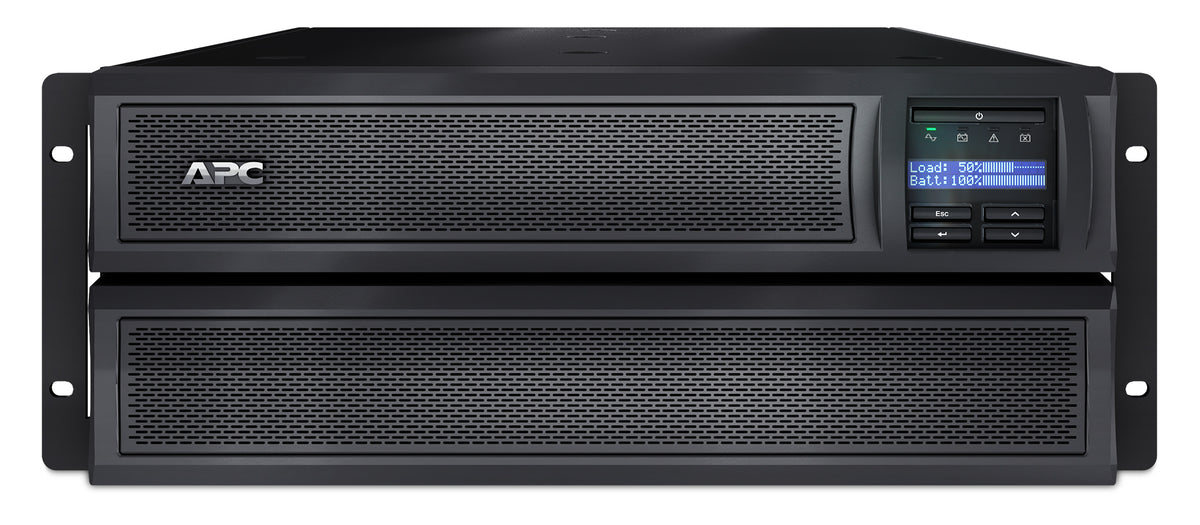

Rack/tower convertible
The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (4U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A.
Extend the lifespan
The internal battery cartridge (APCRBC143) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX2200HV or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.
Warranty extension
The factory warranty of the SMX2200HV is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).
Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.
It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.
You can also switch off non-critical loads; this extends the runtime for critical equipment.
Included in the box
1x SMX2200HV
1x USB cable
2x C13 to C14 power cord 2 meters
1x Schuko to C19 input power cord 2 meters
1x C19 to C20 power cord 2.5 meters
1x Software CD with Powershute Business Edition
1x Documentation CD
1x British BS1363A to C19 input power cord
2x front post rack brackets
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120BP external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Stainless steel
- Output power capacity: 2.2 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Input frequency: 50/60 Hz
- Waveform: Sine
- Storage relative humidity (H-H): 0 - 95%
- Input operation voltage (max): 280 V
- Input operation voltage (min): 140 V
- Form factor: Rackmount/Tower
- UPS topology: Line-Interactive
- AC outlet types: C13 coupler, C19 coupler
- Battery technology: Sealed Lead Acid (VRLA)
- Operating altitude: 0 - 3000 m
- Certification: CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH
- Output operation voltage (max): 240 V
- Output operation voltage (min): 208 V
- Harmonized System (HS) code: 85078000
- Battery recharge time: 3 h
- Audible alarm(s): Yes
Battery
- Automatic battery test
- Yes
- Battery capacity
- 702 VAh
- Battery life (max)
- 5 year(s)
- Cold start
- Yes
- Hot-swap battery
- Yes
- Typical backup time at full load
- 9.8 min
- Typical backup time at half load
- 25.3 min
Certificates
- Compliance certificates
- RoHS
Design
- Cable length
- 2 m
- Display type
- LCD
- LED indicators
- Status, Battery replacement
- Rack capacity
- 4U
Features
- Auto-restart
- Yes
- Automatic Voltage Regulation (AVR)
- Yes
- Efficiency
- 98.1%
- Emergency Power Off (EPO)
- Yes
- Hold time (max)
- 10 ms
- Hold time (min)
- 2 ms
- Noise level
- 55 dB
- Output frequency regulation
- 50/60 Hz
- Output power
- 1980 W
- Surge energy rating
- 645 J
- Surge protection
- Yes
Logistics data
- Products per pallet
- 6 pc(s)
- Total carbon footprint (kg of CO2e)
- 3397.7
Operational conditions
- Non-operating altitude
- 0 - 15000 m
- Storage temperature (T-T)
- -15 - 45 °C
Other features
- Packaging content
- Web/SNMP Management Card
Packaging content
- Cables included
- RS-232, USB cable
- Management card included
- No
- Manual
- Yes
- Quick installation guide
- Yes
- Rack mount kit
- Yes
Packaging data
- Package depth
- 63.3 cm
- Package height
- 33 cm
- Package weight
- 47.7 kg
- Package width
- 58.6 cm
- Software CD
- Yes
- Temperature sensor
- Yes
Ports & interfaces
- AC outlets quantity
- 10 AC outlet(s)
- Number of output IEC jumpers
- 2
- Power plug
- C20 coupler
- SmartConnect port
- No
- SmartSlot
- Yes
- USB port
- Yes
Weight & dimensions
- Depth
- 48.3 cm
- Height
- 43.2 cm
- Weight
- 38.6 kg
- Width
- 17.8 cm
