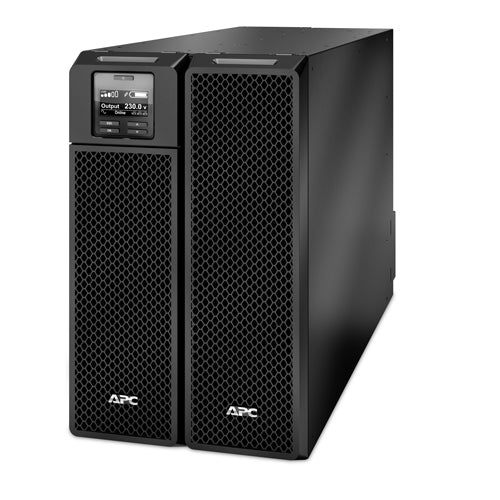

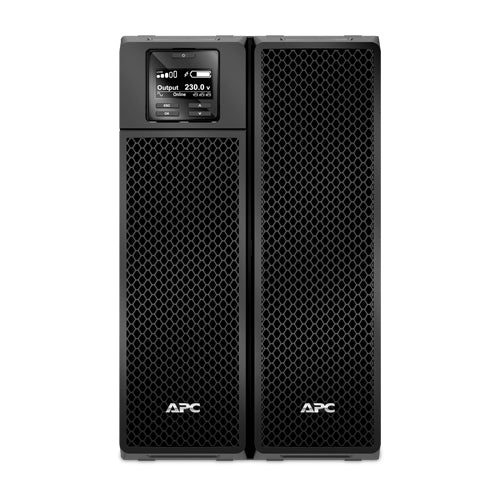

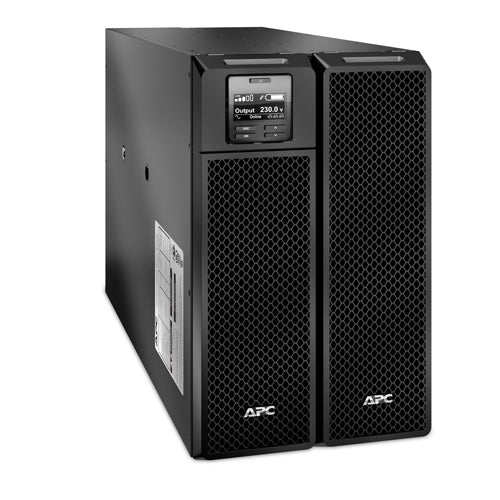

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
Regular price
$14,636.09
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

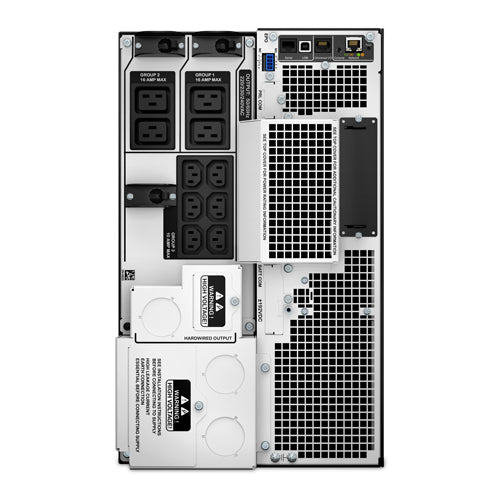

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Output power capacity: 10 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Input frequency: 40/70 Hz
- Waveform: Sine
- Storage relative humidity (H-H): 0 - 95%
- Input operation voltage (max): 476 V
- Input operation voltage (min): 100 V
- Form factor: Rackmount/Tower
- UPS topology: Double-conversion (Online)
- AC outlet types: C13 coupler, C19 coupler
- Battery technology: Sealed Lead Acid (VRLA)
- Operating altitude: 0 - 3000 m
- Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
- Output operation voltage (max): 240 V
- Output operation voltage (min): 220 V
- Harmonized System (HS) code: 85078000
- Battery recharge time: 1.5 h
- Audible alarm(s): Yes
Battery
- Automatic battery test
- Yes
- Battery capacity
- 1805 VAh
- Battery life (max)
- 5 year(s)
- Cold start
- Yes
- Hot-swap battery
- Yes
- Typical backup time at full load
- 3.8 min
- Typical backup time at half load
- 11.5 min
Certificates
- Compliance certificates
- RoHS
Design
- International Protection (IP) code
- IP20
- LED indicators
- Yes
Features
- Auto-restart
- Yes
- Crest factor
- 3:1
- Efficiency
- 94.6%
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB
- Number of output phases
- 1
- Output frequency regulation
- 50/60 Hz
- Output power
- 10000 W
- Surge energy rating
- 480 J
Logistics data
- Total carbon footprint (kg of CO2e)
- 22851.99
Operational conditions
- Non-operating altitude
- 0 - 15000 m
- Storage temperature (T-T)
- -15 - 45 °C
Other features
- Interface
- RJ-45 10/100 Base-T
- Nominal input voltage
- 230 V
- Nominal output voltage
- 230 V
- Packaging content
- Web/SNMP Management Card
Packaging content
- Cables included
- USB cable
- Management card included
- Yes
- Quick installation guide
- Yes
Packaging data
- Package depth
- 100 cm
- Package height
- 46.1 cm
- Package weight
- 126.8 kg
- Package width
- 60 cm
- Software CD
- Yes
- Temperature sensor
- Yes
- Warranty card
- Yes
Ports & interfaces
- AC outlets quantity
- 10 AC outlet(s)
- Number of output IEC jumpers
- 3
- Power plug
- Hardwire
- Serial interface
- Yes
- Serial interface type
- RJ-45
- SmartConnect port
- No
- SmartSlot
- Yes
- USB port
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Depth
- 71.5 cm
- Height
- 43.2 cm
- Weight
- 111.8 kg
- Width
- 26.3 cm
Cables included: USB cable
Management card included
Management card included
Materials
