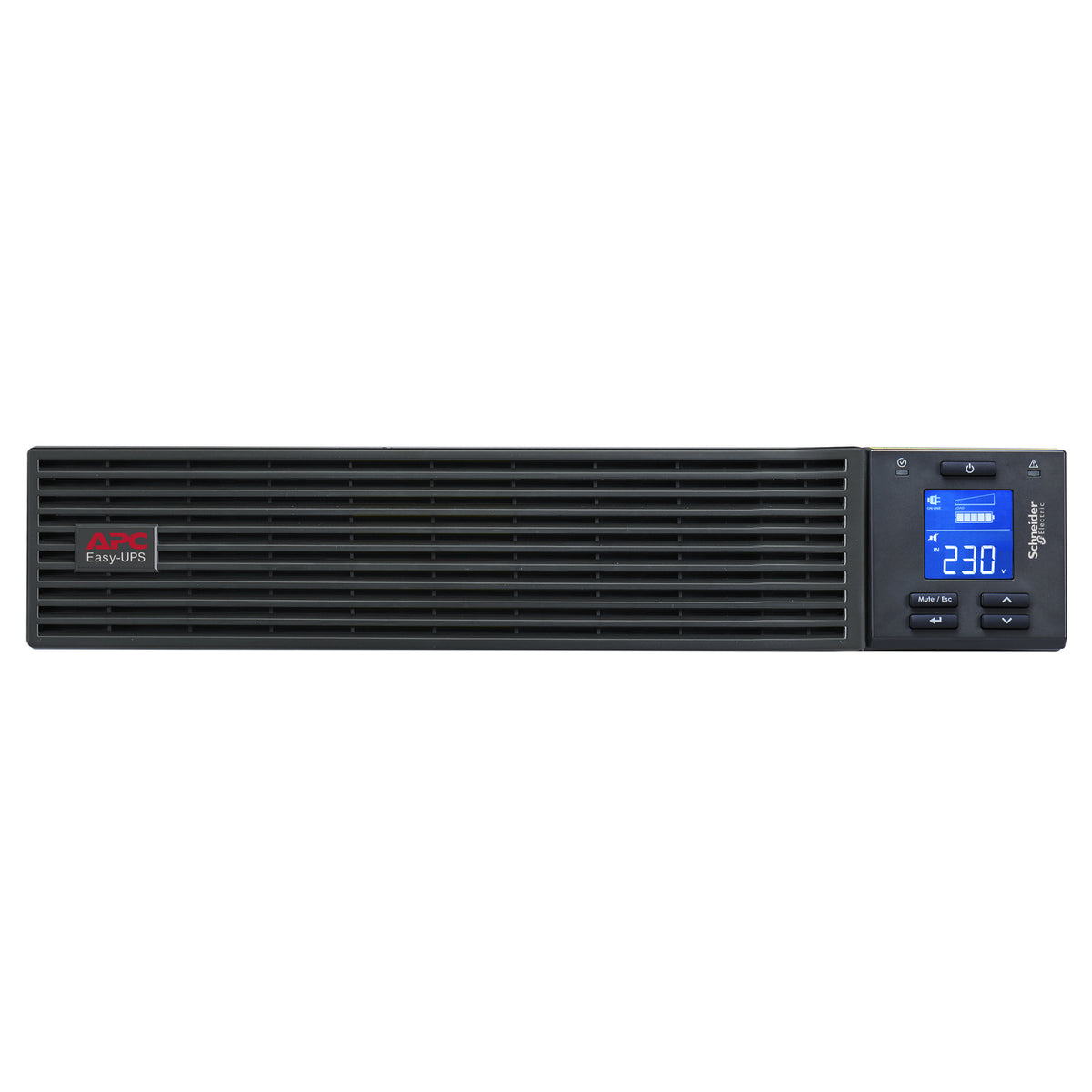

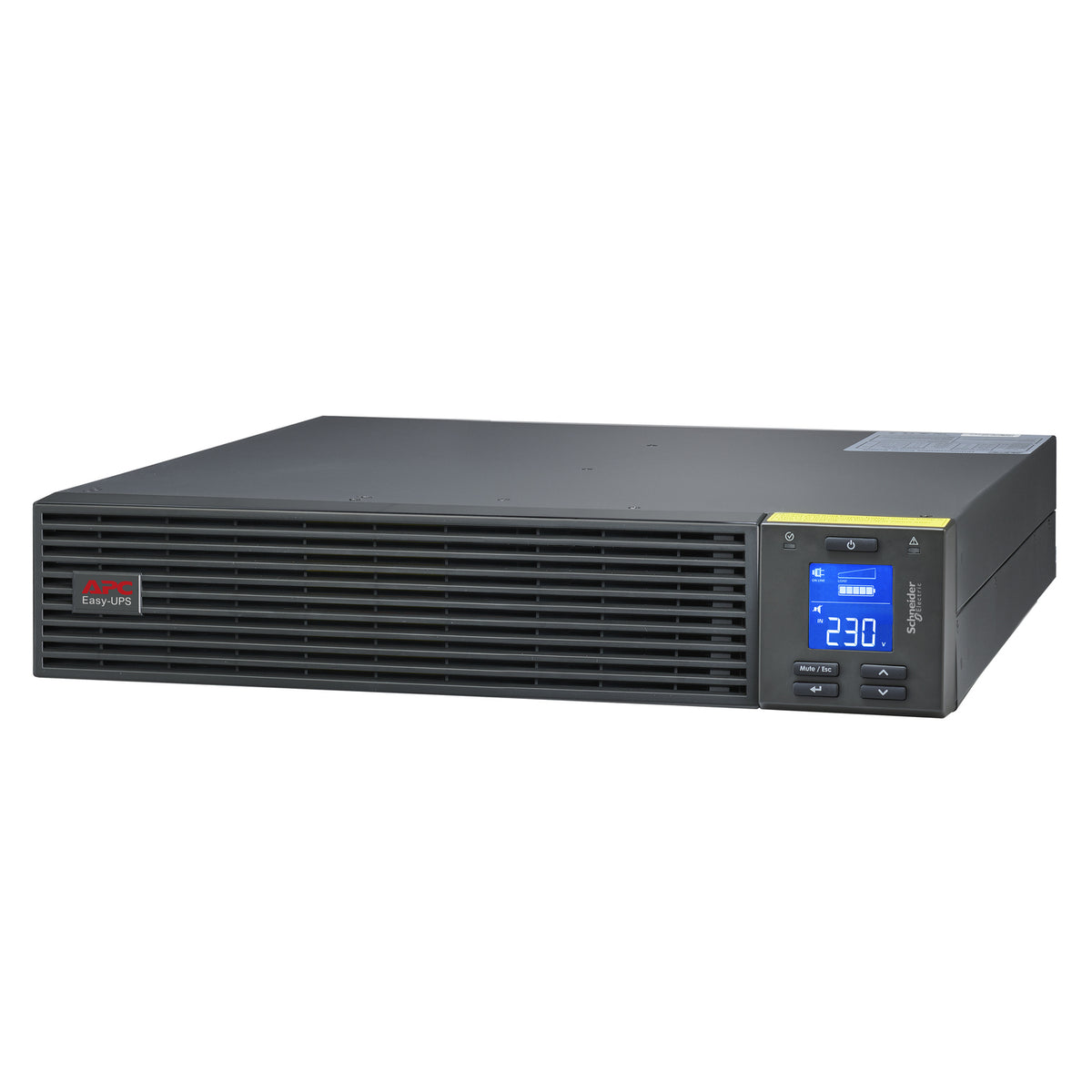

APC Easy UPS On-Line, 1000VA/800W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit
Regular price
$912.71
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV200. The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Output power capacity: 1 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Input frequency: 40/70 Hz
- Waveform: Sine
- Storage relative humidity (H-H): 0 - 95%
- Input operation voltage (max): 280 V
- Input operation voltage (min): 160 V
- Form factor: Rackmount
- UPS topology: Double-conversion (Online)
- AC outlet types: C13 coupler
- Battery technology: Sealed Lead Acid (VRLA)
- Operating altitude: 0 - 3000 m
- Certification: CE, IEC 62040-1-1, IEC 62040-1-2\nREACH
- Output operation voltage (max): 240 V
- Output operation voltage (min): 220 V
- Harmonized System (HS) code: 85078000
- Battery recharge time: 4 h
- Audible alarm(s): Yes
Battery
- Automatic battery test
- Yes
Certificates
- Compliance certificates
- RoHS
Design
- Display type
- LCD
- LED indicators
- Yes
- Rack capacity
- 2U
Features
- Audible alarm modes
- Alarm when on battery, Fault, Low battery alarm, Overload alarm
- Auto-restart
- Yes
- Crest factor
- 3:1
- ECO mode
- Yes
- Efficiency
- 88%
- Emergency Power Off (EPO)
- No
- Input power factor
- 0.95
- Maintenance-free
- Yes
- Noise level
- 50 dB
- Number of input phases
- 1
- Number of output phases
- 1
- Output frequency
- 50/60 Hz
- Output power
- 800 W
- Output power factor
- 0.8
- Output voltage regulation
- 1%
- Output voltage Total Harmonic Distortion (THD)
- 3%
- Socket circuit breaker
- Yes
- Surge energy rating
- 600 J
- Transfer time (Line Mode to Battery Mode)
- 0 ms
Operational conditions
- Non-operating altitude
- 0 - 14763.6 m
- Storage temperature (T-T)
- -20 - 50 °C
Other features
- Nominal input voltage
- 230 V
- Nominal output voltage
- 230 V
Packaging content
- Cables included
- USB cable
- Manual
- Yes
Packaging data
- Package depth
- 55.1 cm
- Package height
- 21.8 cm
- Package weight
- 13.1 kg
- Package width
- 45.5 cm
- Software CD
- Yes

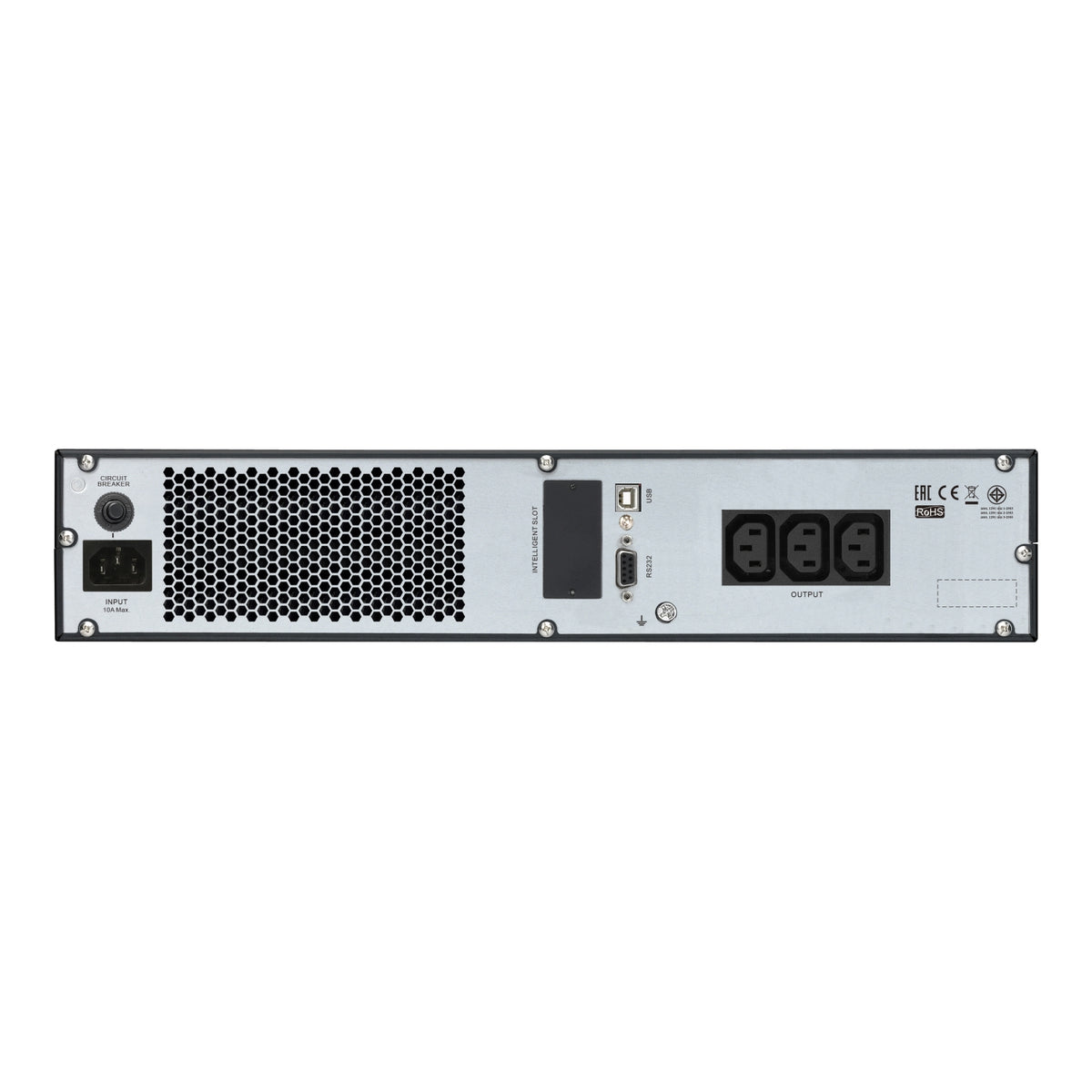

Ports & interfaces
- AC outlets quantity
- 3 AC outlet(s)
- Power plug
- C14 coupler
- Serial interface
- Yes
- Serial ports quantity
- 1
- SmartSlot
- Yes
- USB port
- Yes
- USB port type
- USB Type-B
Weight & dimensions
- Depth
- 31.2 cm
- Height
- 8.6 cm
- Weight
- 11 kg
- Width
- 43.7 cm
Cables included: USB cable
Manual
Manual
Materials
