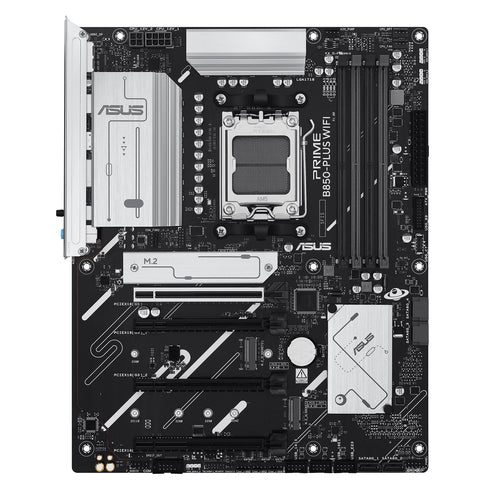

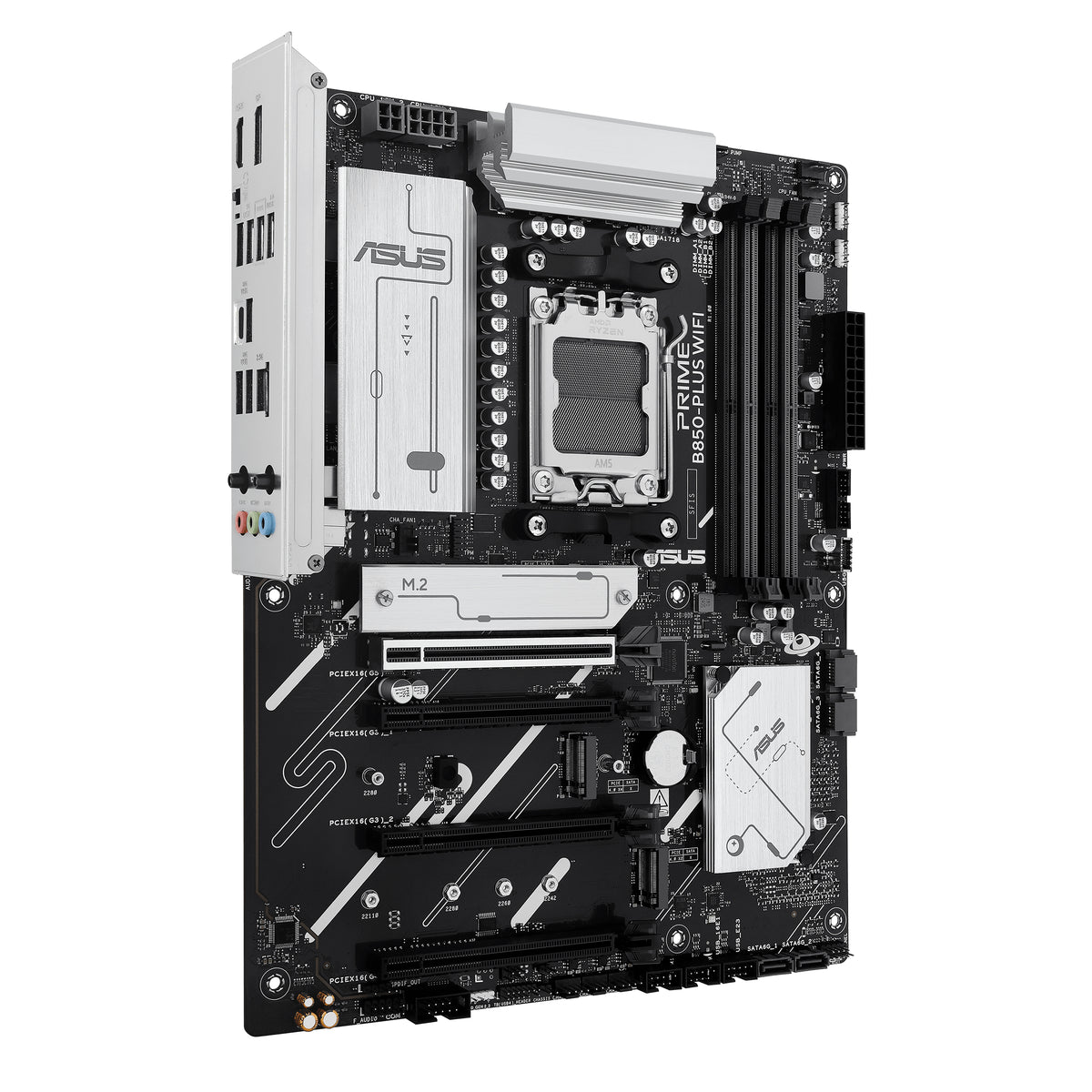

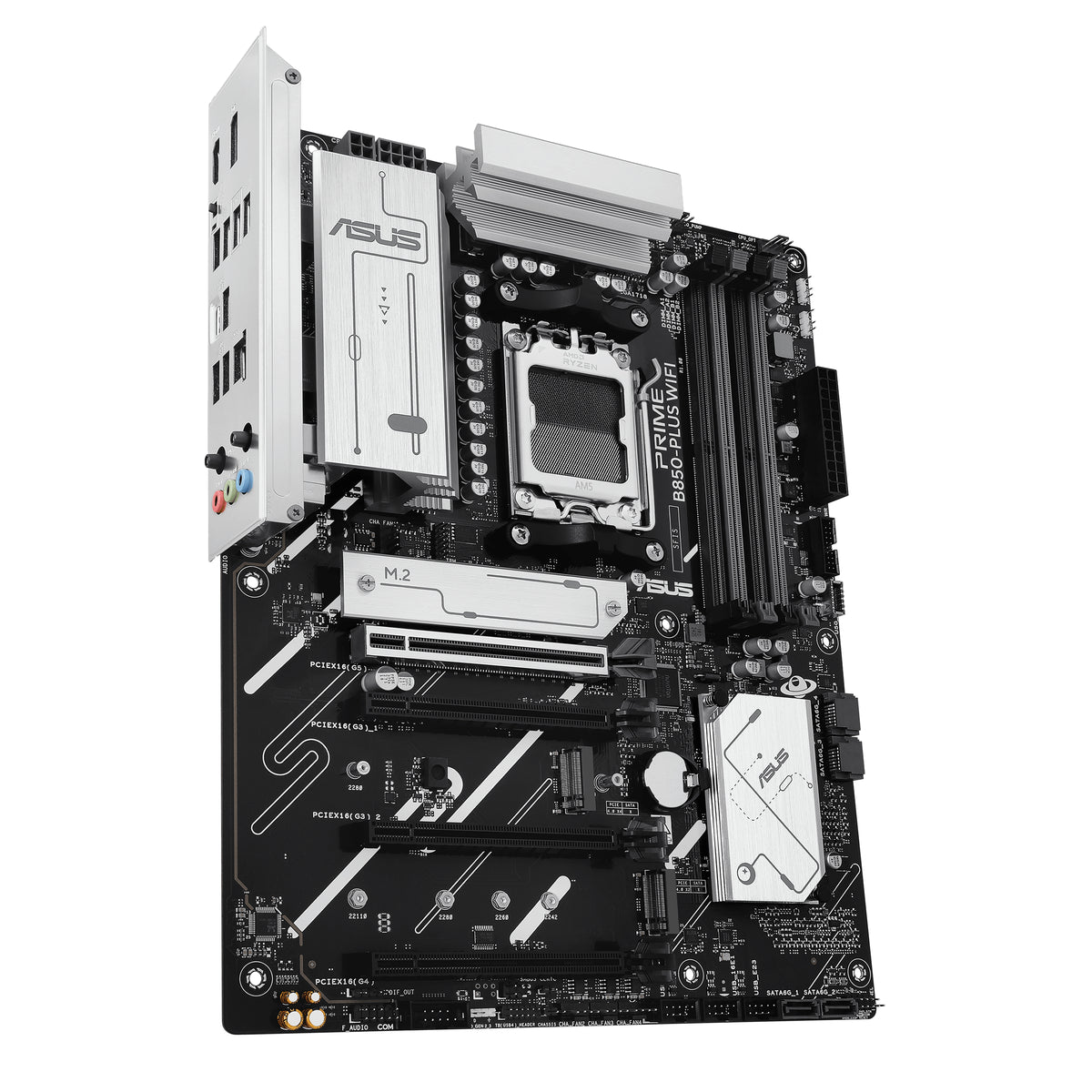

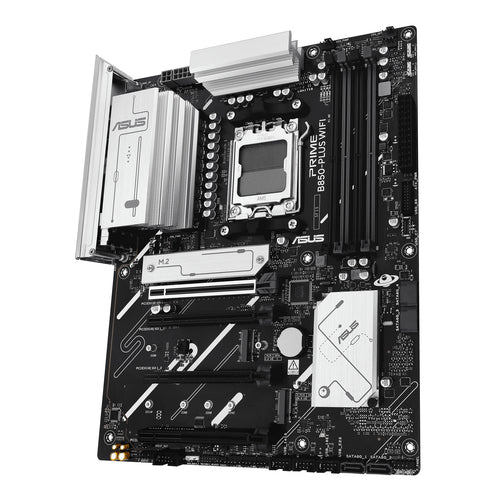

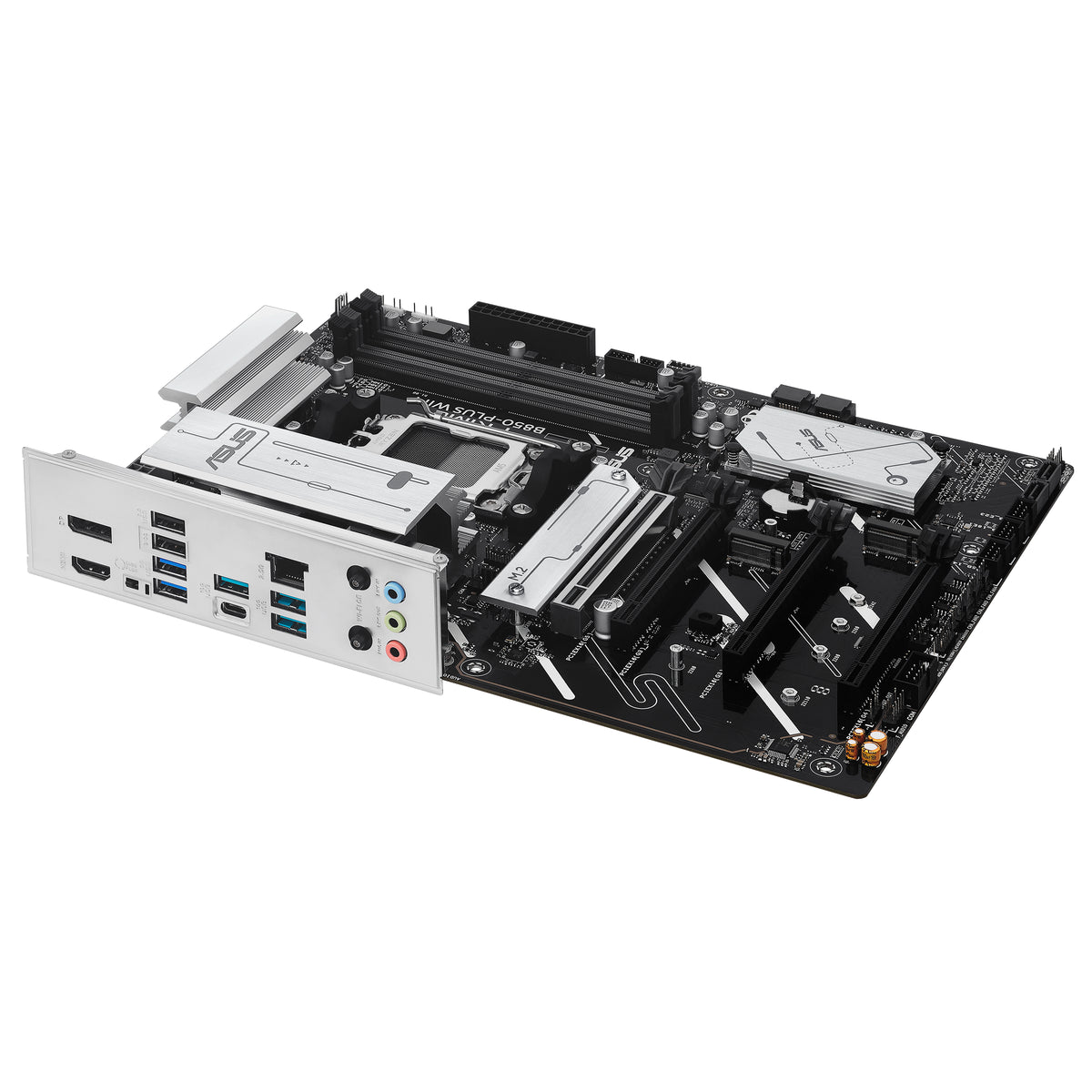

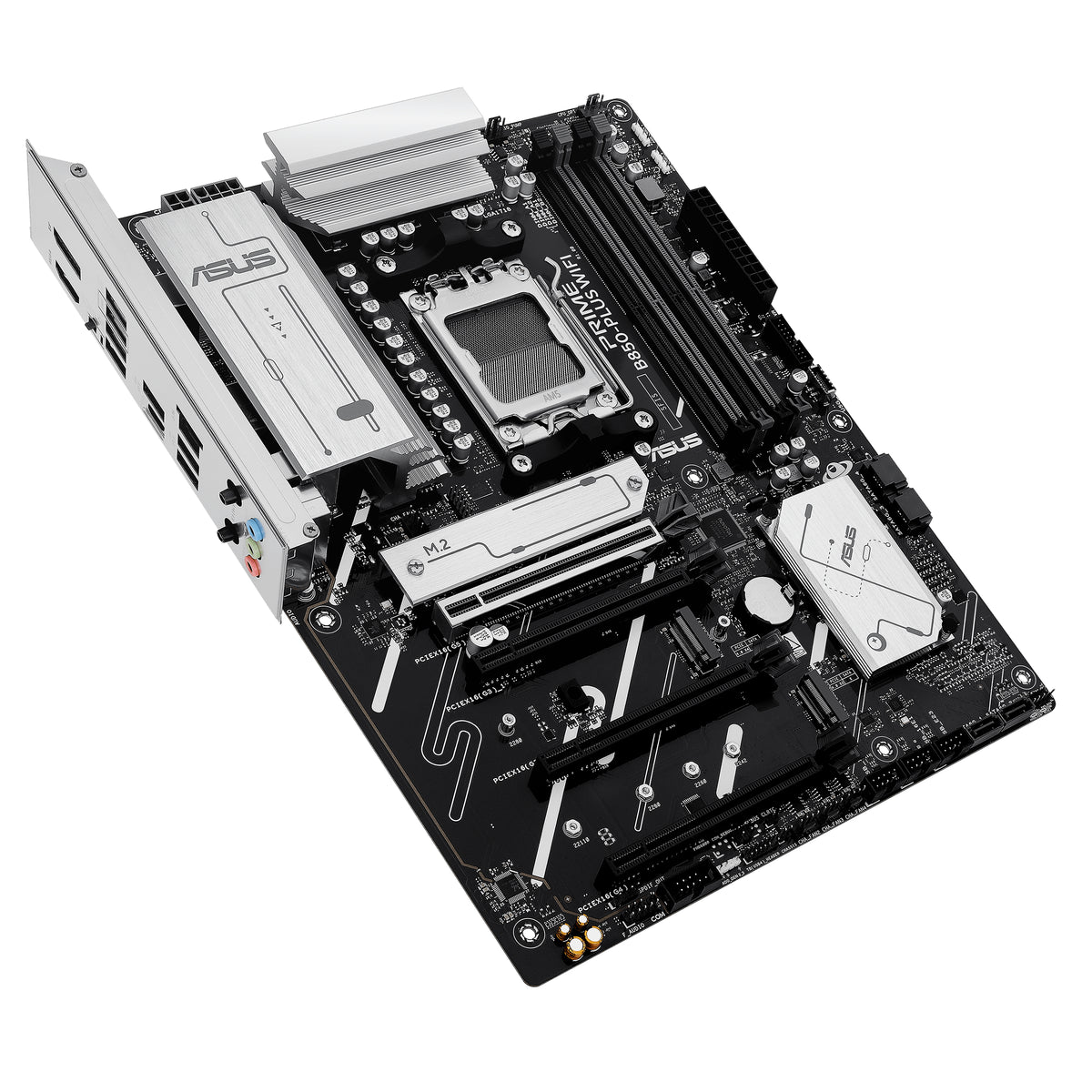

ASUS PRIME B850-PLUS WIFI-CSM AMD B850 Socket AM5 ATX
Regular price
$357.68
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
B850-PLUS WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, White
- Component for: PC
- Maximum internal memory: 256GB
- Motherboard chipset family: AMD
- Motherboard form factor: ATX
- Number of memory slots: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported memory types: DDR5-SDRAM
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Wi-Fi: Yes
- Ethernet LAN: Yes
- Motherboard chipset: AMD B850
- Number of SATA III connectors: 4
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 3
- Ethernet interface type: 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports: Yes
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Memory channels: Dual-channel
BIOS
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
Expansion slots
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- 3rd M.2 highest PCI Express generation
- 4.0
- 3rd M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 3
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
Features
- Audio output channels
- 7.1 channels
- Windows operating systems supported
- Windows 10 x64, Windows 11
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- TPM connector
- Yes
Memory
- ECC сompatibility
- ECC & Non-ECC
- Memory slots type
- DIMM
- Unbuffered memory
- Yes
Network
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)

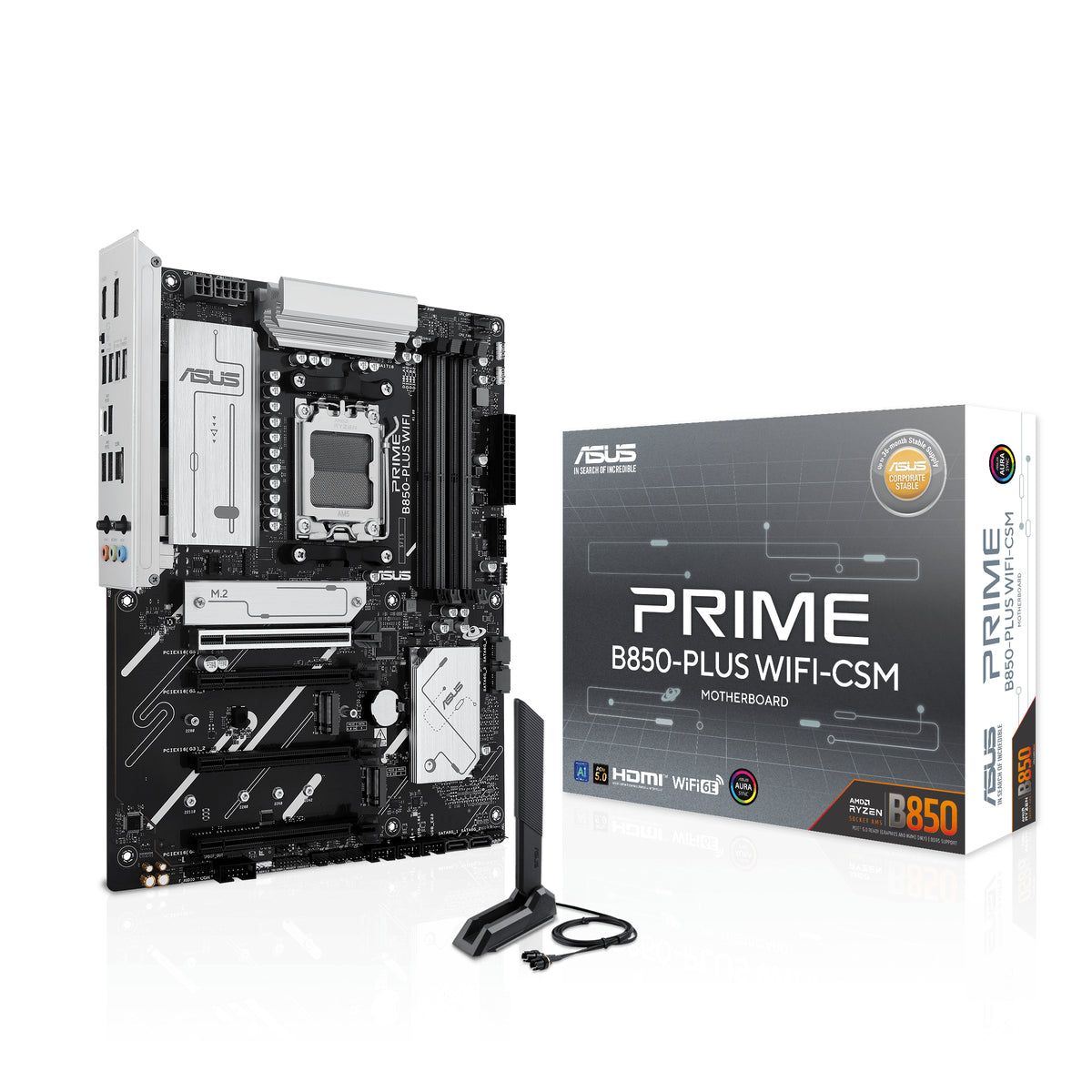

Packaging content

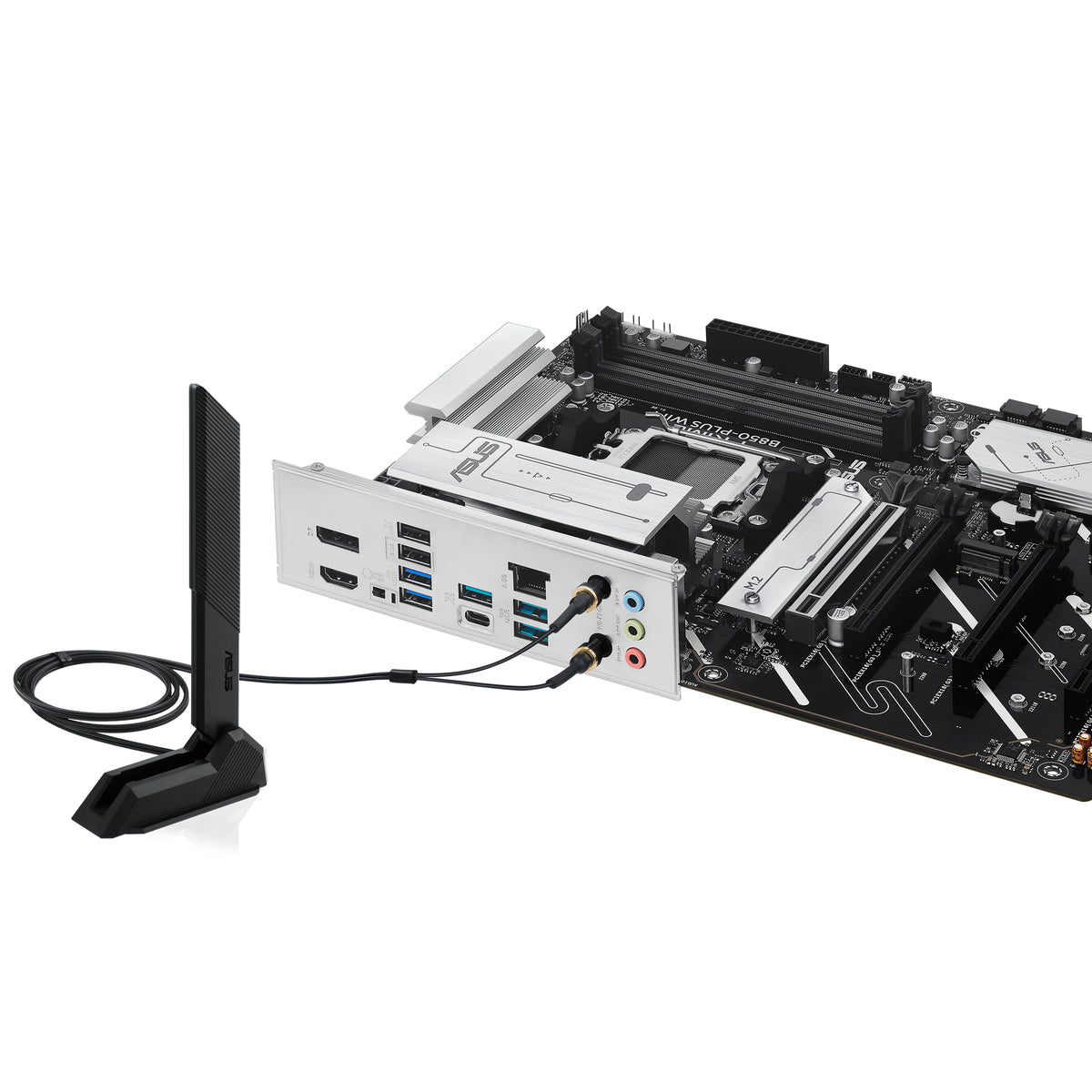

- Antenna included
- Yes
- Cables included
- SATA
- Screws included
- Yes
Processor
- Supported processor sockets
- Socket AM5

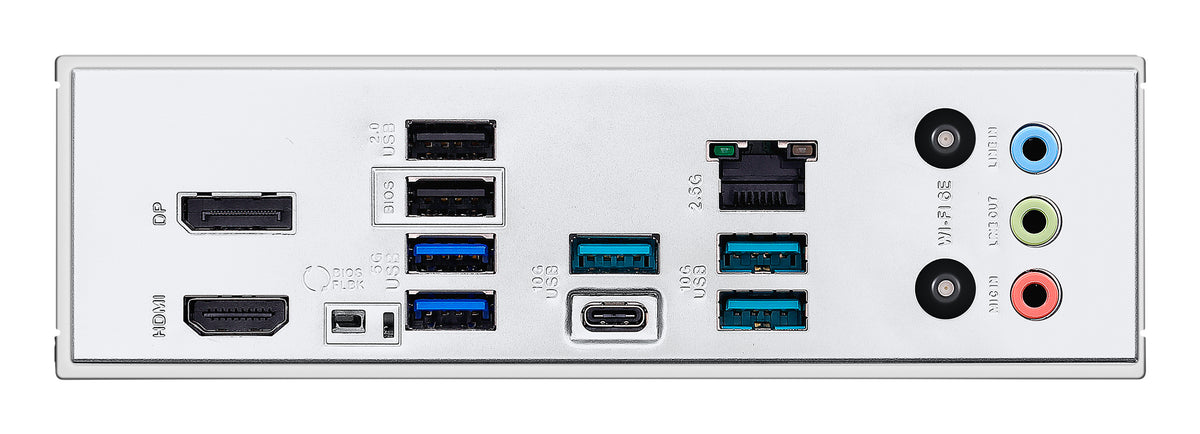

Rear panel I/O ports
- DisplayPorts quantity
- 1
- HDMI ports quantity
- 1
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- WiFi-AP antenna jack
- Yes
Storage controllers
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- Supported storage drive types
- HDD & SSD
Weight & dimensions
- Depth
- 24.4 cm
- Width
- 30.5 cm
Antenna included
Cables included: SATA
Screws included
Cables included: SATA
Screws included
Materials
