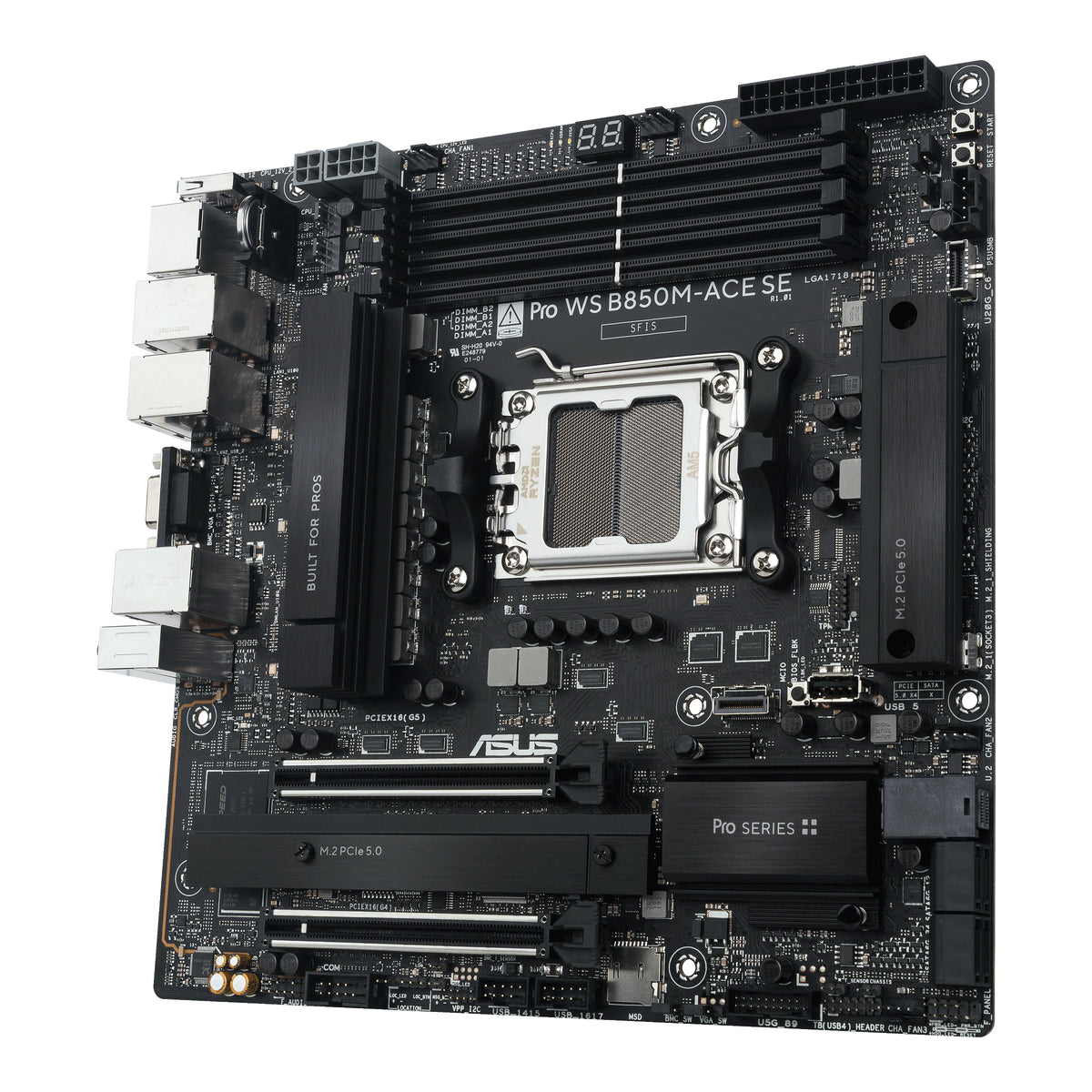

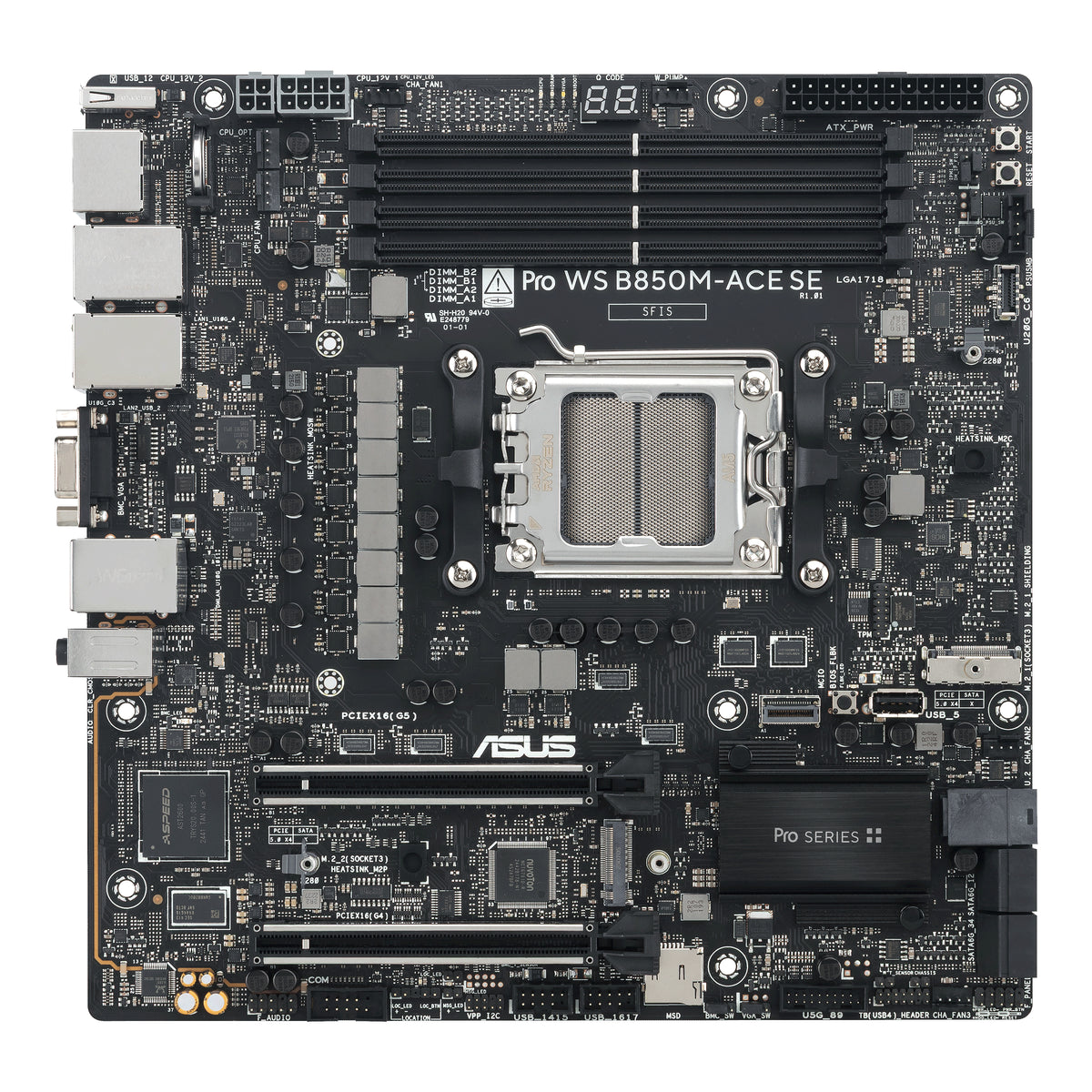

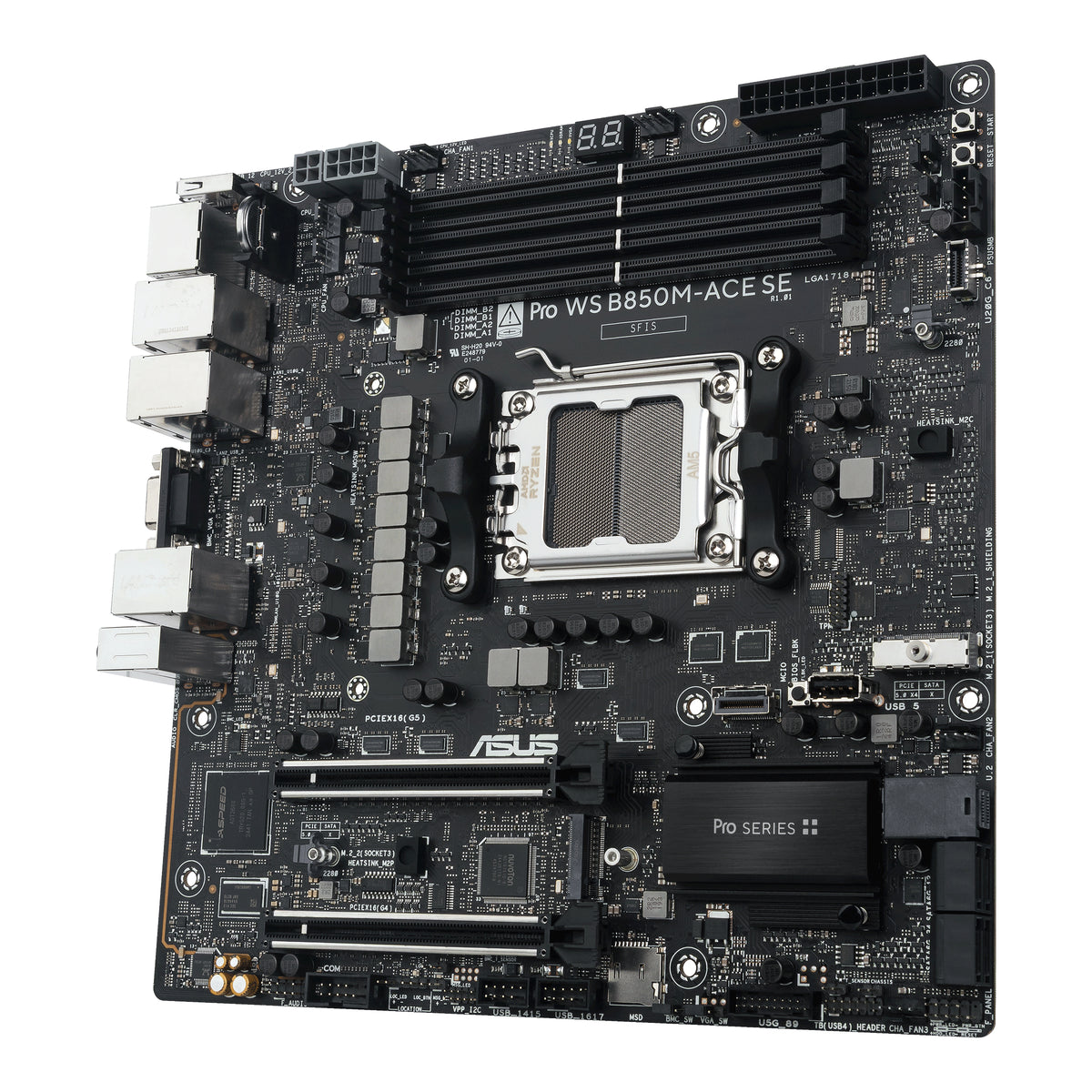

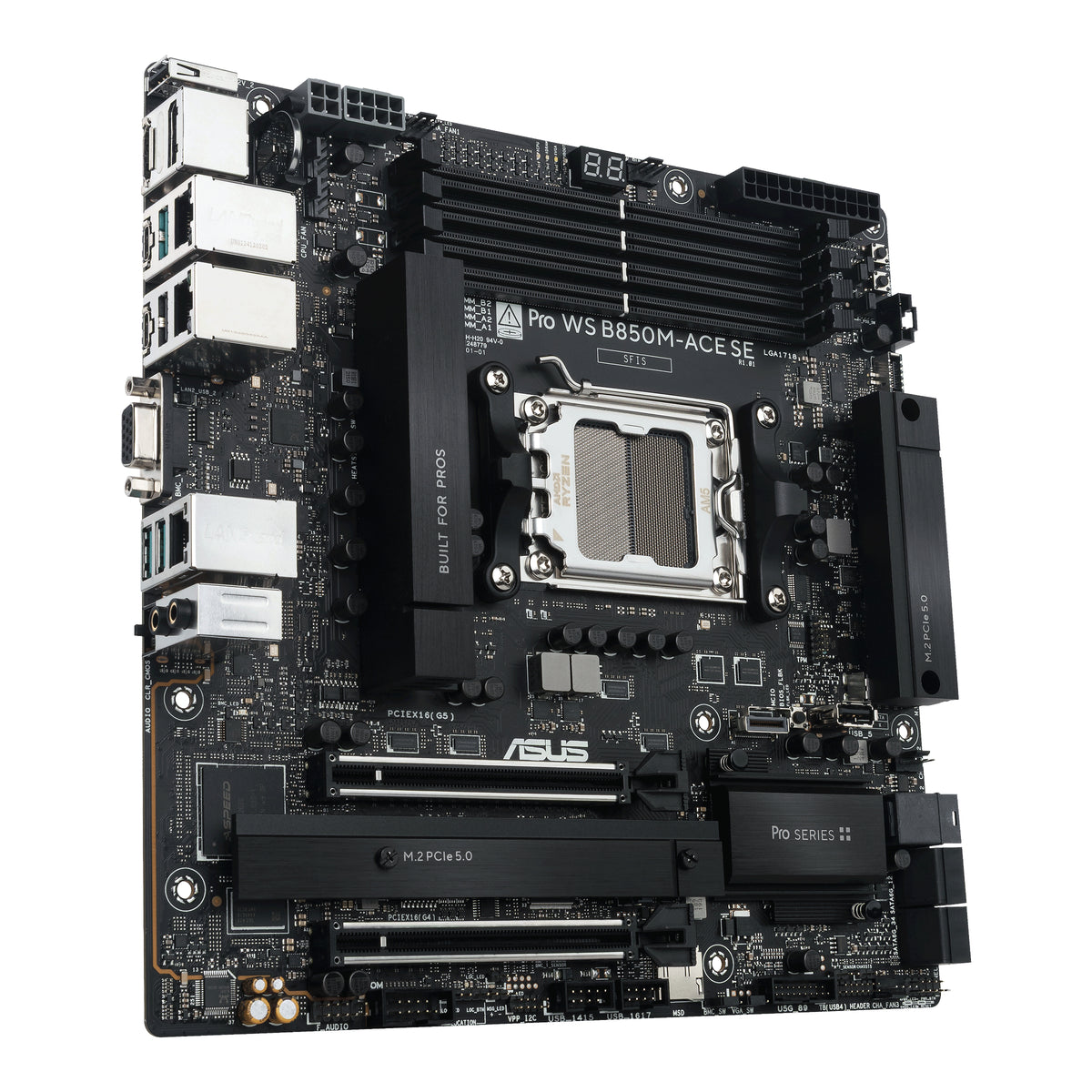

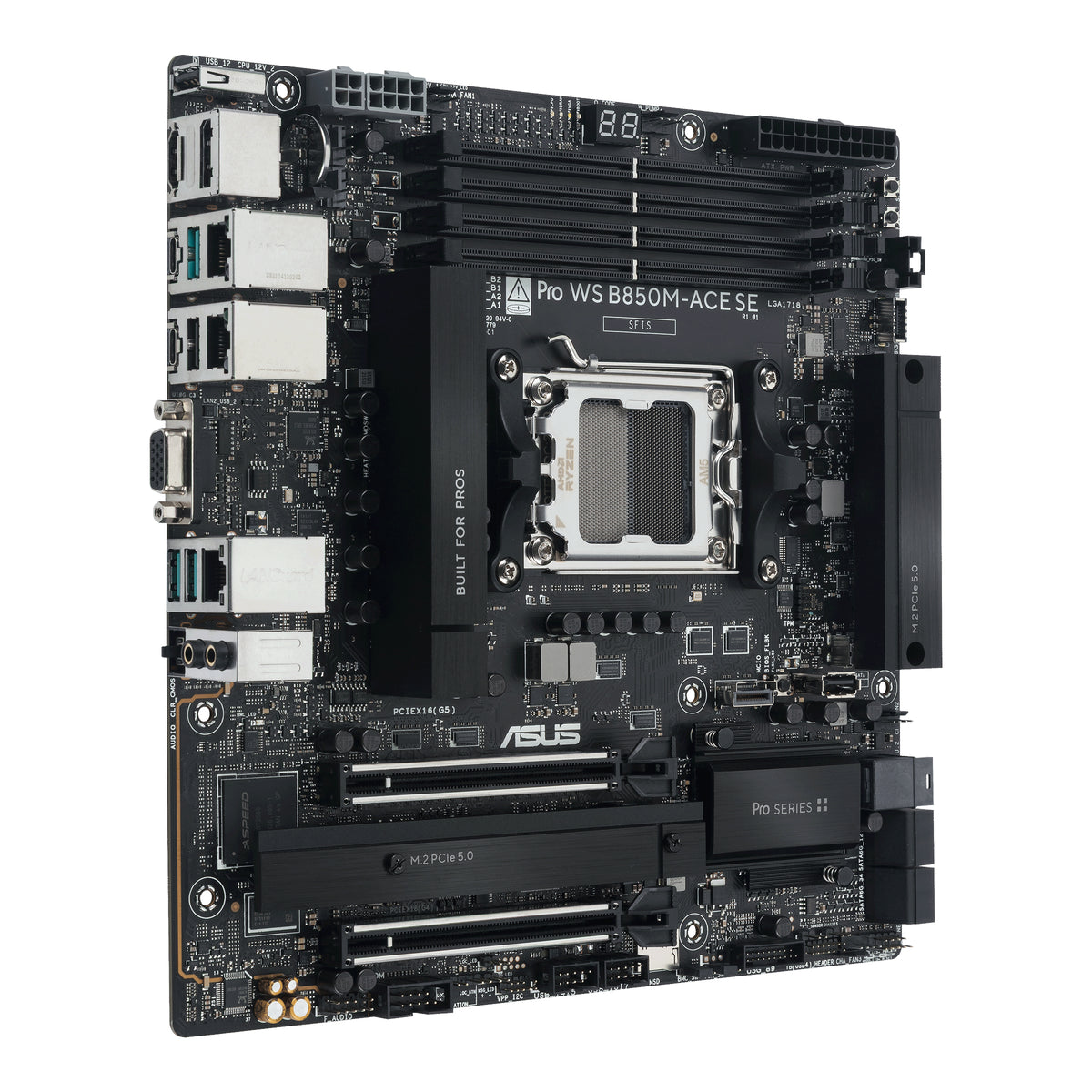

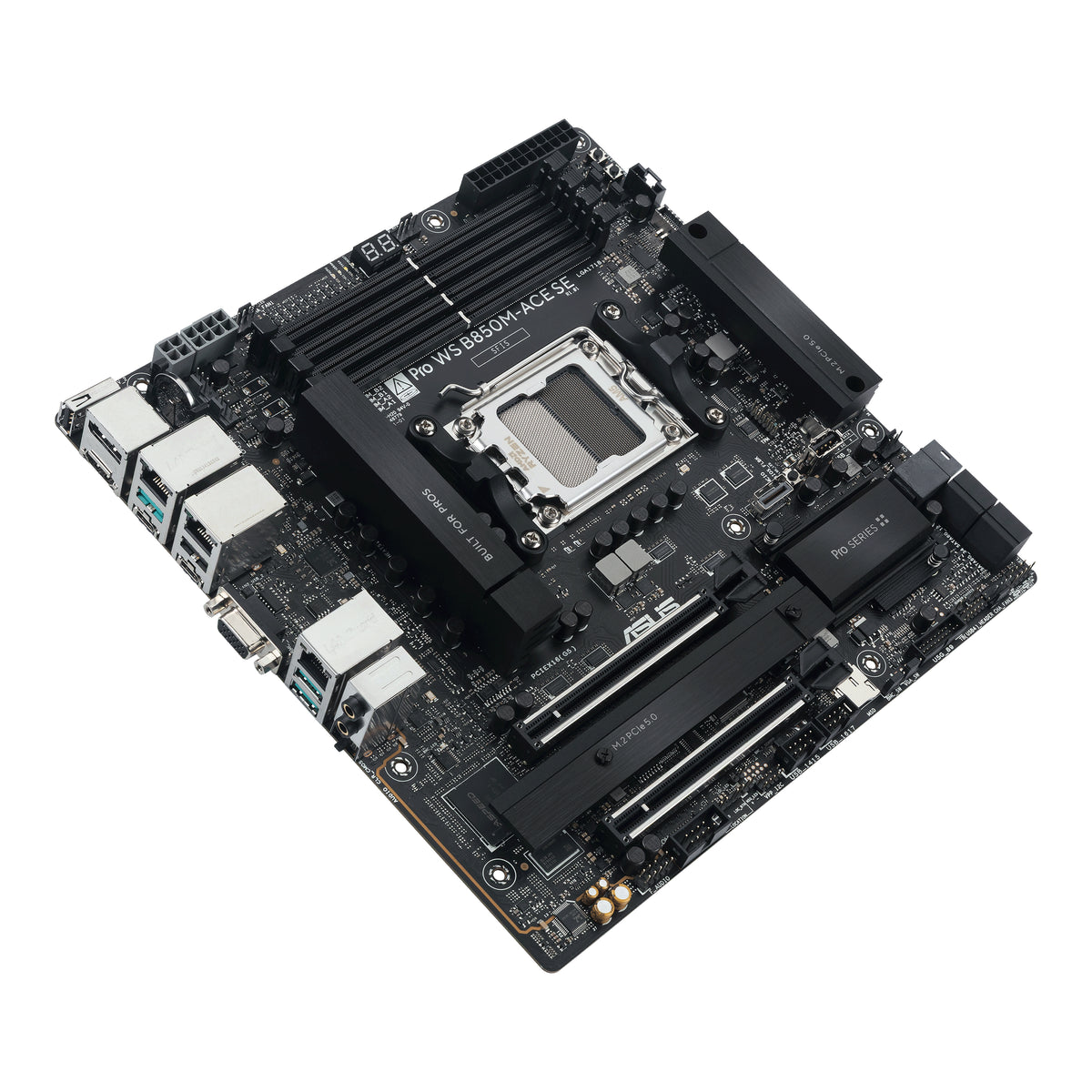

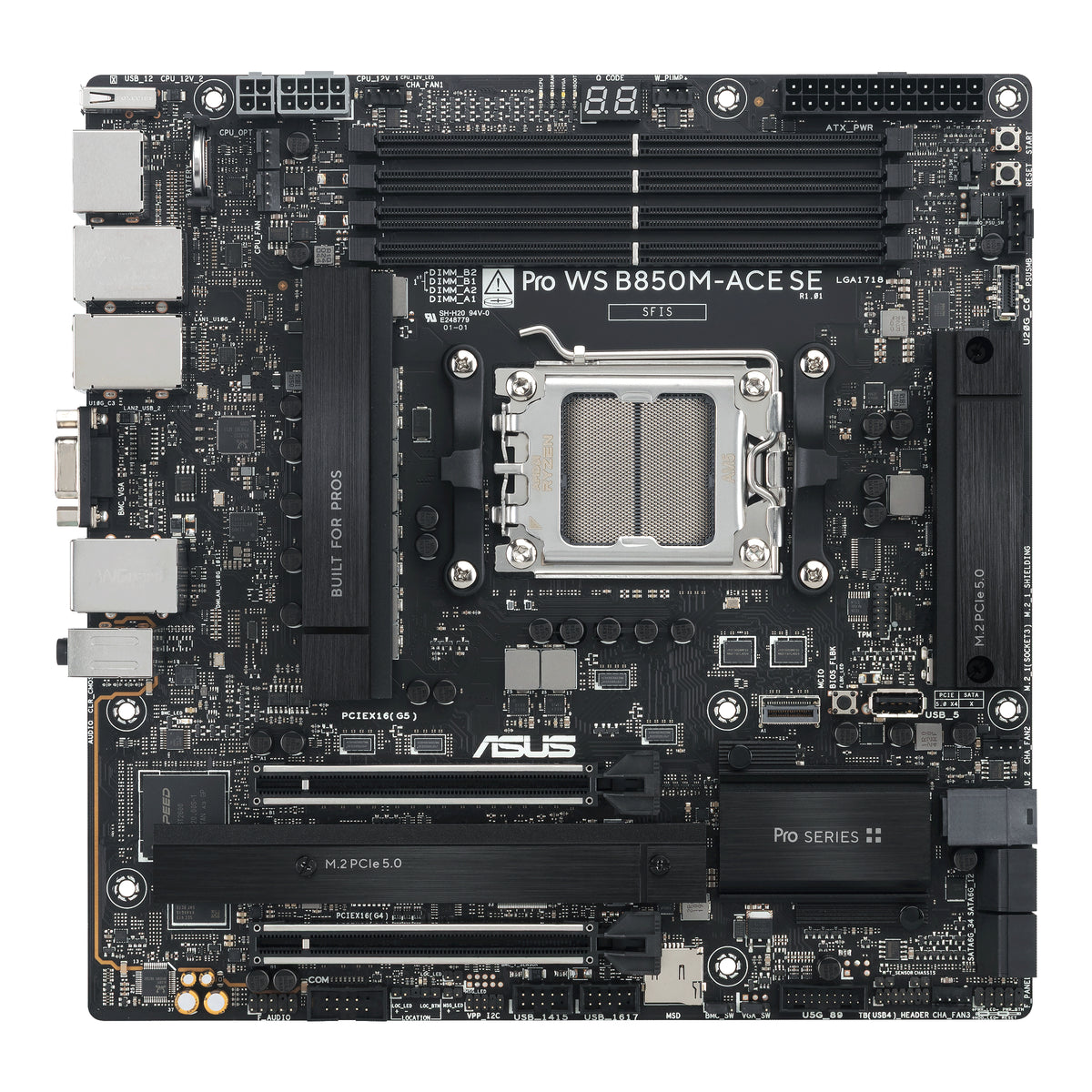

ASUS PRO WS B850M-ACE SE AMD B850 Socket AM5 micro ATX
Regular price
$722.48
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 8 items left in stock.
The Pro WS B850M-ACE SE empowers workstation users of all levels by maximizing the performance of the latest AMD Ryzen™ processors via 8+2+1 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including a front USB 20Gbps Type-C® connector, plus 10Gb and 2.5Gb Ethernet.
This workstation motherboard is an ideal choice for content creation, AI and deep learning, and IT management.
This workstation motherboard is an ideal choice for content creation, AI and deep learning, and IT management.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Component for: PC
- Maximum internal memory: 256GB
- Motherboard chipset family: AMD
- Motherboard form factor: micro ATX
- Number of memory slots: 4
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported memory types: DDR5-SDRAM
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Wi-Fi: No
- Ethernet LAN: Yes
- Motherboard chipset: AMD B850
- Number of SATA III connectors: 4
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 3
- Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports: 3
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Memory channels: Dual-channel
BIOS
- BIOS memory size
- 512 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
Expansion slots
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 5.0
- 2nd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
Features
- Audio output channels
- 7.1 channels
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64, Windows 11
Graphics
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
Internal I/O
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 3
- Number of COM connectors
- 1
- Number of CPU fan connectors
- 1
- Number of EPS power connectors (8-pin)
- 1
- Number of water pump connectors
- 1
- Peripheral (Molex) power connectors (4-pin)
- 1
- TPM connector
- Yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
Memory
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory per slot
- 64GB
- Memory slots type
- DIMM
- Supported memory clock speed (max)
- 8000 MHz
- Unbuffered memory
- Yes
Other features
- Weight
- 1.03 kg
Packaging content
- Cables included
- SATA
- Screws included
- Yes
Packaging data
- Package depth
- 26.5 cm
- Package height
- 7.1 cm
- Package width
- 28 cm
Processor
- Supported processor sockets
- Socket AM5

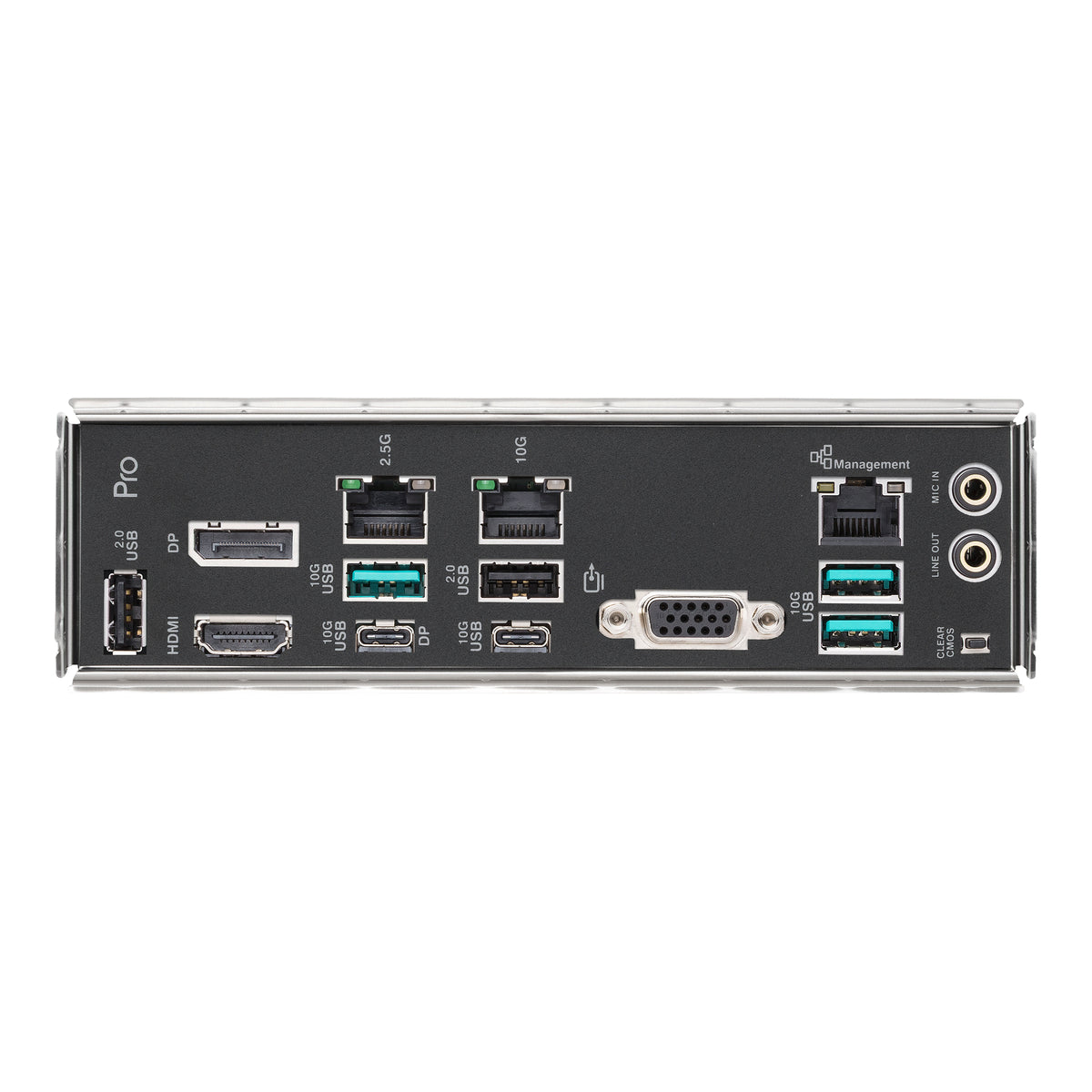

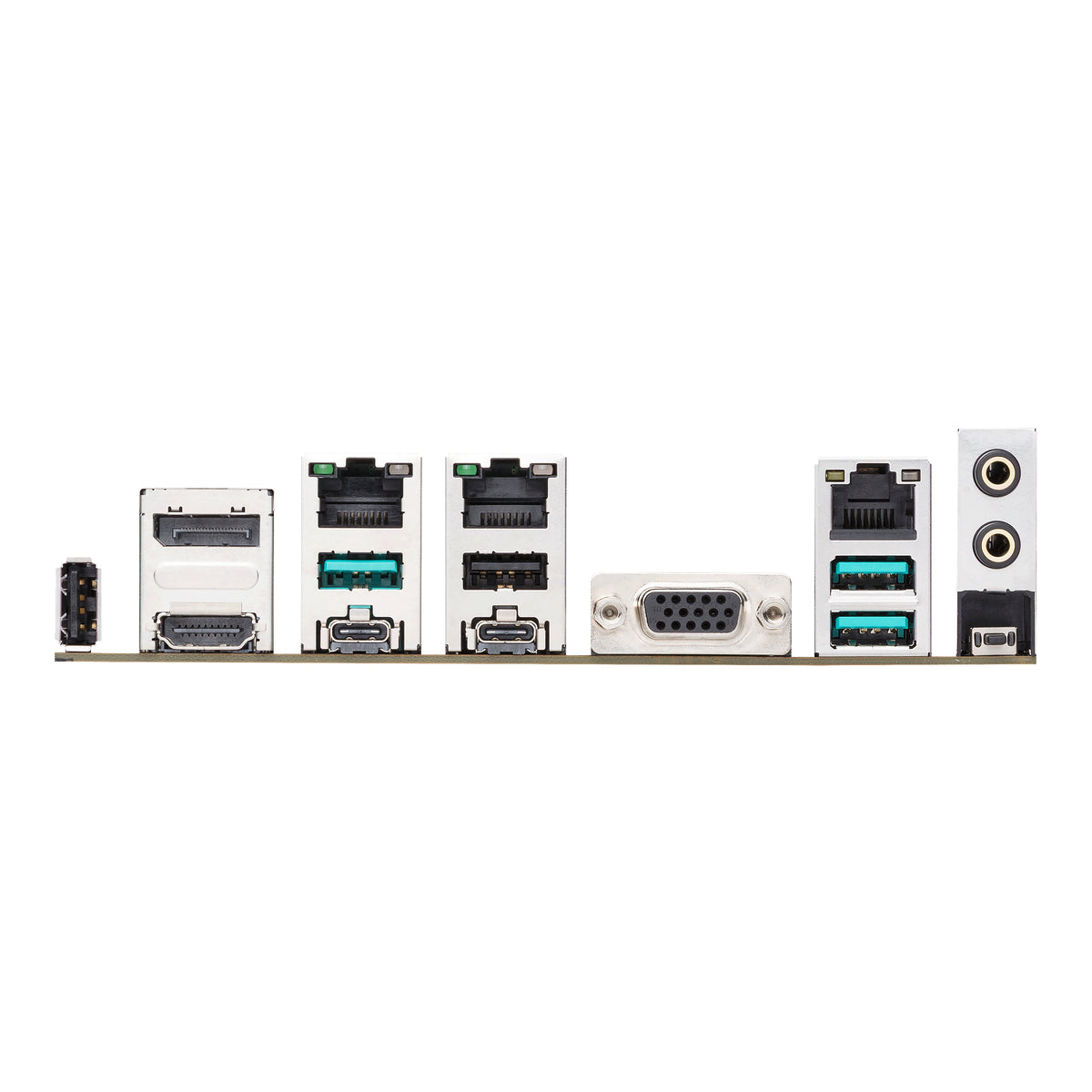

Rear panel I/O ports
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
Storage controllers
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- Supported storage drive types
- HDD & SSD
Weight & dimensions
- Depth
- 24.4 cm
- Height
- 5 cm
- Width
- 24.4 cm
Cables included: SATA
Screws included
Screws included
Materials
