ATEN AP206-AT-U audio amplifier Black
Regular price
$1,472.08
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

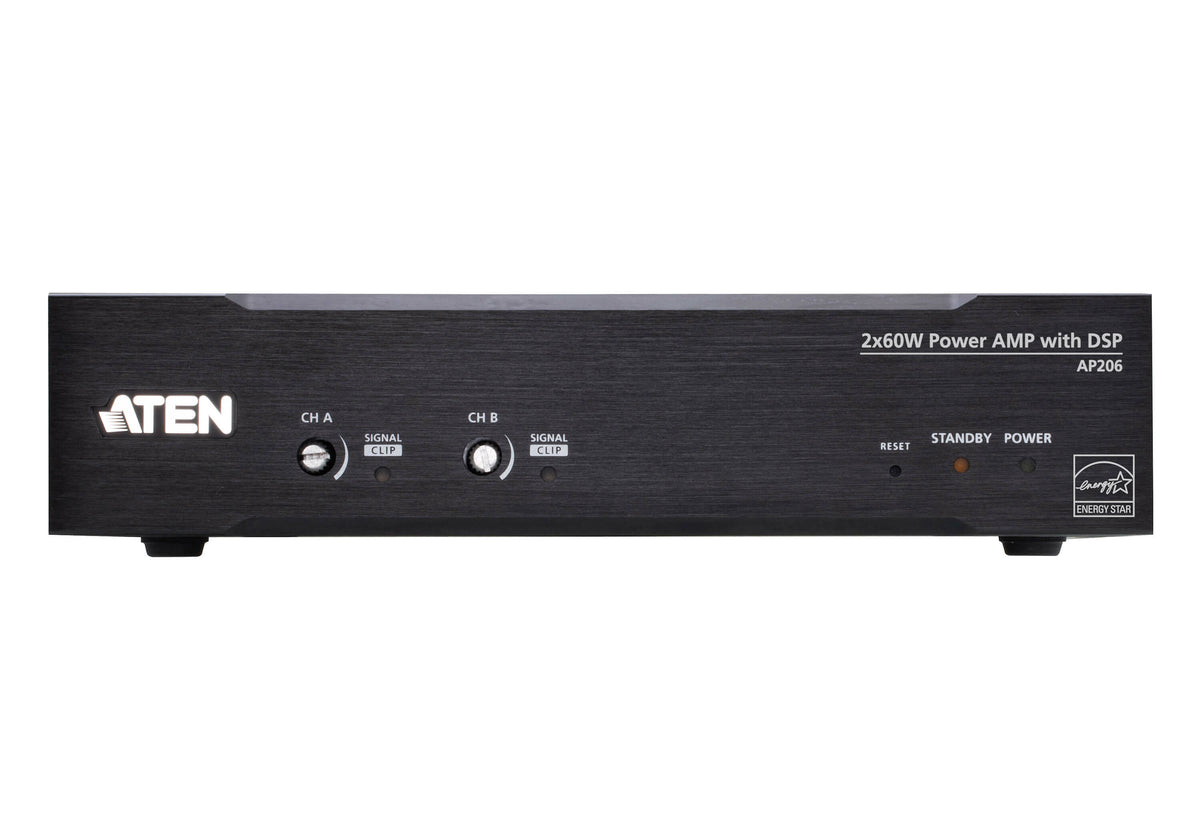

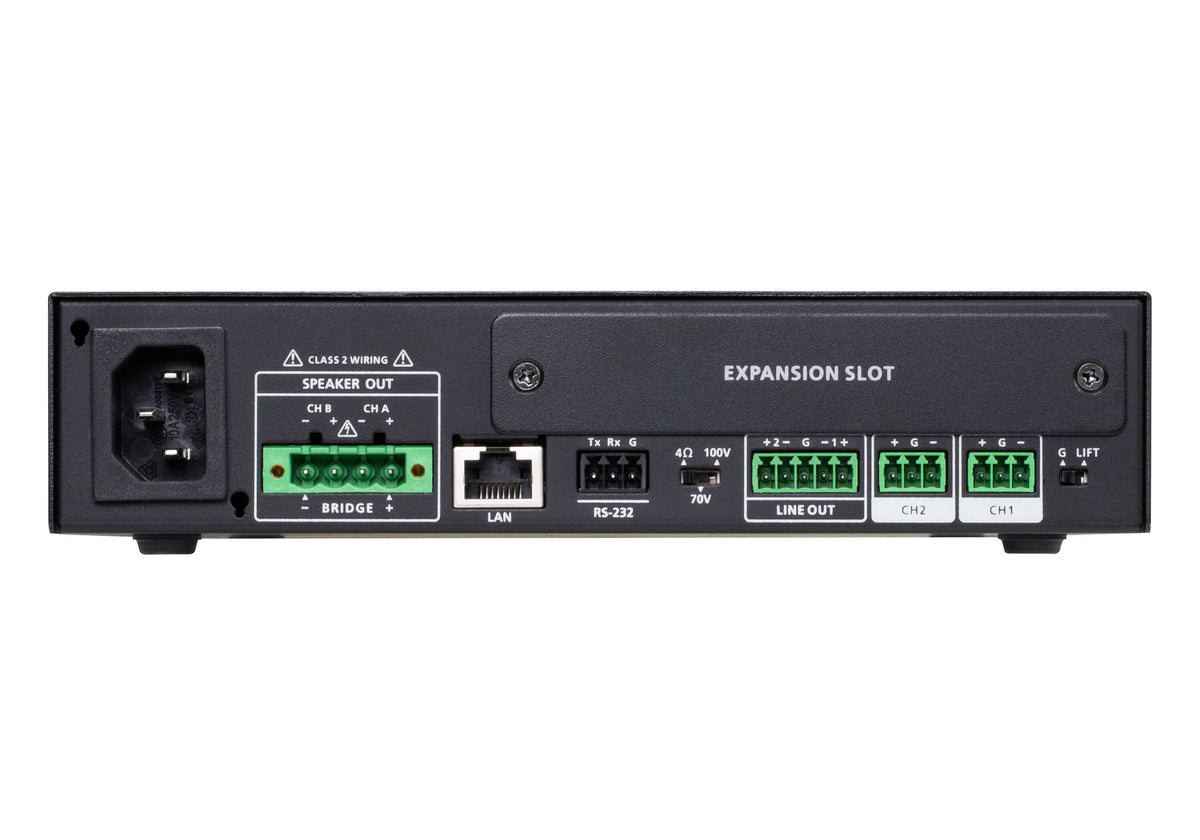

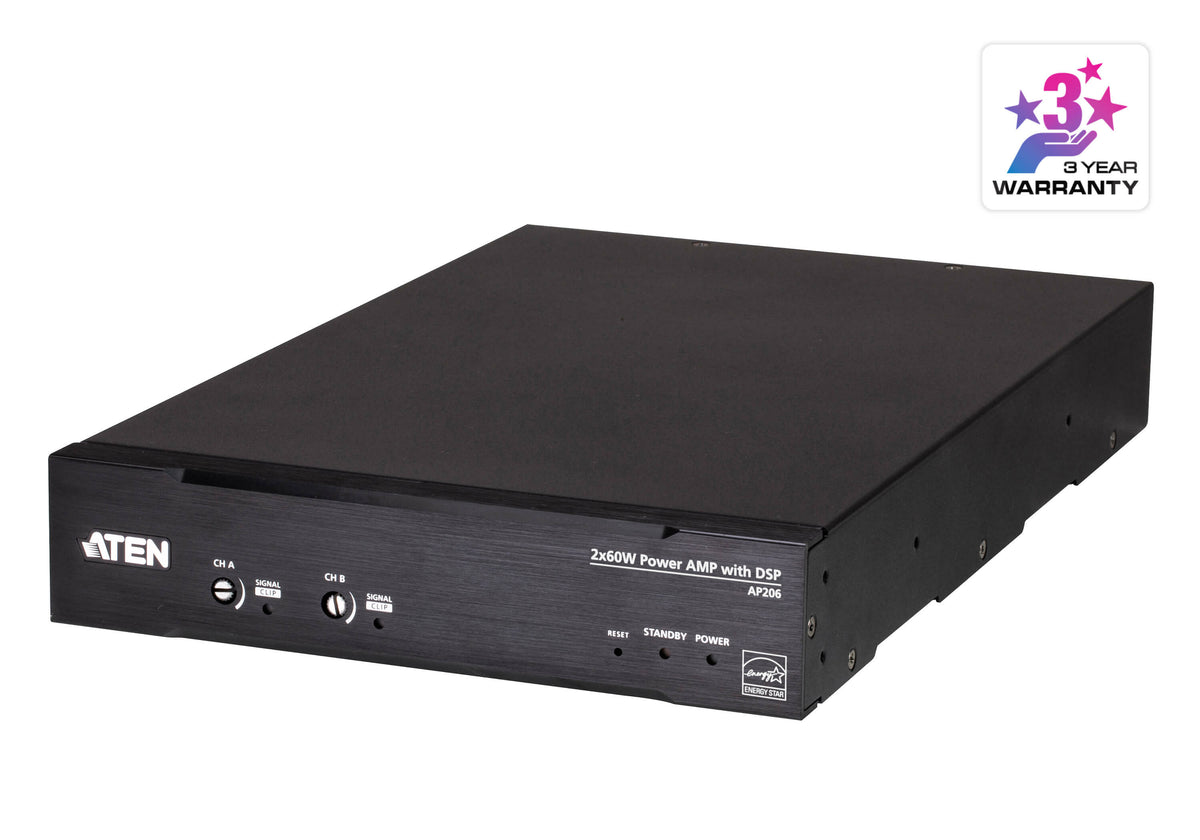

ATEN AP206 is a dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP206 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier’s Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP206 to automatically switch to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes.
Speaking of the system protection circuit, the AP206, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis.

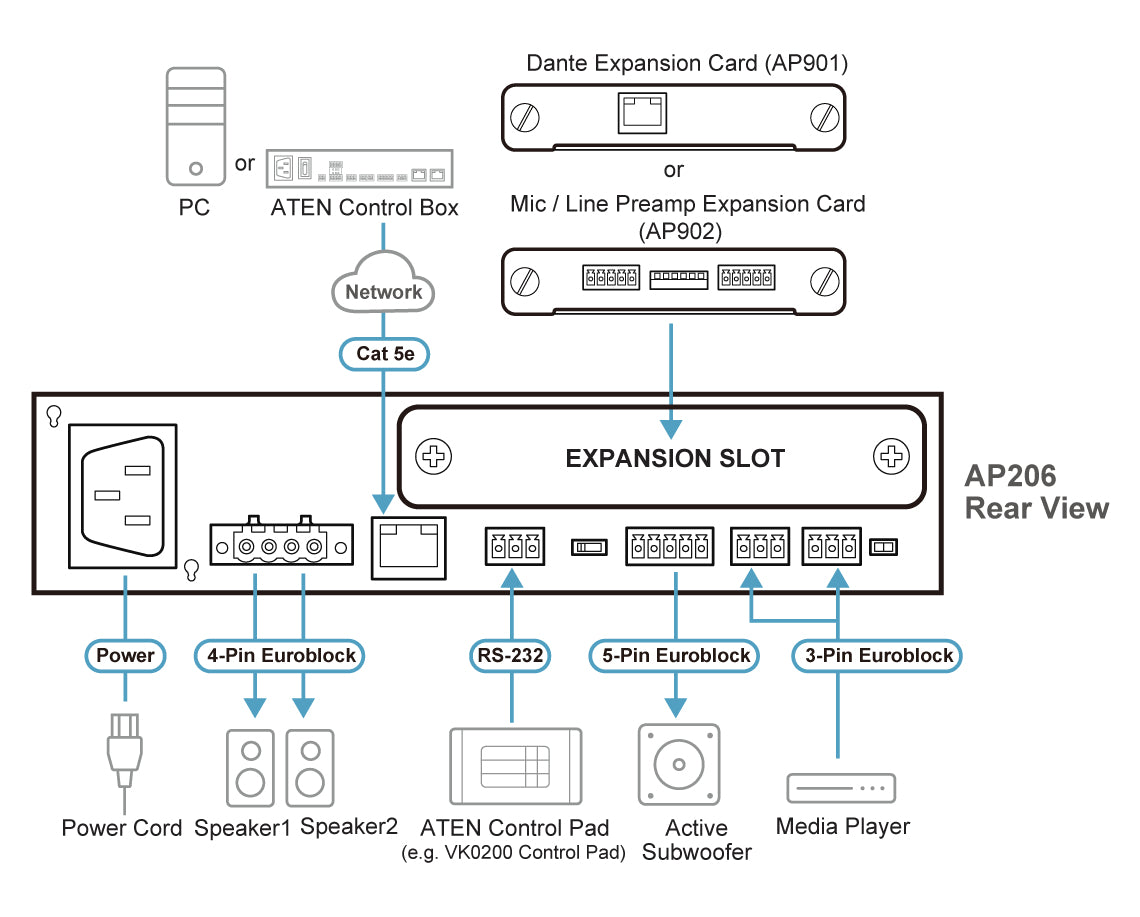

Engineered to deliver the ultimate flexibility, the AP206 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP206 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution.
Speaking of the system protection circuit, the AP206, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis.
Engineered to deliver the ultimate flexibility, the AP206 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP206 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Connectivity technology: Wired
- Amplifier class: D
- RMS rated power: 120 W
- Power protection features: Overload, Under voltage
- Operating relative humidity (H-H): 0 - 80%
- Maximum current: 2 A
- Material: Metal
- Certification: FCC, CE, UKCA
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Total Harmonic Distortion (THD): 0.1%
- Speakers connectivity type: Euroblock
- Peak power per channel: 120 W
- Power source type: AC
- RS-232 ports: 1
- RS-232 connector type: 3-pin
- Output impedance: 600 Ω
- Number of Euroblock output connectors: 2
- Number of Euroblock input connectors: 2
Audio
- Frequency range
- 50 - 20000 Hz
- Input impedance
- 20000 Ω
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Depth
- 20 cm
- Height
- 4.4 cm
- Weight
- 2.15 kg
- Width
- 32.3 cm
Materials
Material: Metal
Compare With Similar Items
|
|
|
|
|
| Description | ATEN AP206 is a dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP206 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier’s Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP206 to automatically switch to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes. Speaking of the system protection circuit, the AP206, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis. Engineered to deliver the ultimate flexibility, the AP206 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP206 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution. |
ATEN AP212 is a dual-channel DSP-equipped amplifier that delivers 120 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP212 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier’s Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP212 to automatically switch to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes. Speaking of the system protection circuit, the AP212, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis. Engineered to deliver the ultimate flexibility, the AP212 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP212 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution. |

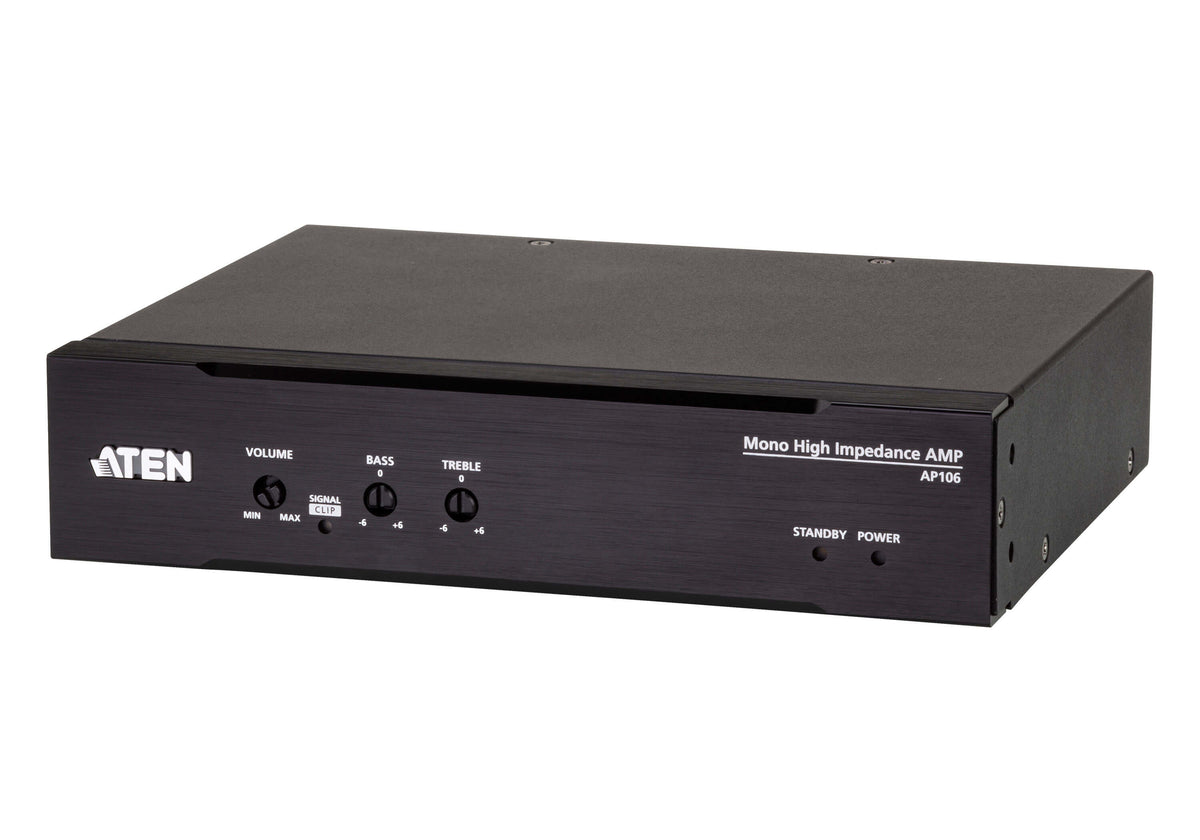

The AP106 is a 60W power amplifier with Hi-Z outputs capable of driving 70 V / 100 V audio systems. The support for balanced / unbalanced line level inputs enables superior sound quality and installation flexibility. Apart from the overall volume adjustment function, the built-in 2-band shelf EQ provides ± 6 dB boost / suppression of treble and bass control, offering subtle tone shaping and extra control versatility. As a result of the extra headroom this amplifier delivers, accommodating transient audio peaks and preventing distortion is never a problem to the AP106. With Class D efficiency, the amplifier comes in a smaller, lighter enclosure, yet runs cooler comparing with other classes of amplifiers with the same amount of power. The fanless design helps eliminate operation shutdown brought by fan malfunction and ensures the amplifier not to be vulnerable to outside elements. Constructed in a compact, sealed casing, the AP106 approves of hidden placement, for instance, behind the TV, or even in the dusty environments, such as above the ceiling. Speaking of the system protection circuit, the AP106, along with the speakers connected to it, is prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and overtemperature. Built to be energy-efficient, the amplifier enters Power Saving Mode when no audio input is detectable in 30 minutes and turns back on when a source is detected. Additional features include the front panel LEDs that indicate the device status, plus the bi-directional RS-232 serial port that allows for firmware upgrade and easy integration with ATEN’s Control System, which acts as a centralized platform where hardware devices are converged to be monitored and controlled via an intuitive GUI. The AP106 is perfect for upgrading commercial or residential Pro AV systems where maintaining ultra-low distortion while exhibiting exceptional sound quality is required. |
