Sold out
ATEN USB DVI KVM Extender with Audio and RS-232 (60m)
Regular price
$553.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

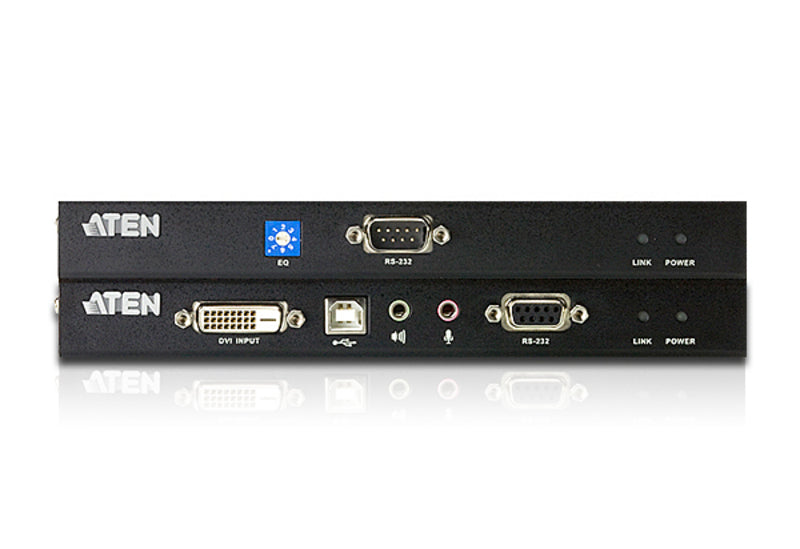

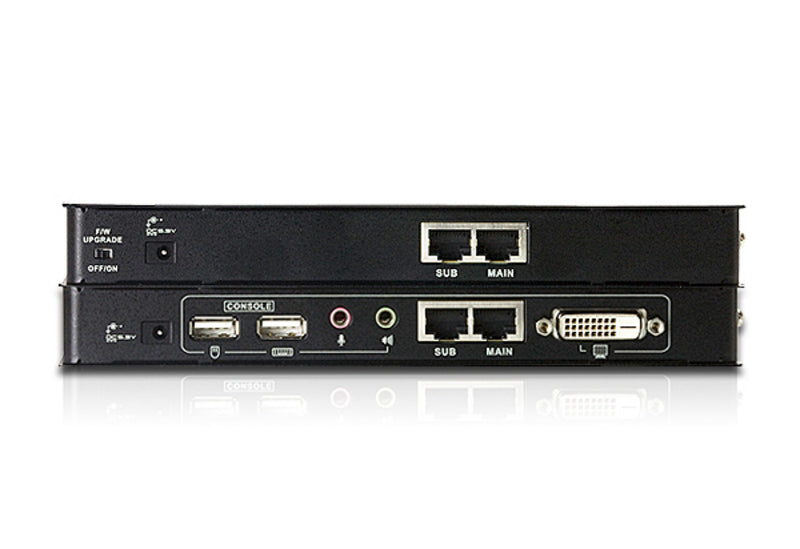

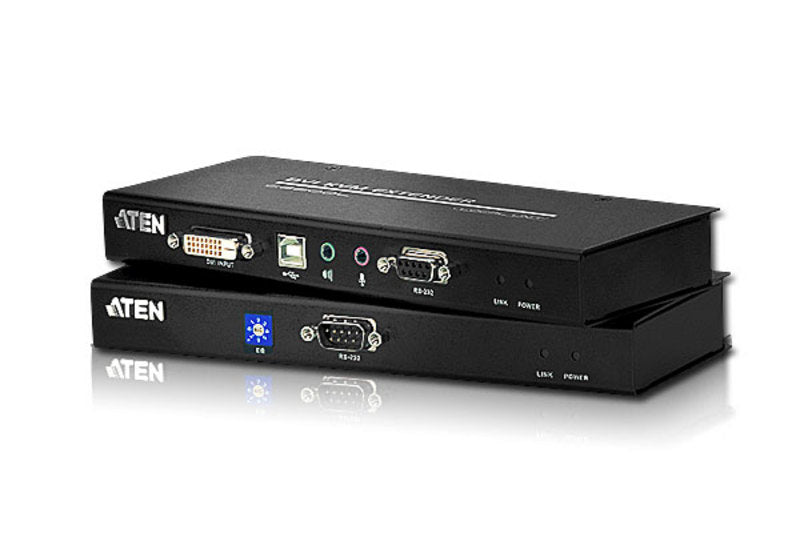

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.
1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Operating relative humidity (H-H): 0 - 80%
- Material: Metal
- LED indicators: Link, Power
- Maximum transfer distance: 60 m
- Transmitter height: 2.5 cm
- Transmitter width: 20.2 cm
- Transmitter weight: 0.48 kg
- Transmitter depth: 8.54 cm
- Receiver width: 20.2 cm
- Receiver weight: 0.48 kg
- Receiver height: 2.5 cm
- Receiver depth: 8.5 cm
- Maximum digital resolution: 1920 x 1200 pixels
- Receiver local video port type: DVI-D
- Transmitter video port type: DVI-D
- Manual: Yes
- Receiver local keyboard/mouse port type: USB
Features
- Cable types supported
- Cat5, Cat5e
- Rack mounting
- Yes
- Supported resolutions
- 1920 x 1200, 1024 x 768
Logistics data
- Harmonized System (HS) code
- 84733080
- Master (outer) case gross weight
- 9.76 kg
- Master (outer) case height
- 23.2 cm
- Master (outer) case length
- 51.2 cm
- Master (outer) case net weight
- 8.95 kg
- Master (outer) case width
- 34.2 cm
- Products per master (outer) case
- 5 pc(s)
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Quick installation guide
- Yes
Packaging data
- Package depth
- 32.5 cm
- Package height
- 21 cm
- Package weight
- 1.84 kg
- Package width
- 9.8 cm
Power
- AC adapter output voltage
- 5.3 V
Receiver
- RJ-45 ports quantity (receiver)
- 2
Technical details
- Weight
- 1.79 kg
Transmitter
- RJ-45 ports quantity (transmitter)
- 2
- Transmitter local keyboard/mouse port type
- USB
Manual
Materials
Material: Metal
Compare With Similar Items
|
|
|
|
|
|
|
| Description | The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances. 1x CE600L DVI KVM Extender (Local Unit) 1x CE600R DVI KVM Extender (Remote Unit) 1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set 2x 0AD8-1605-24M1 Power Adapters 1x Mounting Kit 1x User Instructions |
ATEN CE824 adopts HDBaseT 2.0 technology to transmit uncompressed HDMI video, stereo audio, USB, and RS-232 signals while supporting up to 4096 x 2160 @ 30Hz (4:4:4) on a single display / 1080p on dual displays across 100 m over a single Cat 6 / 6A cable (ATEN 2L-29330 recommended), allowing access to a distant computer for KVM control from the remote console. With Long Reach Mode enabled, the CE824 can extend 1080p HDMI source along with other signals up to 150 m.* The ease of cabling installation plus the rack mount compatibility assure a more efficient system setup. The CE824 serves as an ideal solution forapplications that require high-quality multi-signal extension and KVM control across long distances – such as control centers, banking and finance sectors, industrial warehouses, and extended workstations. |
The CE770 is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. 1x CE770L USB KVM Extender (Local Unit) 1x CE770RQ USB KVM Extender (Remote Unit) 1x USB KVM Cable (1.8m) 2x 0AD8-1605-24M1 Power Adapters 1x Mounting Kit 1x User Instructions |
The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse). Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site. The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit). |
The CE690 is a DVI Optical KVM Extender that overcomes the length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over long distances. The CE690 can transmit KVM DVI signals extremely long distances- up to 20 km away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality. 1 x CE690L DVI Optical KVM Extender (Local Unit) 1 x CE690R DVI Optical KVM Extender (Remote Unit) 1 x 2L-7D02U Custom KVM Cable Set (1.8m) 1 x LIN6-04U1-V1CG USB Cable (1.8m) 2 x 0AD8-1605-24M1 Power Adapters 1 x Mounting Kit 1 x User Instructions |
