Sold out
ATEN 19" LCD Console (USB - PS/2 VGA)
Regular price
$1,224.58
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

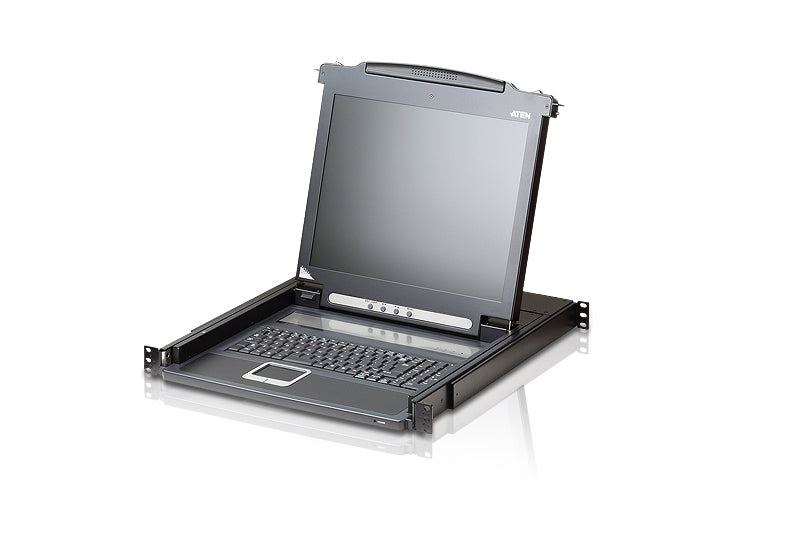

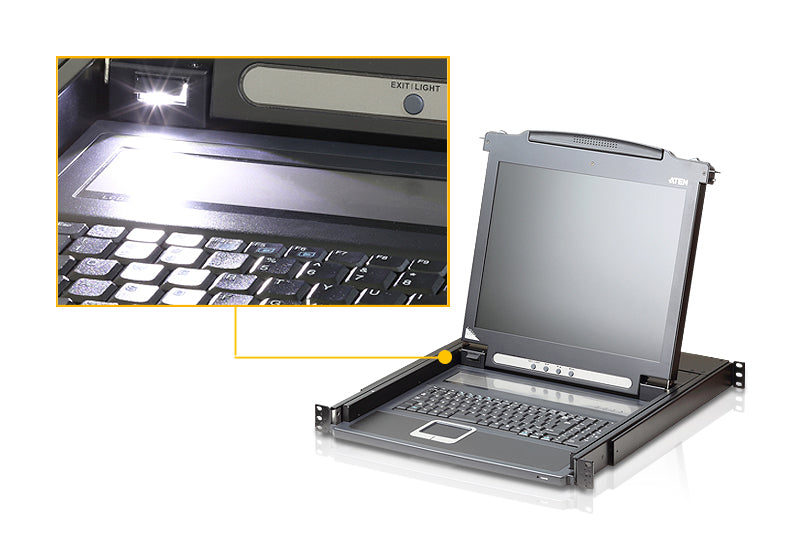

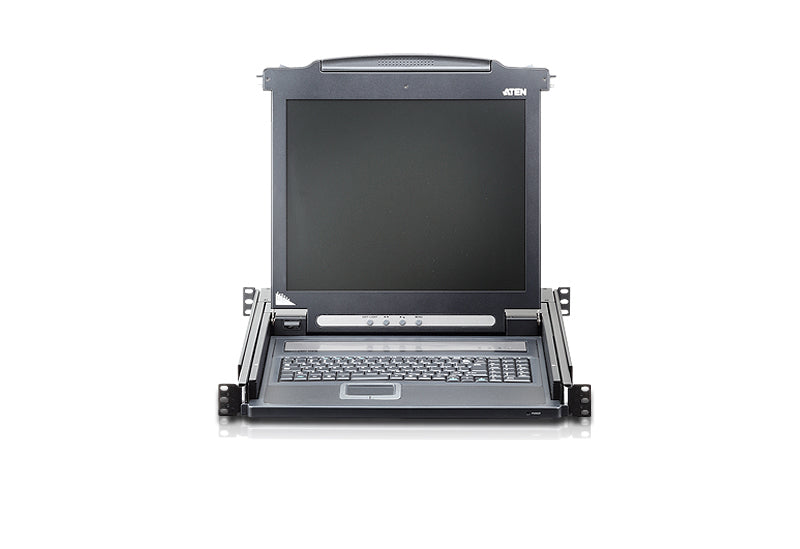

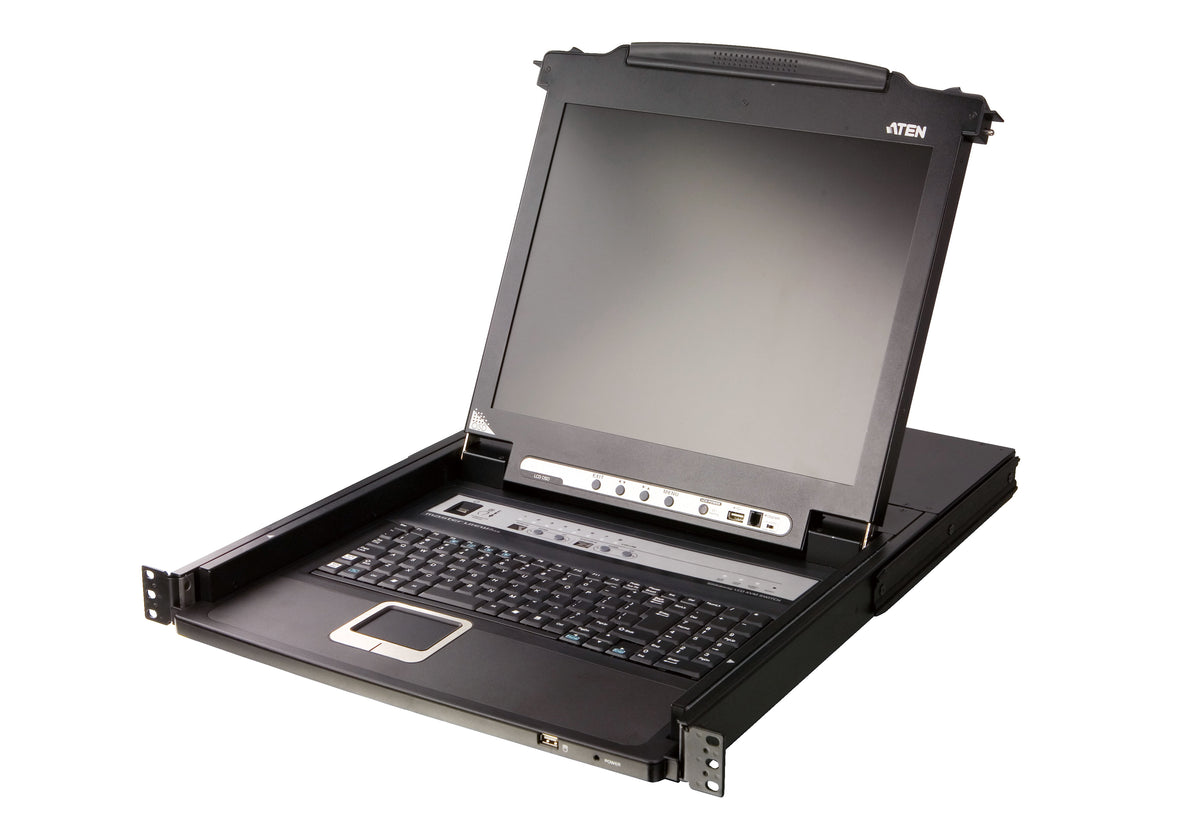

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Display diagonal: 48.3 cm (19")
- Product colour: Black
- Rack capacity: 1U
- Operating temperature (T-T): 0 - 50 °C
- Display: LCD
- Operating relative humidity (H-H): 0 - 80%
- LED indicators: Yes
- Video port type: VGA
- Rack mounting: Yes
- Power consumption (typical): 24 W
- Keyboard port type: PS/2
- Mouse port type: PS/2
- Master (outer) case height: 13.5 cm
- Master (outer) case length: 71.8 cm
- Master (outer) case width: 66.8 cm
- Products per master (outer) case: 1 pc(s)
- Cables included: KVM
- Manual: Yes
- Number of computers controlled: 1
- Maximum resolution: 1280 x 1024 pixels
Keyboard
- Keyboard language
- US English
- Keyboard layout
- QWERTY
Logistics data
- Master (outer) case gross weight
- 14.2 kg
- Master (outer) case net weight
- 11.6 kg
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- AC adapter included
- Yes
- Rack mount kit
- Yes
Packaging data
- Package depth
- 71.8 cm
- Package height
- 13.5 cm
- Package weight
- 14.2 kg
- Package width
- 66.8 cm
Ports & interfaces
- VGA (D-Sub) ports quantity
- 1
Power
- Input current
- 1 A
Technical details
- Push button
- Yes
Weight & dimensions
- Depth
- 58.52 cm
- Height
- 4.4 cm
- Weight
- 11.6 kg
- Width
- 48.3 cm
AC adapter included
Cables included: KVM
Manual
Cables included: KVM
Manual
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. 1x CL1000M or CL1000N with Standard Rack Mount Kit 1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft) 1x LIN2-418K-E12G Power Cord 1x User Instructions |
The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console. The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. |
The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console. The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. |
The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms. The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity. For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry. |
The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions. The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users. To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse. As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry. |
