ATEN CL6700MW KVM switch Rack mounting Black
Regular price
$2,326.71
Sale price
Regular price
Tax included.
Hurry up, only 6 items left in stock.

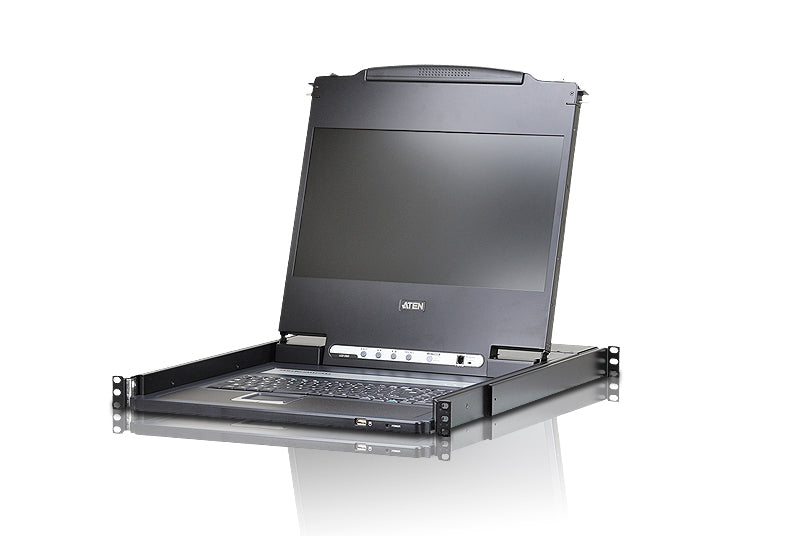

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Display diagonal: 43.9 cm (17.3")
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1080 pixels
- Video port type: DVI-D/HDMI/VGA
- Number of computers controlled: 1
- LED indicators: Yes
- Built-in display: Yes
- Housing material: Metal
- Console ports: 3.5mm headphone, DVI-I, USB A, VGA (D-Sub)
- HD type: Full HD
- Rack mounting: Yes
- Power consumption (typical): 19.4 W
- Power source: AC
- Manual: Yes
- USB connector type: USB Type-A, USB Type-B
- Video bandwidth: 60 Hz
Design
- Rack capacity
- 1U
Display
- Display
- LCD
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 71.8 cm
- Package height
- 13.5 cm
- Package weight
- 14.7 kg
- Package width
- 66.8 cm
Performance
- DDC2B support
- Yes
- Hot-Plug support
- Yes
Ports & interfaces
- DVI-D ports quantity
- 2
- HDMI ports quantity
- 2
- USB 2.0 Type-B ports quantity
- 1
- VGA (D-Sub) ports quantity
- 2
Power
- AC input frequency
- 50 - 60 Hz
- Input current
- 1 A
- Input voltage
- 100 - 240 V
System requirements
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Windows operating systems supported
- Yes
Weight & dimensions
- Depth
- 48 cm
- Height
- 4.4 cm
- Weight
- 11.6 kg
- Width
- 58.92 cm
Manual
Materials
Housing material: Metal
