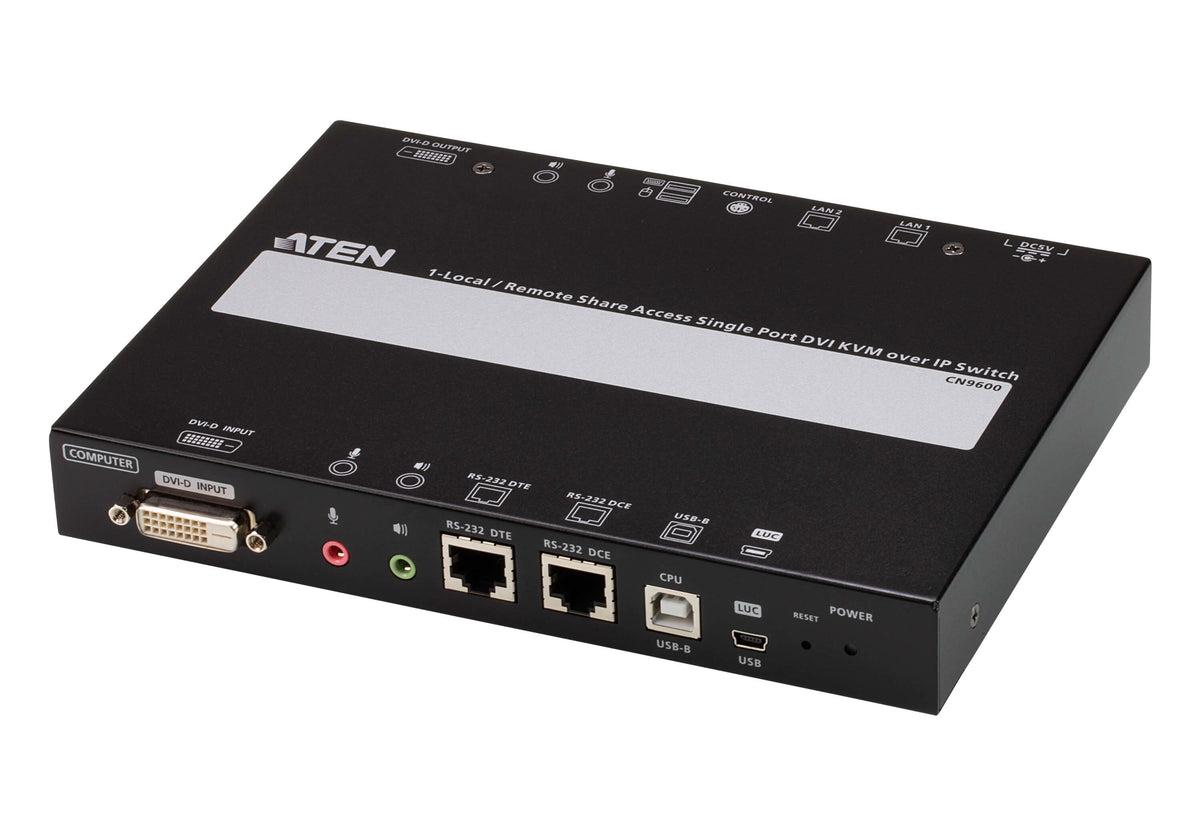

ATEN 1-Local/Remote Share Access Single Port DVI KVM over IP Switch
Regular price
$2,010.89
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The CN9600 DVI KVM over IP Switch is a cost-efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation. The CN9600 enables over-IP capability by connecting compatible ATEN DVI KVM switch and/or LCD console, such as the CS1768 (8-Port USB DVI/Audio KVM Switch) or the CL3800 (DVI LCD Console).
1x CN9600 DVI KVM over IP Switch
1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
1x USB Cable (1.8 m/6 ft)
1x Power Adapter
1x Mounting Kit
1x User Instructions
1x CN9600 DVI KVM over IP Switch
1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
1x USB Cable (1.8 m/6 ft)
1x Power Adapter
1x Mounting Kit
1x User Instructions
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 50 °C
- Maximum resolution: 1920 x 1200 pixels
- Video port type: DVI-D
- LED indicators: Yes
- Built-in display: No
- Housing material: Metal
- Console ports: 3.5mm headphone, DVI-D, USB A
- Console USB ports quantity: 2
- Master (outer) case height: 23.2 cm
- Master (outer) case length: 51.2 cm
- Master (outer) case width: 34.2 cm
- Products per master (outer) case: 5 pc(s)
- Power consumption (typical): 5.55 W
- Audio connections: Yes
- Power source: DC
- Harmonized System (HS) code: 85176200
- Compliance certificates: RoHS
Logistics data
- Master (outer) case gross weight
- 8.72 kg
- Master (outer) case net weight
- 6.2 kg
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 32.5 cm
- Package height
- 21 cm
- Package weight
- 1.61 kg
- Package width
- 9.8 cm
Performance
- Firmware upgradeable
- Yes
- Video bandwidth
- 60 Hz

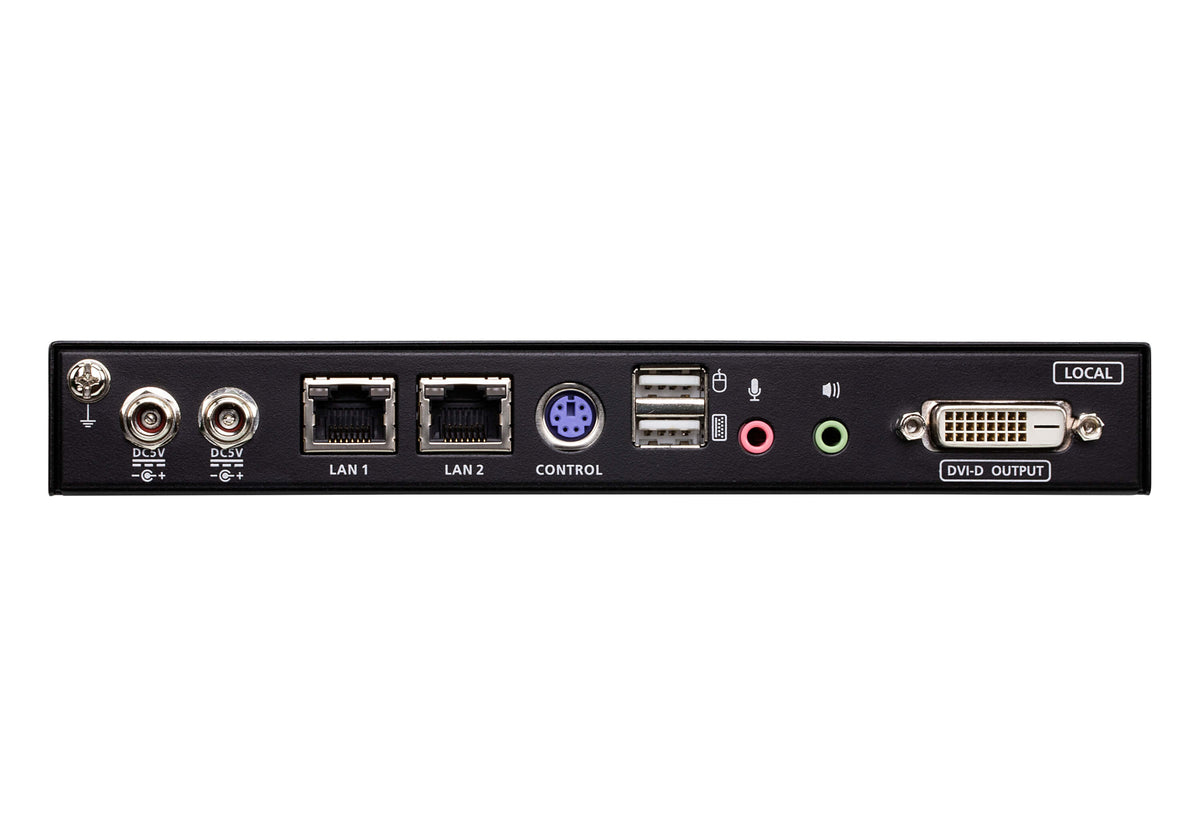

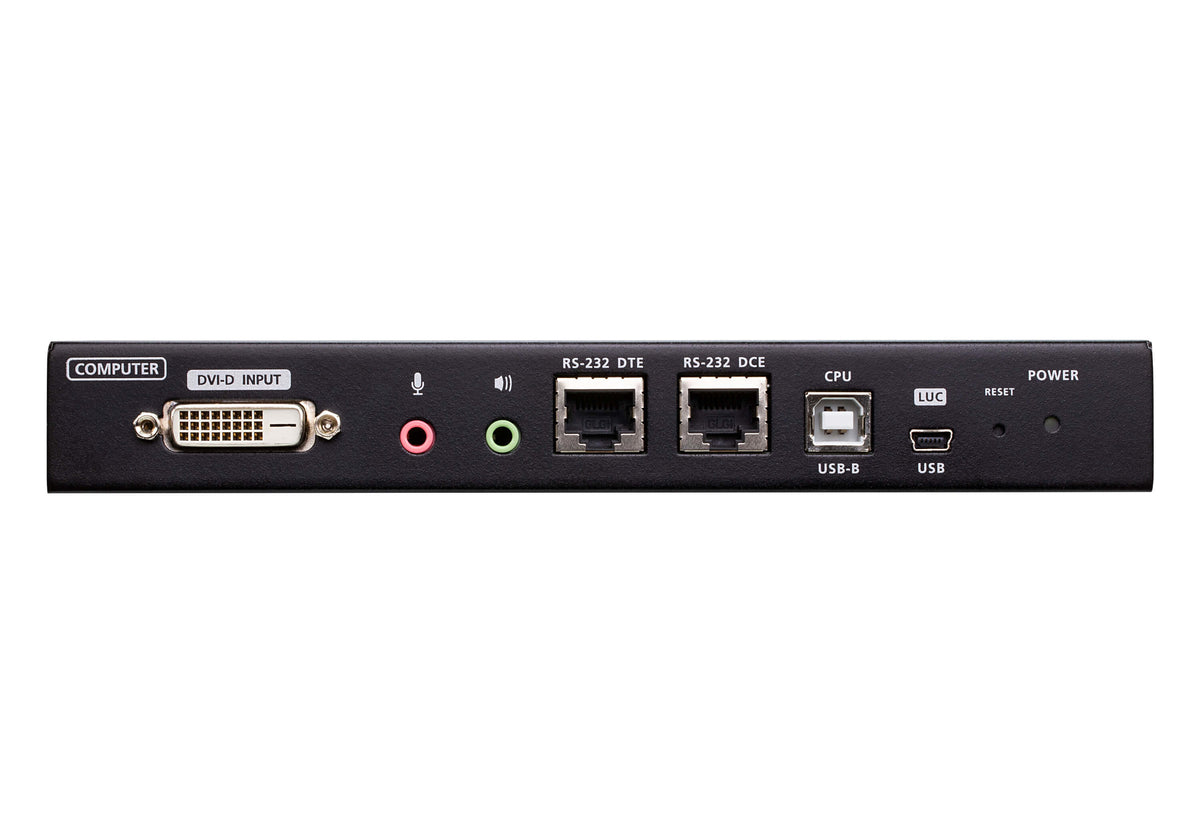

Ports & interfaces
- DC-in jack
- Yes
- DVI-D ports quantity
- 2
- Headphone outputs
- 1
- Number of microphone inputs
- 1
- PS/2 ports quantity
- 1
- Serial ports quantity
- 2
- Serial port type
- RJ-45
- USB 2.0 Type-B ports quantity
- 1
- USB connector type
- Mini-USB B, USB Type-A
Power
- Input voltage
- 5 V
Weight & dimensions
- Depth
- 20 cm
- Height
- 2.85 cm
- Weight
- 1.24 kg
- Width
- 15.49 cm
Materials
Housing material: Metal
