ATEN 4-Port USB HDMI Secure KVM Switch with CAC (PSD PP v4.0 Compliant)
Regular price
$1,451.38
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

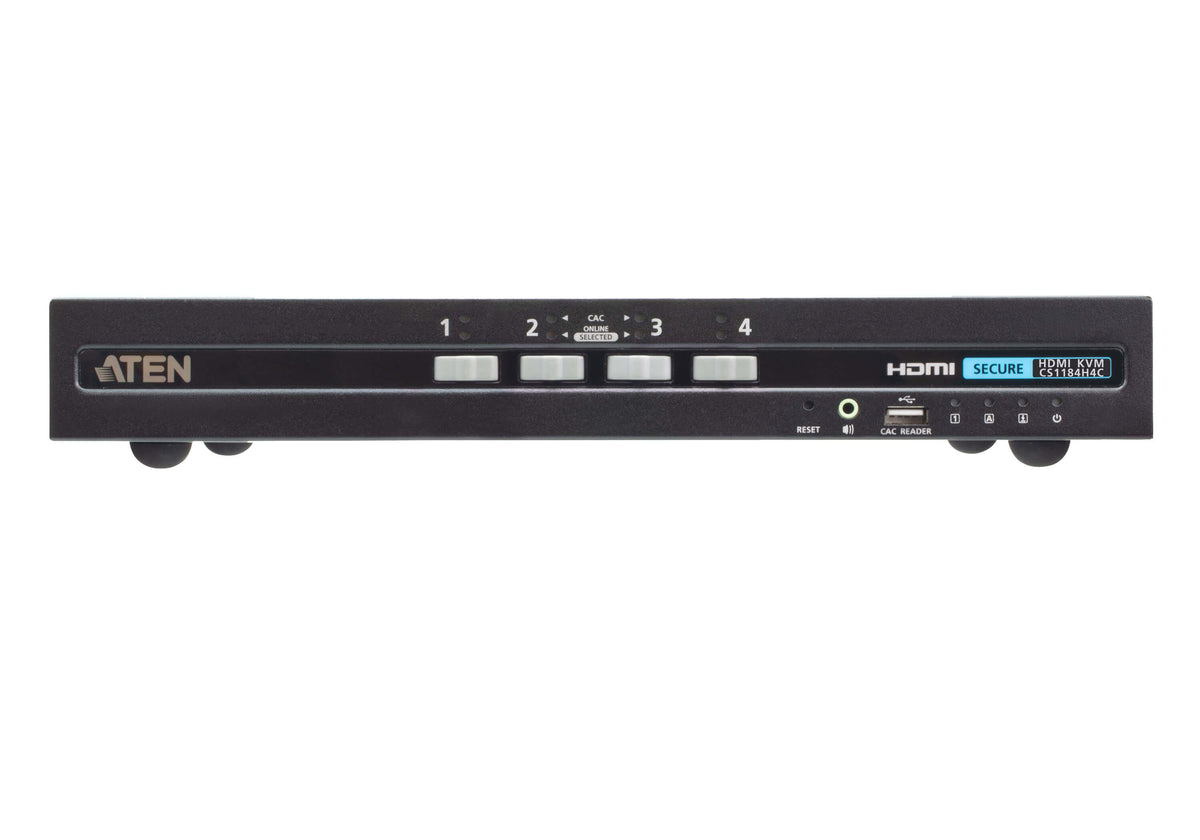

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi – layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi – layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184H4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 3840 x 2160 pixels
- Video port type: HDMI
- Number of computers controlled: 4
- LED indicators: Yes
- Built-in display: No

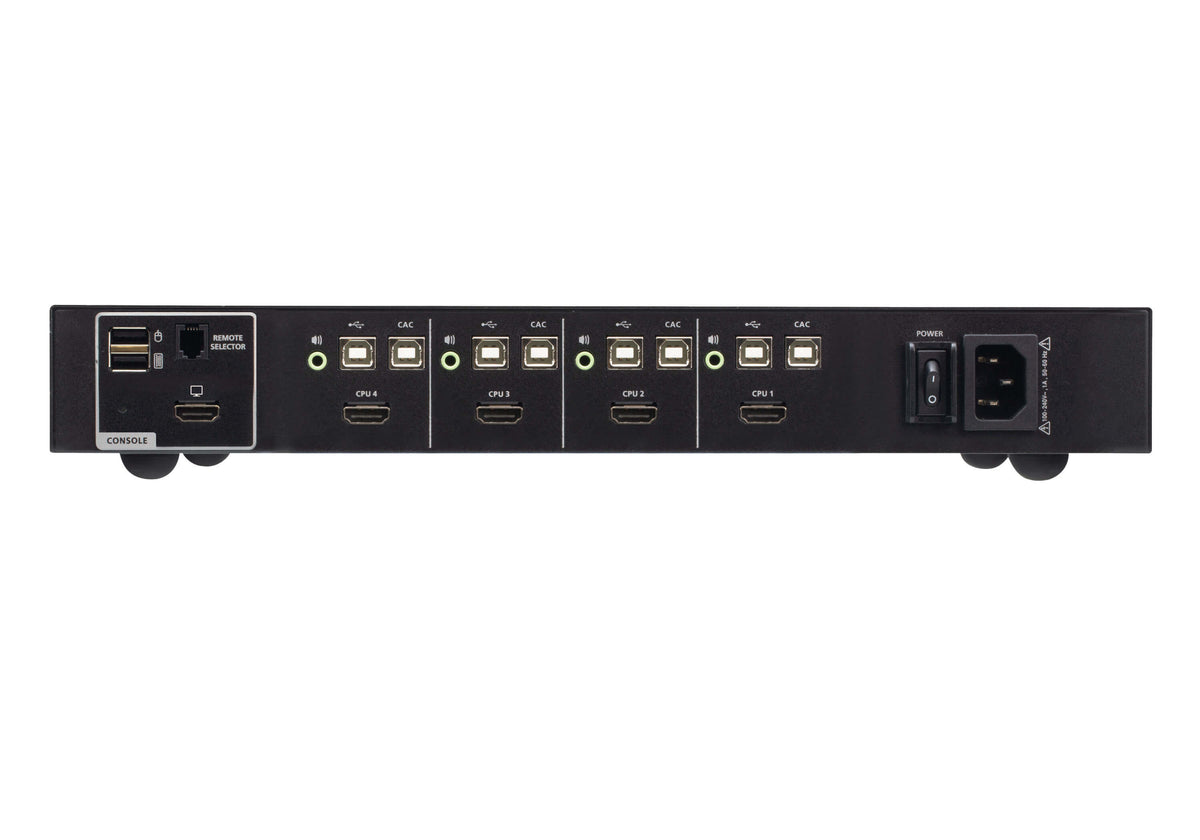

- Console ports: 3.5mm headphone, HDMI, USB A
- HD type: 4K Ultra HD
- Console USB ports quantity: 2
- Power consumption (typical): 5 W
- Audio connections: Yes
- Power source: AC
- Manual: Yes
- Push button: Yes
- Headphone outputs: 4
- Video bandwidth: 60 Hz
Design
- Wired remote switch
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Cables included
- AC
Packaging data
- Package weight
- 2.59 kg
Ports & interfaces
- Console HDMI ports quantity
- 1
- HDMI ports quantity
- 4
- RJ-11 ports quantity
- 1
- USB 2.0 Type-A hub ports quantity
- 1
- USB 2.0 Type-B ports quantity
- 8
- USB hub
- Yes
Power
- AC input frequency
- 50 - 60 Hz
- Input current
- 1 A
- Input voltage
- 100 - 240 V
Weight & dimensions
- Depth
- 33.5 cm
- Height
- 4.4 cm
- Weight
- 1.81 kg
- Width
- 16.39 cm
Cables included: AC
