ATEN 4-Port USB 3.0 4K HDMI KVMP™ Switch with Audio Mixer Mode
Regular price
$888.15
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

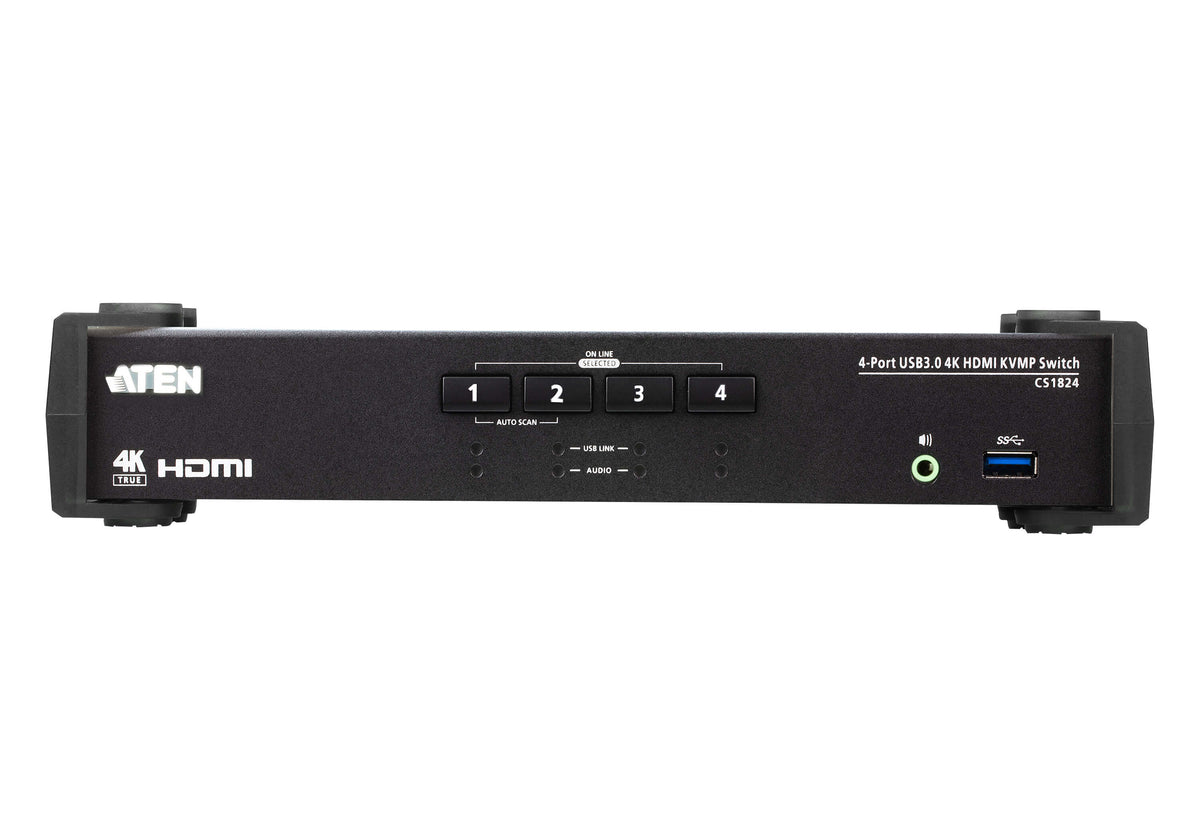

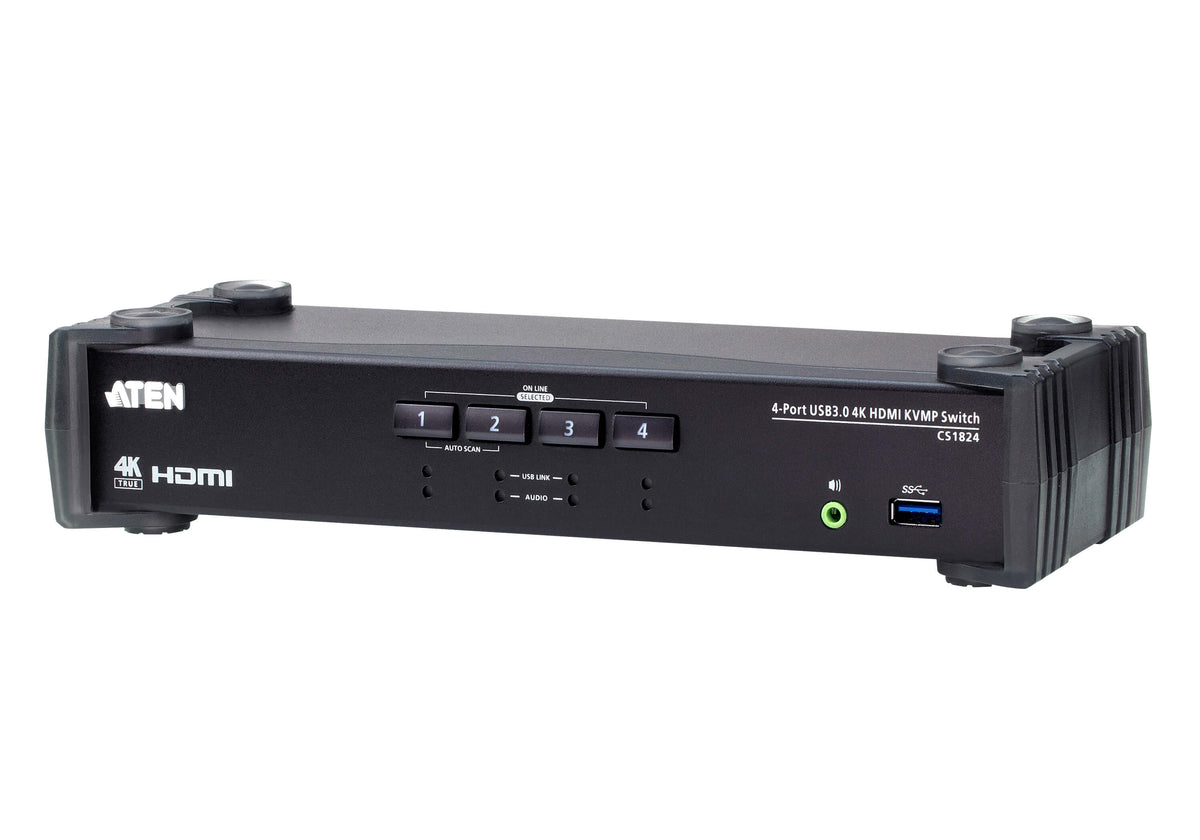

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x LIN6-19V1-V18G HDMI 2.0 Cables
4x LIN6-11C1-E12G USB 3.0 Cables
4x LIN5-0205-21CG Audio Cables
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adapter
1x User Instructions
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 4096 x 2160 pixels
- Video port type: HDMI
- Number of computers controlled: 4
- LED indicators: Yes
- Built-in display: No
- Housing material: Metal, Plastic
- Console ports: 3.5mm headphone, HDMI, USB A
- HD type: 4K Ultra HD
- Console USB ports quantity: 4
- Master (outer) case height: 23.2 cm
- Master (outer) case length: 51.2 cm
- Master (outer) case width: 34.2 cm
- Products per master (outer) case: 5 pc(s)
- Power consumption (typical): 2.535 W
- Audio connections: Yes
Design
- Push button
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case gross weight
- 13.2 kg
- Master (outer) case net weight
- 11.2 kg
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 32.5 cm
- Package height
- 21 cm
- Package weight
- 2.54 kg
- Package width
- 9.8 cm
Performance
- Firmware upgradeable
- Yes
- HDCP
- Yes
- Scan interval
- 1,99 s
- Video bandwidth
- 60 Hz

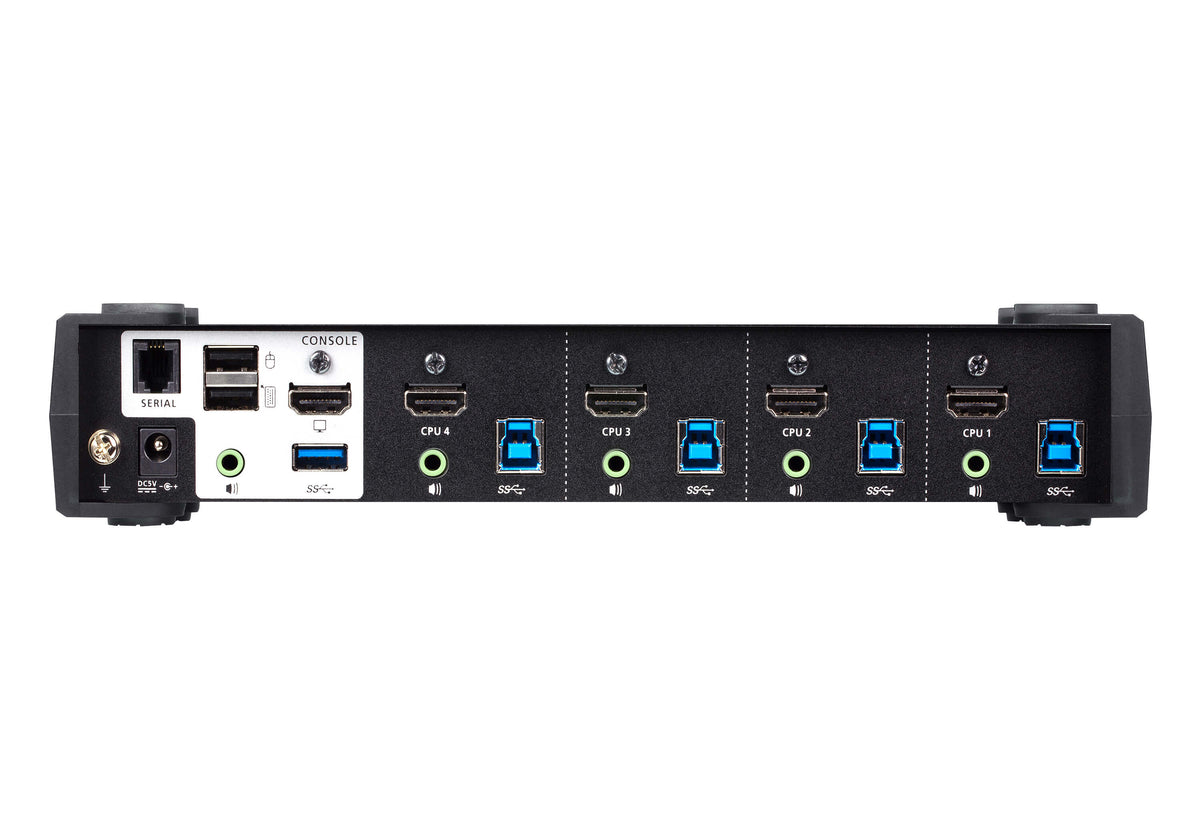

Ports & interfaces
- DC-in jack
- Yes
- HDMI ports quantity
- 5
- HDMI version
- 2.0
- Headphone outputs
- 6
- Serial ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 4
- USB connector type
- USB Type-A, USB Type-B
- USB hub
- Yes
Power
- Input voltage
- 5 V
- Power source
- DC
Sustainability
- Compliance certificates
- RoHS
Weight & dimensions
- Depth
- 27 cm
- Height
- 5.55 cm
- Weight
- 2.24 kg
- Width
- 8.8 cm
Materials
Housing material: Metal, Plastic
