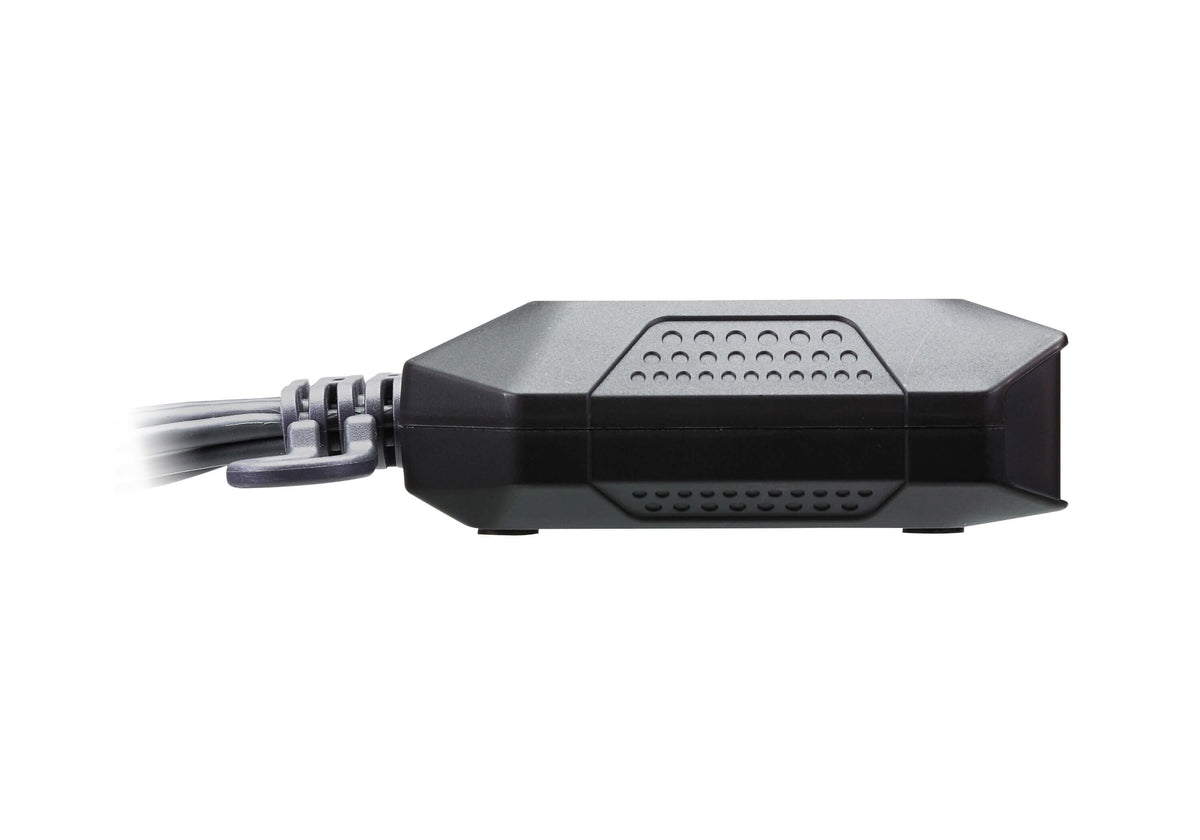

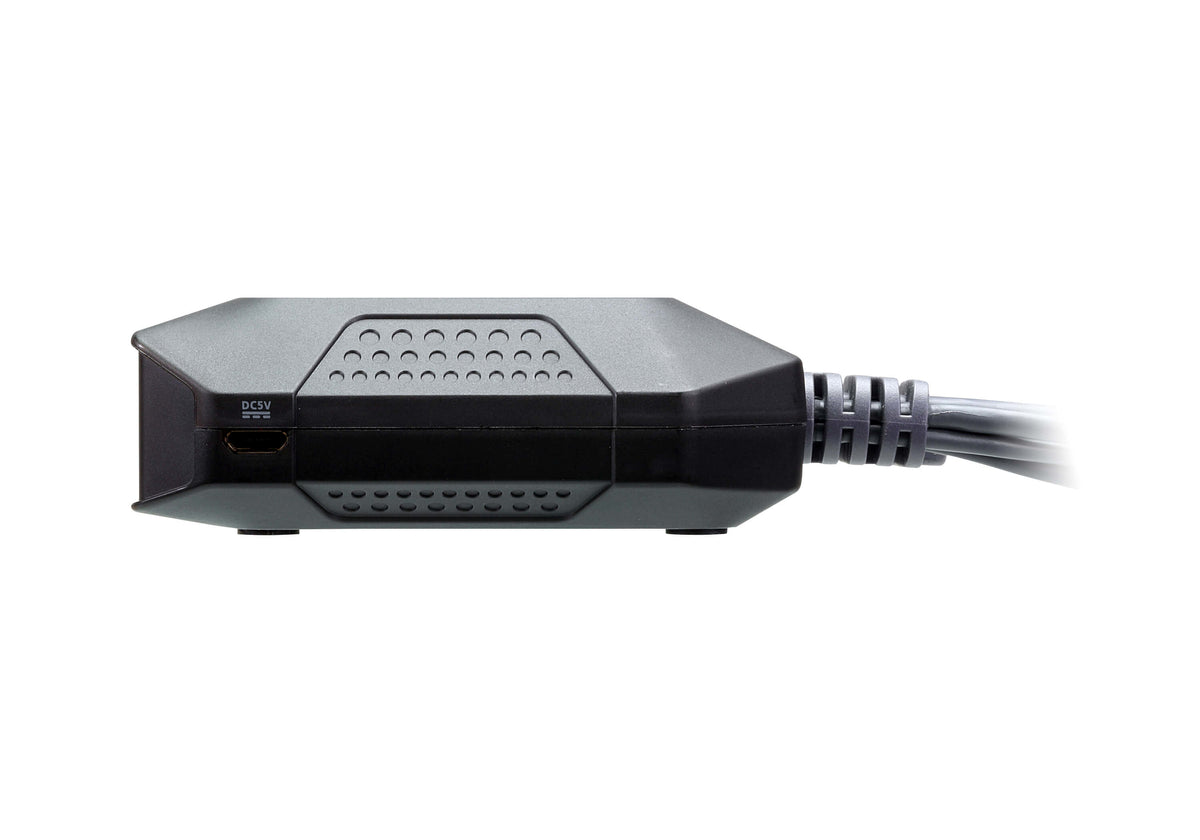

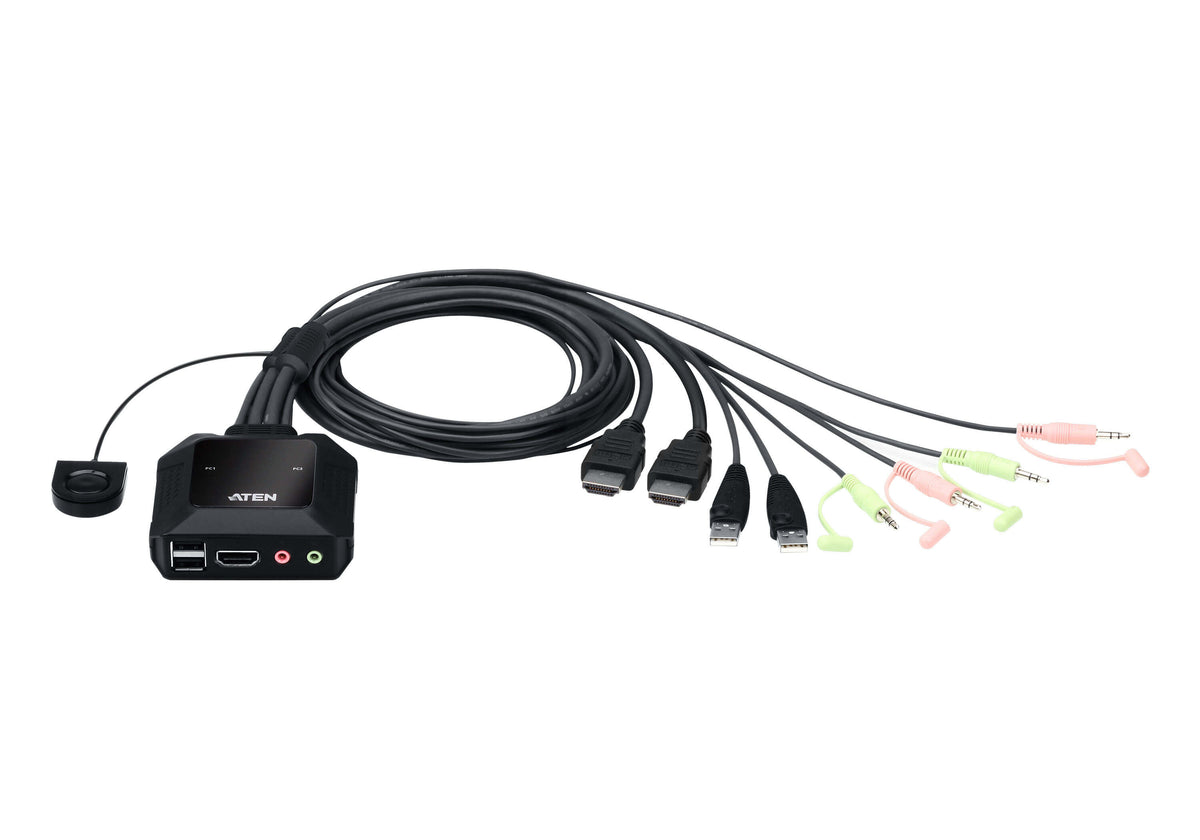

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Regular price
$112.13
Sale price
Regular price
Tax included.
Available in stock (21)
Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.
Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.
Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 4096 x 2160 pixels
- Video port type: HDMI
- Number of computers controlled: 2
- LED indicators: Yes
- Built-in display: No
- Housing material: Plastic

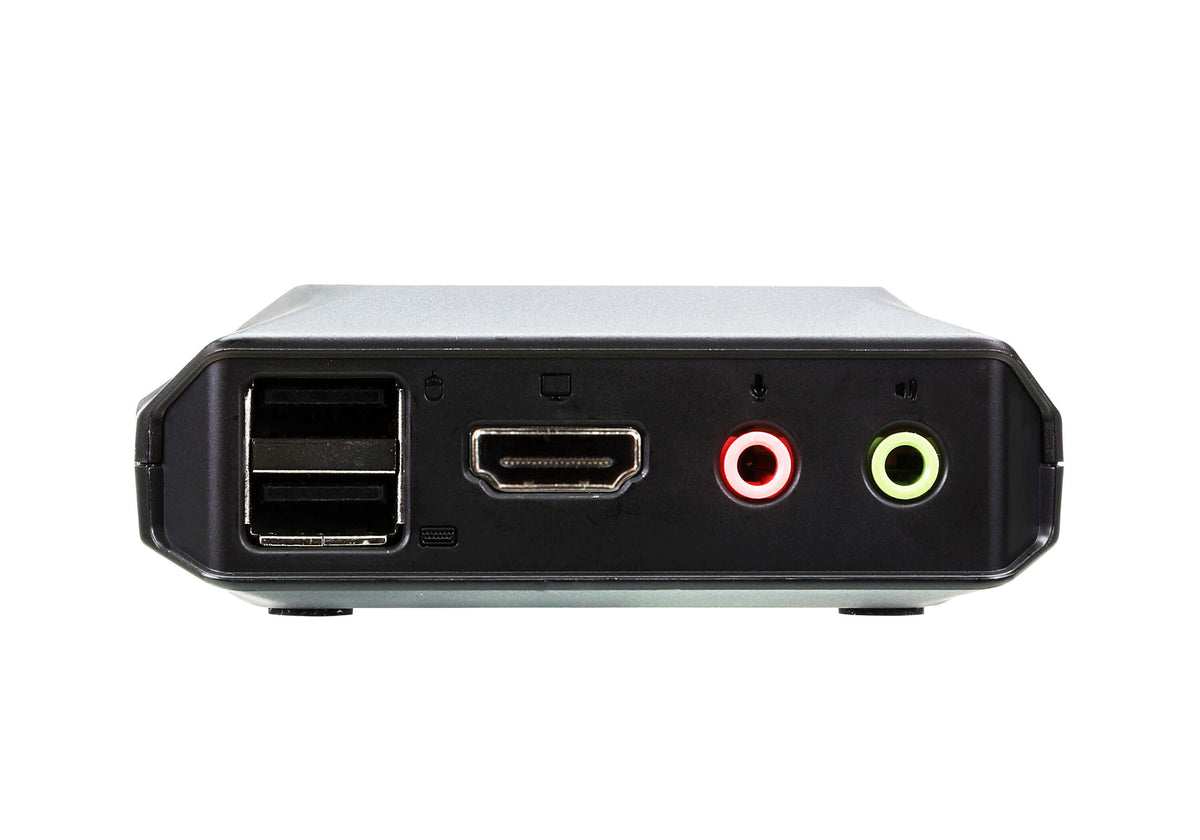

- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- HD type: 4K Ultra HD
- Rack mounting: No
- Console USB ports quantity: 2
- Master (outer) case height: 33 cm
- Master (outer) case length: 38.9 cm
- Master (outer) case width: 32.8 cm
- Products per master (outer) case: 20 pc(s)
- Power consumption (typical): 3.47 W
Design

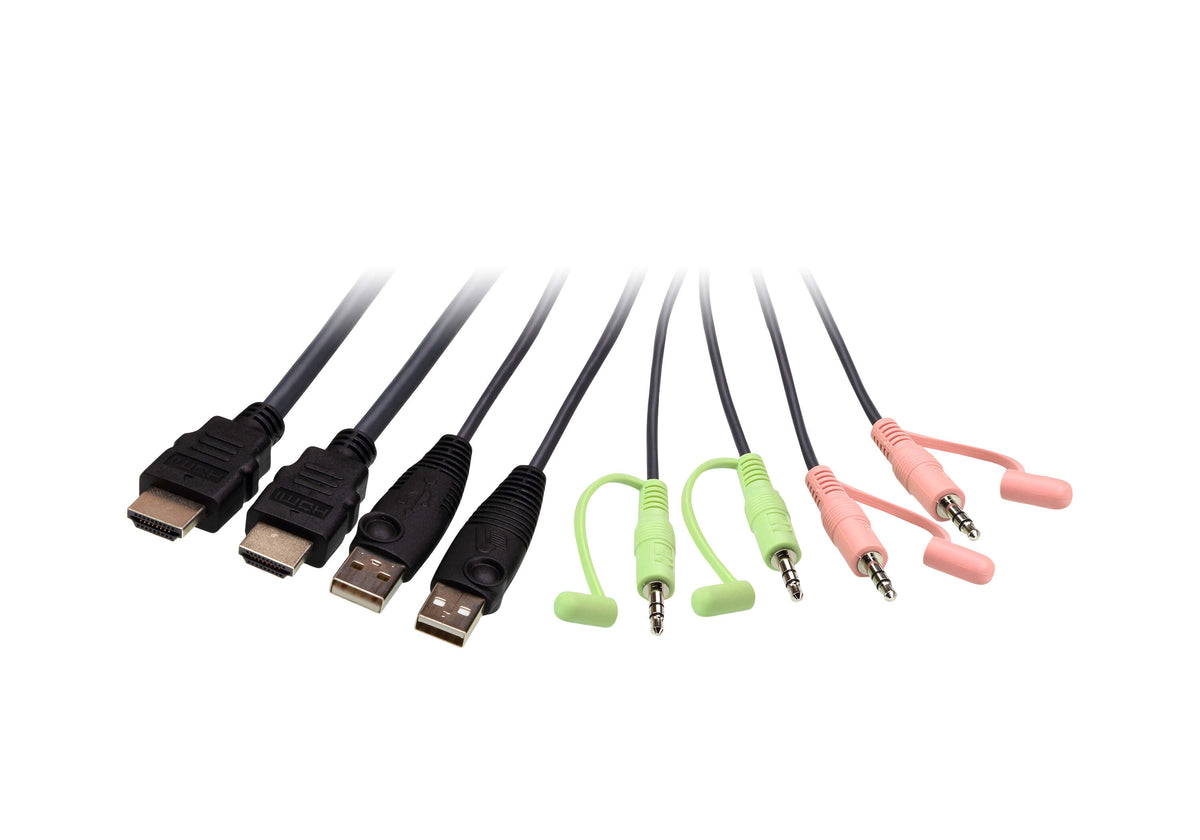

- Cable length
- 1.2 m
- Remote switch cable length
- 1.8 m
- Wired remote switch
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case gross weight
- 9.3 kg
- Master (outer) case net weight
- 6.8 kg
Operational conditions
- Storage relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Manual
- Yes
- Quick installation guide
- Yes
Packaging data
- Package depth
- 15.5 cm
- Package height
- 22.3 cm
- Package weight
- 0.42 kg
- Package width
- 5.5 cm
Performance
- HDCP
- Yes
- HDCP version
- 2.2
- Hot-Plug support
- Yes
- Plug and Play
- Yes
- Video bandwidth
- 60 Hz
Ports & interfaces
- Audio connections
- Yes
- Console HDMI ports quantity
- 1
- HDMI ports quantity
- 3
- Headphone outputs
- 3
- Number of microphone inputs
- 3
- USB connector type
- USB Type-A
Power
- Input voltage
- 5 V
- Power source
- USB
System requirements
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
- Windows operating systems supported
- Yes
Weight & dimensions
- Depth
- 8.34 cm
- Height
- 3.04 cm
- Weight
- 0.34 kg
- Width
- 8.42 cm
