Sold out
ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
Regular price
$206.32
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

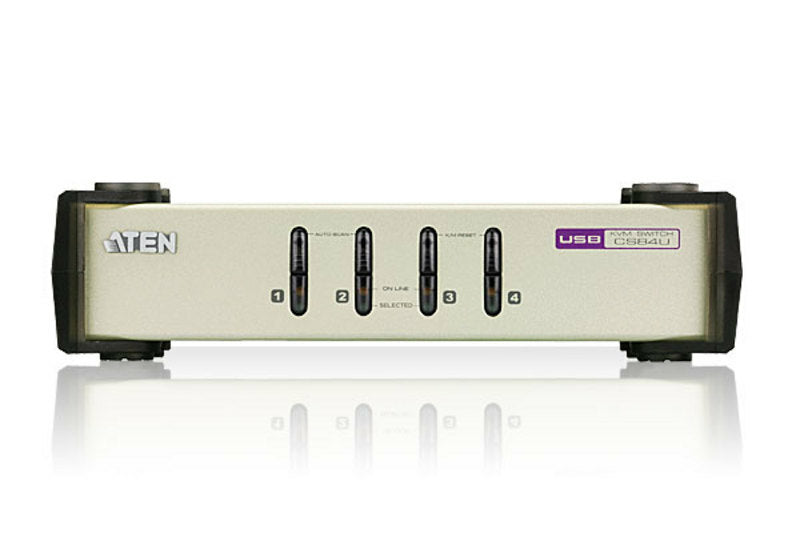

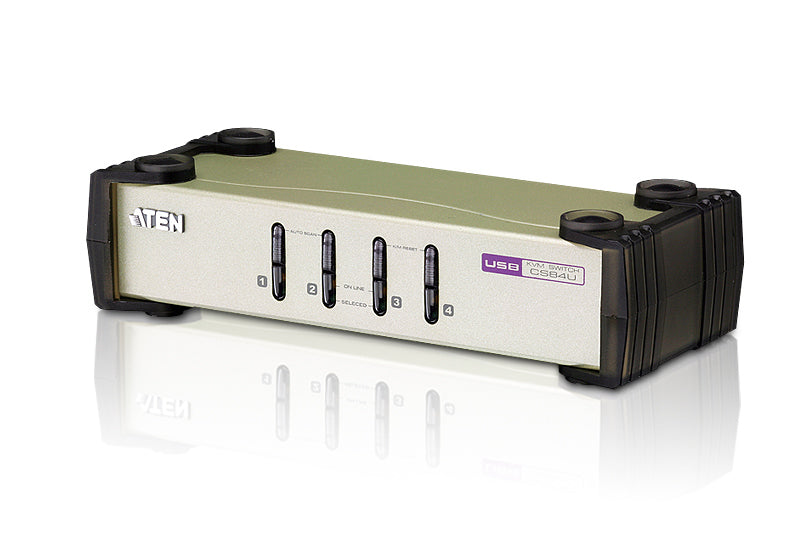

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
1x CS84U PS/2-USB KVM Switch
2x 2L-5301UP PS/2-USB KVM Cables
2x 2L-5302UP PS/2-USB KVM Cables
1x User Instructions
1x CS84U PS/2-USB KVM Switch
2x 2L-5301UP PS/2-USB KVM Cables
2x 2L-5302UP PS/2-USB KVM Cables
1x User Instructions
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Grey
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 2048 x 1536 pixels
- Video port type: VGA
- Number of computers controlled: 4
- LED indicators: Yes
- Built-in display: No
- Housing material: Metal
- Console ports: USB A, VGA (D-Sub)
- HD type: QXGA
- Rack mounting: No
- Master (outer) case height: 19.4 cm
- Master (outer) case length: 51.7 cm
- Master (outer) case width: 29.2 cm
- Products per master (outer) case: 5 pc(s)
- Hot keys: Yes
- Power consumption (typical): 0.45 W
Design
- Push button
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
- Master (outer) case gross weight
- 8.98 kg
- Master (outer) case net weight
- 7.57 kg
Operational conditions
- Storage relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Manual
- Yes
- Quick installation guide
- Yes
Packaging data
- Package depth
- 28.3 cm
- Package height
- 17.3 cm
- Package weight
- 1.69 kg
- Package width
- 10 cm
Performance
- DDC2B support
- Yes
- Scan interval
- 3,5,10,20 s
- Video bandwidth
- 60 Hz

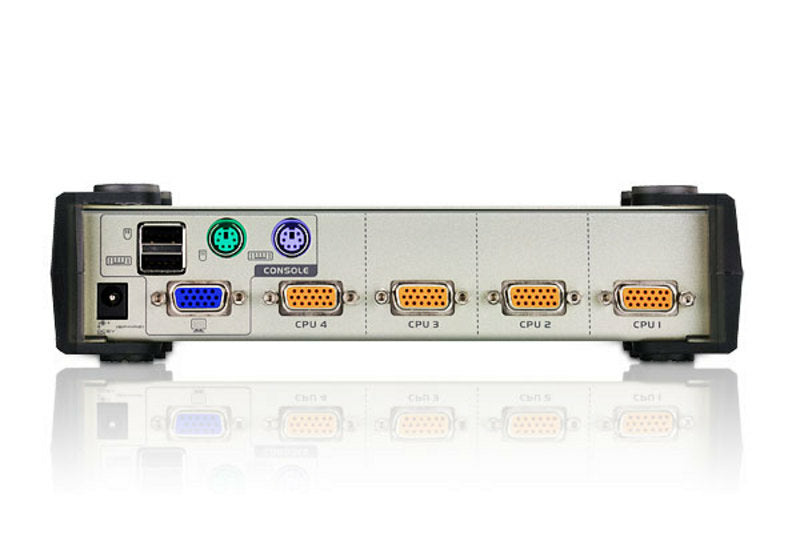

Ports & interfaces
- DC-in jack
- Yes
- USB 2.0 Type-A hub ports quantity
- 2
- USB connector type
- USB Type-A
- VGA (D-Sub) ports quantity
- 4
Power
- Input voltage
- 5 V
- Power source
- DC
Weight & dimensions
- Depth
- 8.8 cm
- Height
- 5.55 cm
- Weight
- 1.51 kg
- Width
- 21 cm
Manual
Materials
Housing material: Metal
