ATEN Over IP PDU metering device (to connect maximum 4 Power Distribution Units (PE1216 and or PE1324) and make them IP accessable)
Out of stock

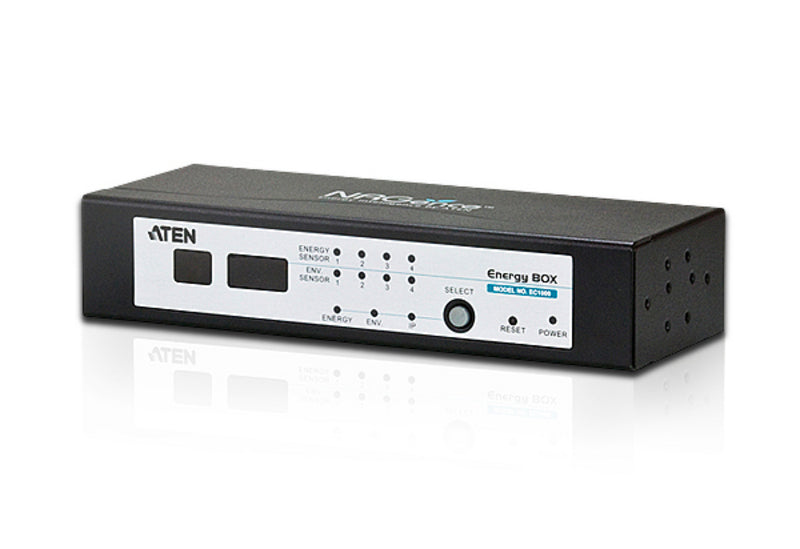

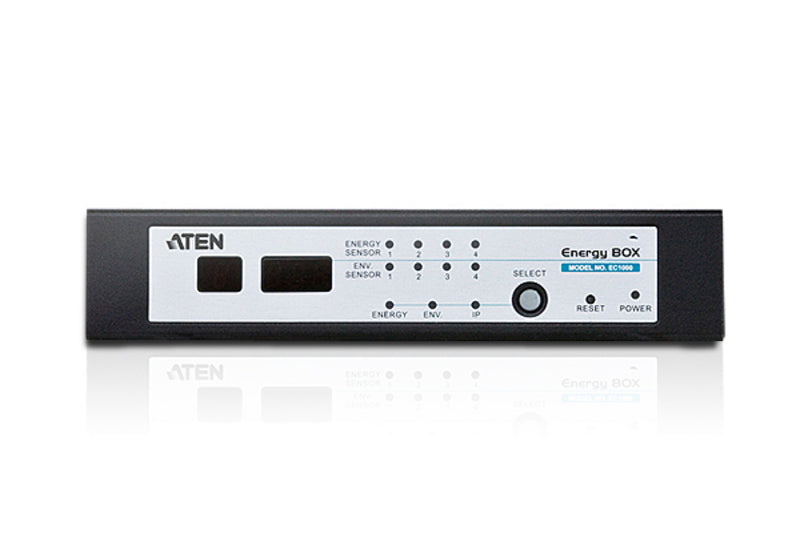

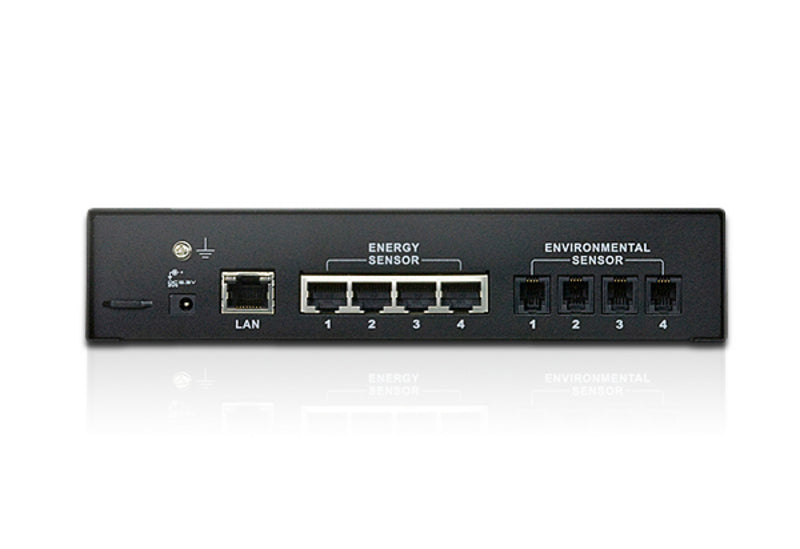

The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need.
The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN's eco Sensors software.
The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
1x EC1000 Energy Box
1x 0AD8-8605-40MG Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Master (outer) case length: 50 cm
- Storage relative humidity (H-H): 0 - 80%
- RJ-45 ports quantity: 4
- Products per master (outer) case: 5 pc(s)
- Power consumption (typical): 2.93 W
- Operating relative humidity (H-H): 0 - 80%
- Operating frequency: 50/60 MHz
- Master (outer) case width: 23.2 cm
- Master (outer) case net weight: 7.1 kg
- Connectivity technology: Wired
- Master (outer) case height: 28.3 cm
- Master (outer) case gross weight: 9.1 kg
- Manual: Yes
- LED indicators: Power, Status
- Housing material: Metal
- DC-in jack: Yes
- Power source type: AC
- Housing colour: Black
Features
- Number of devices supported
- 4
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 26.5 cm
- Package height
- 22 cm
- Package weight
- 1.68 kg
- Package width
- 9.5 cm
Power
- Input voltage
- 100-240 V
Weight & dimensions
- Depth
- 7.59 cm
- Height
- 4.4 cm
- Weight
- 1.42 kg
- Width
- 20 cm
Materials
Housing material: Metal
