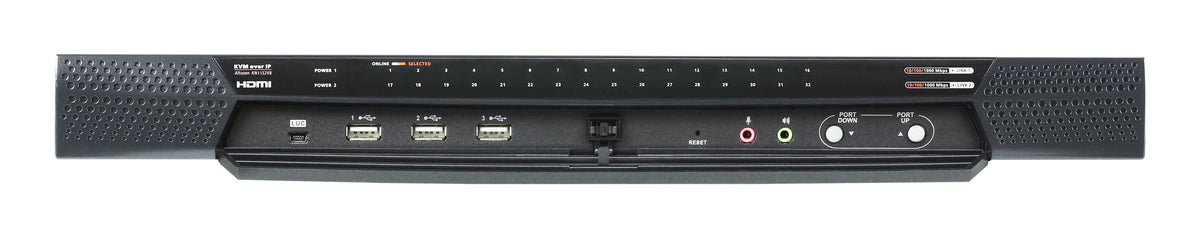

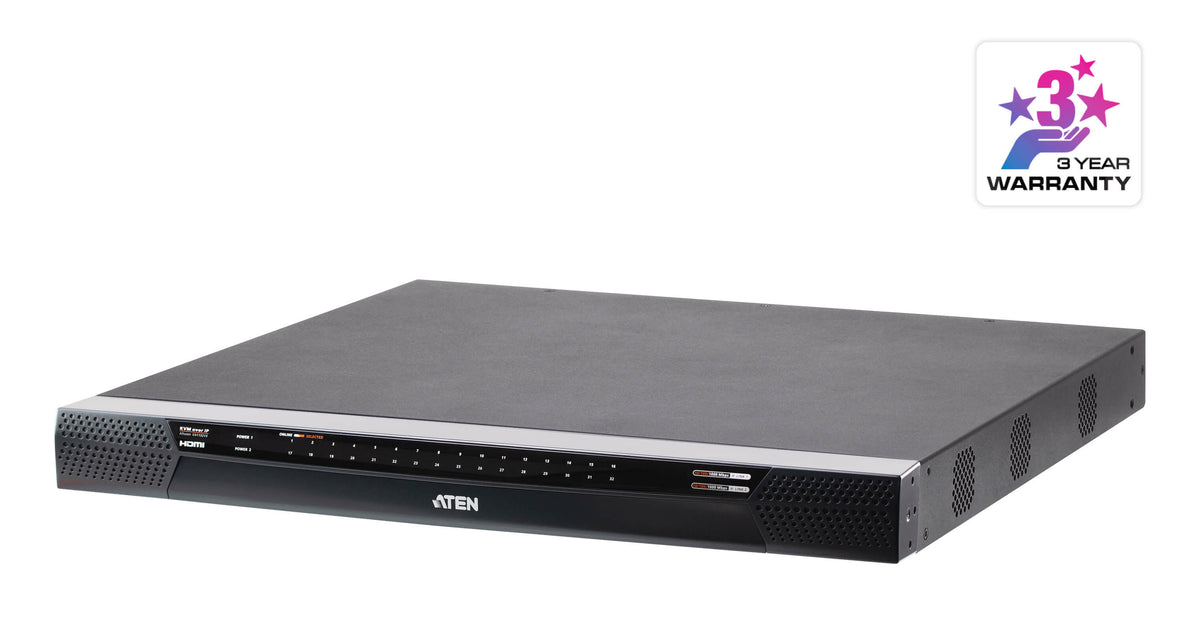

ATEN KN1132VB-AX-U KVM switch Black
Regular price
$12,182.67
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The KN1132VB KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app – PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit the PadClient webpage for more information.
This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
The KN series can be integrated into ATEN’s CC2000 Centralized Management Software. The CC2000 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.
The KN series is compatible with ATEN’s KVM over IP Console Station – the KA82 series. The KA82 series is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KN series with impenetrable security against virus threats. It is especially suitable for environments where a PC is not allowed. In addition, the KN series works with ATEN’s PDU remote power management systems from the KVM over IP switches’ user interface.
Additional exclusive features of KN series include Message Board, Panel Array Mode, Mouse DynaSync™, and the adapter ID. ATEN KVM over IP switches save user’s time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.
This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
The KN series can be integrated into ATEN’s CC2000 Centralized Management Software. The CC2000 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.
The KN series is compatible with ATEN’s KVM over IP Console Station – the KA82 series. The KA82 series is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KN series with impenetrable security against virus threats. It is especially suitable for environments where a PC is not allowed. In addition, the KN series works with ATEN’s PDU remote power management systems from the KVM over IP switches’ user interface.
Additional exclusive features of KN series include Message Board, Panel Array Mode, Mouse DynaSync™, and the adapter ID. ATEN KVM over IP switches save user’s time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1200 pixels
- Video port type: HDMI/VGA
- Number of computers controlled: 32
- LED indicators: Yes
- Housing material: Metal

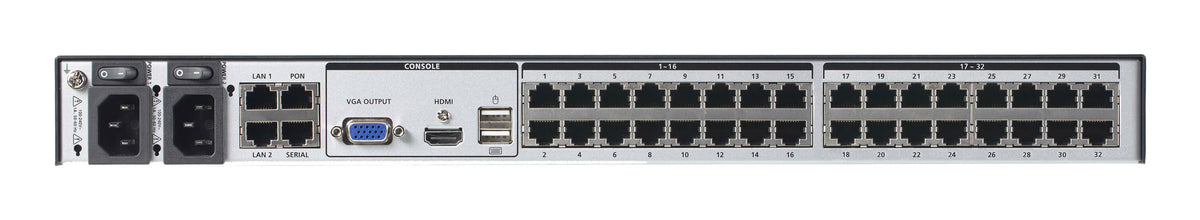

- Console ports: HDMI, USB A, VGA (D-Sub)
- HD type: Full HD+
- Console USB ports quantity: 2
- Hot keys: Yes
- Power consumption (typical): 31.7 W
- Audio connections: Yes
- Power source: AC
- Push button: Yes
- Video bandwidth: 60 Hz
- Scan interval: 1,255 s
Design
- Cascadable
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Performance
- Firmware upgradeable
- Yes
Ports & interfaces
- Console HDMI ports quantity
- 1
- Serial ports quantity
- 1
- Serial port type
- RJ-45
- USB 2.0 Type-A hub ports quantity
- 3
- USB 2.0 Type-B ports quantity
- 1
Power
- AC input frequency
- 50/60 Hz
- Input current
- 1 A
- Input voltage
- 100 - 240 V
Weight & dimensions
- Depth
- 43.36 cm
- Height
- 4.4 cm
- Weight
- 5.03 kg
- Width
- 41.21 cm
Materials
Housing material: Metal
