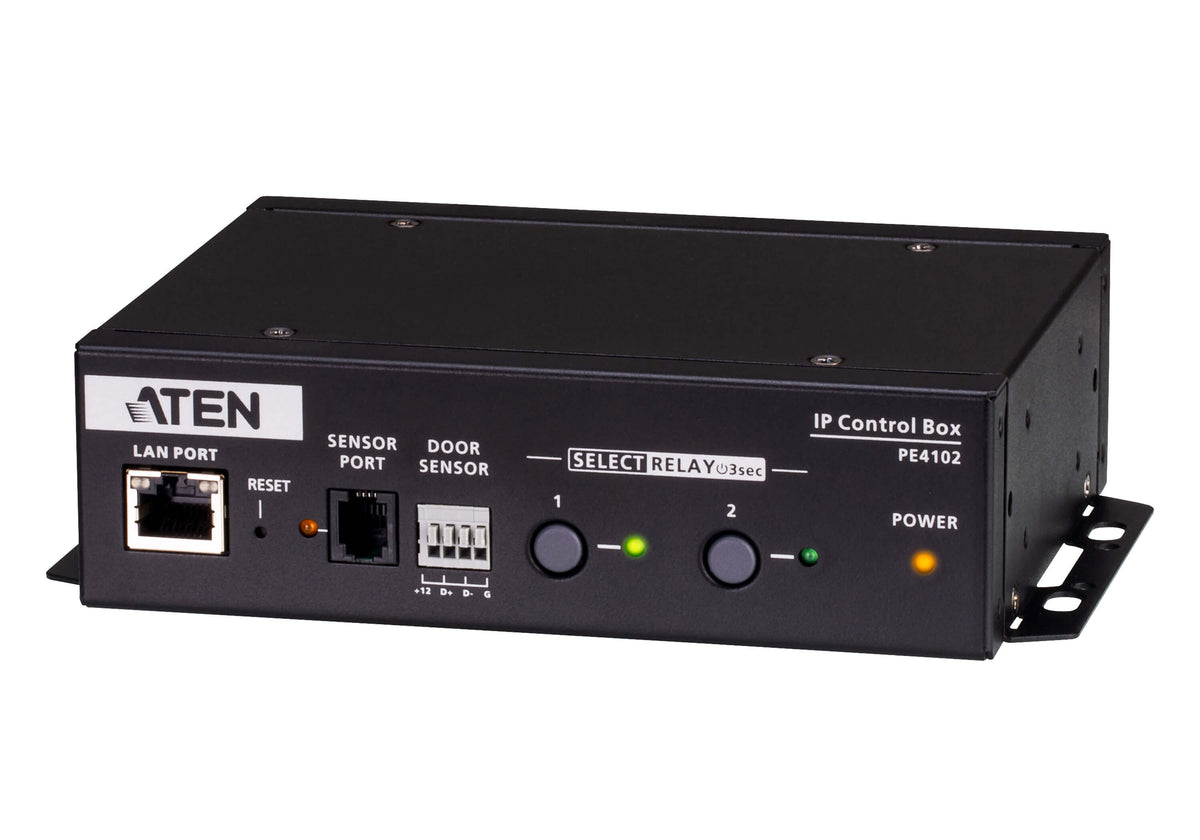

ATEN 2-Outlet Eco PDU Power Controller
Hurry up, only 1 item left in stock.
The PE4102G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks of power inrush, guaranteeing reliable operation and protecting the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. Additionally, the auto ping and auto reboot functions ensure devices remain responsive by automatically detecting connection issues and rebooting when necessary. Administrators can switch on/off or set a delay time for each power outlet or individual power outlet group whenever, wherever.
The PE4102G boasts a slim, compact form factor and supports desk mount, wall mount, as well as rack mount, ensuring easy installation in confined spaces. It is a smart eco PDU power controller tailored for hospitality or retail applications, such as digital signage and video walls, for edge computing devices, including routers, servers, and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 2 AC outlet(s)
- PDU types: Managed
- AC outlet types: C13 coupler
- Nominal input voltage: 100 - 240 V
- Operating temperature (T-T): 0 - 50 °C
- AC input frequency: 50 - 60 Hz
- Maximum current: 10 A
- Operating relative humidity (H-H): 0 - 80%
- Power plug: C14 coupler
- Nominal output voltage: 100 - 240 V
- Compliance certificates: Low Voltage Directive (LVD), CE, Electromagnetic Compatibility (EMC)
- Ethernet LAN (RJ-45) ports: Yes
- Country of origin: China
- Manual: Yes
- Cables included: AC
- Supported network protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3
- Master (outer) case height: 28.3 cm
- Master (outer) case length: 50 cm
- Master (outer) case width: 23.2 cm
Design
- Mounting type
- Desk/Wall
- Rack mounting
- Yes
Features
- Cable length
- 3 m
- Password protection
- Yes
Logistics data
- Master (outer) case gross weight
- 6.92 kg
- Master (outer) case net weight
- 4.9 kg
- Master (outer) case volume
- 32819.225200128 cm³
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 26.5 cm
- Package height
- 22 cm
- Package volume
- 5550.101932032 cm³
- Package weight
- 1.27 kg
- Package width
- 9.5 cm
Power
- Load capacity
- 2400 VA
Weight & dimensions
- Depth
- 17 cm
- Height
- 4.4 cm
- Weight
- 0.98 kg
- Width
- 12.78 cm
Manual
Materials
