Sold out

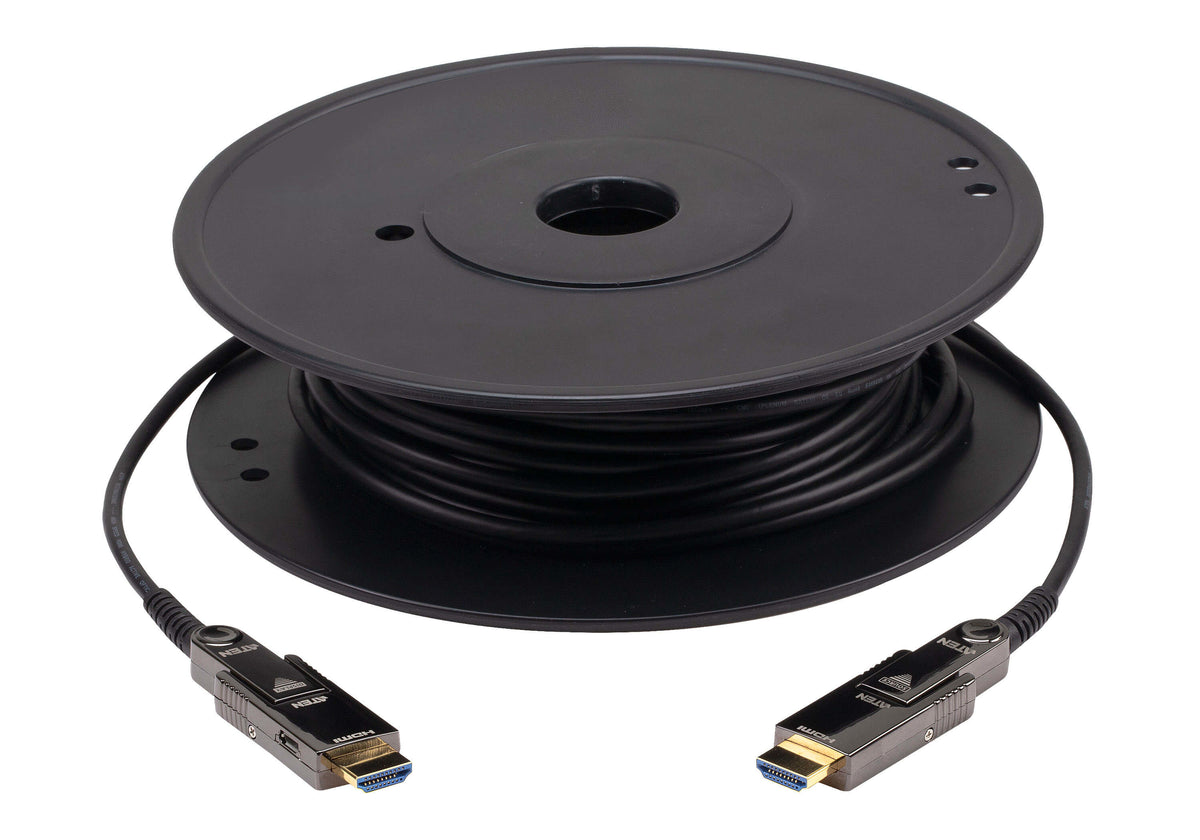

ATEN 10M True 4K HDMI Active Optical Cable
Regular price
$239.76
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
ATEN VE7831A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 10m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions.This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.
Engineered to meet the latest trend of integrator-friendly design, the VE7831A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Engineered to meet the latest trend of integrator-friendly design, the VE7831A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Connector 2: HDMI Type D (Micro)
- Connector 1: HDMI Type D (Micro)
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Cable jacket material: Plenum (OFNP)
- Master (outer) case height: 26.5 cm
- Master (outer) case length: 47 cm
- Master (outer) case width: 38.5 cm
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Cable shielding: Aluminum mylar foil
- Maximum refresh rate: 60Hz
- Audio Return Channel (ARC): Yes
- HDCP version: 2.2
- HDCP: Yes
- Cable diameter: 4.5 mm
- High Dynamic Range (HDR) supported: Yes
Certificates
- Certification
- CE, FCC, RoHS2, UL CMP-OF
Features
- 3D
- Yes
- Bandwidth
- 600 MHz
- Bending radius (min)
- 2 cm
- Cable length
- 10 m
- Cable material
- Copper
- Colour sampling
- 4:4:4
- Data transfer rate
- 18 Gbit/s
- Dolby technologies
- DTS-HD Master Audio, Dolby TrueHD
- Extended display identification data (EDID)
- Yes
- HDMI Ethernet channel
- Yes
- Plug and Play
- Yes
- Pull-off force
- 10 kg
- Pull-resistant connector(s)
- Yes
Logistics data
- Country of origin
- China
- Master (outer) case gross weight
- 8 kg
- Master (outer) case net weight
- 7 kg
- Master (outer) case volume
- 47855.471 cm³
Operational conditions
- Operating relative humidity (H-H)
- 0 - 85%
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
Other features
- Package weight
- 0.7 kg
Packaging content
- Interface adapters included
- Micro HDMI female - HDMI male
- Manual
- Yes
- Screwdriver included
- Yes
Packaging data
- Package depth
- 23.5 cm
- Package height
- 7.4 cm
- Package width
- 22.5 cm
- Quantity per pack
- 1 pc(s)
Weight & dimensions
- Package volume
- 3964.359 cm³
- Weight
- 0.7 kg
Interface adapters included: Micro HDMI female - HDMI male
Manual
Screwdriver included
Manual
Screwdriver included
Materials
Cable jacket material: Plenum (OFNP) Cable material: Copper
