ATEN AT-VE810
Regular price
$156.98
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

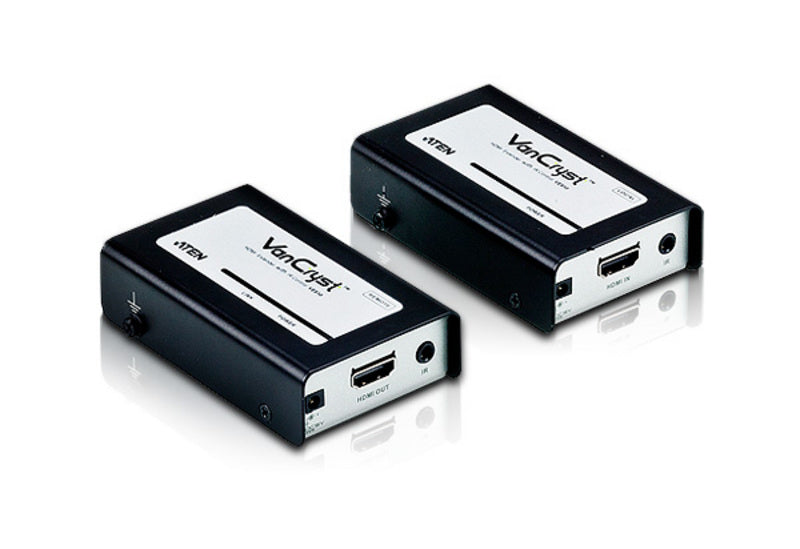

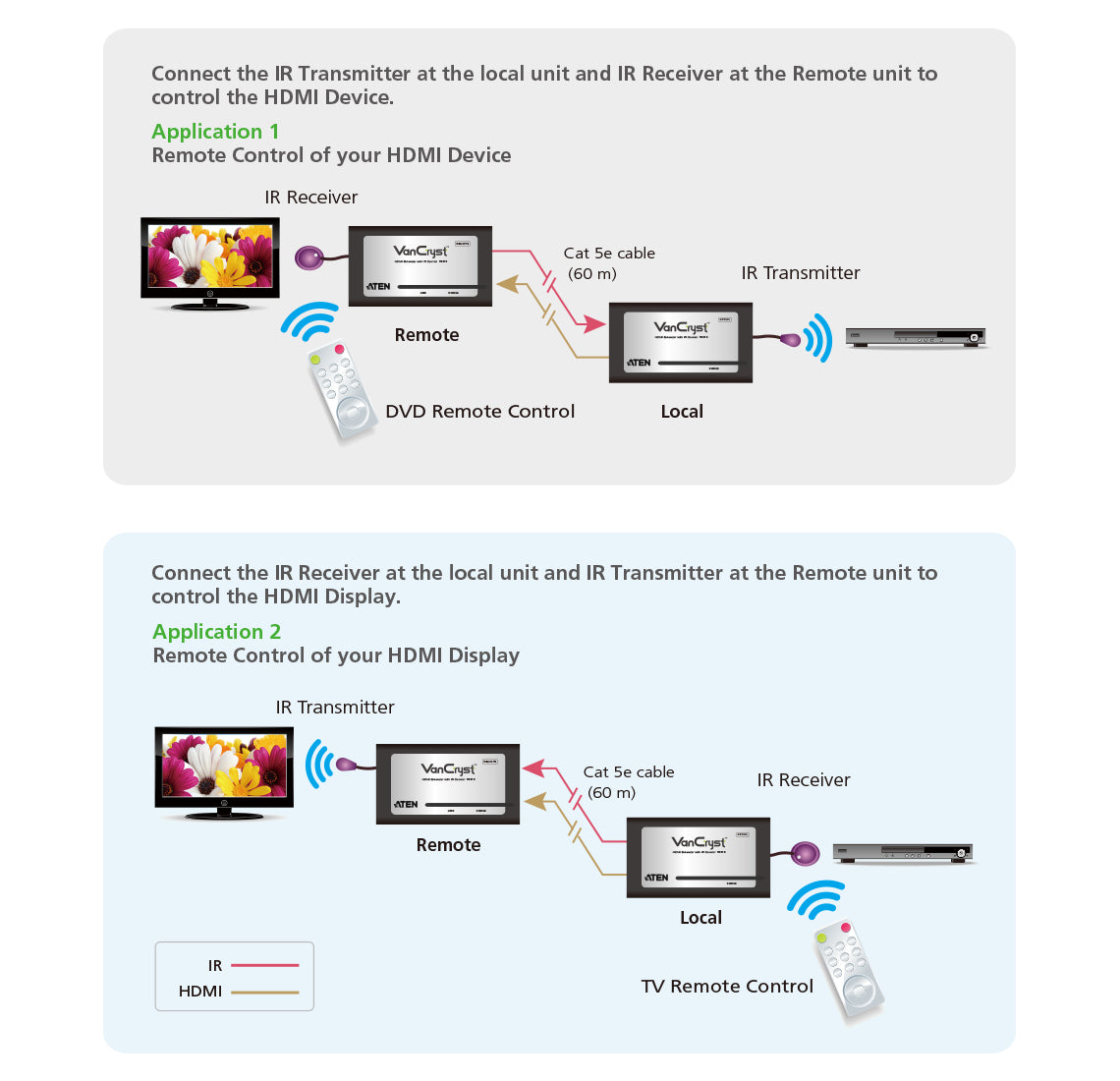

The VE810 HDMI Extender extends your HDMI display up to 60 m from your HDMI source device using two Cat 5e cables. In addition, VE810 is equipped with IR signaling pass-through which allows the IR channel to control from the remote to local unit, to control the HDMI source, or from the local to remote unit, to control the display device.
For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.
For flexibility and convenience, the VE810 setup requires only one power adapter for both units. The VE810R remote unit will function without the need of an additional power adapter because it will be powered by the VE810 local unit.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: AV transmitter & receiver
- Maximum transfer distance: 60 m
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5e
- Connectivity technology: Wired
- DC-in jack: Yes
- Material: Metal
- Number of HDMI outputs: 1
- LED indicators: Yes
- AC adapter included: Yes

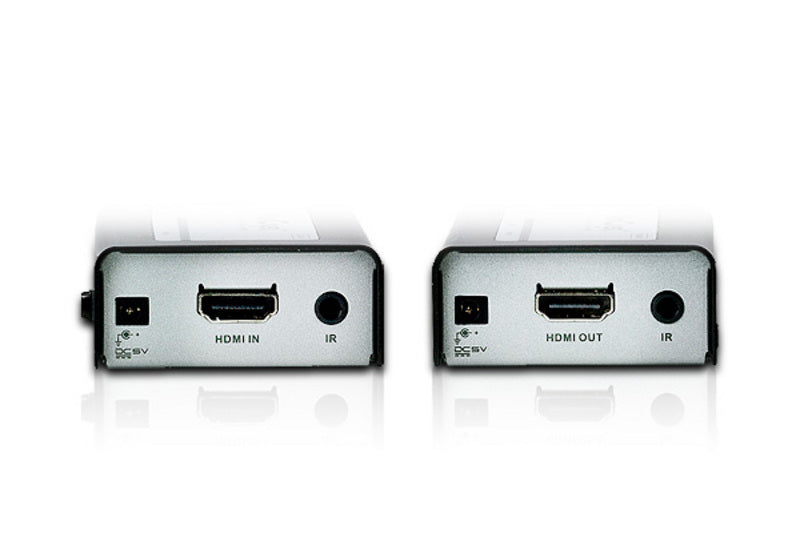

- HDMI in: 1

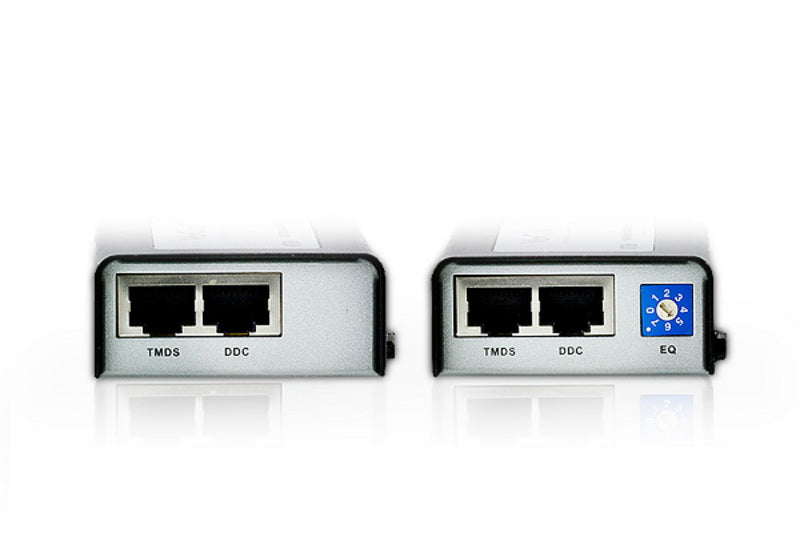

- RJ-45 input ports: 2
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes: 1080i, 1080p, 480p, 720p
- RJ-45 output ports: 2
- Master (outer) case height: 33.8 cm
- Master (outer) case length: 49 cm
- Master (outer) case width: 31.5 cm
Features
- Audio system
- Multichannel
- Bandwidth
- 6.75 Gbit/s
- Impedance
- 100 Ω
Logistics data
- Master (outer) case gross weight
- 13.4 kg
- Master (outer) case net weight
- 10.6 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Manual
- Yes
- Quick start guide
- Yes
Packaging data
- Package depth
- 23.9 cm
- Package height
- 16 cm
- Package width
- 5.9 cm
Ports & interfaces
- Audio input
- 1
- Audio output
- 1
Power
- Operating voltage
- 5 V
Weight & dimensions
- Receiver dimensions (WxDxH)
- 90 x 57.4 x 24 mm
- Receiver weight
- 0.16 kg
- Transmitter dimensions (WxDxH)
- 90 x 57.4 x 24 mm
- Transmitter weight
- 0.16 kg
AC adapter included
Manual
Quick start guide
Manual
Quick start guide
Materials
Material: Metal
