ATEN DisplayPort HDBaseT-Lite Extender 4K/40m;1080p/70m
Regular price
$600.69
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

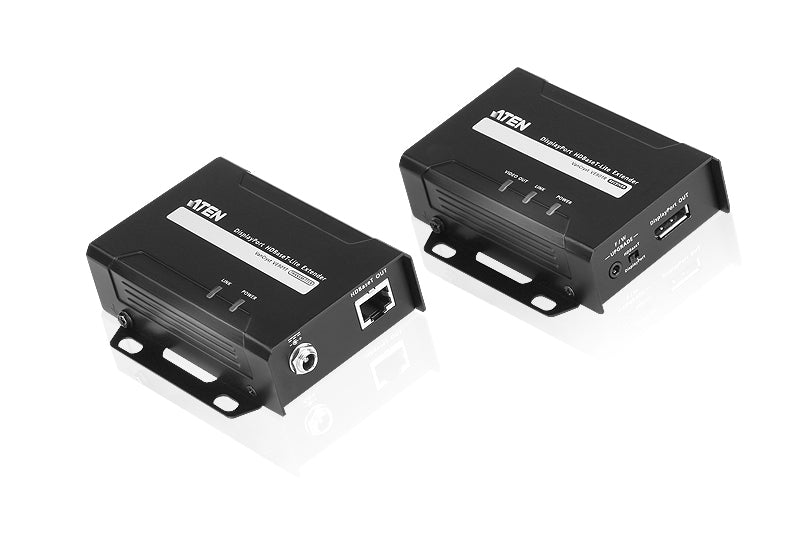

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
1x VE901T DisplayPort HDBaseT-Lite Transmitter
1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
1x VE901T DisplayPort HDBaseT-Lite Transmitter
1x VE901R DisplayPort HDBaseT-Lite Receiver
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: AV transmitter & receiver
- Maximum transfer distance: 70 m
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Connectivity technology: Wired
- DC-in jack: Yes
- Material: Metal
- LED indicators: Yes
- AC adapter included: Yes
- RJ-45 input ports: 1
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- HDCP: Yes
- Supported video modes: 1080p
- RJ-45 output ports: 1
- Master (outer) case height: 17.5 cm
- Master (outer) case length: 32.5 cm
- Master (outer) case width: 25 cm
- Products per master (outer) case: 5 pc(s)
Features
- Bandwidth
- 297 MHz
- HDBaseT certified
- Yes
- HDCP version
- 1.4
- Impedance
- 100 Ω
- Plug and Play
- Yes
- Rack mounting
- Yes
Logistics data
- Master (outer) case gross weight
- 4.85 kg
- Master (outer) case net weight
- 3.75 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Manual
- Yes
Packaging data
- Package depth
- 23.9 cm
- Package height
- 16 cm
- Package weight
- 0.86 kg
- Package width
- 5.9 cm
Ports & interfaces

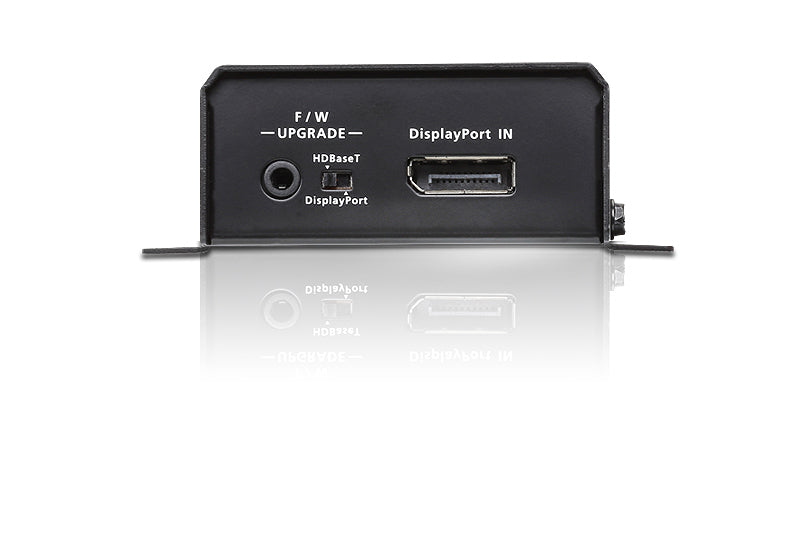

- DisplayPorts in
- 1

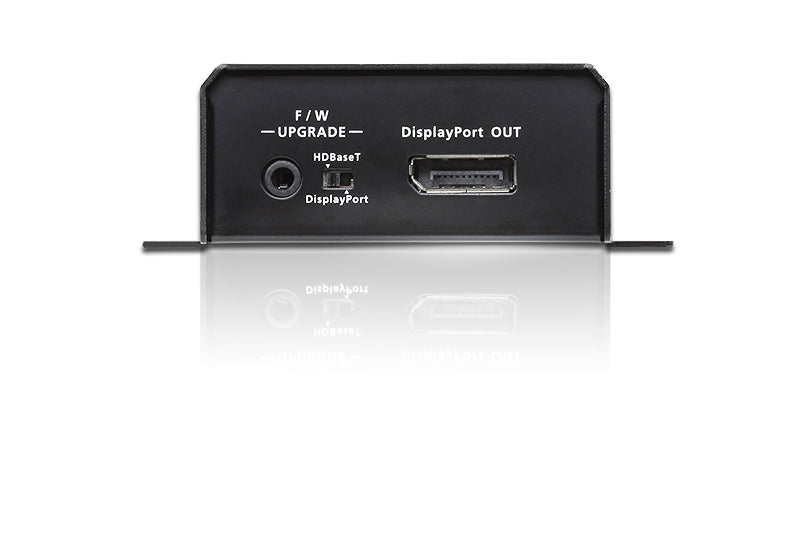

- DisplayPorts out
- 1

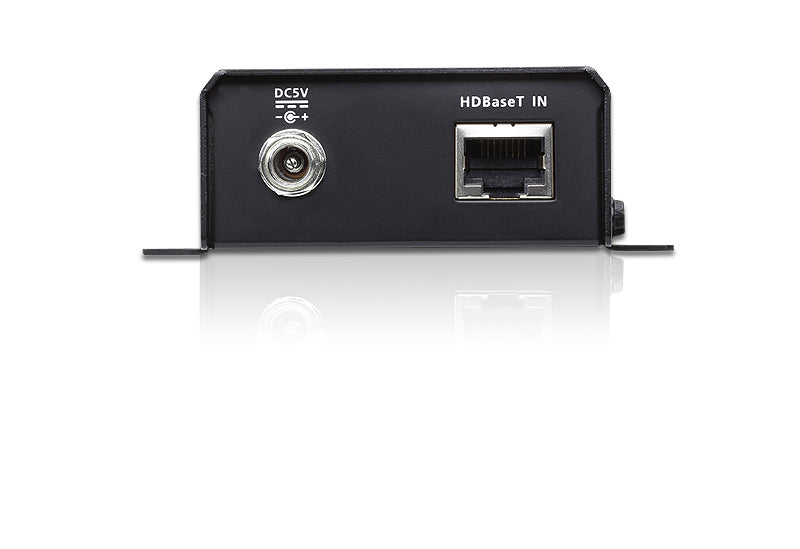

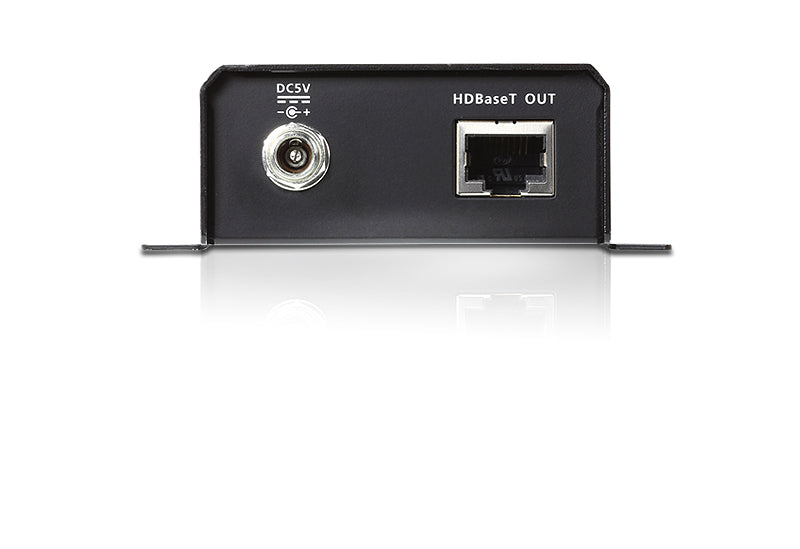

- HDBaseT port
- Yes
Power
- Operating voltage (receiver)
- 5 V
- Operating voltage (transmitter)
- 5 V
- Power consumption (RX)
- 5.72 W
- Power consumption (TX)
- 2.84 W
Weight & dimensions
- Receiver dimensions (WxDxH)
- 94.2 x 66 x 29 mm
- Receiver weight
- 0.27 kg
- Transmitter dimensions (WxDxH)
- 94.2 x 66 x 29 mm
- Transmitter weight
- 0.24 kg
- Weight
- 0.75 kg
AC adapter included
Manual
Manual
Materials
Material: Metal
Compare With Similar Items
|
|
|
|
|
|
|
| Description | The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. 1x VE901T DisplayPort HDBaseT-Lite Transmitter 1x VE901R DisplayPort HDBaseT-Lite Receiver 2x 0AD8-1F05-26M1 Power Adapters 1x User Instructions |
The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*. 1x VE8950R 4K HDMI over IP Receiver 1x RS-232 Terminal block 1x 0AD8-1F05-30M1 Power adapter 1x User instructions |
The ATEN VE8900T Video over IP Transmitter delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch* The VE8900T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems: Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers. Package Contents - 1x VE8900T HDMI over IP Transmitter - 1x RS-232 Terminal block - 1x 5V Power adapter - 1x User instructions |

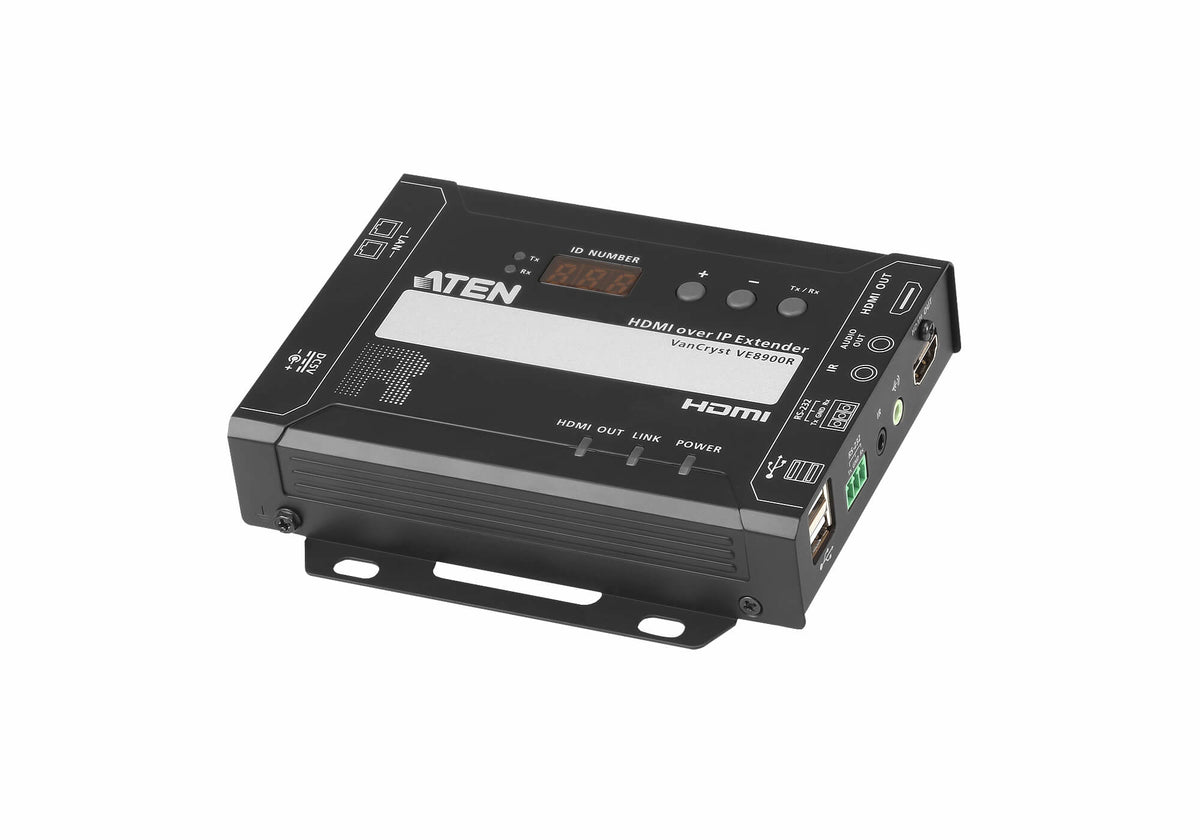

The ATEN VE8900R Video over IP Receiver delivers visually lossless 1080p AV signals with low latency over long distance via a local network of standard Gigabit network switch. The VE8900R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators Engineered to meet today’s demands of large scale, multi-display, 1080p signal transmission, and designed to be easy to set up and operate, the VE8900R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers. Package Contents - 1x VE8900R HDMI over IP Receiver - 1x RS-232 Terminal block - 1x 5V Power adapter - 1x User instructions |

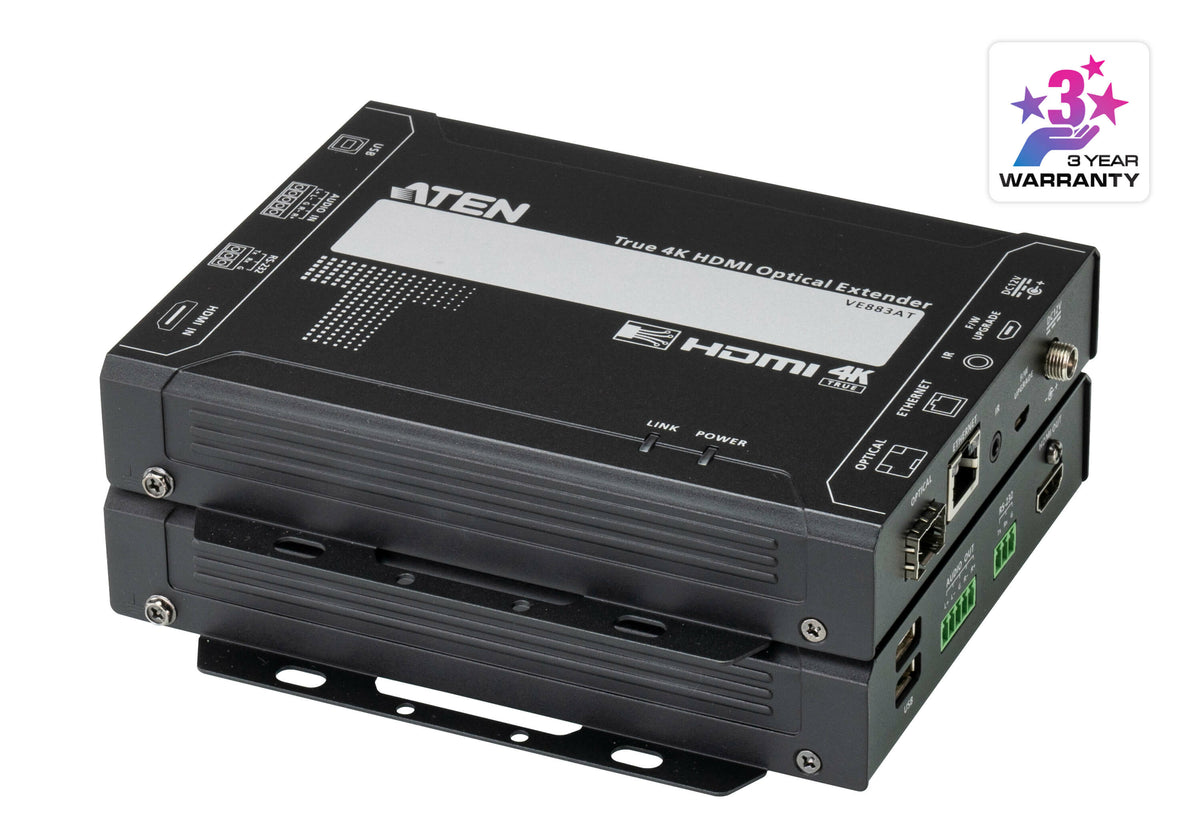

The VE883A is a True 4K HDMI Optical extender that consists of a transmitter VE883AT and a receiver VE883AR to transmit up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883AK1) or 10 km (VE883AK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATEN’s exclusive FarSmooth technology, the VE883A prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required. The VE883A comes with interfaces of HDMI input / output, analog audio input / output, USB 2.0, IR, RS-232, and Gigabit Ethernet. Connectivity with USB peripherals is expanded thanks to the VE883A’s dual USB Type-A ports. For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection. Plus, the VE883A is compatible with ATEN’s VM7584 / VM8584 Optical Input / Output Board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals. |
