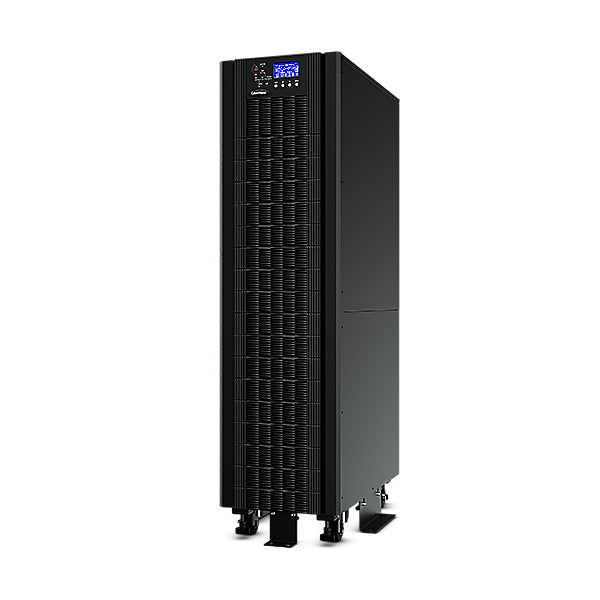

CyberPower HSTP3T20KEBC uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 18000 W
Regular price
$9,297.04
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
HSTP3T20KEBC
CyberPower HSTP3T20KEBC 3-Phase online UPS provides long-lasting power backup for data closets, transportation and infrastructure, and emergency systems. With parallel redundancy capability, the HSTP3T (3-Phase) Series UPS is ideal for critical applications in server rooms, data centers, industrial factories, and power generation plants that require high capacity, high reliability, and extended runtimes. With integrated IGBT technology and intelligent DSP-based control, the UPS produces less input total harmonic distortion (THDi) and achieves higher power efficiency up to 98% in Economy Mode, making it the most efficient UPS in the industry. Higher operating efficiency equates to lowered BTU heat dissipation and lowered idle power consumption, resulting in an operating expense reduction and a lower carbon footprint. To improve operating efficiency, the UPS system works in bypass mode under normal conditions, during which the inverter is kept on standby. During power failures, the UPS switches to battery mode and the inverter continuously supplies the critical load to the connected equipment.
CyberPower HSTP3T20KEBC 3-Phase online UPS provides long-lasting power backup for data closets, transportation and infrastructure, and emergency systems. With parallel redundancy capability, the HSTP3T (3-Phase) Series UPS is ideal for critical applications in server rooms, data centers, industrial factories, and power generation plants that require high capacity, high reliability, and extended runtimes. With integrated IGBT technology and intelligent DSP-based control, the UPS produces less input total harmonic distortion (THDi) and achieves higher power efficiency up to 98% in Economy Mode, making it the most efficient UPS in the industry. Higher operating efficiency equates to lowered BTU heat dissipation and lowered idle power consumption, resulting in an operating expense reduction and a lower carbon footprint. To improve operating efficiency, the UPS system works in bypass mode under normal conditions, during which the inverter is kept on standby. During power failures, the UPS switches to battery mode and the inverter continuously supplies the critical load to the connected equipment.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Output power capacity: 20 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Input frequency: 40/70 Hz
- Waveform: Pure sine
- Storage relative humidity (H-H): 0 - 95%
- Input operation voltage (max): 478 V
- Input operation voltage (min): 132 V
- Form factor: Tower
- UPS topology: Double-conversion (Online)
- Battery technology: Sealed Lead Acid (VRLA)
- Operating altitude: 0 - 1000 m
- Certification: CE, IEC62040-1, IEC62040-2
- Output operation voltage (max): 415 V
- Output operation voltage (min): 220 V
- Audible alarm(s): Yes
- Display type: LCD
- LED indicators: Yes
- Output frequency: 50/60 Hz
Battery
- Battery capacity
- 12 Ah
- Battery voltage
- 12 V
- Number of batteries supported
- 40
- Typical backup time at full load
- 5.5 min
- Typical backup time at half load
- 18 min
Design
- Housing material
- Metal
- International Protection (IP) code
- IP20
Features
- Audible alarm modes
- Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
- Crest factor
- 3:1
- ECO mode
- Yes
- Efficiency
- 95%
- Efficiency (ECO mode)
- 98%
- Emergency Power Off (EPO)
- Yes
- EMI/RFI noise filtering
- Yes
- Input power factor
- 0.99
- Maximum current
- 42 A
- Noise level
- 58 dB
- Number of input phases
- 3
- Output power
- 18000 W
- Output power factor
- 0.9
- Output voltage Total Harmonic Distortion (THD)
- 5.5%
- Power protection features
- Overload
General
- Video/mp4
- https://www.youtube.com/embed/DCXHVpi3DLQ
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Manual
- Yes
Packaging data
- Package depth
- 88 cm
- Package height
- 153 cm
- Package weight
- 264 kg
- Package width
- 49 cm
Ports & interfaces
- Emergency Power Off (EPO) connector
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232, RS-485
Weight & dimensions
- Depth
- 73.8 cm
- Height
- 133.5 cm
- Weight
- 247 kg
- Width
- 35 cm
Manual
Materials
Housing material: Metal
