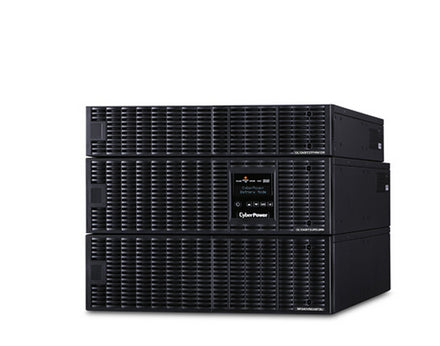

CyberPower PDU32MHVCEE18AT uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 9000 W 13 AC outlet(s)
Regular price
$1,186.76
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
CyberPower PDU32MHVCEE18AT provides output from a UPS unit, generator, or utility power to enable multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the PDU will automatically switch to the other power source to ensure continuous operation.
The unit comes with a multifunction readout that displays real-time vitals including the current level, input voltage level, power consumption levels in amps and watts, and the IP address of network interface for easy installation.
The product includes an SNMP/HTTP card slot for adding an optional Remote Management Card. With the additional SNMP card and an IP address on the network interface, users have access to real-time monitoring of the ATS PDU. The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
The unit comes with a multifunction readout that displays real-time vitals including the current level, input voltage level, power consumption levels in amps and watts, and the IP address of network interface for easy installation.
The product includes an SNMP/HTTP card slot for adding an optional Remote Management Card. With the additional SNMP card and an IP address on the network interface, users have access to real-time monitoring of the ATS PDU. The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Output power capacity: 10 kVA
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 90%
- Input frequency: 40 - 70 Hz
- Waveform: Sine
- Storage relative humidity (H-H): 0 - 95%
- Input operation voltage (max): 280 V
- Input operation voltage (min): 120 V
- Form factor: Rackmount/Tower
- UPS topology: Double-conversion (Online)
- AC outlet types: NEMA 5–20R, NEMA L6-20R, NEMA L6-30R, Terminal
- Battery technology: Sealed Lead Acid (VRLA)
- Operating altitude: 0 - 3000 m
- Output operation voltage (max): 240 V
- Output operation voltage (min): 120 V
- Battery recharge time: 5 h
- Audible alarm(s): Yes
- Non-operating altitude: 0 - 15000 m
- Compliance certificates: RoHS
Battery
- Battery capacity
- 9 Ah
- Hot-swap battery
- Yes
- Number of batteries supported
- 20
- Replacement battery cartridge
- RB1290X20
- Typical backup time at full load
- 4 min
- Typical backup time at half load
- 11 min
Design
- Display type
- LCD
- Housing material
- Steel
- LED indicators
- Power
- Rack capacity
- 8U
Features
- Audible alarm modes
- Alarm when on battery, Battery replacement
- EMI/RFI noise filtering
- Yes
- Noise level
- 55 dB
- Output power
- 9000 W
- Output voltage Total Harmonic Distortion (THD)
- 5%
- Power factor
- 0.9
- Power protection features
- Overload, Short circuit
- Surge energy rating
- 2670 J
- Surge protection features
- Network, Telephone
General
- Video/mp4
- https://youtu.be/JSWmmY9tKrM
Operational conditions
- Storage temperature (T-T)
- -15 - 45 °C
Packaging content
- Cables included
- Serial, USB cable
Packaging data
- Package depth
- 112 cm
- Package height
- 102.8 cm
- Package weight
- 207.5 kg
- Package width
- 62 cm
Ports & interfaces
- AC outlets quantity
- 13 AC outlet(s)
- Emergency Power Off (EPO) connector
- Yes
- Modem (RJ-11) ports
- 2
- Serial interface
- Yes
- Serial interface type
- RS-232
- USB port
- Yes
Safety regulation & standards
- Safety
- UL1778, CSA C22.2 NO.107.3-05, FCC DOC Class A
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Depth
- 82 cm
- Height
- 35.2 cm
- Weight
- 160.8 kg
- Width
- 43.3 cm
Cables included: Serial, USB cable
Materials
Housing material: Steel
