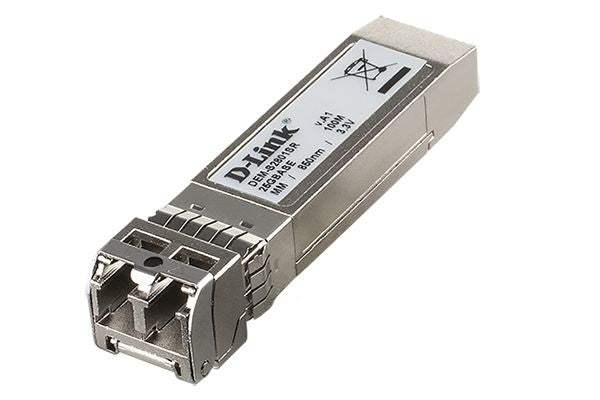

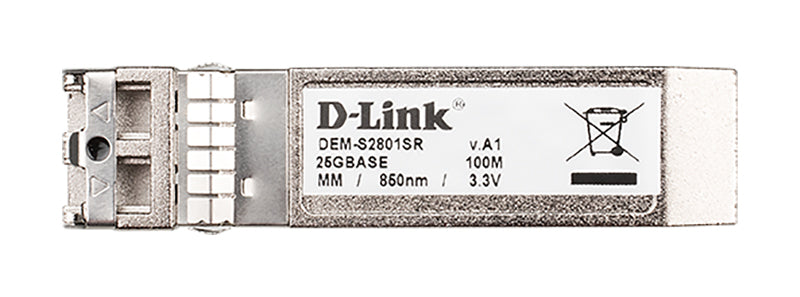

D-Link DEM-S2801SR network transceiver module Fiber optic 25000 Mbit/s SFP28 850 nm
Regular price
$435.75
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
D-Link’s 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors. The D-Link 25G SFP28 Module Series transceivers offer customers a wide variety of 25G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Interface type: SFP28
- SFP transceiver type: Fiber optic
- Maximum transfer distance: 100 m
- Fiber optic connector: LC
- SFP transceiver standard: SR
- Certification: MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2
- Multi-mode fiber (MMF) supported: Yes
- Wavelength: 850 nm
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Fiber ethernet cabling technology: 25GBASE
- Hot-Plug support: Yes
- Storage relative humidity (H-H): 5 - 95%
- Fiber cable diameters supported (core/cladding): 50/125 µm
- Tx power (min): -9.1 dBmW
- Rx power (min): -11 dBmW
- Tx power (max): 2.4 dBmW
- Maximum current: 0.3 A
- Rx power (max): 2.4 dBmW
Operational conditions
- Storage temperature (T-T)
- -40 - 85 °C
Performance
- Maximum data transfer rate
- 25000 Mbit/s
Power
- Input voltage
- 3.3 V
Weight & dimensions
- Depth
- 1.37 cm
- Height
- 0.85 cm
- Weight
- 0.03 kg
- Width
- 5.73 cm
Materials
