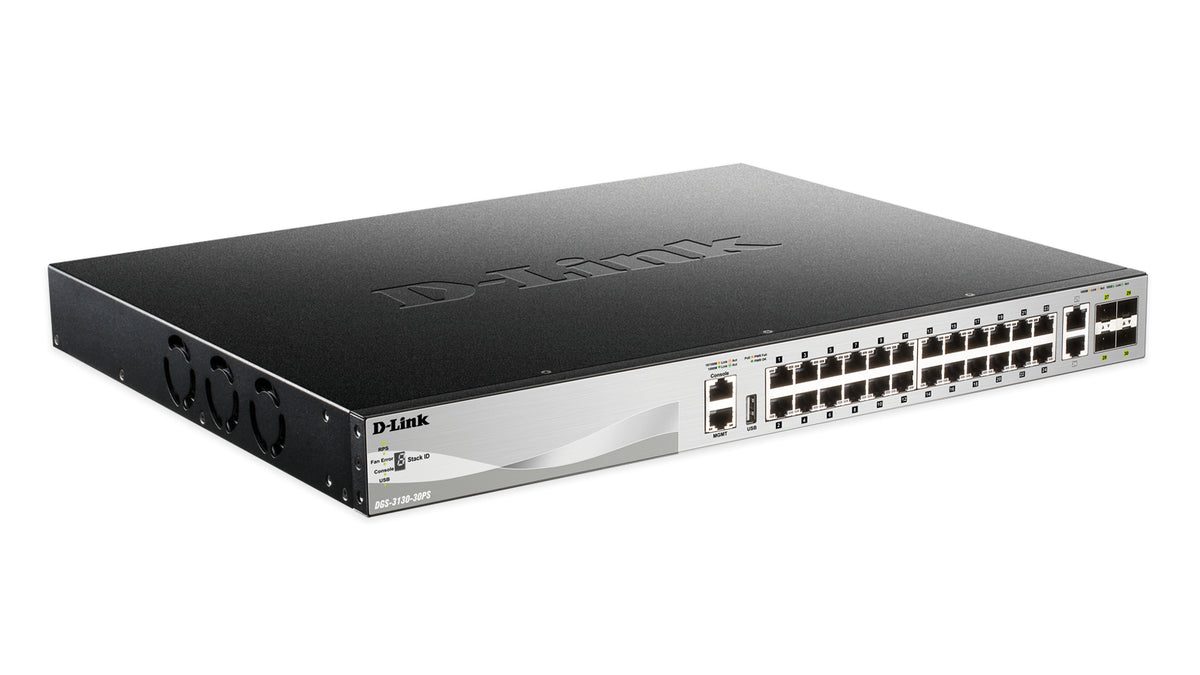

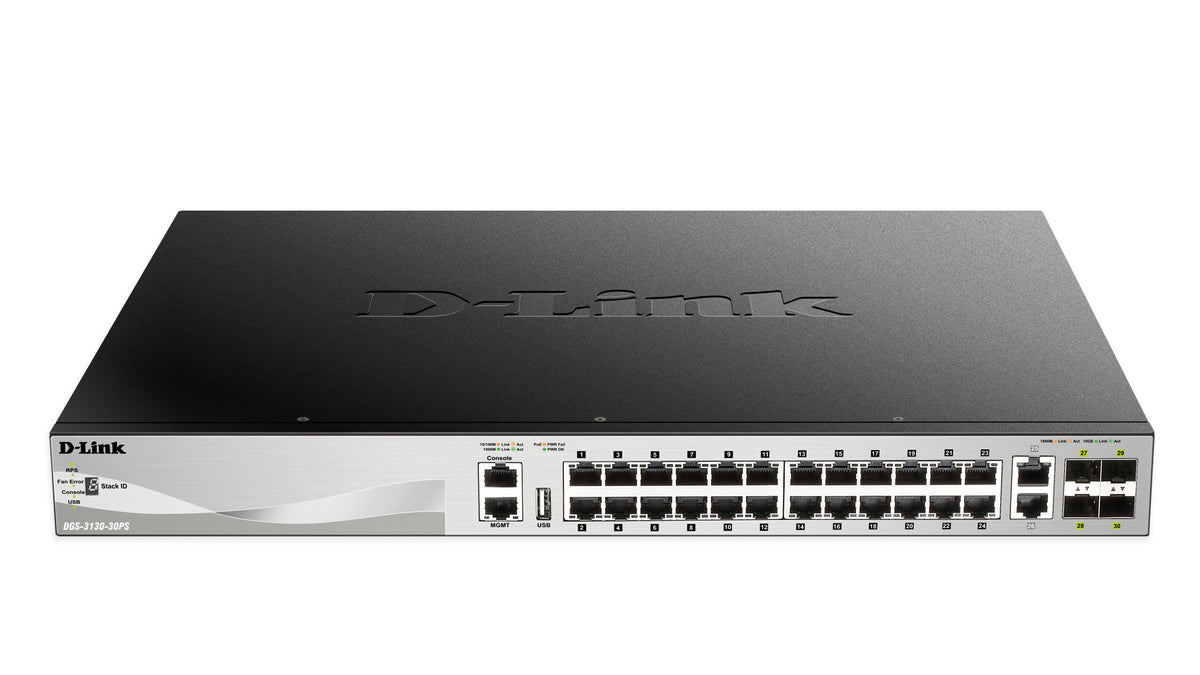

D-Link DGS-3130 Series Gigabit Layer 3 Stackable Managed Switches
Regular price
$2,636.91
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Greater port density. Powerful Layer 3 features.
Designed for small to medium-sized business networks, the unified software incorporates Layer 2 and Layer 3 features, with 10-Gigabit ports, greater port density thanks to physical stacking, all of which enables the DGS-3130 Series to be deployed in a variety of environments and topologies, including Metro Ethernet deployments.
World-class reliability.
Advanced L2 and L3 features including port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping, and IPv6 ND. Management options like a multilingual web-UI, and industry standard CLI support, with support for multiple images and multiple configurations.
6x 10-Gigabit ports, physical stacking for more ports, and they have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimize recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime.
Comprehensive security.
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Easy Access Control policies.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
Support for the Microsoft® NAP policy enforcement allows you to protect network assets from compromised computers by enforcing compliance with network health policies.
Versatile traffic management.
A rich set of multi-layer QoS/CoS features ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority, and 10-Gigabit ports deliver the speed you need. Traffic Shaping features guarantee bandwidth for these services even when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications.
Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth, and to provide better security to the backbone network. The ISM VLAN profiles allow you to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily. Selective Q-in-Q enables you to be selective over VLAN traffic.
PoE+ with budgets up to 740W
The 30PS and 54PS models have 370W PoE power budgets. Or utilise a total of 740W when adding a redundant power supply.
Designed for small to medium-sized business networks, the unified software incorporates Layer 2 and Layer 3 features, with 10-Gigabit ports, greater port density thanks to physical stacking, all of which enables the DGS-3130 Series to be deployed in a variety of environments and topologies, including Metro Ethernet deployments.
World-class reliability.
Advanced L2 and L3 features including port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping, and IPv6 ND. Management options like a multilingual web-UI, and industry standard CLI support, with support for multiple images and multiple configurations.
6x 10-Gigabit ports, physical stacking for more ports, and they have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimize recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime.
Comprehensive security.
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Easy Access Control policies.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
Support for the Microsoft® NAP policy enforcement allows you to protect network assets from compromised computers by enforcing compliance with network health policies.
Versatile traffic management.
A rich set of multi-layer QoS/CoS features ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority, and 10-Gigabit ports deliver the speed you need. Traffic Shaping features guarantee bandwidth for these services even when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications.
Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth, and to provide better security to the backbone network. The ISM VLAN profiles allow you to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily. Selective Q-in-Q enables you to be selective over VLAN traffic.
PoE+ with budgets up to 740W
The 30PS and 54PS models have 370W PoE power budgets. Or utilise a total of 740W when adding a redundant power supply.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Grey
- Switch type: Managed
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 168 Gbit/s
- MAC address table: 16384 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L3
- Forwarding rate: 125 Mpps
- AC input voltage: 100 - 240 V
Certificates
- Compliance certificates
- BSMI, CB, CCC, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cUL
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 2MB
Design
- Number of fans
- 3 fan(s)
- Safety
- CB, cUL, BSMI, CCC
- Stackable
- Yes
General
- Video/mp4
- https://objects.icecat.biz/objects/61138395_61853081.mp4
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- ARP inspection
- Yes
- MIB support
- RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- MLD entries
- 1024
- Multicast features
- Controllable multicast
- Multicast Listener Discovery (MLD) snooping
- Yes
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- Fast leave
- Yes
- Head-of-line (HOL) blocking
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4094
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 1609.41 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging data
- Package depth
- 59.5 cm
- Package height
- 11.8 cm
- Package weight
- 6.32 kg
- Package width
- 45 cm
Performance
- Dying Gasp
- Yes
- Mean time between failures (MTBF)
- 409054 h
- Noise level
- 53.4 dB
- Physical stacking (units)
- 9
- sFlow
- Yes
- Telnet
- Yes
- Virtual stacking (units)
- 32
Ports & interfaces
- 10G Ethernet (copper) ports quantity
- 2
- Console port
- RJ-45
- Fiber optic connector
- SFP+
- Gigabit Ethernet (copper) ports quantity
- 24
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 4
- USB 2.0 ports quantity
- 1
Power
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 471.67 W
- Power source
- AC/PoE
- Redundant power supply (RPS) support
- Yes
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 370 W
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- IP Source Guard (IPSG)
- Yes
- Routing protocols
- RIP
Security
- Access Control List (ACL)
- Yes
- Access Control List (ACL) egress
- 512
- Access Control List (ACL) ingress
- 2048
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping
- DoS attack prevention
- Yes
- IGMP entries
- 128
- IGMP snooping
- Yes
- Loop protection
- Yes
- Password protection
- Yes
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
- Root protection
- Yes
- Security algorithms
- SNMP, SNMPv3, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
- Static port security
- Yes
Technical details
- Master (outer) cases per pallet (air)
- 18 pc(s)
- Master (outer) cases per pallet (sea)
- 18 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross weight (air)
- 399.8 kg
- Pallet gross weight (sea)
- 399.8 kg
- Pallet gross width
- 120 cm
- Pallet height (air)
- 2.01 m
- Pallet height (sea)
- 2.01 m
- Products per pallet (air)
- 54 pc(s)
- Products per pallet (sea)
- 54 pc(s)
- Products per shipping (inner) case
- 3 pc(s)
- Shipping (inner) case gross weight
- 21.2 kg
- Shipping (inner) case height
- 62.6 cm
- Shipping (inner) case length
- 46.8 cm
- Shipping (inner) case net weight
- 19.5 kg
- Shipping (inner) case width
- 37.4 cm
Weight & dimensions
- Depth
- 35 cm
- Height
- 4.4 cm
- Weight
- 4.66 kg
- Width
- 44 cm
