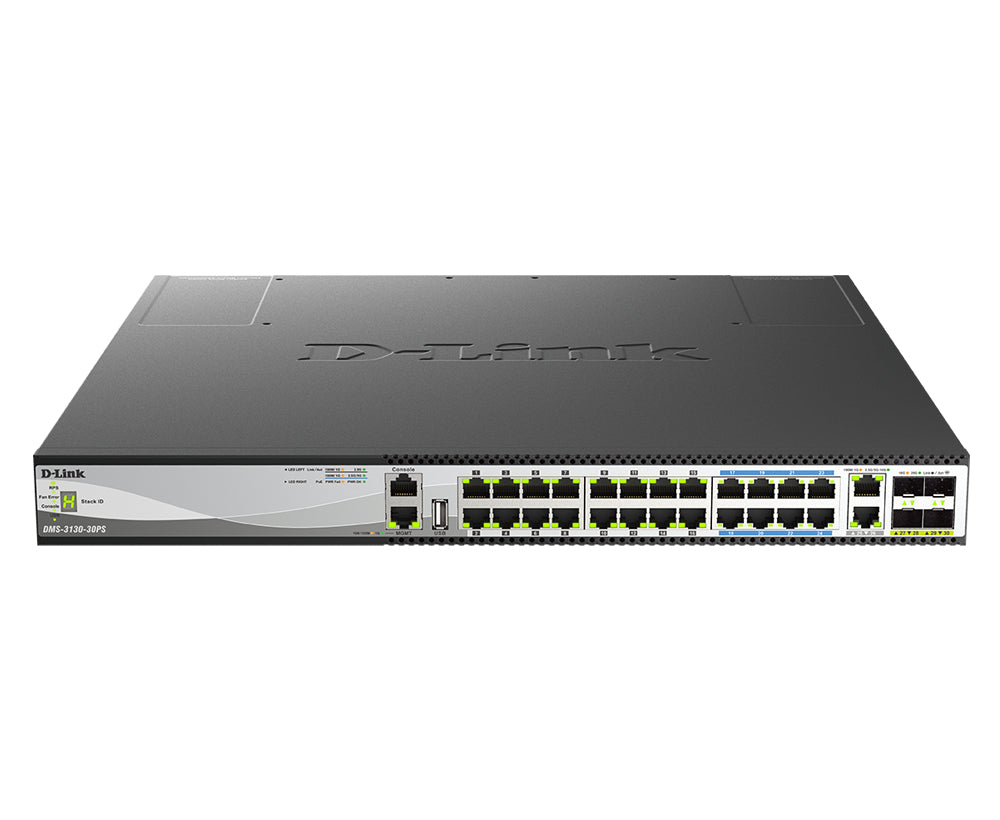

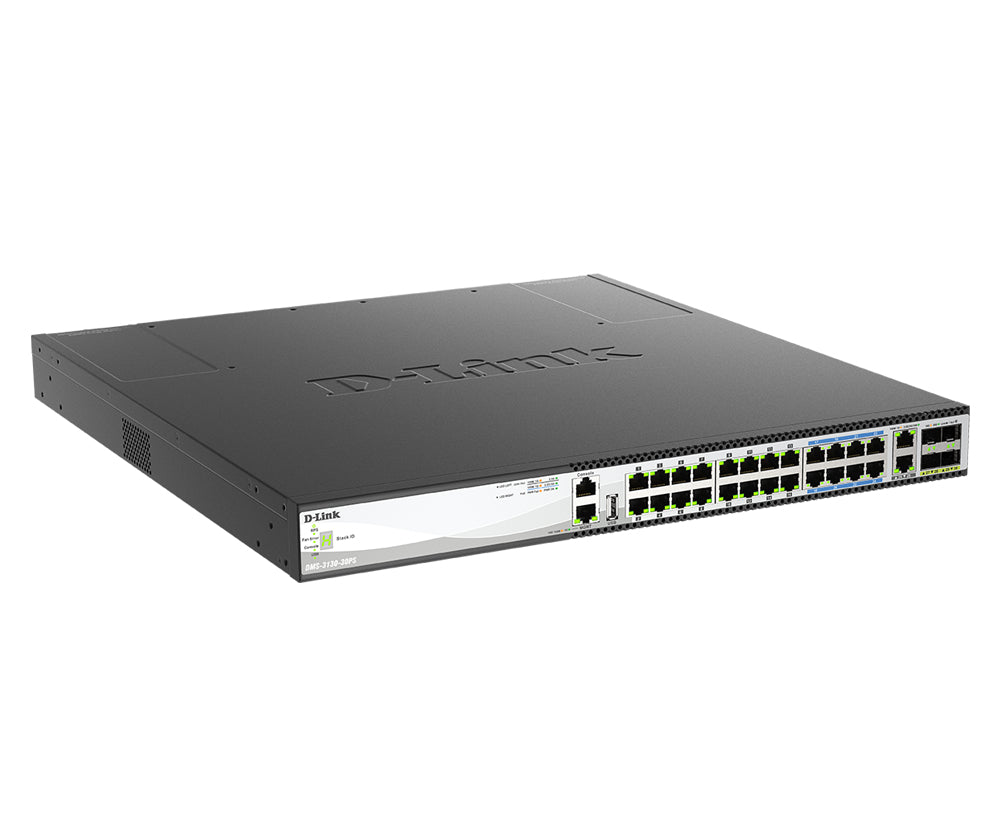

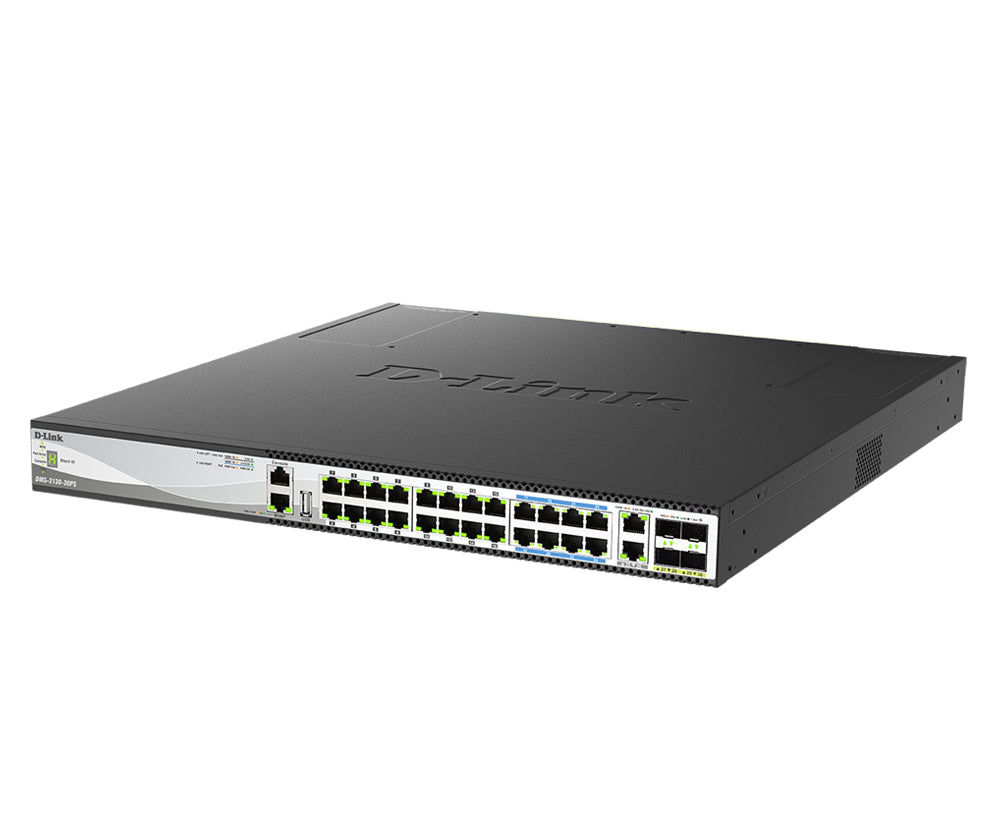

D-Link DMS-3130-30PS network switch Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
Regular price
$7,864.52
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The DMS-3130 Series is a range of Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. The DMS-3130 Series has PoE and non-PoE models equipped with multi-Gigabit Ethernet and SFP network connection options. The DMS-3130 Series includes models equipped with multiGigabit Ethernet and SFP28 network connection options. The DMS-3130-30PS provides 16 PoE ports using 802.3af and 802.3at, and 8 ports using 802.3bt 60W PoE standards with default power budgets of 740 watts and the potential to be expanded to 960 watts with dual power supplies. Each model boasts 2 10GBASE-T ports and 4 10/25G SFP28 ports to provide versatility and speed. This series is also equipped with a USB 2.0 port, allowing users to boot images and upload configuration files directly from, as well as conveniently save syslog files to a USB 2.0 storage device.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 26
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power over Ethernet (PoE): Yes
- Switching capacity: 400 Gbit/s
- MAC address table: 32768 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L3
- Forwarding rate: 298 Mpps
- AC input voltage: 100 - 240 V
- IGMP snooping: Yes
Certificates
- Certification
- FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4MB
Design
- Form factor
- 1U
- Number of fans
- 2 fan(s)
- Stackable
- Yes
Management features
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Head-of-line (HOL) blocking
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Virtual LAN features
- MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 4137.73 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Performance
- Mean time between failures (MTBF)
- 277222.63 h
- Physical stacking (units)
- 9
- Virtual stacking (units)
- 32
Ports & interfaces
- Console port
- RJ-45
- SFP28 ports quantity
- 4
- USB 2.0 ports quantity
- 1
Power
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 1211.5 W
- Power source
- AC/DC
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
Power over Ethernet (PoE)
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 8
- Power over Ethernet plus (PoE+) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 740 W
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
Security
- Access Control List (ACL)
- Yes
- Access Control List (ACL) egress
- 1024
- Access Control List (ACL) ingress
- 3072
- Authentication
- Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
- Authentication type
- IEEE 802.1x, RADIUS, TACACS+
- DHCP features
- DHCP guarding, DHCP server, DHCP snooping
- Loop protection
- Yes
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 47 cm
- Height
- 4.4 cm
- Weight
- 6.54 kg
- Width
- 44 cm
