D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch
Regular price
$3,823.66
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

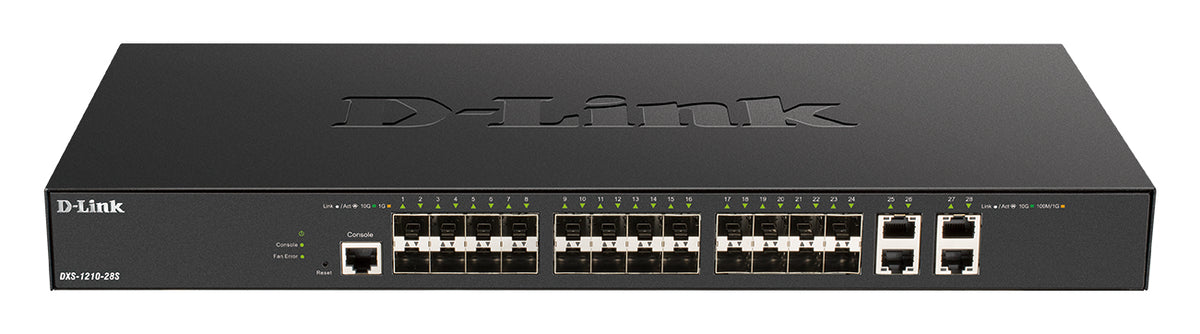

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- Power over Ethernet (PoE): No
- Switching capacity: 560 Gbit/s
- MAC address table: 32000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 0 - 95%
- LED indicators: Activity, Link, Speed
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2/L3
- Jumbo frames: 9000
- AC input voltage: 100 - 240 V
Certificates
- Certification
- CE Class A\nFCC Class A\nVCCI Class A\nIC\nBSMI
Data transmission
- Store-and-forward
- Yes
- Throughput
- 416.64 Mpps
Design
- Form factor
- 1U
- Number of fans
- 2 fan(s)
- Stackable
- No
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- Web-based management
- Yes
Network
- Auto MDI/MDI-X
- Yes
- Cable types supported
- Cat6, Cat6a, Cat7
- Link aggregation
- Yes
- Number of VLANs
- 4094
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 70 °C
Packaging content
- Manual
- Yes
Ports & interfaces
- 10G Ethernet (copper) ports quantity
- 4
- Console port
- RJ-45
- SFP+ module slots quantity
- 24
Power
- Power consumption (max)
- 85.7 W
Protocols
- GARP VLAN Registration Protocol (GVRP)
- Yes
- Management protocols
- SNMP v1/v2c/v3
Security
- Access Control List (ACL)
- Yes
- Access Control List (ACL) rules
- 256
- IGMP snooping
- Yes
Weight & dimensions
- Depth
- 20.95 cm
- Height
- 4.4 cm
- Weight
- 3.27 kg
- Width
- 44.1 cm
