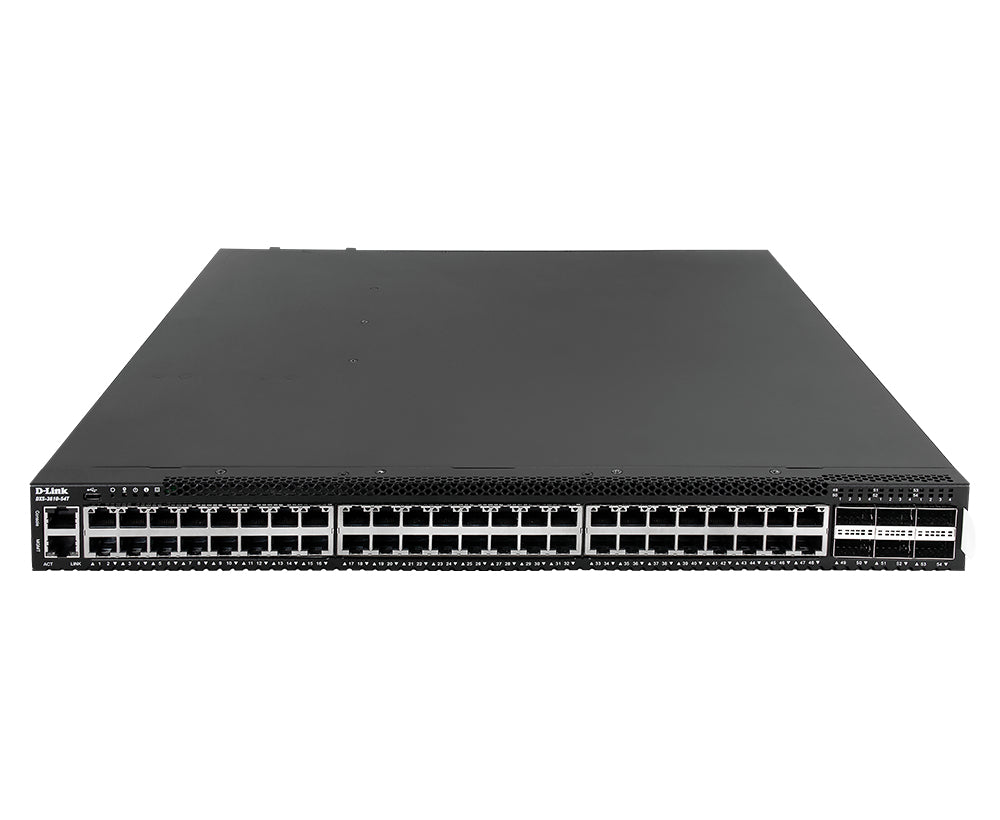

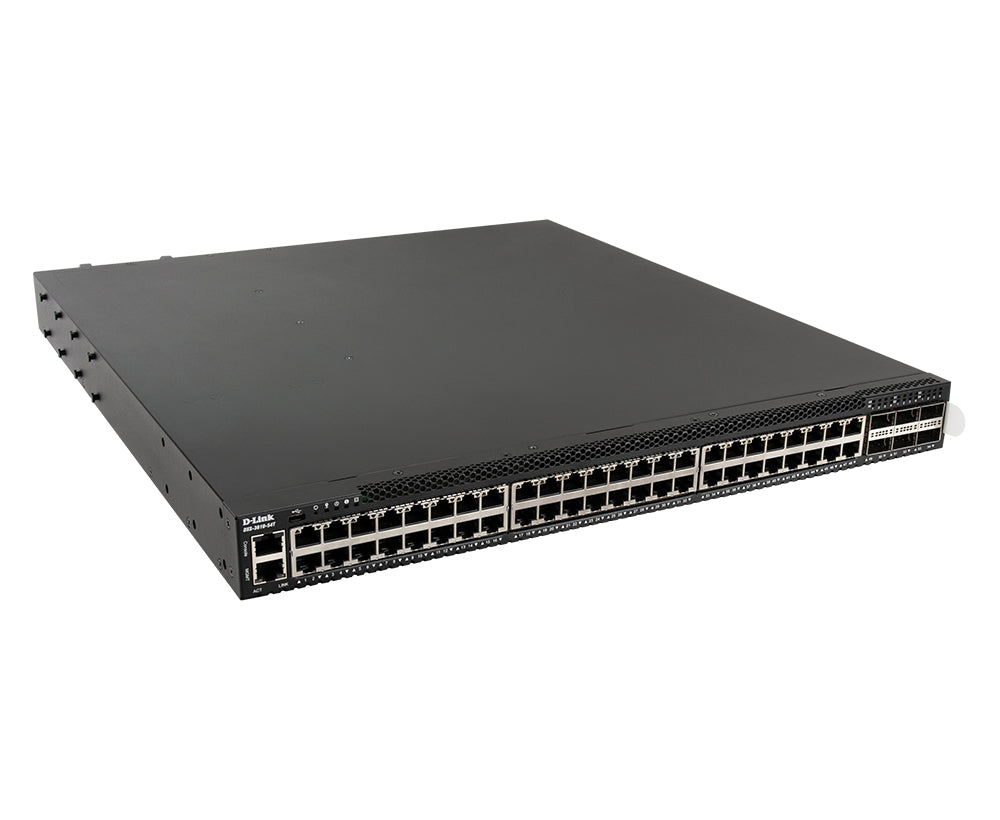

D-Link 48-port 10GBase-T Layer 3 Stackable 10G Managed Switch
Regular price
$27,044.51
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
OpenFlow Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy

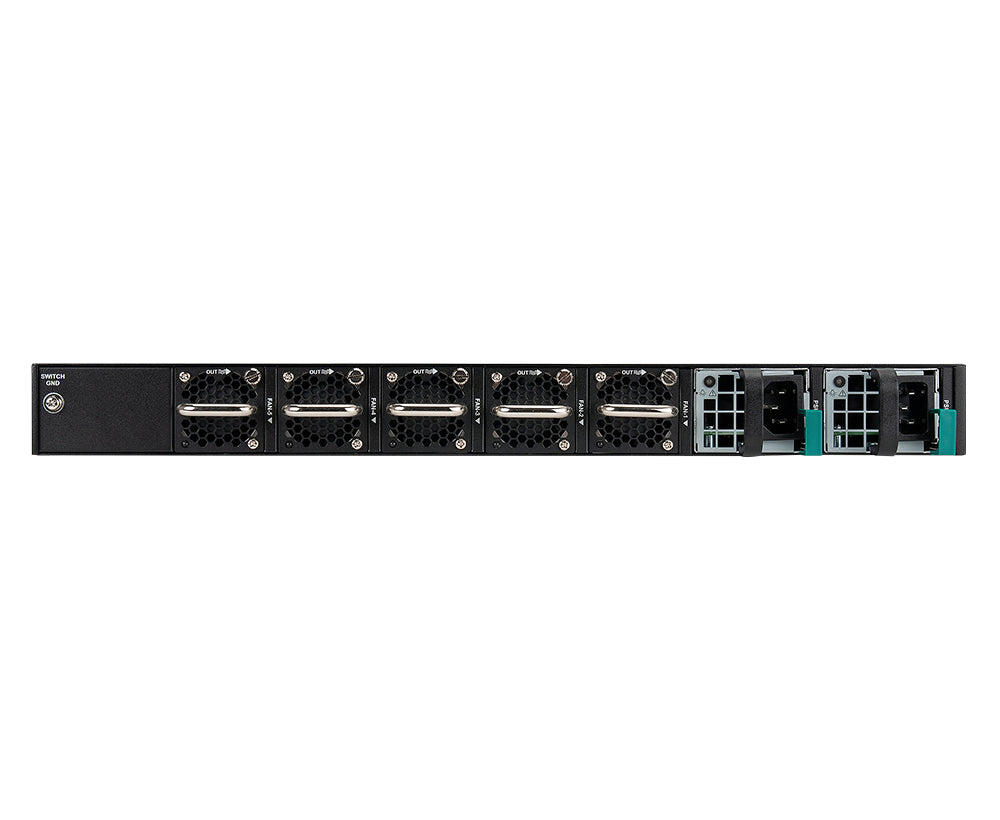

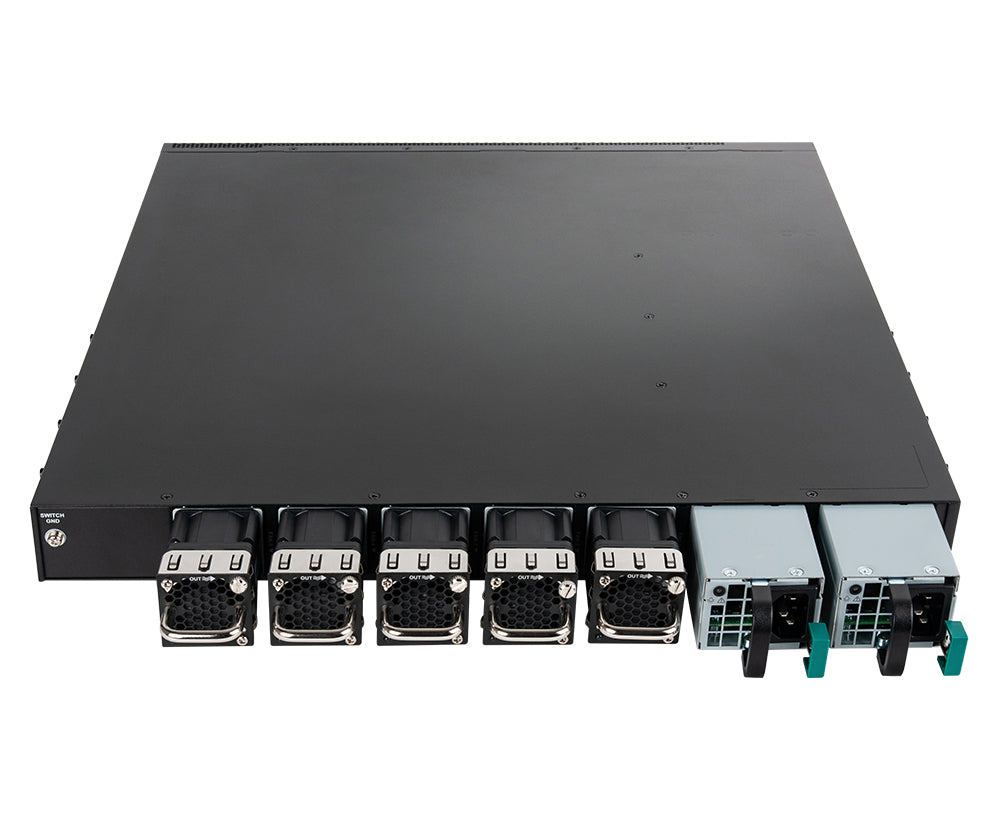

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy
The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 0 - 95%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- Power over Ethernet (PoE): No
- Switching capacity: 2211.84 Gbit/s
- MAC address table: 294912 entries
- 10G support: Yes
- Storage relative humidity (H-H): 0 - 95%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L3
- Forwarding rate: 1607.04 Mpps
- Jumbo frames: 9436
- AC input voltage: 100 - 240 V
Certificates
- Certification
- CB, cUL, LVD
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 32MB
- Static route
- Yes
Design
- Electromagnetic compatibility
- FCC, CE, C-Tick, IC, VCCI
- Form factor
- 1U
- Number of fans
- 5 fan(s)
- Stackable
- Yes
General
- Video/mp4
- https://youtu.be/jwoprkGHDDg?si=G7myVWEozQYwXevw
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- ARP inspection
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Full duplex
- Yes
- Head-of-line (HOL) blocking
- Yes
- IP routing
- Yes
- Link aggregation
- Yes
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 1126 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Performance
- Noise level
- 76.6 dB
- Physical stacking (units)
- 12
- Virtual stacking (units)
- 32
Ports & interfaces
- Console port
- RJ-45
- QSFP28 ports quantity
- 6
- SFP+ module slots quantity
- 48
- USB 2.0 ports quantity
- 1
Power
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 330.2 W
- Power consumption (typical)
- 108.2 W
- Power supply included
- Yes
- Redundant power supply (RPS) support
- Yes
Protocols
- Management protocols
- SNMP v1/v2c/v3
Security
- Access Control List (ACL)
- Yes
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP server, DHCP snooping
- IGMP snooping
- Yes
- SSH/SSL support
- Yes
Weight & dimensions
- Weight
- 9.88 kg
Power supply included
