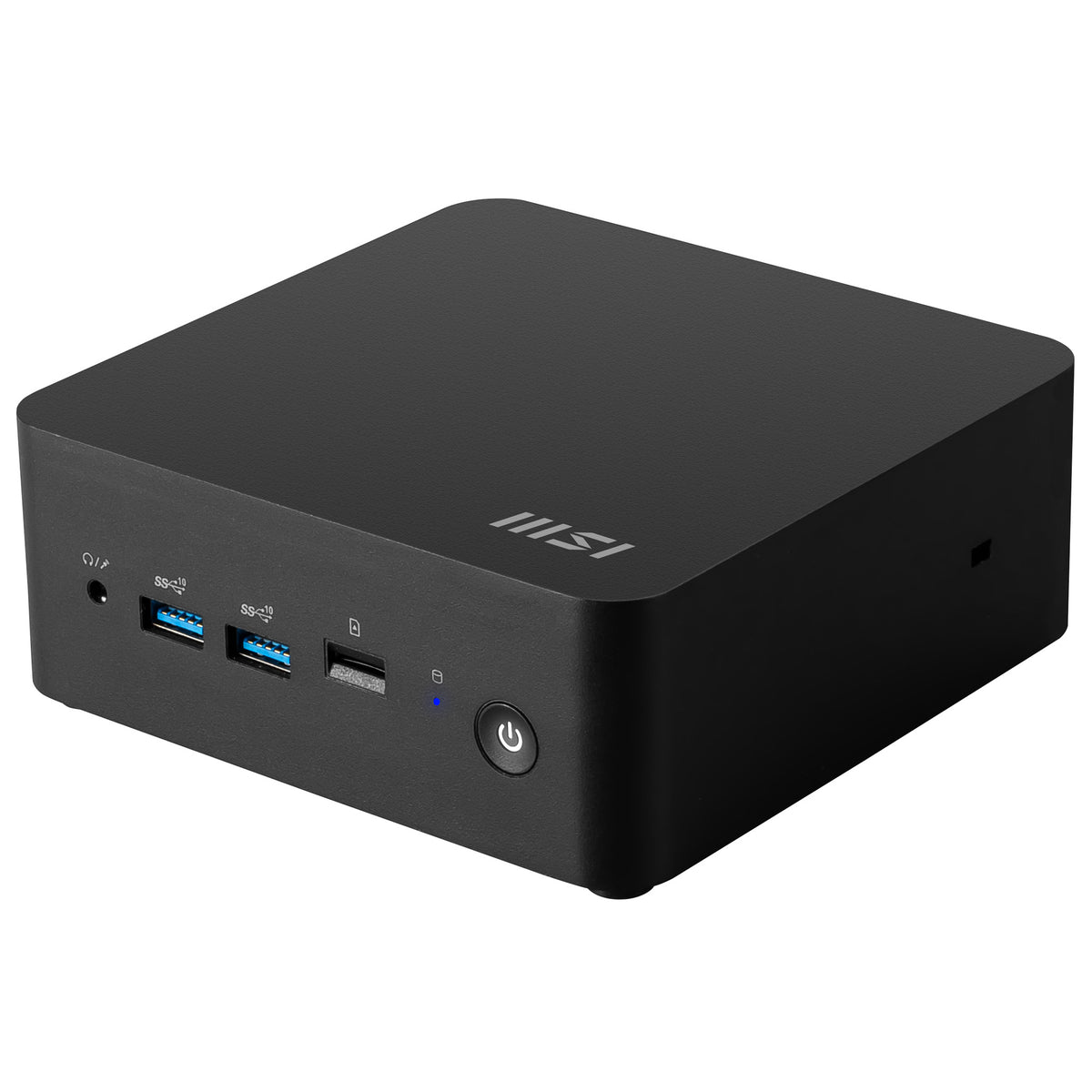

MSI Cubi NUC 1M-002BAU 0.84L sized PC Black Intel SoC
Regular price
$723.15
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Processor family: Intel Core 5
- Operating system installed: No
- Product colour: Black
- Built-in processor: Yes
- Built-in speaker(s): No
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 2
- HDMI ports quantity: 2
- Memory slots type: SO-DIMM
- Number of memory slots: 2
- On-board graphics card: Yes
- Product type: Mini PC barebone
- Storage drive sizes supported: 2.5,M.2
- Wi-Fi: Yes
- Bluetooth: Yes
- Bluetooth version: 5.3
- DC-in jack: Yes
- On-board graphics card model: Intel® Graphics
- Processor manufacturer: Intel
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Certificates
- Certification
- FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Design
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Chassis type
- 0.84L sized PC
- Cooling type
- Active
- Housing material
- Plastic
- On/off switch
- Yes
- Panel mounting interface
- 100 x 100 mm
- VESA mounting
- Yes
Expansion slots
- Number of M.2 (M) slots
- 2
Graphics
- Graphics card family
- Intel
- Number of displays supported
- 4
Memory
- Maximum internal memory
- 64GB
- Supported memory clock speeds
- 5200 MHz
- Supported memory types
- DDR5-SDRAM
Network
- LAN controller
- Intel I226-V
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- WLAN controller model
- Intel Wi-Fi 6E AX211
Operational conditions
- Operating relative humidity (H-H)
- 0 - 85%
- Operating temperature (T-T)
- 0 - 35 °C
- Storage relative humidity (H-H)
- 0 - 90%
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Display included
- No
- Keyboard included
- No
- Mouse included
- No
Performance
- Motherboard chipset
- Intel SoC
- Motherboard form factor
- NUC
- Number of processors supported
- 1
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Ports & interfaces
- Combo headphone/mic port
- Yes
- DVI port
- No
- HDMI version
- 1.4b/2.1
- Microphone in
- No
- Thunderbolt 4 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
Power
- Power supply
- 120 W
- Power supply type
- External AC adapter
Processor
- Efficient-core base frequency
- 0.9 GHz
- Efficient-core Max Turbo Frequency
- 3.8 GHz
- Efficient cores
- 8
- Performance-core base frequency
- 1.4 GHz
- Performance-core Max Turbo Frequency
- 5 GHz
- Performance cores
- 2
- Processor boost frequency
- 5 GHz
- Processor cache
- 12 MB
- Processor cache type
- Smart Cache
- Processor cores
- 10
- Processor generation
- Intel Core (Series 1)
- Processor threads
- 12
Storage
- Card reader integrated
- Yes
- Compatible memory cards
- MicroSD (TransFlash)
- Number of storage drives supported
- 3
- NVMe
- Yes
- SSD form factor
- M.2
- Storage drive interface
- M.2
- Supported storage drive types
- HDD & SSD
Weight & dimensions
- Depth
- 13.56 cm
- Height
- 5.01 cm
- Package depth
- 22 cm
- Package height
- 9.4 cm
- Package weight
- 0 kg
- Package width
- 20.5 cm
- Weight
- 0 kg
- Width
- 13.25 cm
Materials
Housing material: Plastic
