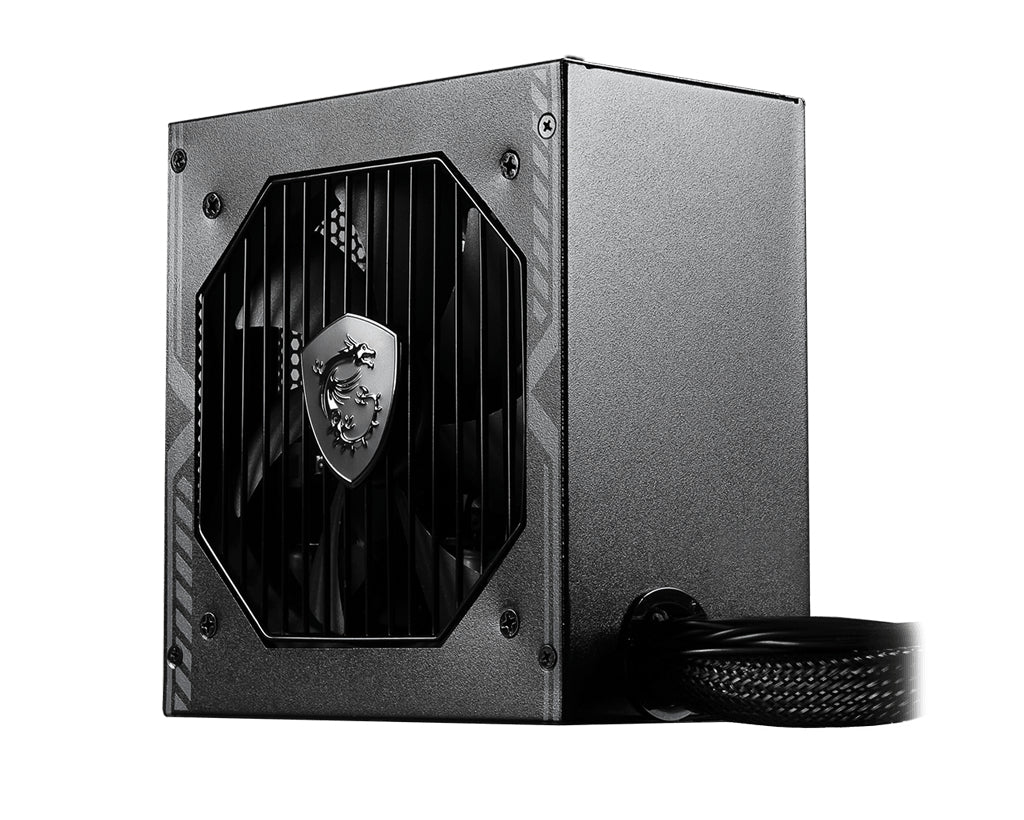

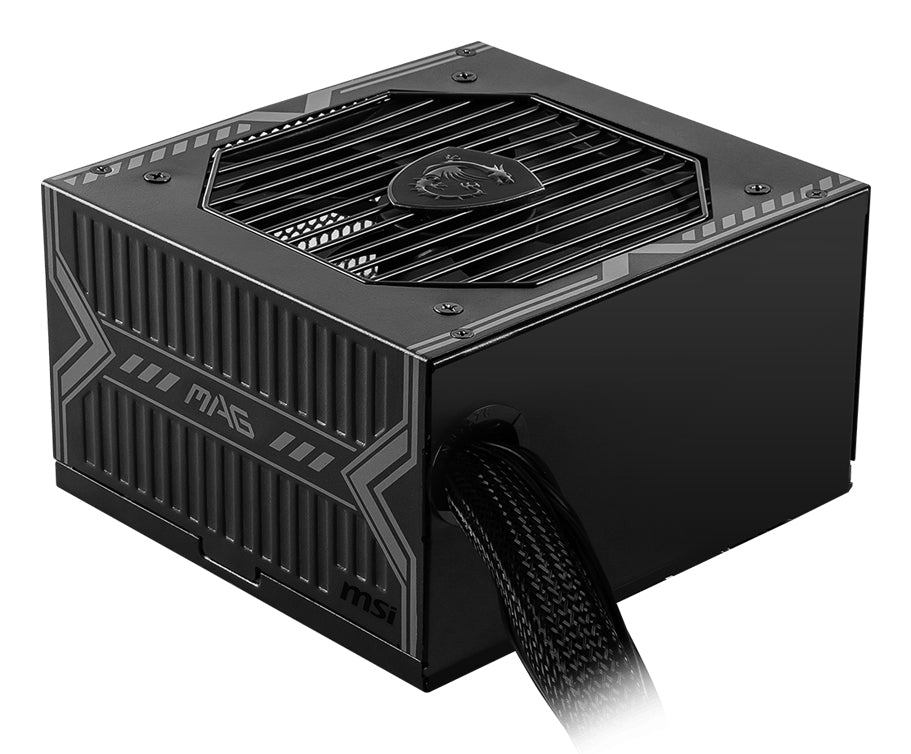

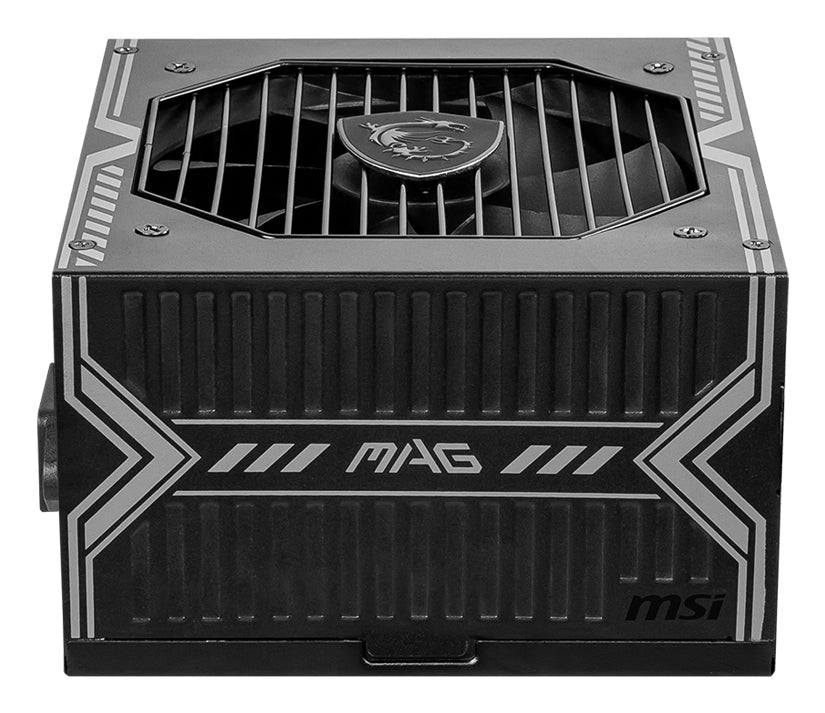

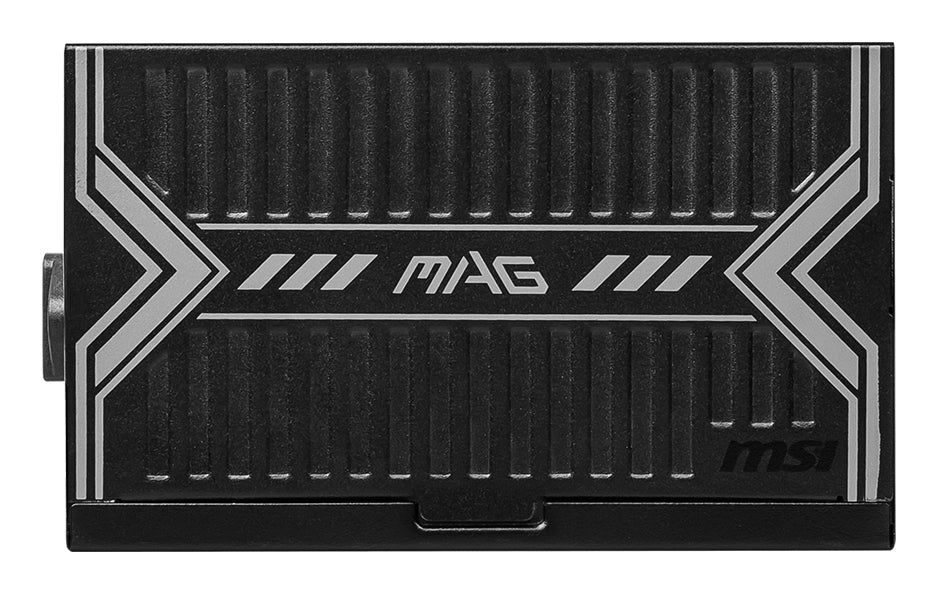

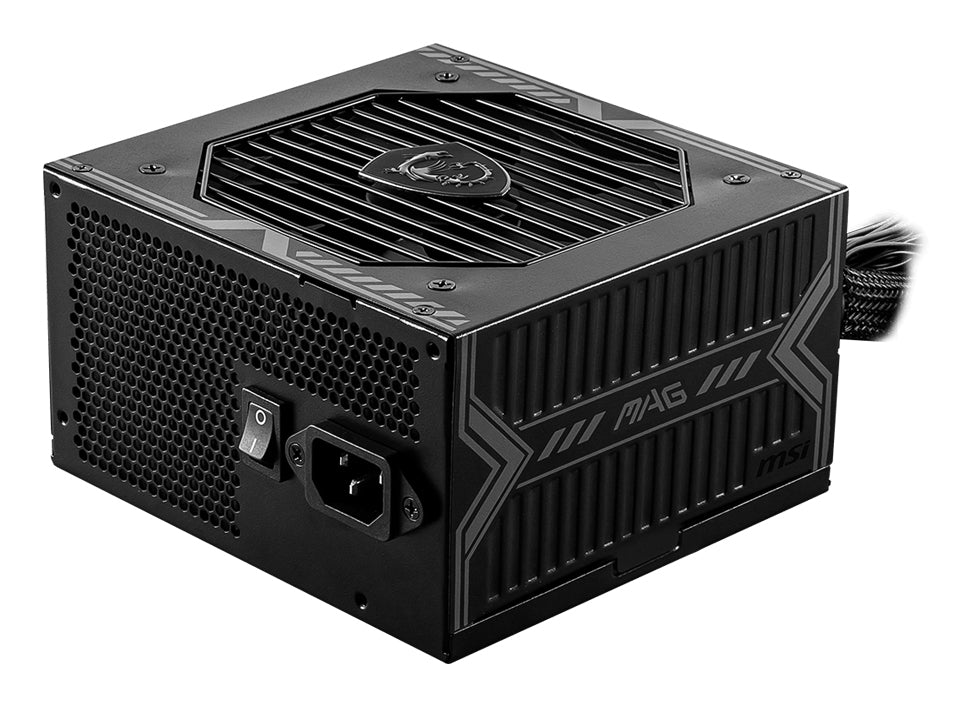

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
Available in stock (661)
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.
5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Total power: 650 W
- Purpose: PC
- AC input voltage: 100 - 240 V
- 80 PLUS certification: 80 PLUS Bronze
- Cooling type: Active
- Power supply unit (PSU) form factor: ATX
- Power protection features: Over current, Over power, Over voltage, Short circuit
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) power connectors (4-pin): 2
- Cabling type: Non-Modular
- Number of SATA power connectors: 5
- Max output current (+12V): 54 A
- Max output current (-12V): 0.3 A
- Combined power (+3.3V): 110 W
- Combined power (+5V): 110 W
- Max output current (+3.3V): 20 A
- Max output current (+5Vsb): 20 A
- Combined power (+12V): 648 W
- Combined power (-12V): 3.6 W
Design
- Fan diameter
- 12 cm
- Illumination
- No
- Number of fans
- 1 fan(s)
- On/off switch
- Yes
Logistics data
- Harmonized System (HS) code
- 84733020
Ports & interfaces
- ATX power connector (20+4 pin)
- Yes
- ATX Power connector (24-pin)
- No
- CPU power connector (4+4 pin)
- Yes
- EPS power connector (4+4 pin)
- Yes
- EPS power connector (8-pin)
- No
- Floppy disk drive connector
- No
- Motherboard power cable length
- 60 cm
- PCI Express connector
- Yes
- PCI Express power connectors (6+2 pin)
- 2
Power
- AC input frequency
- 50 - 60 Hz
- Combined power (+5Vsb)
- 12.5 W
- Efficiency
- 85%
- Maximum input current (@110V)
- 10 A
- Maximum input current (@220V)
- 5 A
- Max output current (+5V)
- 20 A
- Power Factor Correction (PFC) type
- Active
Weight & dimensions
- Depth
- 14 cm
- Height
- 8.6 cm
- Width
- 15 cm
Materials
