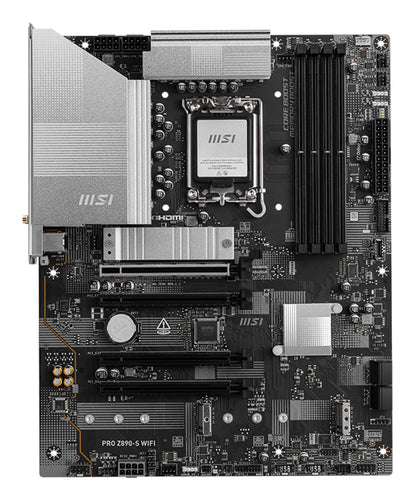

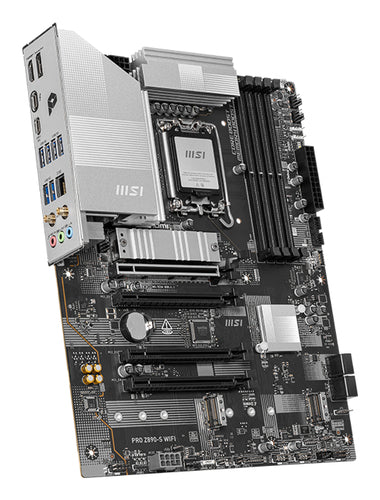

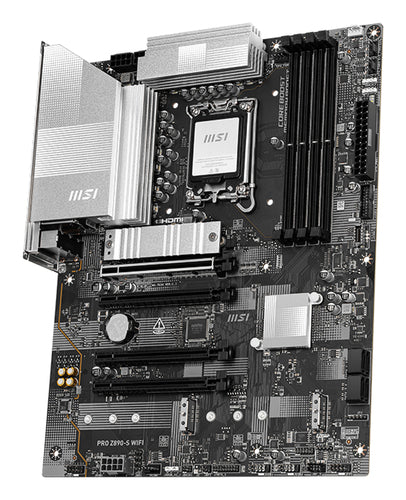

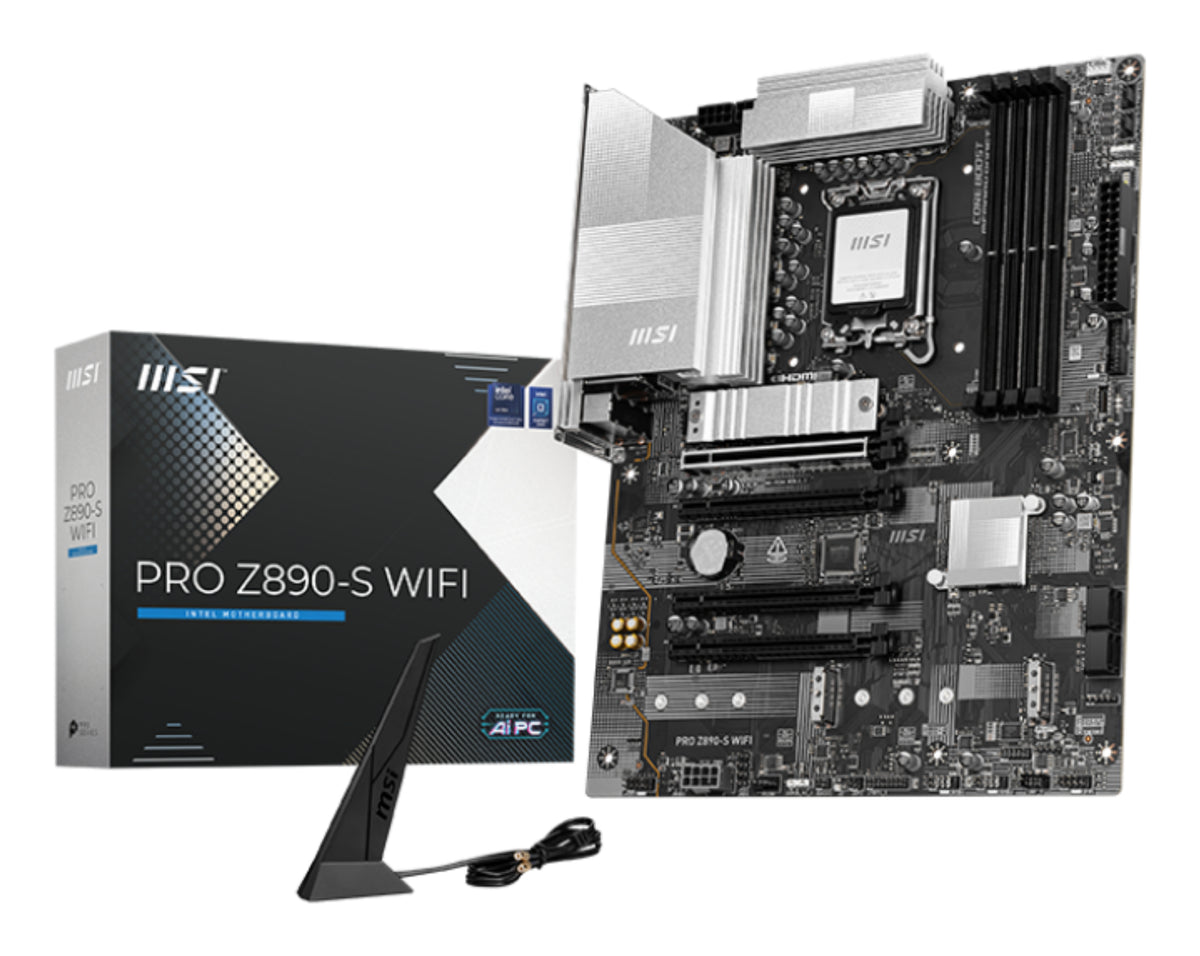

MSI PRO Z890-S WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
Out of stock
PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
12+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Component for: PC
- Maximum internal memory: 256GB
- Motherboard chipset family: Intel
- Motherboard form factor: ATX
- Number of memory slots: 4
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported memory types: DDR5-SDRAM
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Wi-Fi: Yes
- Ethernet LAN: Yes
- Motherboard chipset: Intel Z890
- Number of SATA III connectors: 4
- Supported storage drive interfaces: M.2, SATA III
- USB 2.0 connectors: 4
- Ethernet interface type: 2.5 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports: Yes
- Compatible processor series: Intel Core Ultra (Series 2)
- Memory channels: Dual-channel
Expansion slots
- Number of M.2 (M) slots
- 3
- PCI Express x16 slots
- 4
Features
- Audio chip
- Realtek ALC897
- Audio output channels
- 7.1 channels
- PC health monitoring
- Fan, Temperature, Voltage
- Windows operating systems supported
- Windows 11 x64
General
- Video/mp4
- https://objects.icecat.biz/objects/122347662_58376331.mp4
Graphics
- On-board graphics card
- No
Internal I/O
- Total number of SATA connectors
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
Memory
- ECC сompatibility
- Non-ECC
- Memory slots type
- DIMM
- Supported memory clock speed (max)
- 8600 MHz
- Supported memory clock speeds
- 4800,6400,8600 MHz
Network
- Bluetooth
- Yes
- Bluetooth version
- 5.4
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Processor
- Maximum internal memory supported by processor
- 256GB
- Supported processor sockets
- LGA 1851

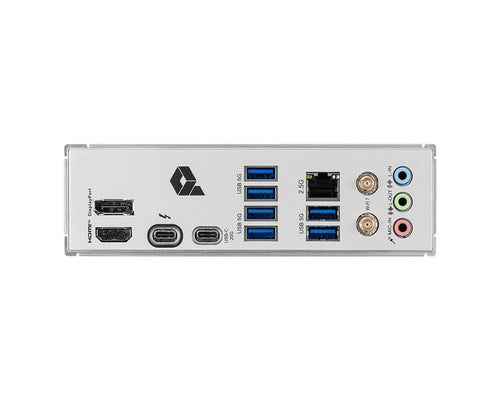

Rear panel I/O ports
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Thunderbolt ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
Storage controllers
- Number of HDDs supported
- 7
- Number of storage drives supported
- 4
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- Supported storage drive types
- HDD & SSD
Weight & dimensions
- Depth
- 30.48 cm
- Width
- 24.38 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | PRO Z890-S WIFI PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. BUSINESS ELEGANCE The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. One Finger for EZ GPU Installation The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces. 12+1+1+1 DRPS POWER DESIGN Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. |

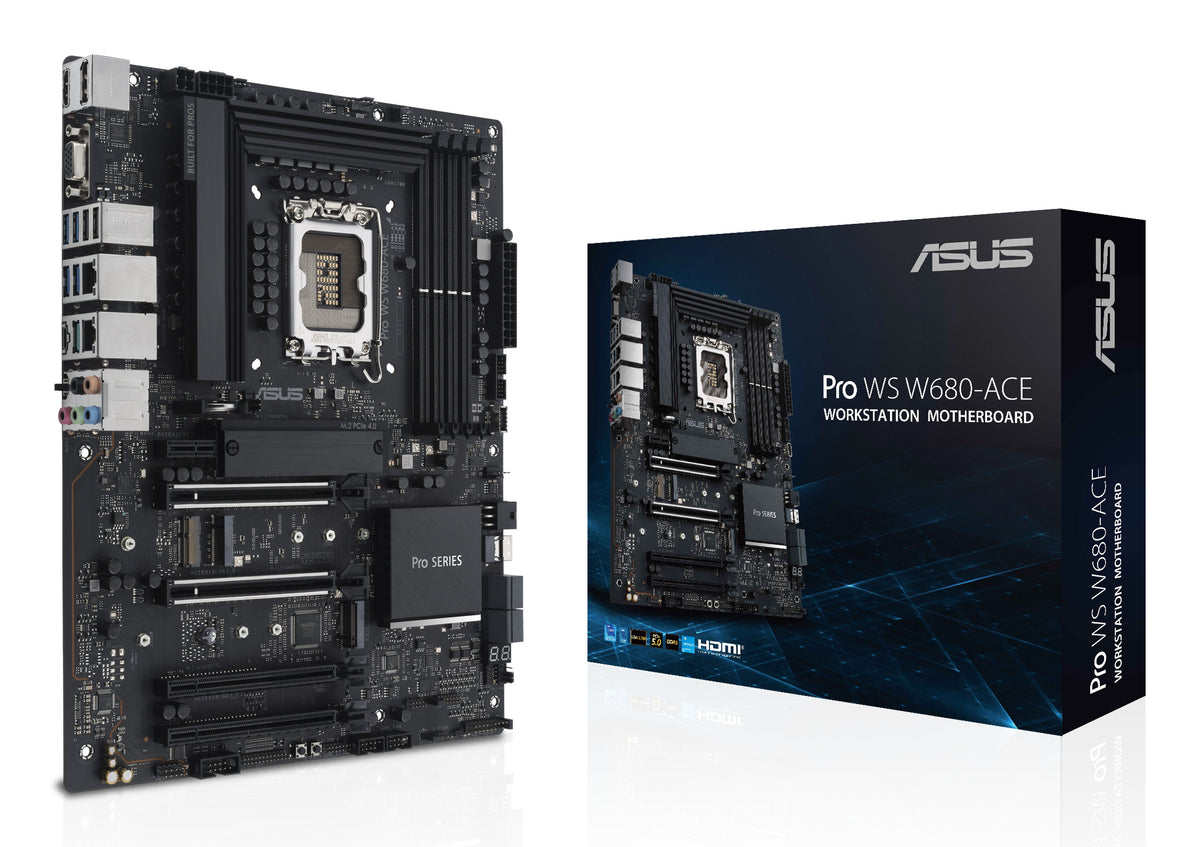

WORKSTATION MOTHERBOARD ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators. Ultra Powerful Back IO The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions. ECC Memory Support Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. Dual 2.5G Ethernet Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos. ASUS Control Center Express The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues. Multi-GPU Support Two PCIe 5.0 x16 slots provide flexible system configurability and expandability — including support for NVIDIA® Quadro® — for enhanced performance in modelling, simulation, and rendering applications. Triple M.2 Slots Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance. Thermal Solution VRM heatsink A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation. PCH heatsink An expanded surface area for the chipset cooler maximizes performance and heat dissipation. M.2 heatsink M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability. Q-Latch The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. SafeSlot & SafeDIMM PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence. 24/7 Dependability Optimized for 24/7 operation, Pro WS W680-ACE motherboard is tested to work in temperatures of up to 45°C and 80% humidity, ensuring it can handle diverse operating environments. Solid Compatibility Validation ASUS Pro WS W680-ACE motherboard has been extensively tested for compatibility with over 1,000 components and devices. Each new ASUS motherboard model undergoes a minimum of 8,000 hours of strict tests so that you can be 100% confident it is suitable for all environments and applications. 520+ DDR5 compatibility Industry-leading DDR5 memory compatibility for best flexibility and reassurance. 1000+ compatible devices Compatibility with a range of CPUs, memory modules, graphics cards and more. 8000+ validation hours Extensive testing with latest components for enhanced reliability, compatibility and safety. |

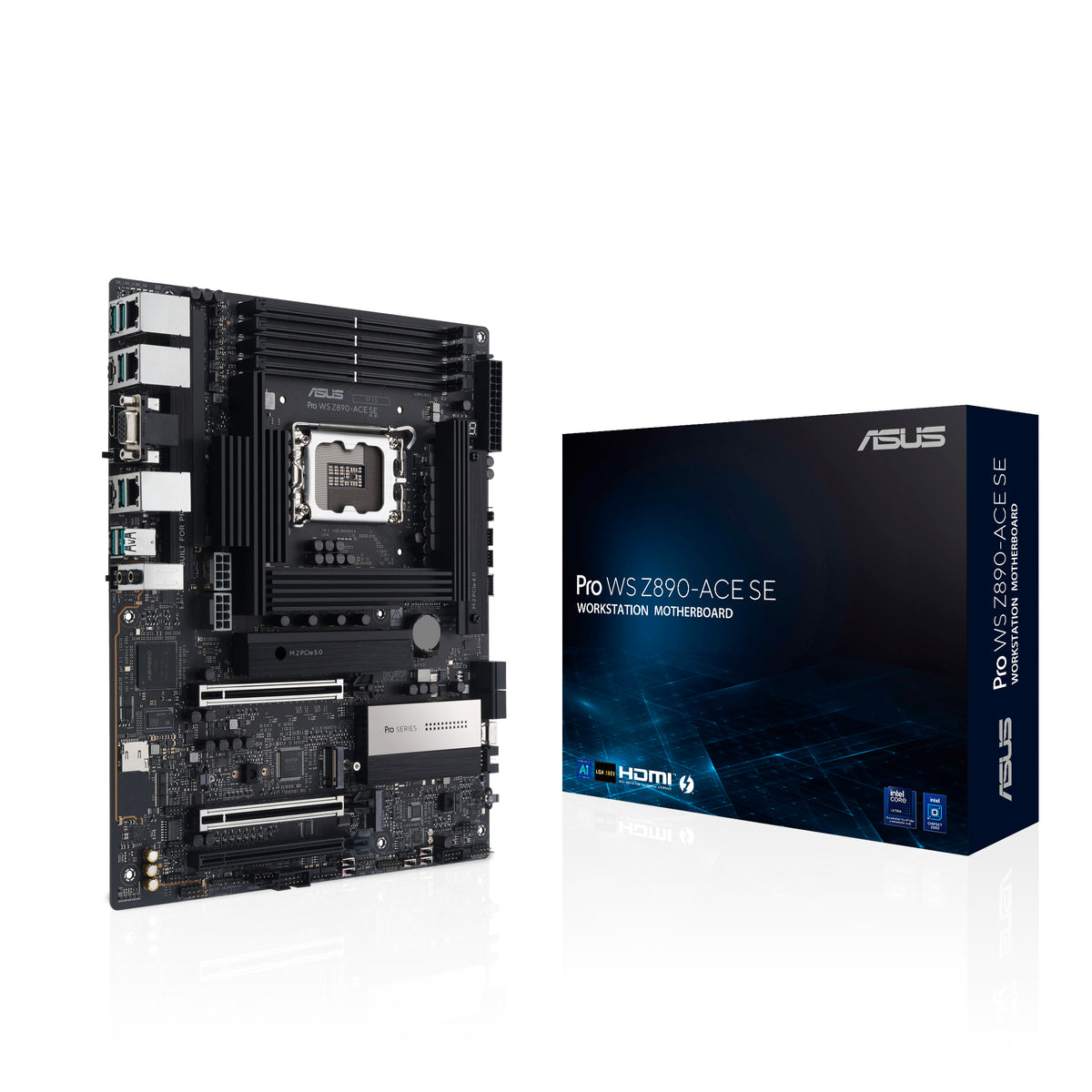

The Pro WS Z890-ACE SE empowers workstation users of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including Thunderbolt™ 4 port, 10Gb and 2.5Gb Ethernet. The workstation motherboard is engineered to support dual graphics cards, making it an ideal choice for content creation, AI and deep learning, and IT management. Thunderbolt™ Connectivity The Pro WS Z890-ACE SE features a Thunderbolt™ 4 port, offering high-speed data transfers up to 40Gbps. This allows large files and datasets to be transferred in seconds, boosting productivity for workstation users, AI and deep learning experts, and IT managers. Thunderbolt™ 4 also supports multiple 4K displays or a single 8K display for clear and smooth visuals, essential for professional applications. Its strong compatibility with existing Thunderbolt™ and USB devices simplifies connectivity and management. PCIe 5.0 Support The Pro WS Z890-ACE SE offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. PCIe 5.0 Expansion Slots Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the both slots can be released easily via Q-Release Slim. Remote Control Solution Onboard BMC The Pro WS Z890-ACE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries. ASUS Control Center Express A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency. USB Port Management Enable or disable the USB port, or set it to Read Only to prevent data leaks. Software Blacklist For added security, a software blacklist is available to help prevent the use of high-risk applications. Registry Editor On/Off Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations. The Core of Your Powerful Workstation Designed to meet the needs of high-core-count CPUs, the Pro WS Z890-ACE SE features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2). Eight-Layer PCB Design This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking. ProCool II Connectors These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure. Superior Chokes & Capacitors These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard. Digi+ VRM Control The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU. Performance Boost NPU Boost The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.1 Memory The Pro WS Z890-ACE SE enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules. DIMM Fit DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration. AEMP III ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.2 Intelligent AI Solutions AI Overclocking Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits. AI Cooling II Balance the thermals and acoustics of any build with a single click. AI Advisor Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.3 Easy PC DIY PCIe® Slot Q-Release Slim The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot. This design also keeps the original method of removing the graphics card by pushing down on the retention clip. Step1: Firmly grasp the graphics card Step2: Slightly tile the card while pulling upward4 M.2 Q-Latch The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap. ASUS DriverHub ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation. Four Onboard M.2 Slots The Pro WS Z890-ACE SE features one PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.5 24/7 Reliability Optimized for 24/7 operation, the Pro WS Z890-ACE SE motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments. |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. USER FRIENDLY DESIGN MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. M.2 SHIELD FROZR World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. FULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. EASY BIOS RECOVERY WITH FLASH BIOS BUTTON Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue working within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed! EZ DEBUG LED Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again. XL CLIP The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. ULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. CONNECTIVITY The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. NEXT-GEN INTEL WI-FI AC & BLUETOOTH This next-generation Intel Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation. FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. LIGHTNING GEN 4 M.2 Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. USB FRONT TYPE-C MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience. EXTEND YOUR RGB EXPERIENCE WITH EASE Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. EXPERIENCE MORE MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. PCB WITH 2OZ THICKENED COPPER An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. DEDICATED HIGH DEFINITION AUDIO PROCESSOR Make sure you enjoy the purest sound quality in both stereo and surround sound. HIGH QUALITY AUDIO CAPACITORS A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured. HD AUDIO CONNECTORS Keep you sound perfect by transmit your aduio with pure digital signal. ISOLATED AUDIO DESIGN Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. DRAGON CENTER MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! CREATOR GENIE Quickly overclock your CPU with a single button for more performance. A-XMP Choose from a preset A-XMP profile and automatically overclock compatible DDR memory. M-FLASH Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility. HARDWARE MONITOR Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage. MEMORY TRY IT Get extreme speed out of your system memory and get more performance. SEARCH & FAVORITES A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly. |

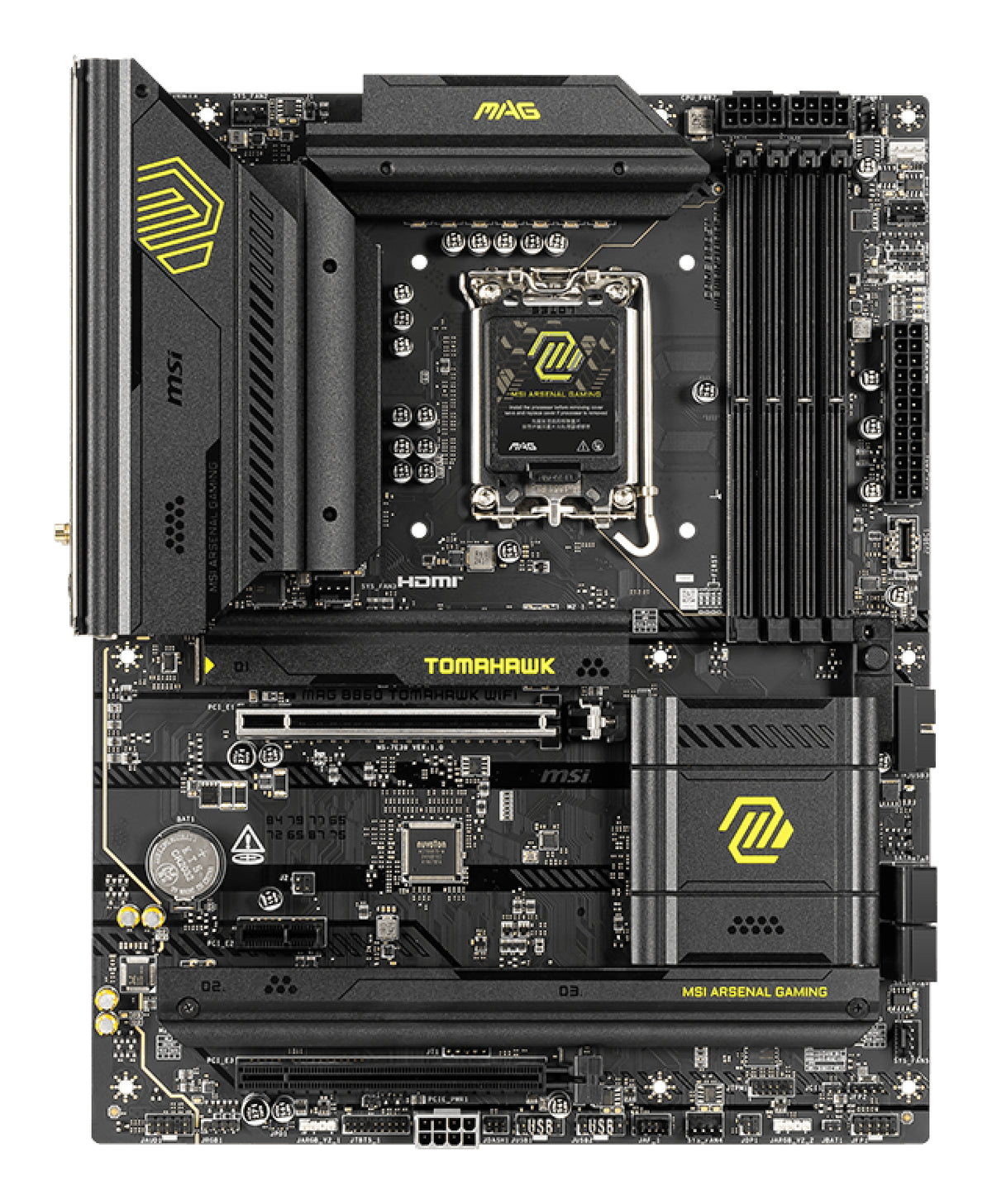

MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors. |
