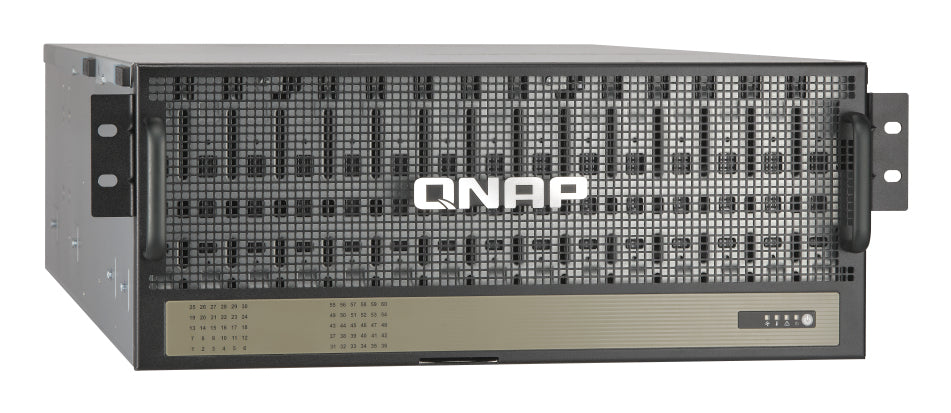

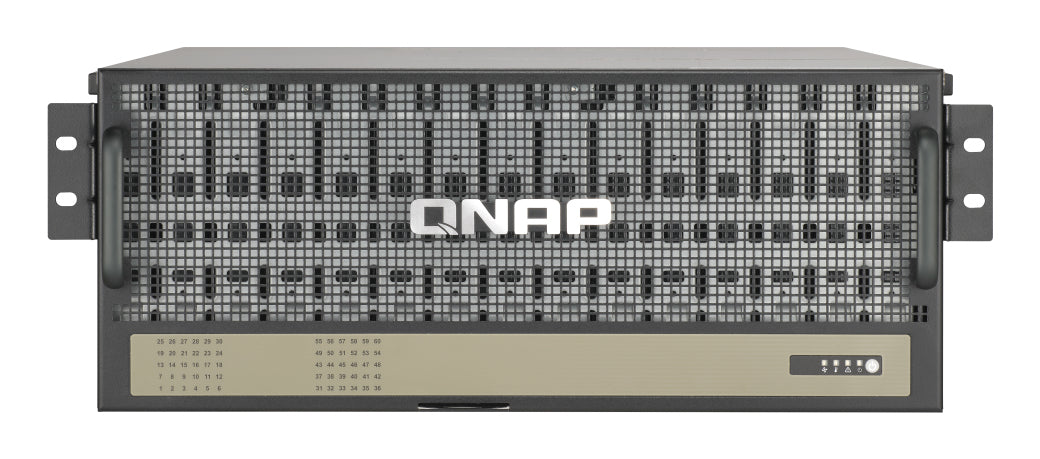

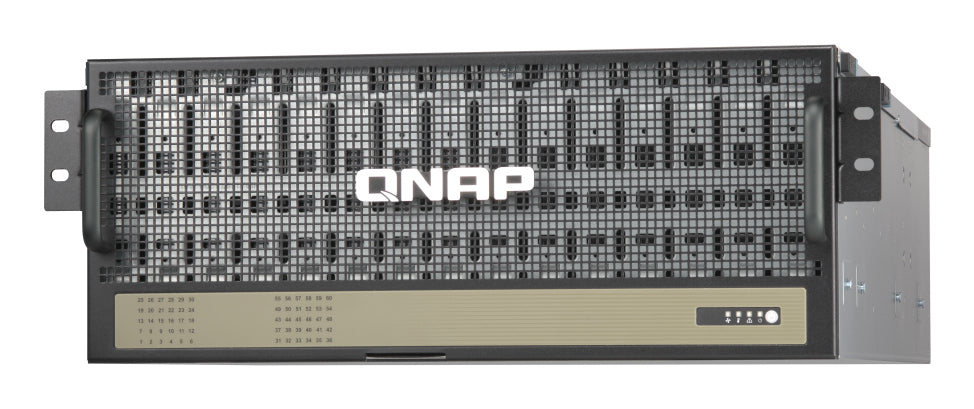

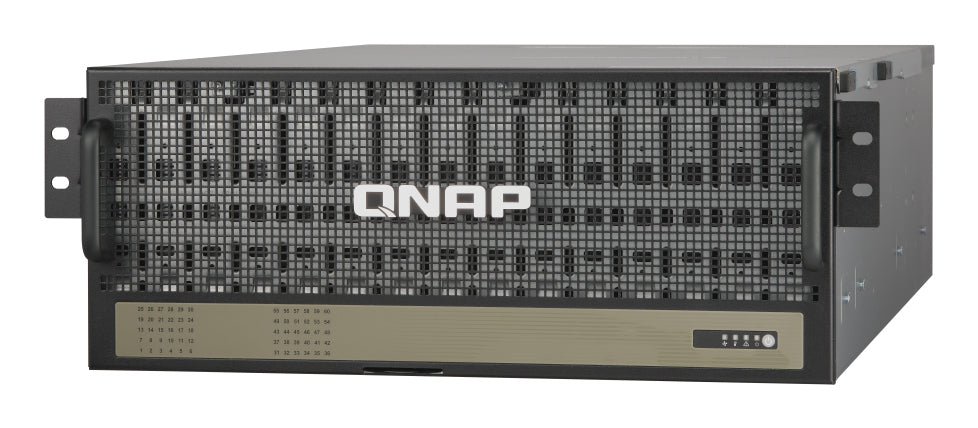

QNAP TL-R6020SEP-RP storage drive enclosure HDD enclosure Black, Grey 3.5"
Regular price
$21,783.40
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
TL-R6020Sep-RP
4U 60-Bay SAS/SATA storage expansion solution supporting 1PB effective capacity in a single chassis
The TL-R6020Sep-RP SAS/SATA storage expansion enclosure in a 60-bay, 4U high-density chassis is the ideal petabyte-level storage expansion solution for QNAP NAS. It provides four high-speed Mini-SAS HD (SFF-8644) ports, supporting SAS 12Gbps transmission interfaces and BroadcomĀ® SAS DataBoltā¢ bandwidth optimization technology. Its Mini-SAS dual-path redundancy design ensures system operation even if one expansion unit cable fails. Supporting daisy-chaining of up to four units, it's ideal for cold storage applications such as surveillance video archiving, big data storage, and multimedia image storage.

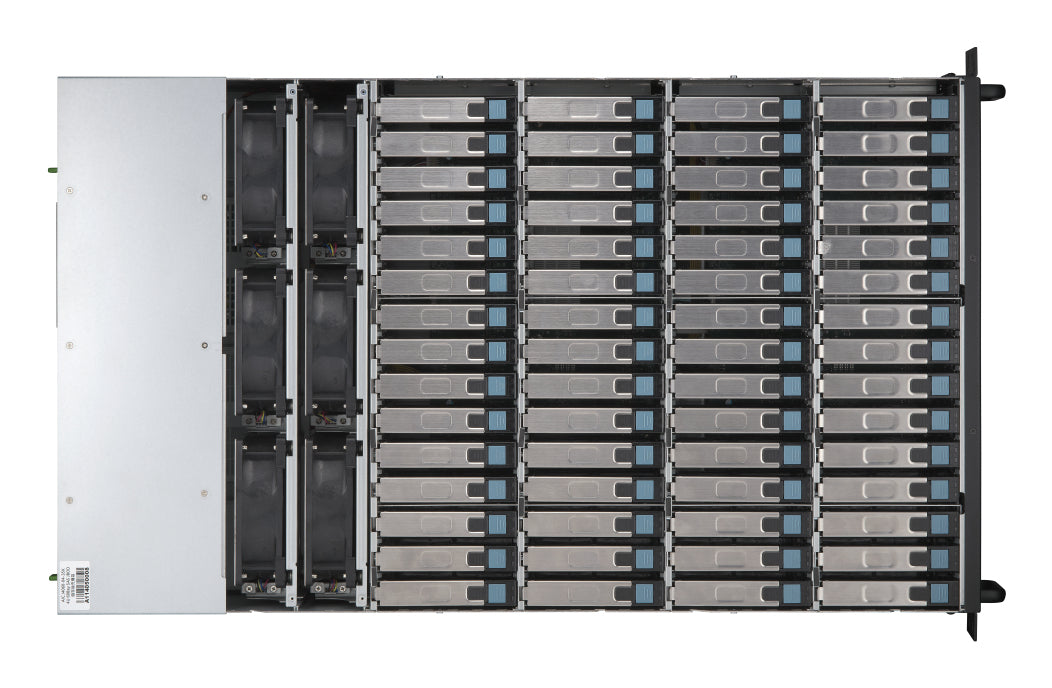

4U space for sixty hard drives
The TL-R6020Sep-RP provides sixty 3.5-inch SAS/SATA HDD slots, delivering petabyte-level massive storage in a single chassis. QNAP NAS allows flexible management of connected TL-R6020Sep-RP storage space through the Storage & Snapshot Manager app. Paired with QNAP-certified hard drives, the TL-R6020Sep-RP provides a highly stable and reliable storage solution.
Diverse JBOD connection methods improve overall performance
The TL-R6020Sep-RP is not limited to daisy chaining. By installing more SAS storage expansion cards in the NAS, you can reduce the number of single-cluster TL-R6020Sep-RP drives and improve overall performance. TL-R6020Sep-RP can also expand an existing QNAP TL SAS JBOD by adding two more, increasing the existing storage capacity to petabyte-level.
Monitor each hard drive from the front panel
The TL-R6020Sep-RP features sixty hard drive status indicators (blue and red) on the front panel, eliminating the need to pull the system from the rack and open the top cover to access the drive trays. A pull-out label also serves as a rack label, making it easy to identify and manage individual TL-R6020Sep-RP.
4U 60-Bay SAS/SATA storage expansion solution supporting 1PB effective capacity in a single chassis
The TL-R6020Sep-RP SAS/SATA storage expansion enclosure in a 60-bay, 4U high-density chassis is the ideal petabyte-level storage expansion solution for QNAP NAS. It provides four high-speed Mini-SAS HD (SFF-8644) ports, supporting SAS 12Gbps transmission interfaces and BroadcomĀ® SAS DataBoltā¢ bandwidth optimization technology. Its Mini-SAS dual-path redundancy design ensures system operation even if one expansion unit cable fails. Supporting daisy-chaining of up to four units, it's ideal for cold storage applications such as surveillance video archiving, big data storage, and multimedia image storage.
4U space for sixty hard drives
The TL-R6020Sep-RP provides sixty 3.5-inch SAS/SATA HDD slots, delivering petabyte-level massive storage in a single chassis. QNAP NAS allows flexible management of connected TL-R6020Sep-RP storage space through the Storage & Snapshot Manager app. Paired with QNAP-certified hard drives, the TL-R6020Sep-RP provides a highly stable and reliable storage solution.
Diverse JBOD connection methods improve overall performance
The TL-R6020Sep-RP is not limited to daisy chaining. By installing more SAS storage expansion cards in the NAS, you can reduce the number of single-cluster TL-R6020Sep-RP drives and improve overall performance. TL-R6020Sep-RP can also expand an existing QNAP TL SAS JBOD by adding two more, increasing the existing storage capacity to petabyte-level.
Monitor each hard drive from the front panel
The TL-R6020Sep-RP features sixty hard drive status indicators (blue and red) on the front panel, eliminating the need to pull the system from the rack and open the top cover to access the drive trays. A pull-out label also serves as a rack label, making it easy to identify and manage individual TL-R6020Sep-RP.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Grey
- Warranty period: 5 years
- Number of storage drives supported: 60
- Supported storage drive interfaces: SAS-3, Serial ATA III
- Product type: HDD enclosure
- Storage drive size: 3.5"
- Operating relative humidity (H-H): 5 - 95%
- Power source type: AC
- Cables included: AC
- LED indicators: Yes
- Number of fans: 6 fan(s)
- Package type: Box
- Storage relative humidity (H-H): 5 - 95%
- AC adapter input voltage: 100 - 240 V
- Fan diameter: 12 cm
- On/off switch: Yes
- Rack mounting: Yes
- Rack capacity: 4U
- RAID levels: JBOD
- Interface: 4 x SFF-8644
Operational conditions
- Operating temperature (T-T)
- 0 - 40 Ā°C
- Storage temperature (T-T)
- -20 - 70 Ā°C
Technical details
- Data transfer rate
- 12 Gbit/s
Weight & dimensions
- Depth
- 75 cm
- Height
- 17.6 cm
- Package depth
- 59.3 cm
- Package height
- 30.5 cm
- Package weight
- 58.2 kg
- Package width
- 59.5 cm
- Weight
- 25.2 kg
- Width
- 43.4 cm
Cables included: AC
Materials
