StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
Hurry up, only 10 items left in stock.

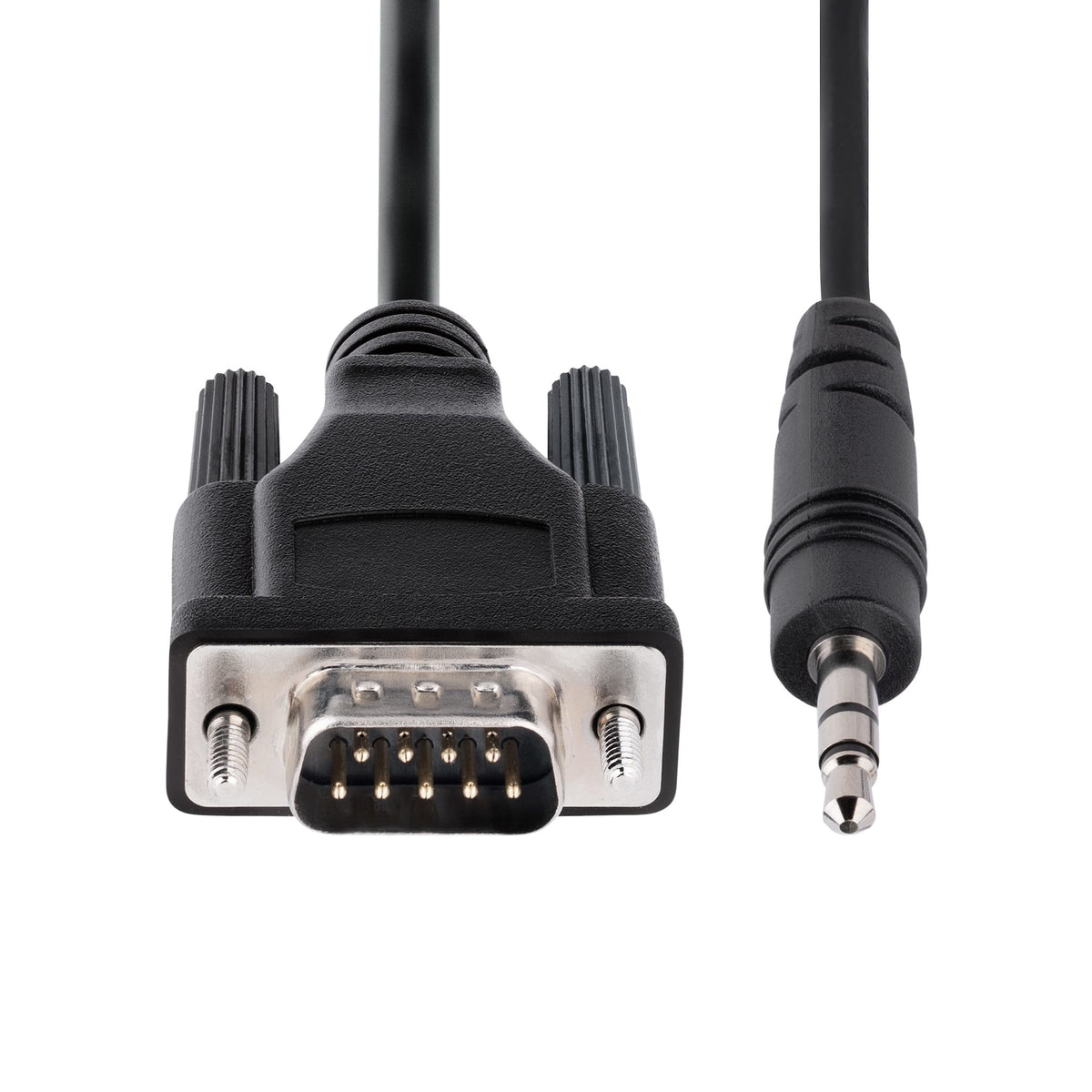

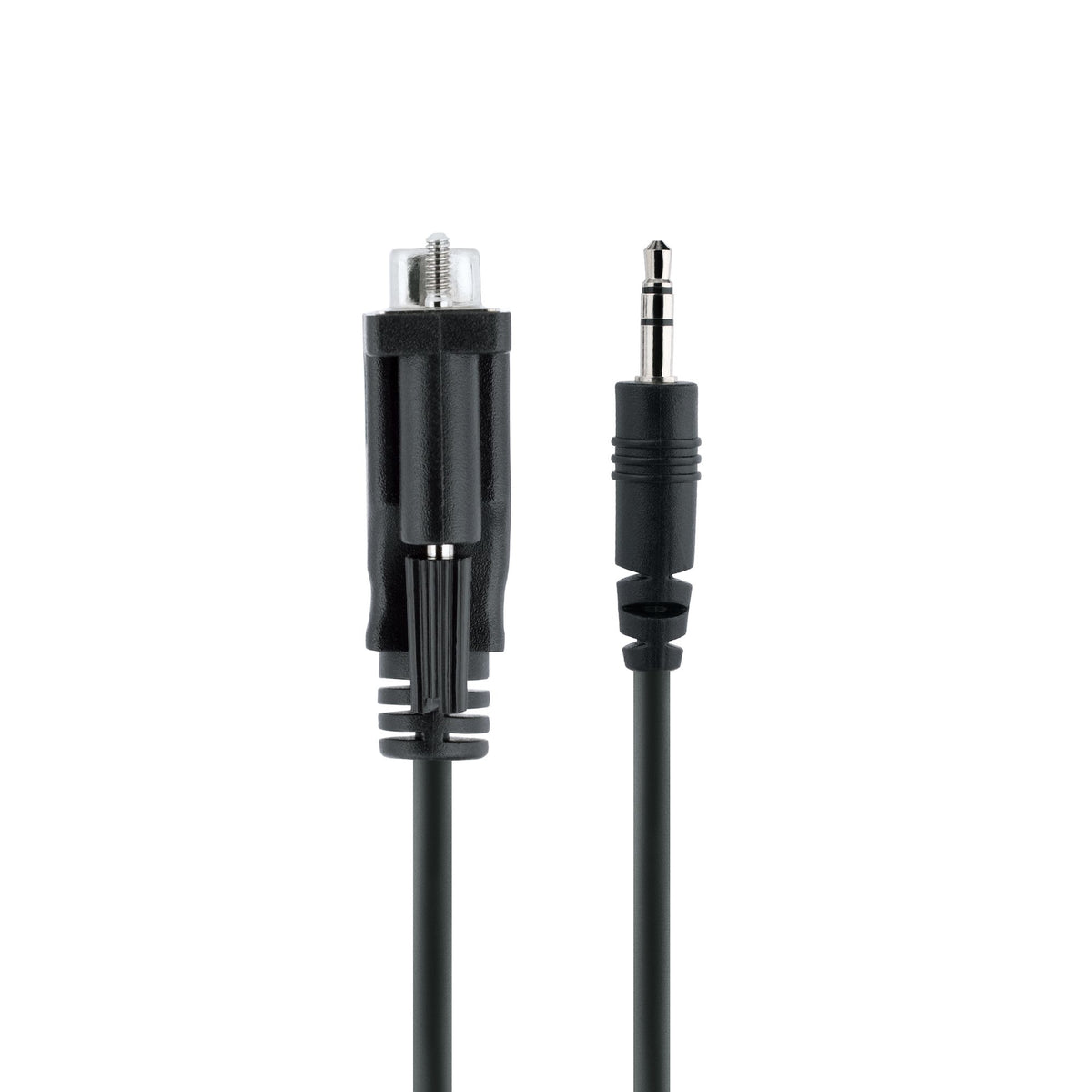

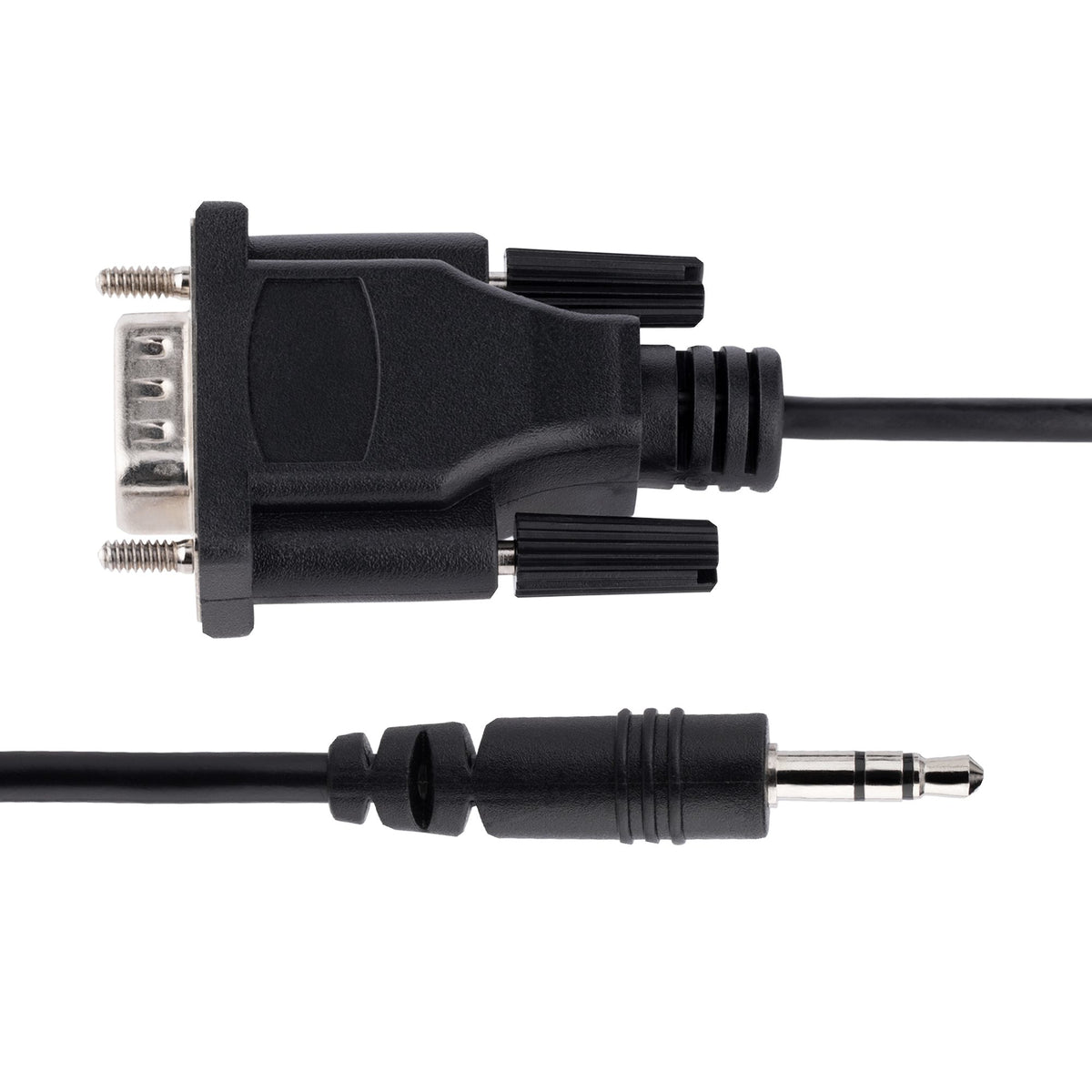

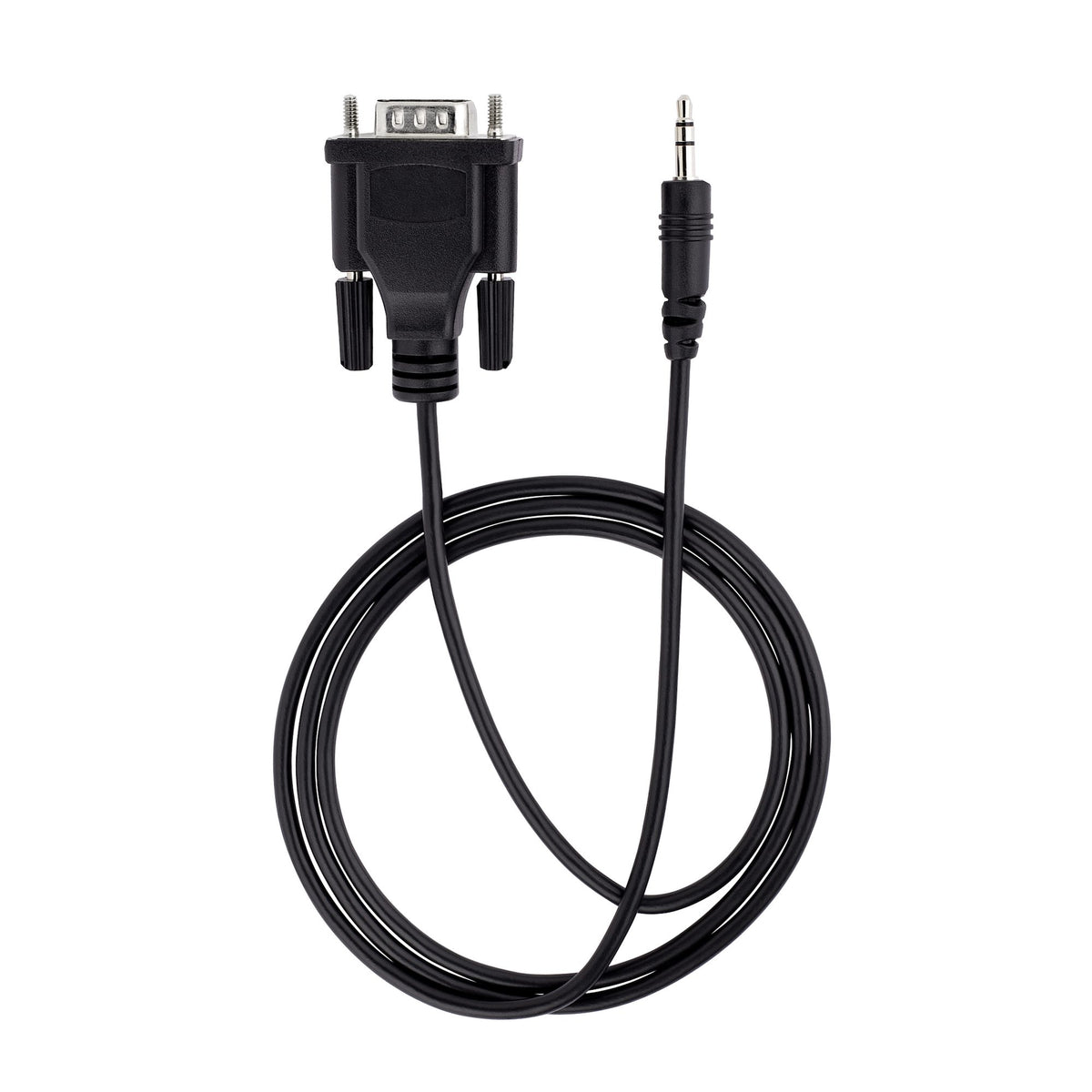

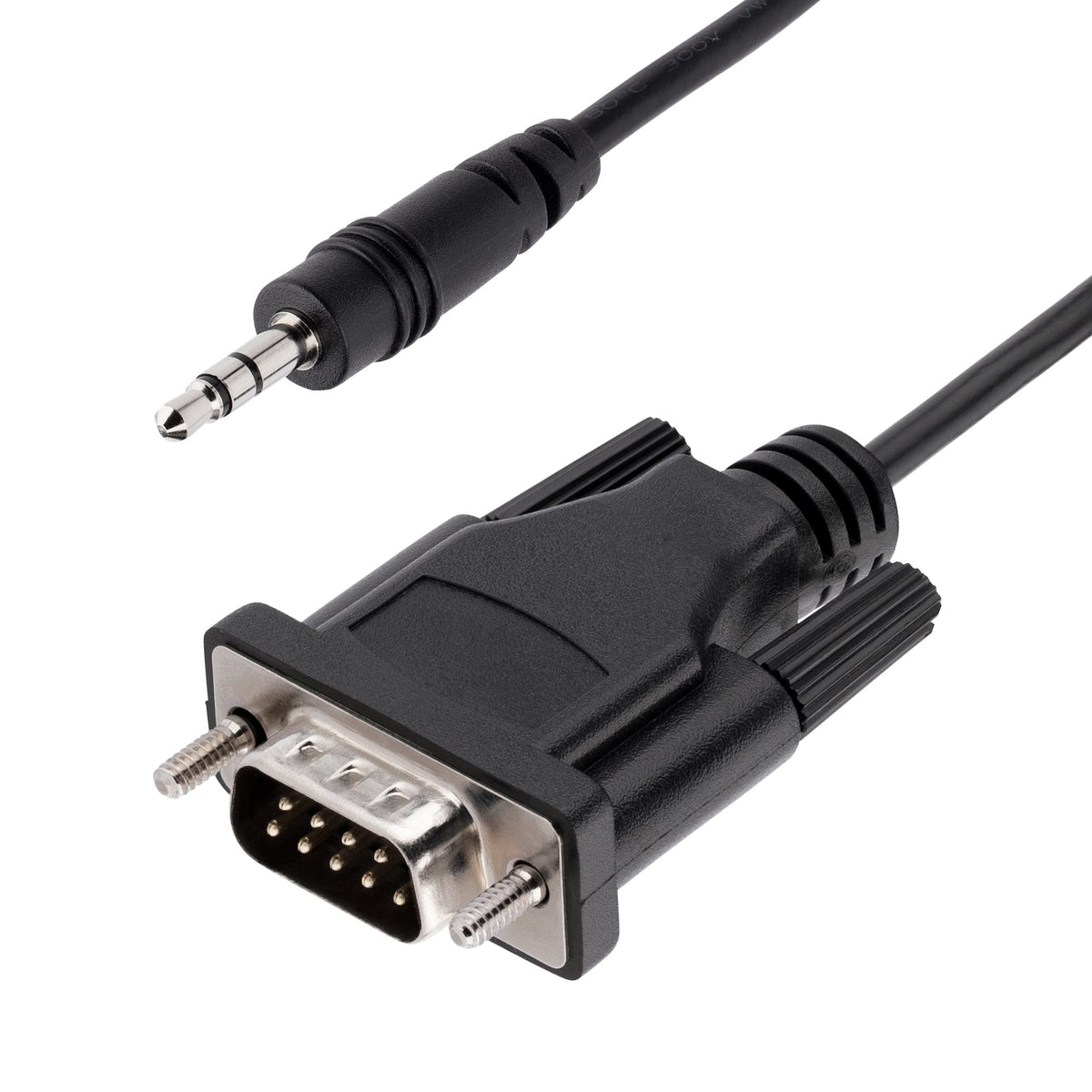

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Connector 1: DB-9
- Connector 2: 3.5mm
- Connector 1 gender: Male
- Connector 2 gender: Male
- Master (outer) case height: 31 cm
- Master (outer) case length: 34 cm
- Master (outer) case width: 38.8 cm
- Products per master (outer) case: 120 pc(s)
- Compliance certificates: RoHS
- Operating temperature (T-T): -20 - 60 °C
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Relative humidity: 30 - 75%
- Sustainability compliance: Yes
- Cable jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 28
- Cable diameter: 3.5 mm
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 22 cm
- Package height
- 1 cm
- Package weight
- 0.02 kg
- Package width
- 12.8 cm
Ports & interfaces
- Cable length
- 1 m
Materials
Cable jacket material: Polyvinyl chloride (PVC)
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack. High Quality Construction The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion. Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption. DB9 Serial to 3.5mm Pinout DB9 Pin 3 to 3.5mm Tip DB9 Pin 2 to 3.5mm Ring DB9 Pin 5 to 3.5mm Sleeve This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance. |

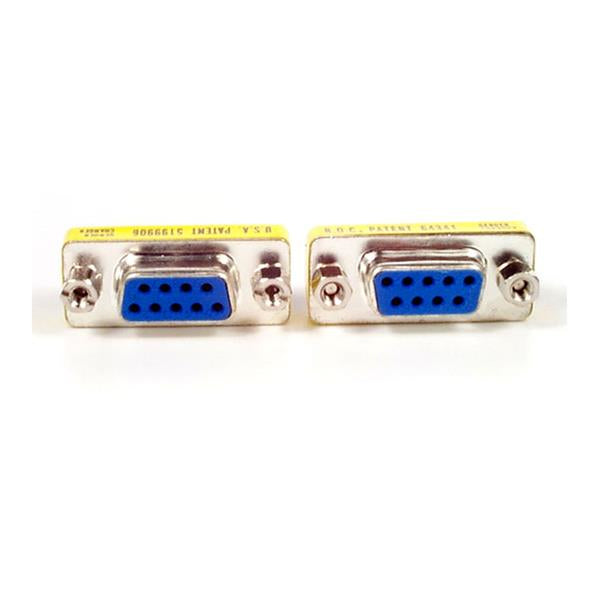

Convert a DB9 9-pin male connector into a DB9 9-pin female connector This Slimline DB9 Gender Changer features two slimline DB9F connectors, offering a reliable, cost-saving way to convert a 9 pin male port to a 9 pin female port. The Slimline DB9 Gender Changer is backed by lifetime warranty, guaranteeing long-lasting performance. |

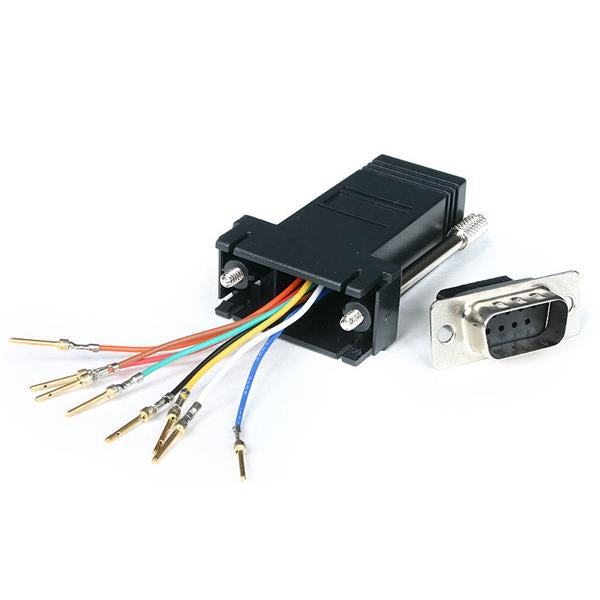

Convert your DB9 female connector into an RJ45 female connector The GC98MF Modular Adapter features a DB9 male connector and an RJ45 female connector. Used for modular RS232, RS422 and RS485 connections, the adapter converts your DB9 female connection into an RJ45 female connection. The adapter allows for custom serial pin out configurations. The DB9M/RJ45F adapter is backed by lifetime warranty, guaranteeing long-lasting durability. |
Convert your DB9 male connector into an RJ45 female connector The GC98FF Modular Adapter features a DB9 female connector and an RJ45 female connector. Used for modular RS232, RS422 and RS485 connections, the adapter converts your DB9 male connection into an RJ45 female connection. The adapter allows for custom serial pin out configurations. The DB9F/RJ45F adapter is backed by lifetime warranty, guaranteeing long-lasting durability. |

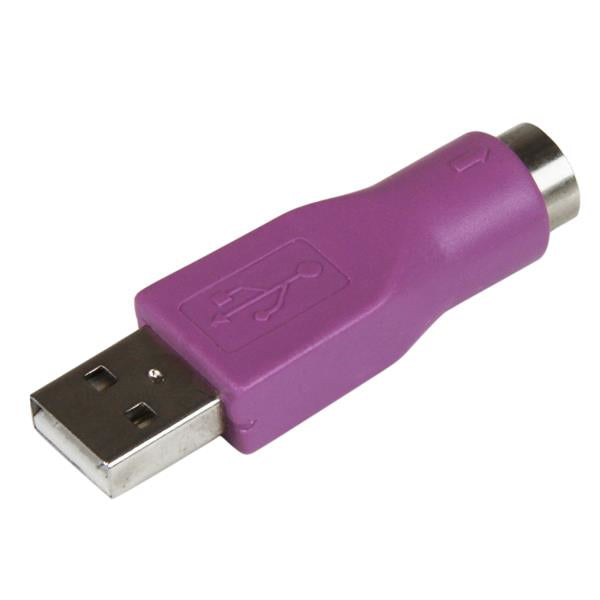

Connect a supported PS/2 keyboard to the USB port on your computer The GC46MFKEY PS/2 Keyboard to USB Adapter features a USB-A male connector and a 6-pin (PS/2) female port, allowing you to connect a PS/2 keyboard to a computer through a USB port. Designed to provide both dependability and cost-effectiveness, this PS/2 Keyboard USB adapter is backed by StarTech.com's Lifetime Warranty. Please Note: This product is designed as a replacement adapter for keyboards that originally shipped with a PS/2-USB converter. If your product did not ship with a converter, we suggest trying StarTech.com's USBPS2PC instead. |
