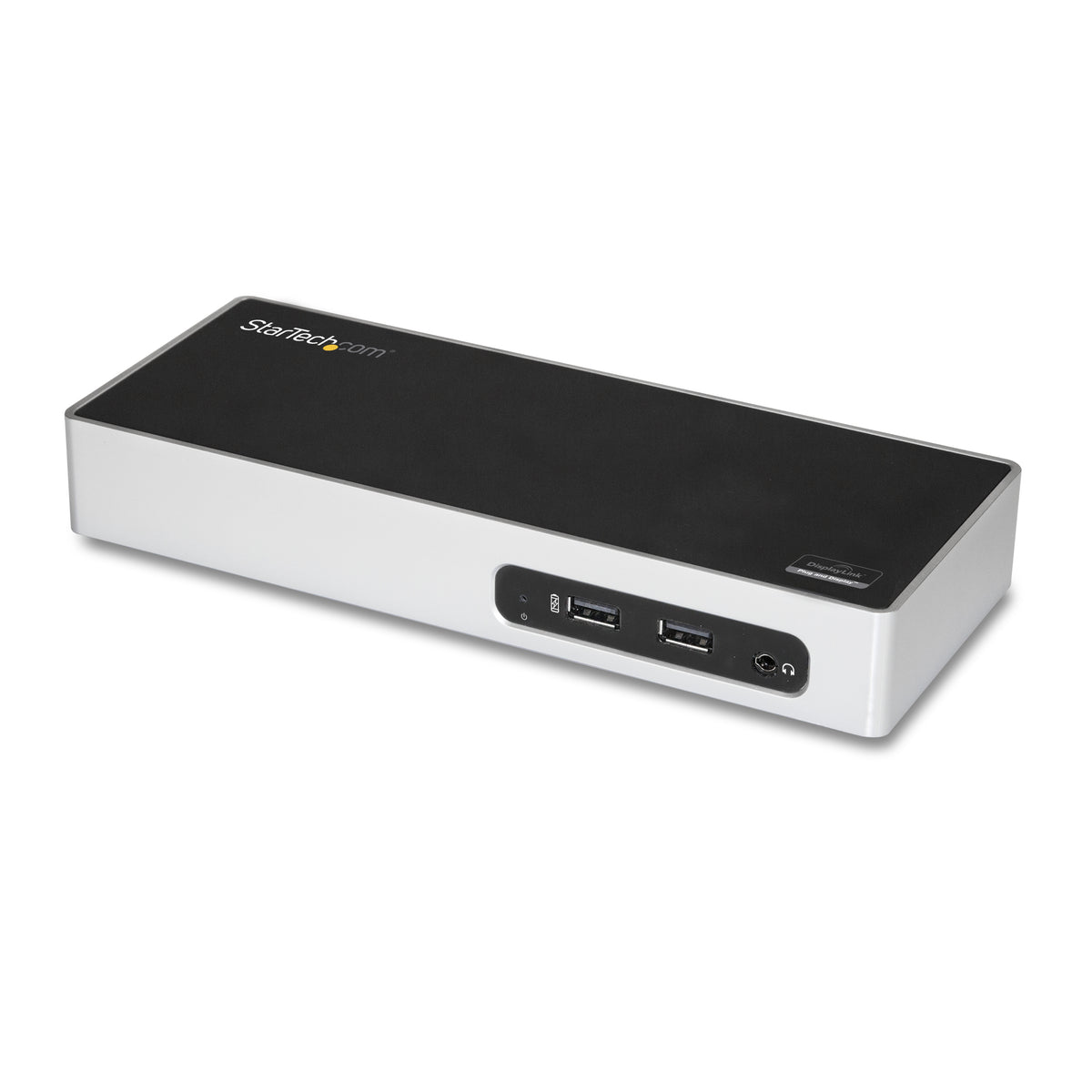

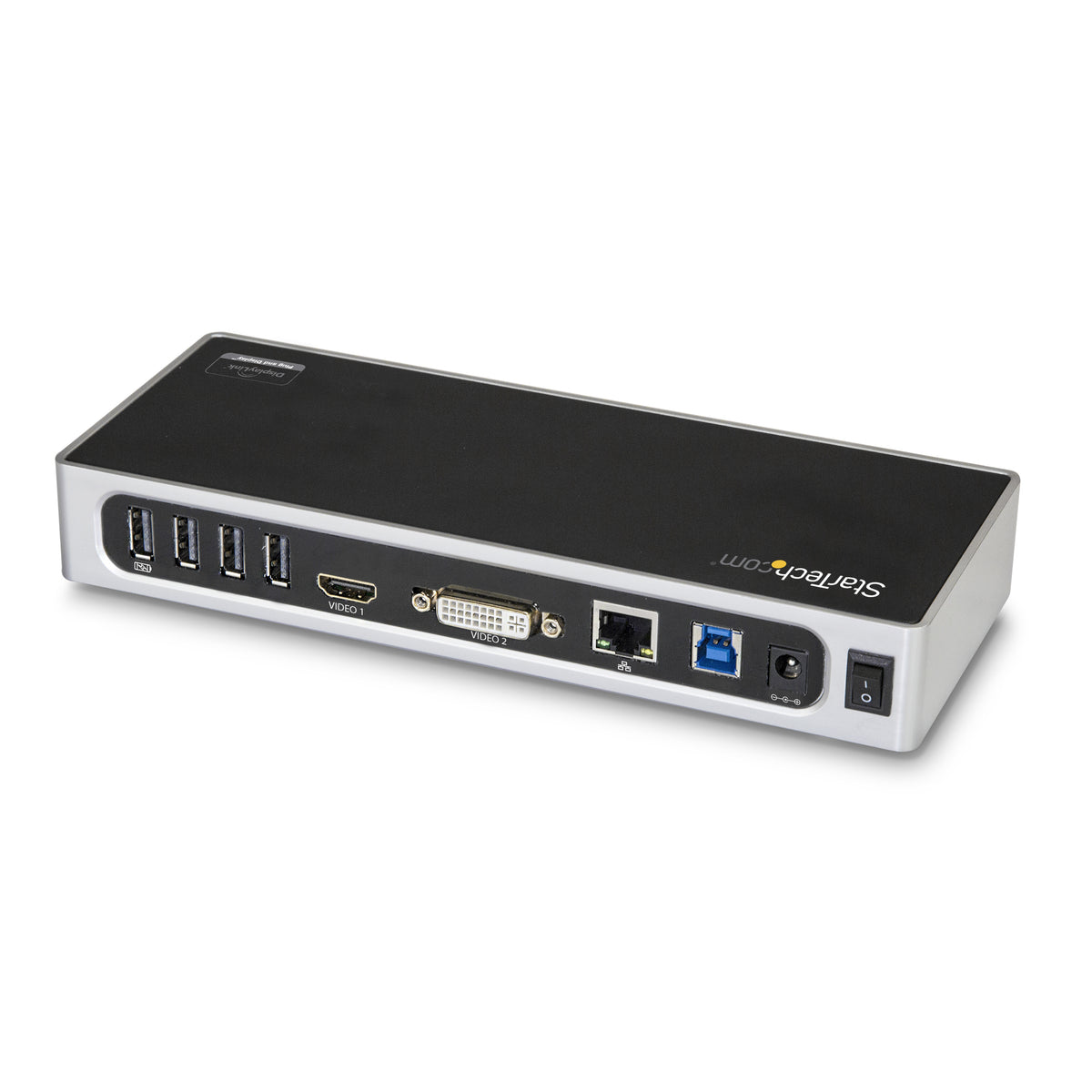

StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac
Regular price
$276.58
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 1 item left in stock.
Laptop Docking Station | Mac & Windows® | HDMI & DVI | DVI to VGA Adapter
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need

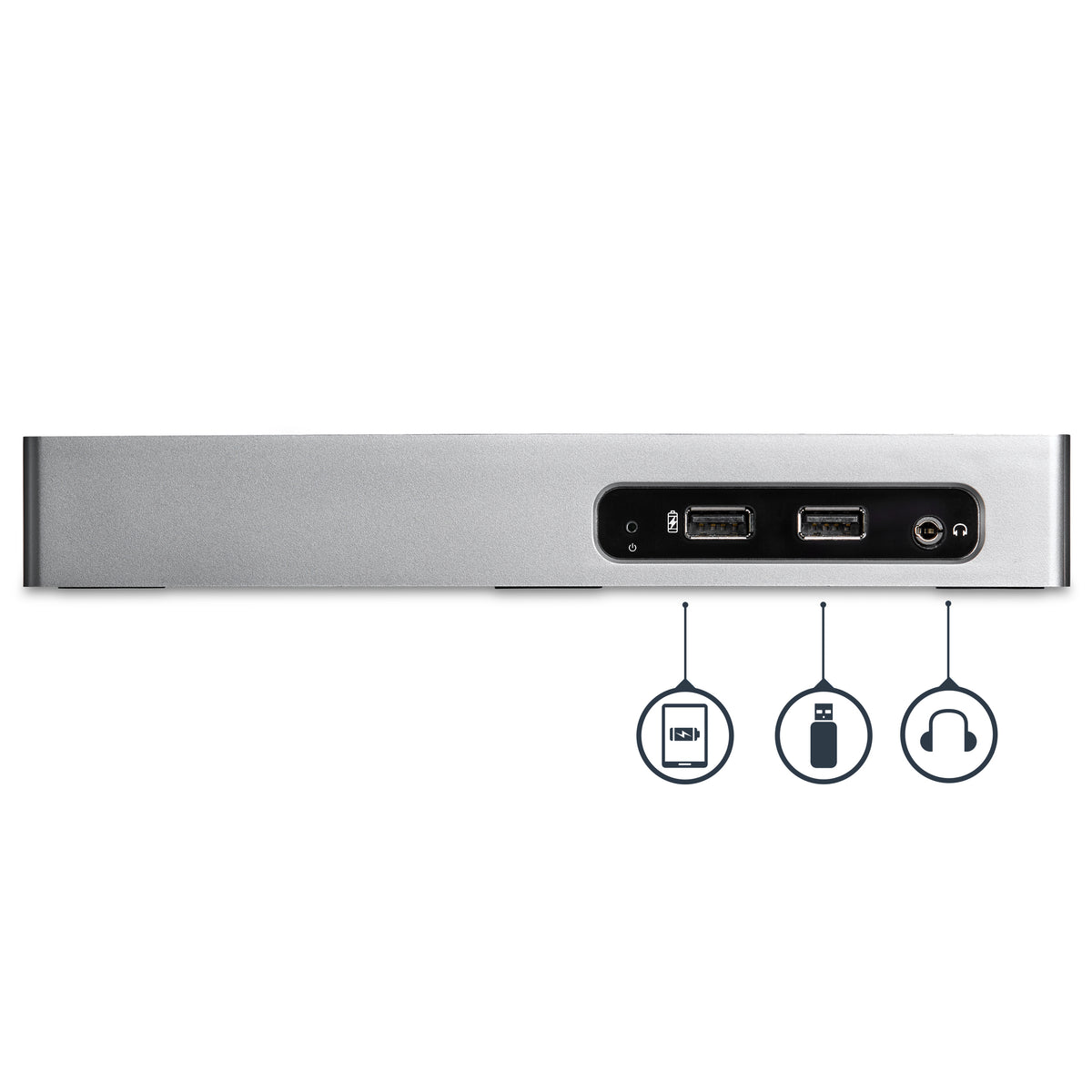

Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
This USB 3.0 docking station for Mac and Windows™ laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI®, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.
Enhance Productivity with Dual Video
The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
All the Connections You Need
Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Silver
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Card reader integrated: No
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Connectivity technology: Wired
- Ethernet LAN: Yes
- HDMI ports quantity: 1
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
- Ethernet LAN (RJ-45) ports: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 10 - 90%
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
- Products per master (outer) case: 10 pc(s)
- Maximum digital resolution: 2048 x 1152 pixels
- Master (outer) case height: 29.5 cm
- Master (outer) case length: 32.5 cm
- Master (outer) case width: 31.5 cm
- Chipset: DisplayLink - DL-3900, VIA/VLI - VL813
- Compliance certificates: RoHS
- Housing material: Plastic
General
- Video/mp4
- https://www.youtube.com/embed/V1e8gfpHE8s|https://www.youtube.com/embed/0OUcYYrHpqs|https://www.youtube.com/watch?v=pzZ6ygna0tk
Logistics data
- Harmonized System (HS) code
- 84733020
Network
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Wake-on-LAN ready
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 70 °C
Other features
- Cable length
- 1 m
Packaging content
- AC adapter included
- Yes
- Cables included
- USB
- Quick start guide
- Yes
Packaging data
- Package depth
- 30.7 cm
- Package height
- 6 cm
- Package weight
- 0.8 kg
- Package width
- 14 cm
Performance
- Brand compatibility
- Any brand
- Certification
- CE, FCC, DisplayLink, REACH
- Data transfer rate
- 5 Gbit/s
- LED indicators
- Power
- Number of displays supported
- 2
- On/off switch
- Yes
- UASP support
- Yes

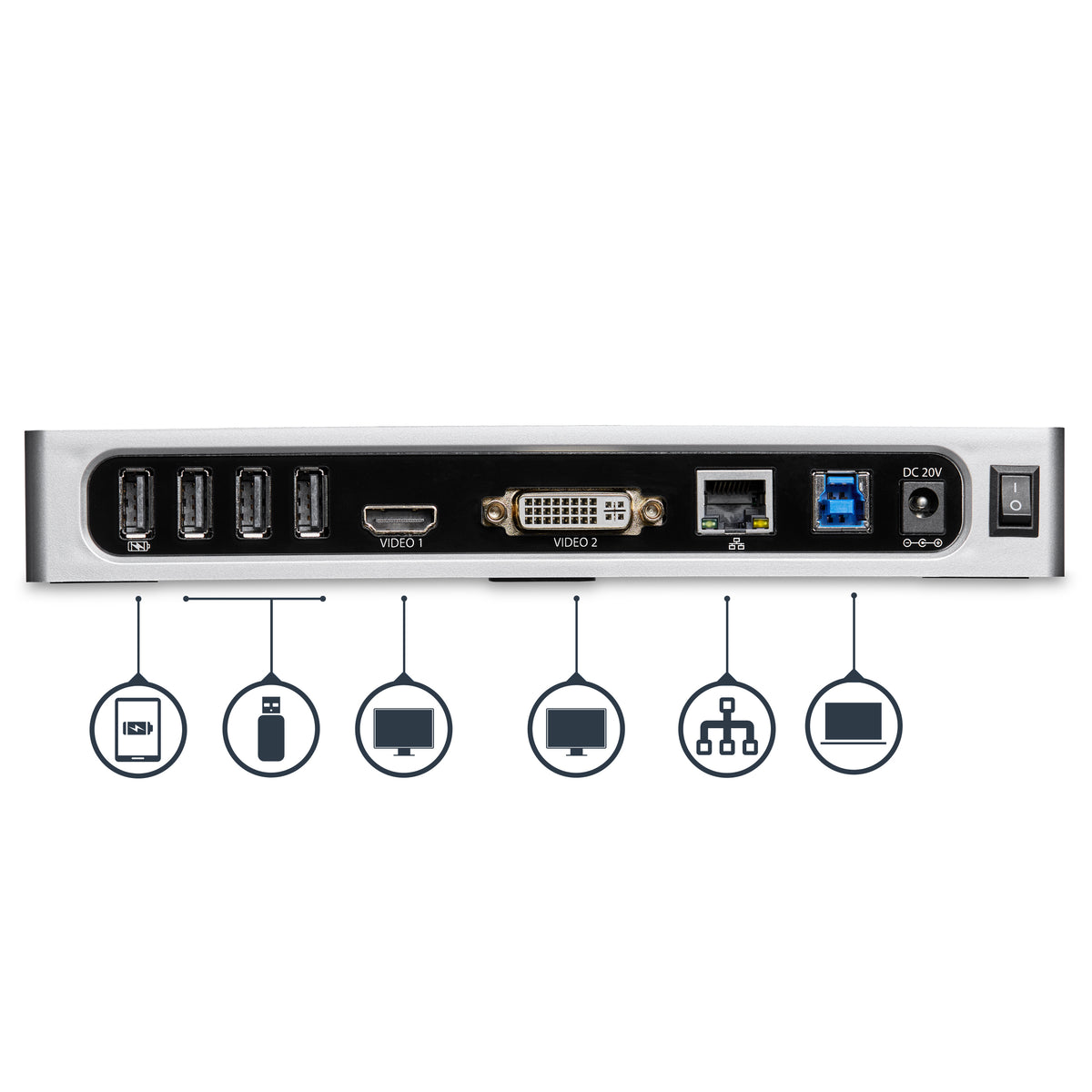

Ports & interfaces
- Combo headphone/mic port
- Yes
- DC-in jack
- Yes
- DVI-I ports quantity
- 1
- Headphone connectivity
- 3.5 mm
- Headphone outputs
- 1
Power
- AC input voltage
- 100 - 240 V
- Compatible power plug types
- AU, EU, JP, UK, US
- Input current
- 1 A
- Output current
- 2 A
- Output voltage
- 20 V
- Power consumption (typical)
- 40 W
- Power plug type
- Type N
- Power source type
- AC

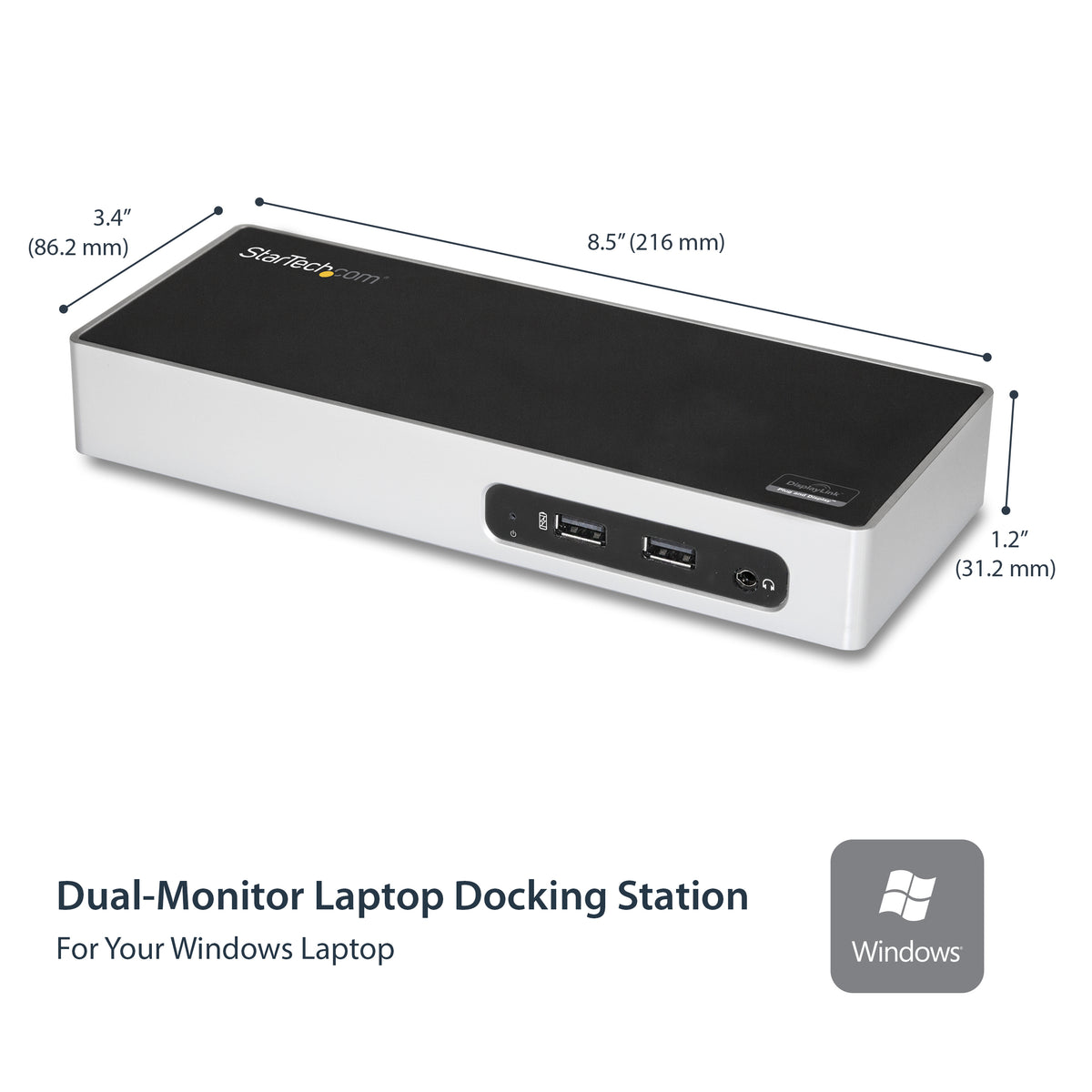

Weight & dimensions
- Depth
- 21.6 cm
- Height
- 3.1 cm
- Weight
- 0.29 kg
- Width
- 8.62 cm
AC adapter included
Cables included: USB
Quick start guide
Cables included: USB
Quick start guide
Materials
Housing material: Plastic
