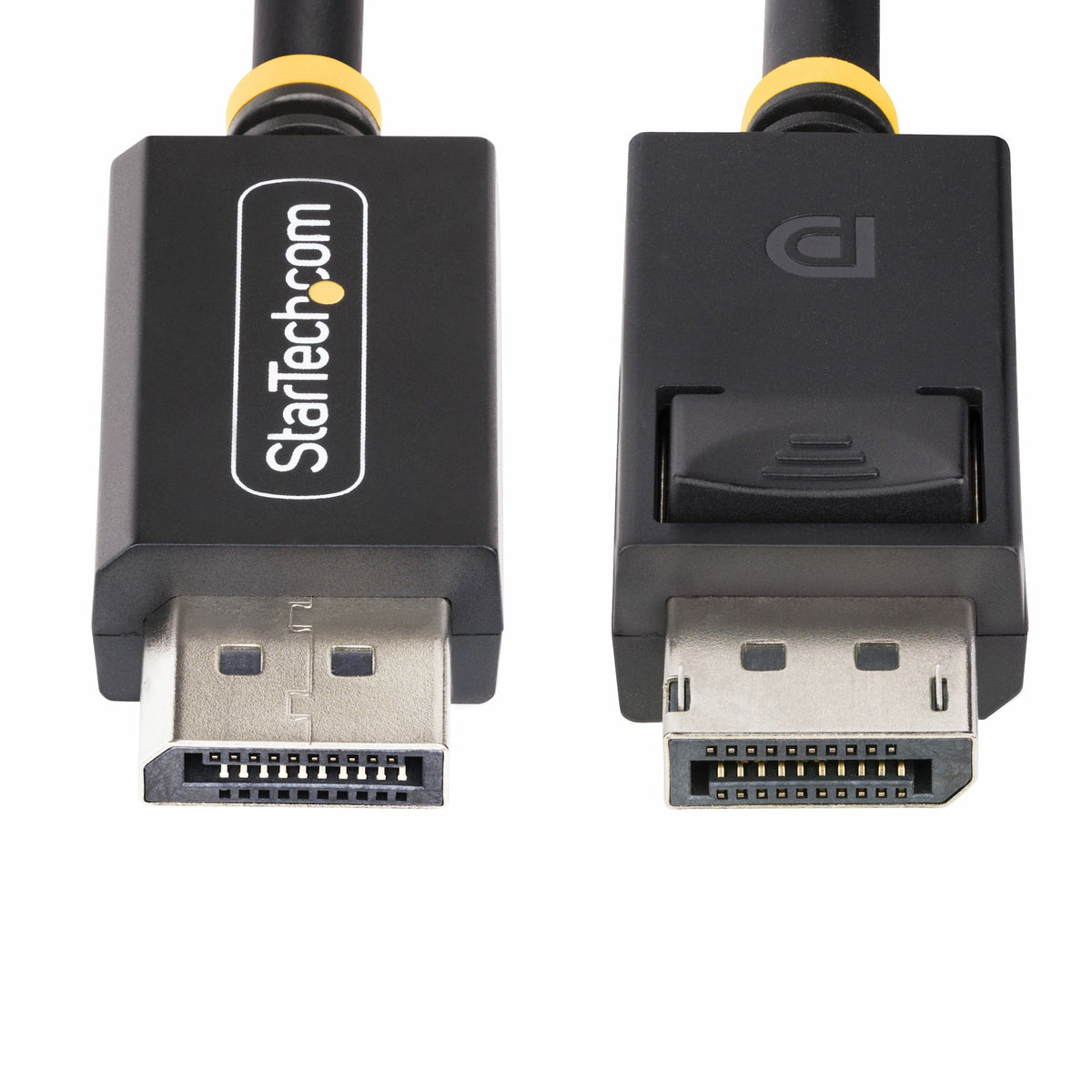

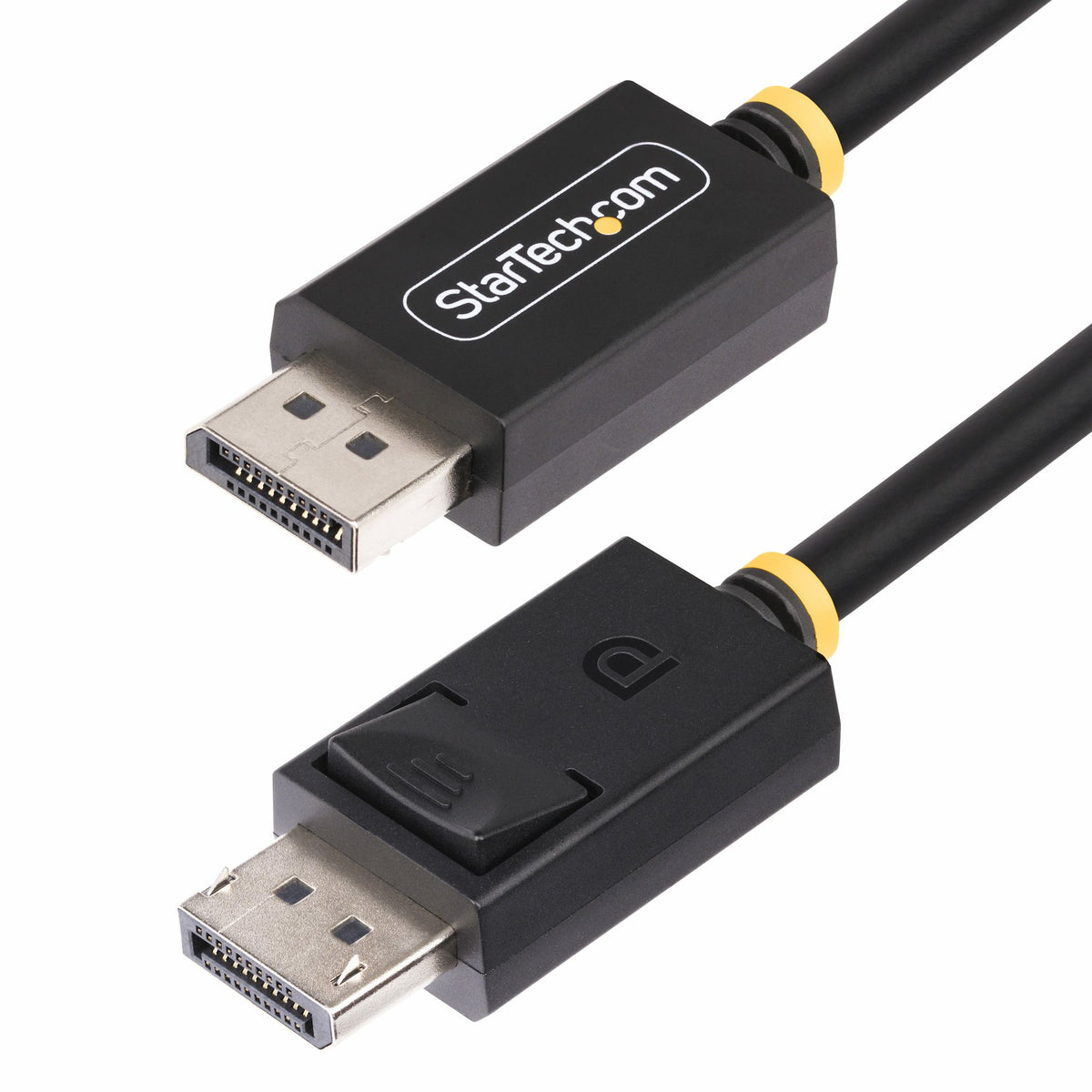

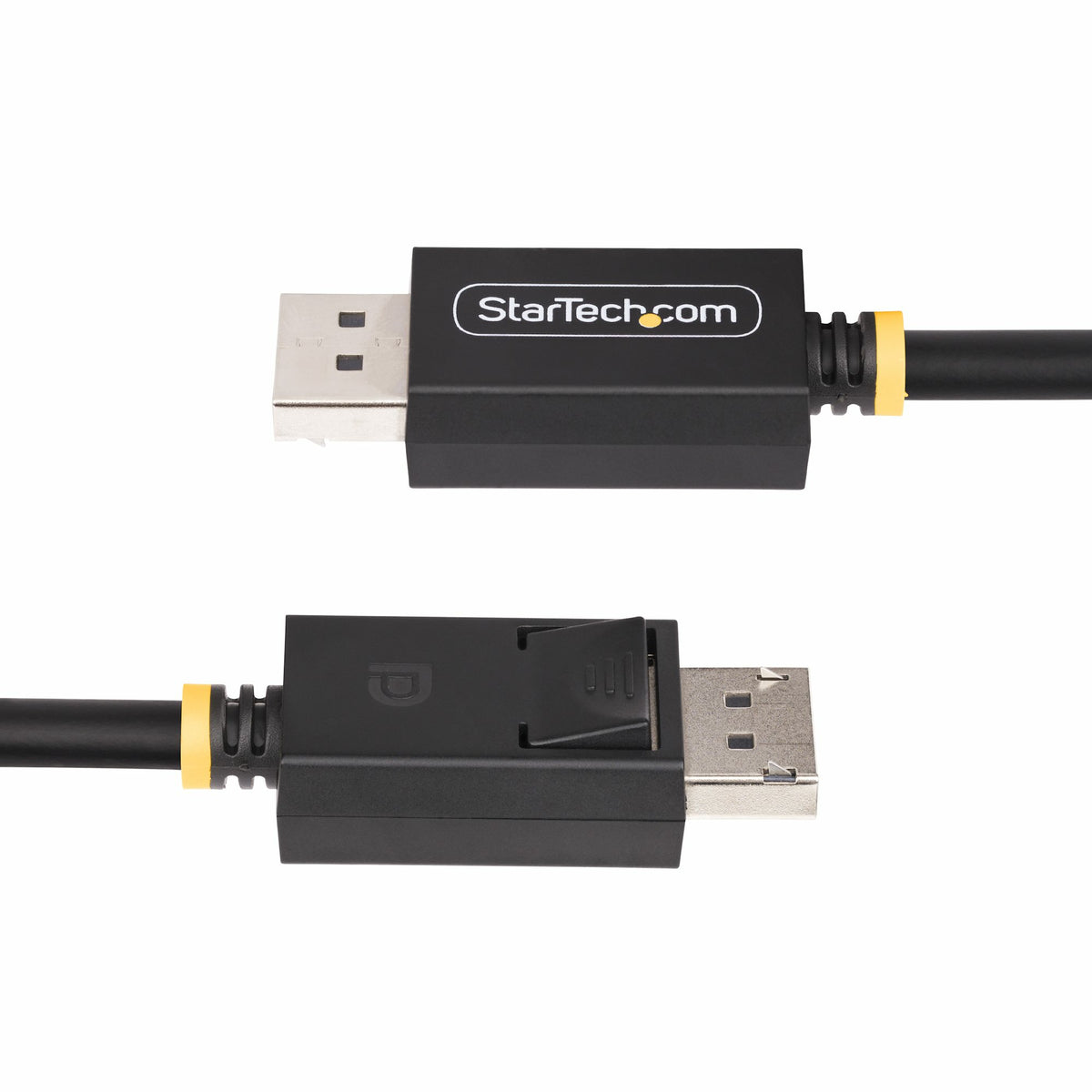

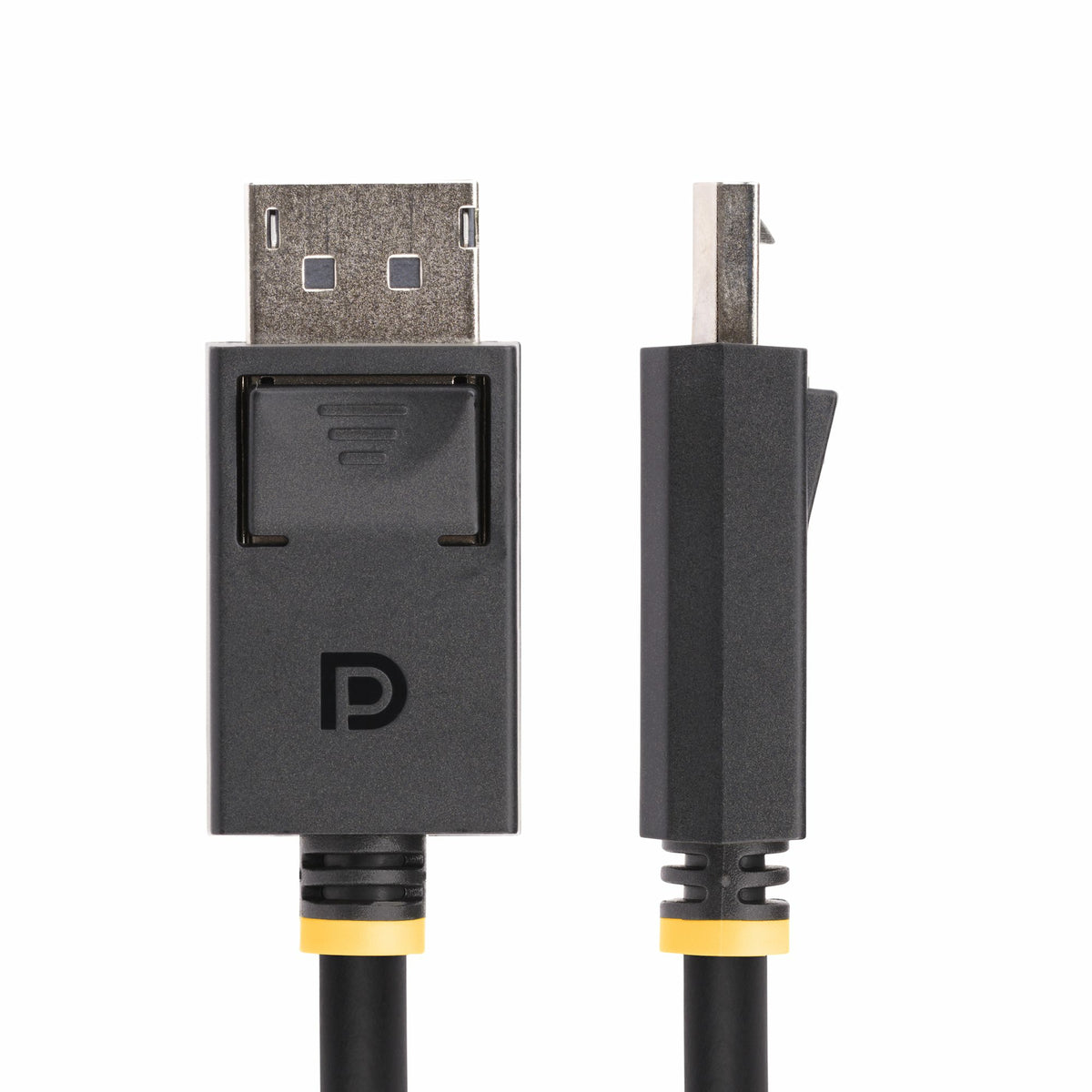

StarTech.com 6ft (1.8m) DisplayPort 2.1 Cable, VESA Certified DP40 DisplayPort Cable w/UHBR10/HDR/HDCP 2.2, 8K 60Hz/4K 144Hz w/DSC 1.2a, 40Gbps, DP 2.1 Cable, UHD Monitor Cord, M/M
Regular price
$66.29
Sale price
Regular price
Tax included.
Available in stock (27)
Facilitate higher refresh rates and 8K 60Hz video on UHBR10-enabled DisplayPort devices

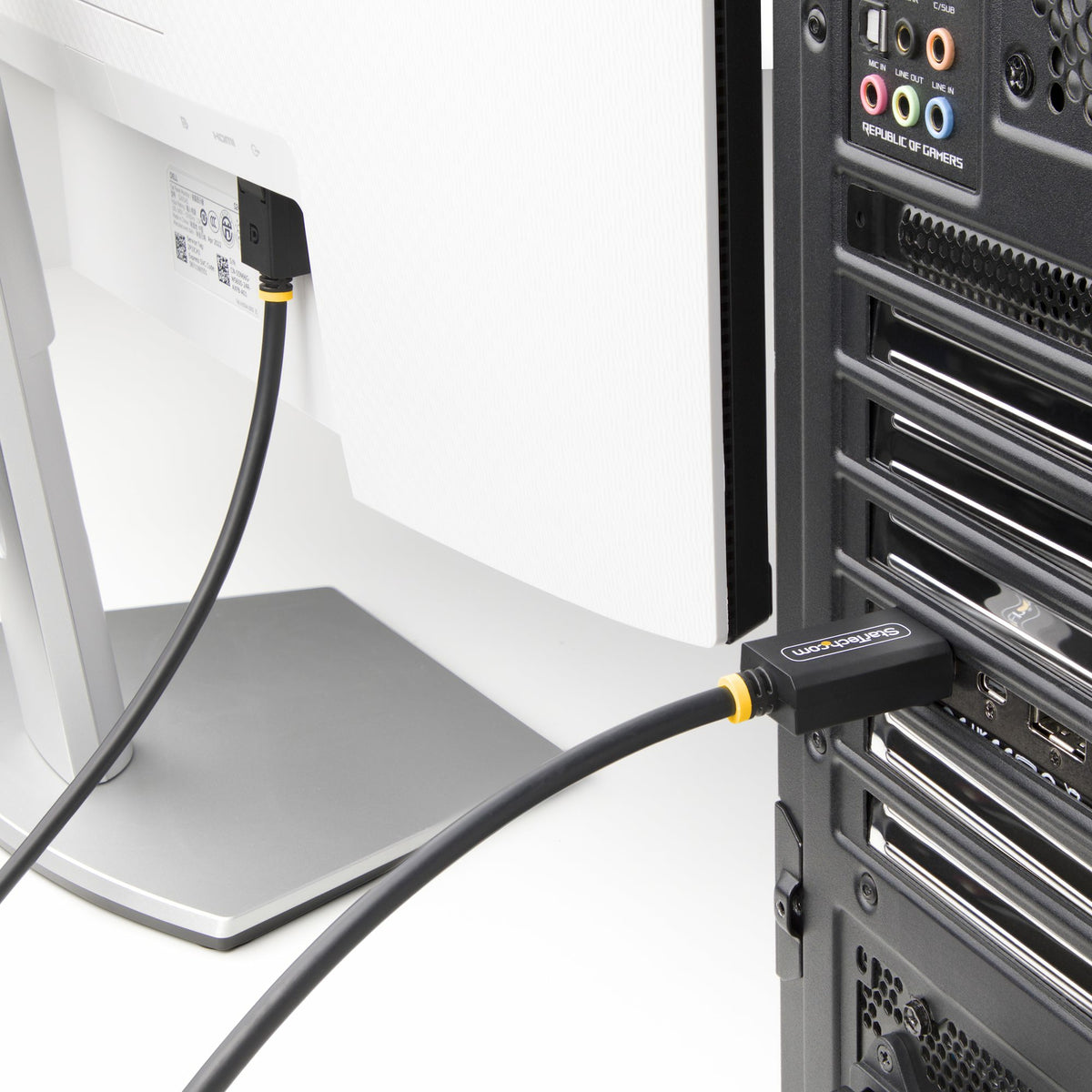

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:
• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:
• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Connector 1 gender: Male
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 2 gender: Male
- Maximum resolution: 7680 x 4320 pixels
- Connector contacts plating: Nickel
- AWG wire size: 30
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- DisplayPort version: 2.1
- Master (outer) case height: 22.3 cm
- Master (outer) case length: 33 cm
- Master (outer) case width: 51.5 cm
- Products per master (outer) case: 50 pc(s)
- Maximum refresh rate: 240Hz
- Cable shielding: Aluminum mylar foil
- Jacket material: Thermoplastic elastomer (TPE)
- Compliance certificates: RoHS
- Multi-Stream Transport (MST): Yes
Features
- Cable length
- 1.8 m
- Cable material
- Copper
- Channels quantity
- 32 channels
- Data transfer rate
- 40 Gbit/s
- Display Stream Compression (DSC)
- Yes
- Display Stream Compression (DSC) version
- 1.2
- Fire-resistance rating
- VW-1
- HDCP
- Yes
- HDCP version
- 2.2
- High Dynamic Range (HDR) supported
- Yes
- Latching connectors
- Yes
General
- Video/mp4
- https://www.youtube.com/watch?v=U1i1GcHzKyk
Operational conditions
- Operating relative humidity (H-H)
- 10 - 85%
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -20 - 70 °C
Packaging data
- Package depth
- 16.9 cm
- Package height
- 2.5 cm
- Package weight
- 0.12 kg
- Package width
- 19.8 cm
Sustainability
- Doesn't contain
- Halogen
- Sustainability compliance
- Yes
Weight & dimensions
- Cable diameter
- 6.5 mm
- Weight
- 0.1 kg
Materials
Cable material: Copper Jacket material: Thermoplastic elastomer (TPE)
