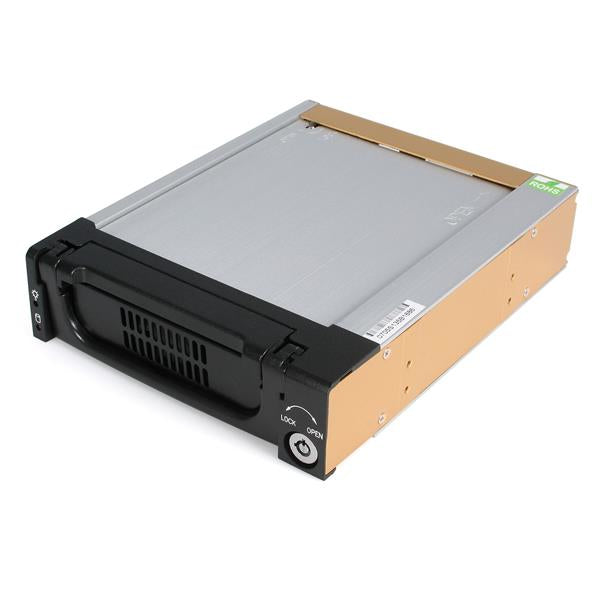

StarTech.com Black Aluminum 5.25in Rugged SATA Hard Drive Mobile Rack Drawer
Regular price
$108.88
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 5 items left in stock.
Turns any 3.5in SATA hard drive into a rugged, hot-swap storage solution for a 5.25in bay
This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.
This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.
This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.
This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Harmonized System (HS) code: 84733080
- Master (outer) case height: 26.7 cm
- Master (outer) case length: 33.2 cm
- Master (outer) case width: 42.6 cm
- Products per master (outer) case: 20 pc(s)
- Material: Aluminium
- Size (imperial): 13.3 cm (5.25")
- Type: Carrier panel
- Compliance certificates: RoHS
- HDD size: 3.5"
- Number of HDDs supported: 1
- Certification: CE, REACH
- Screws included: Yes
- HDD interface: Serial ATA, Serial ATA II, Serial ATA III
- Cables included: SATA
- LED indicators: Activity, Power
- Key lock: Yes
- Number of fans: 1 fan(s)
- Number of lock keys included: 2 pc(s)
Features
- Data transfer rate
- 6 Gbit/s
- Fan diameter
- 4 cm
- Number of cycles
- 25000
Packaging content
- Dust cover included
- Yes
Packaging data
- Package depth
- 15.1 cm
- Package height
- 4.8 cm
- Package weight
- 0.83 kg
- Package width
- 19.5 cm
Weight & dimensions
- Depth
- 19 cm
- Height
- 4.1 cm
- Weight
- 0.78 kg
- Width
- 14.7 cm
Cables included: SATA
Dust cover included
Number of lock keys included: 2 pc(s)
Screws included
Dust cover included
Number of lock keys included: 2 pc(s)
Screws included
Materials
Material: Aluminium
