StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Hurry up, only 2 items left in stock.
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

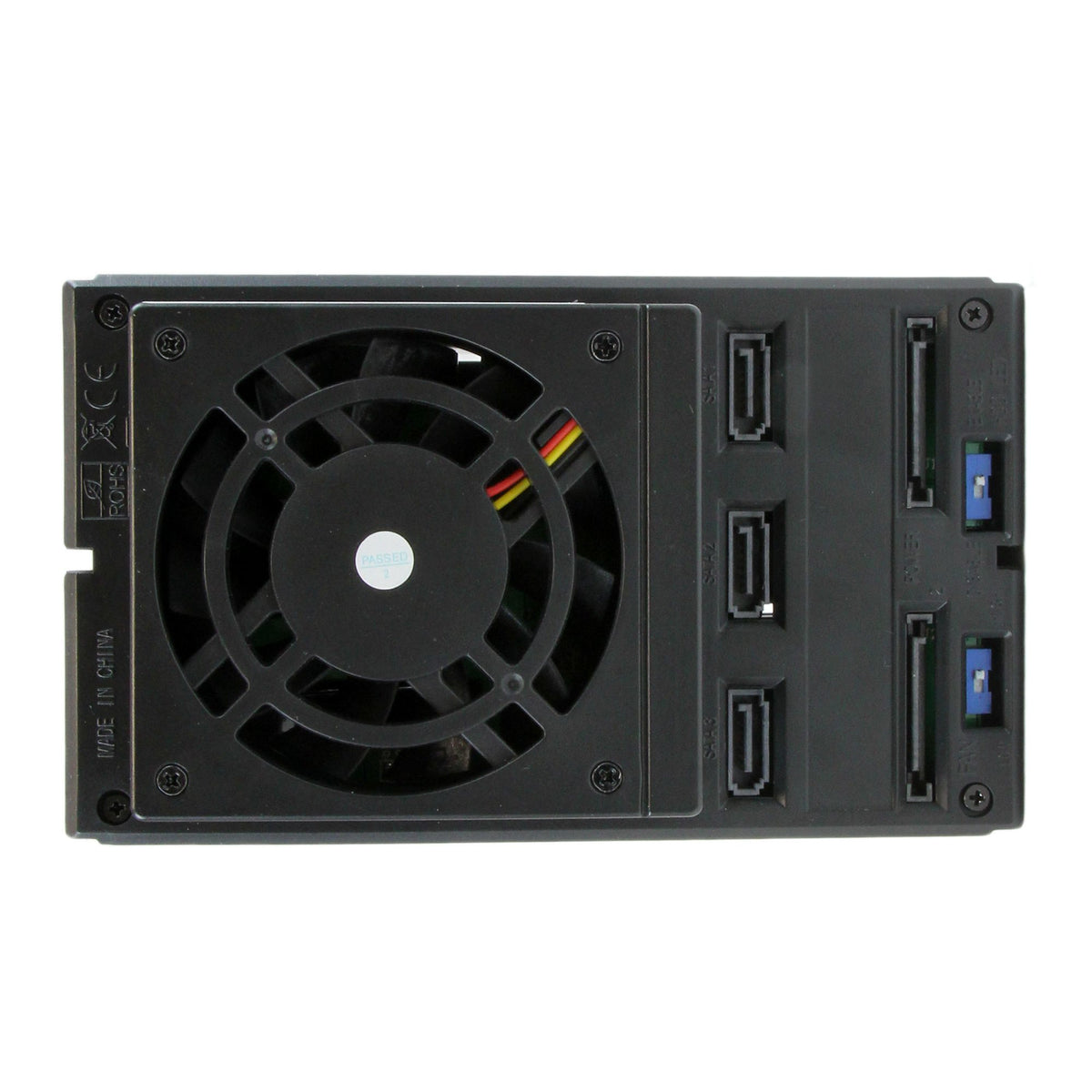

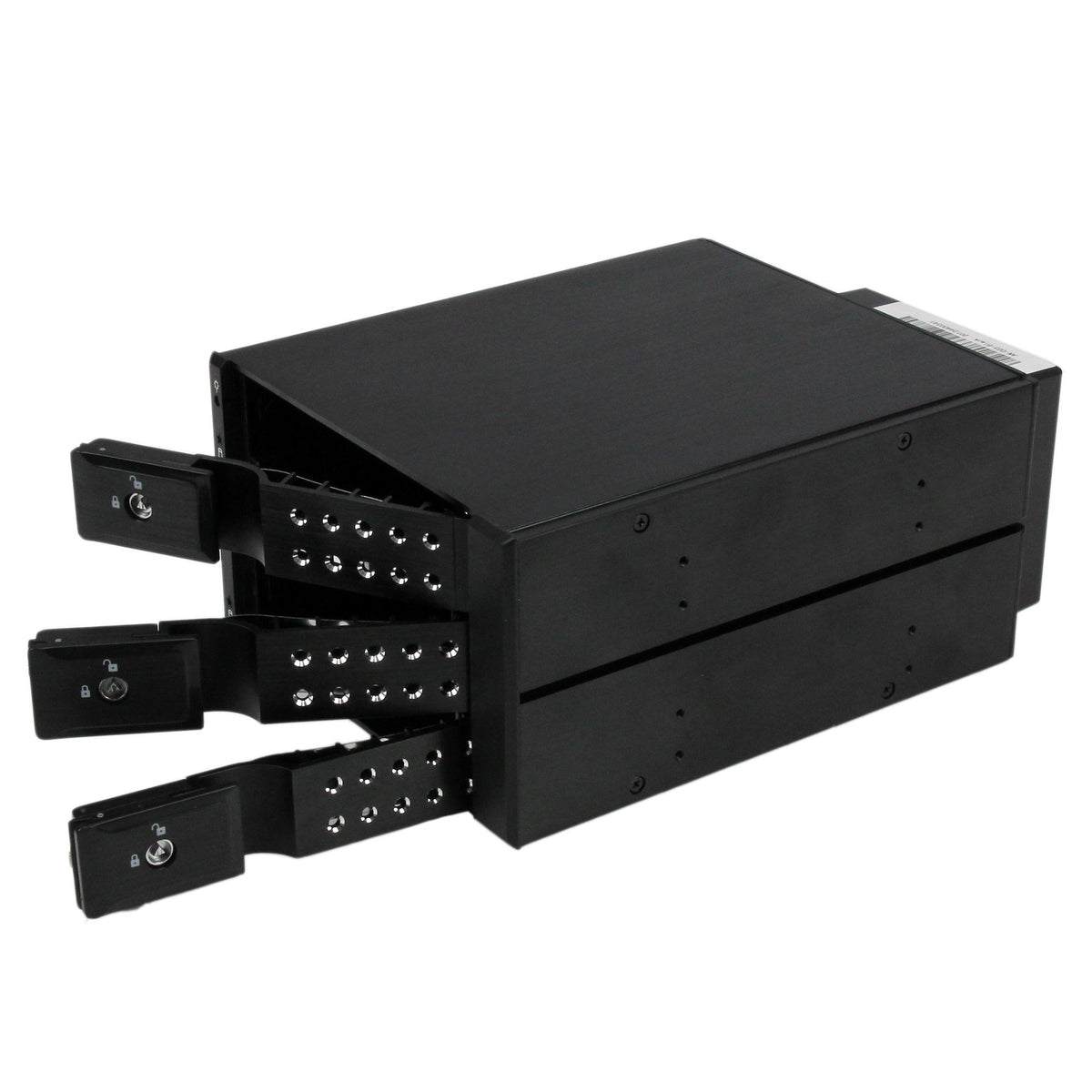

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- LED indicators: Activity, Power
- Storage drive size: 3.5"
- Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
- SATA power connector type: SATA 15-pin
- SATA host port: Yes
- Products per master (outer) case: 8 pc(s)
- Operating relative humidity (H-H): 5 - 85%
- Number of SATA power connectors: 2
- Number of fans: 1 fan(s)
- Master (outer) case width: 54.1 cm
- Master (outer) case length: 39.1 cm
- Master (outer) case height: 28.7 cm
- Installed storage drive type: No
- Internal: No
- Hot-swap drive bays: Yes
- Host ports: 3
- Harmonized System (HS) code: 84717020
- Compliance certificates: RoHS
- Cables included: SATA
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package depth
- 18.4 cm
- Package height
- 12.6 cm
- Package weight
- 1.2 kg
- Package width
- 25.3 cm
Performance
- Backplanes support
- Yes
Storage
- Data transfer rate
- 6 Gbit/s
- Maximum supported storage capacity
- 12TB
- Number of storage drives supported
- 3
- Storage drives installed
- No
- Supported storage drive types
- HDD
- Total installed storage capacity
- 0TB
Weight & dimensions
- Depth
- 19.41 cm
- Height
- 11 cm
- Weight
- 1.2 kg
- Width
- 14.5 cm
