StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection - TAA
Regular price
$915.02
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.
Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection
Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols

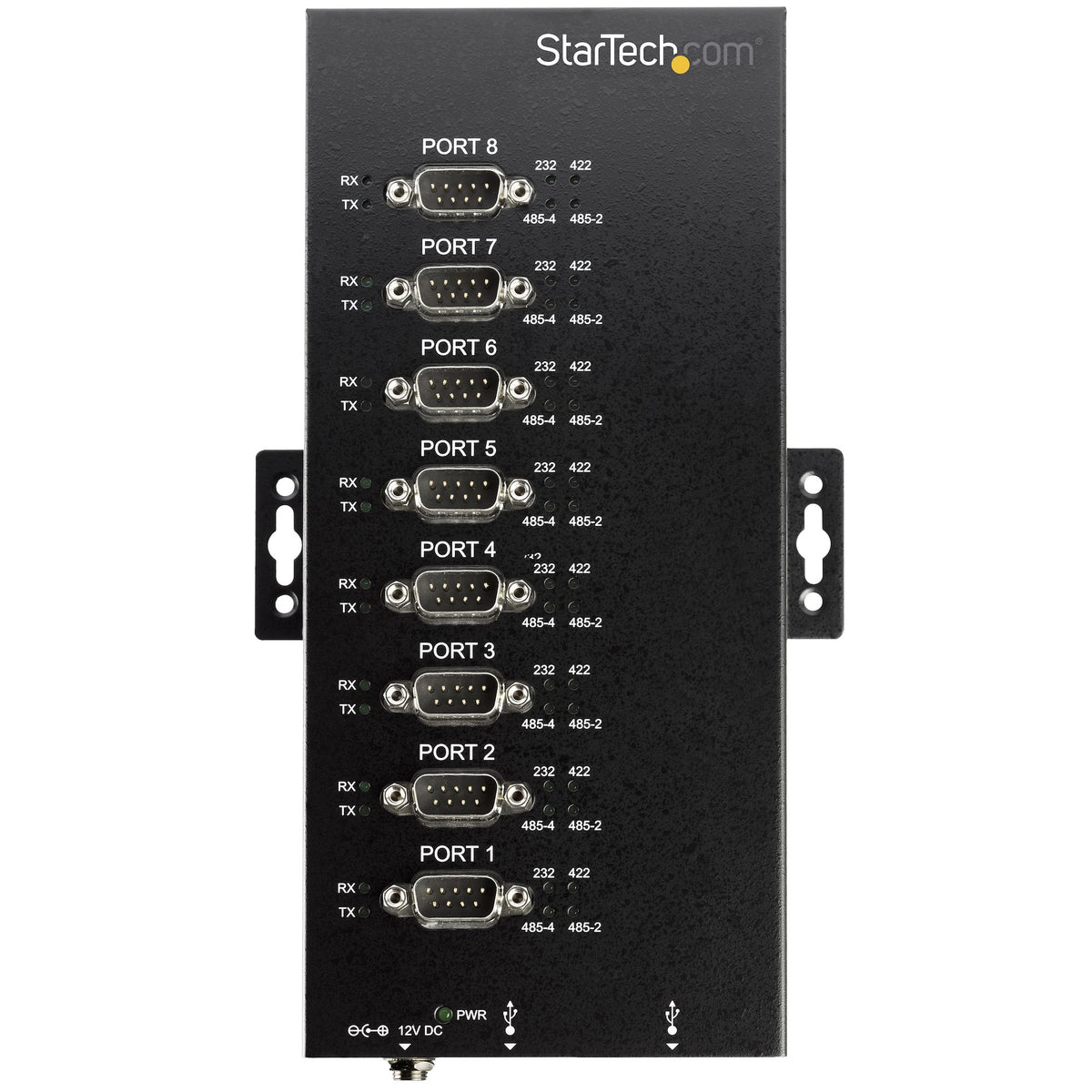

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

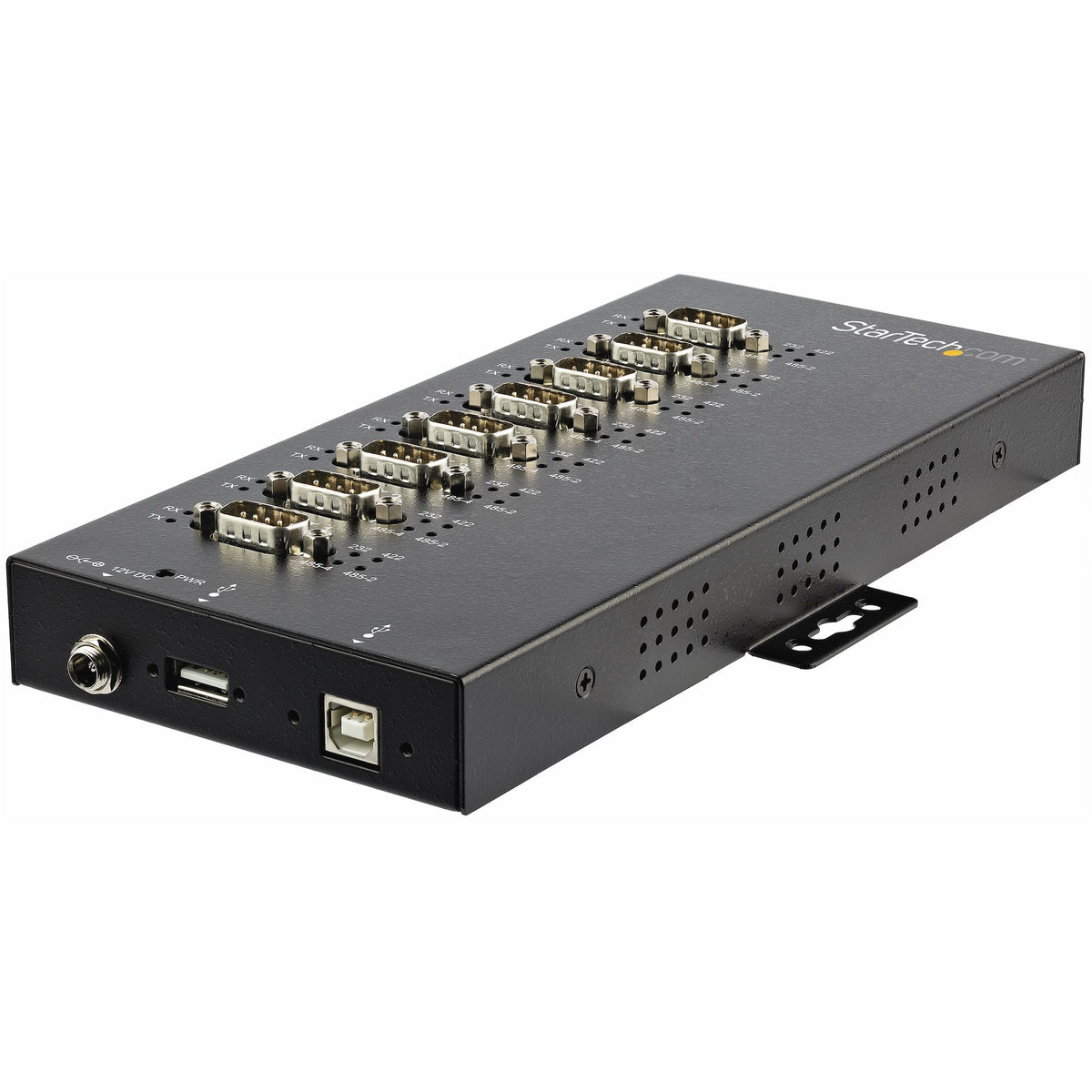

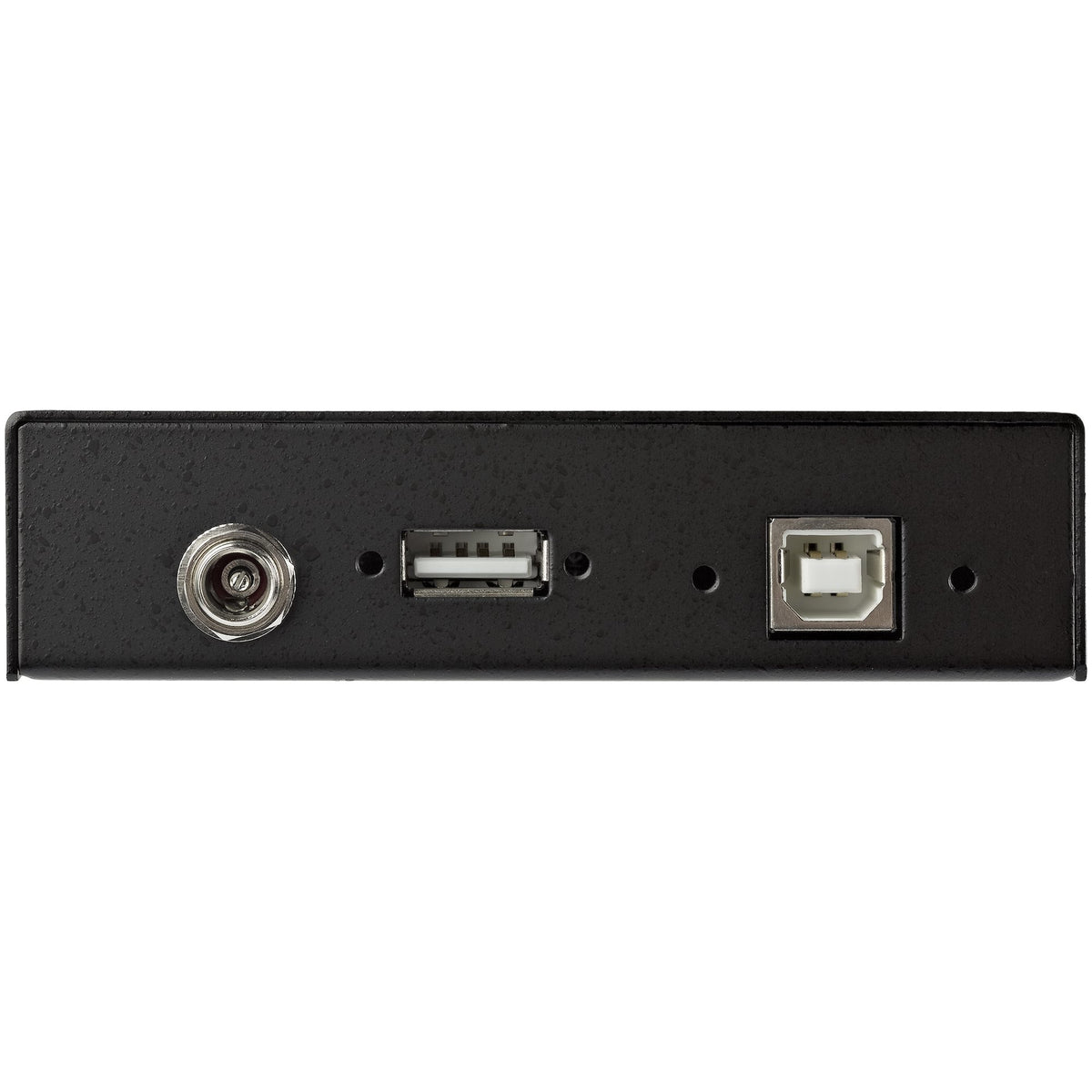

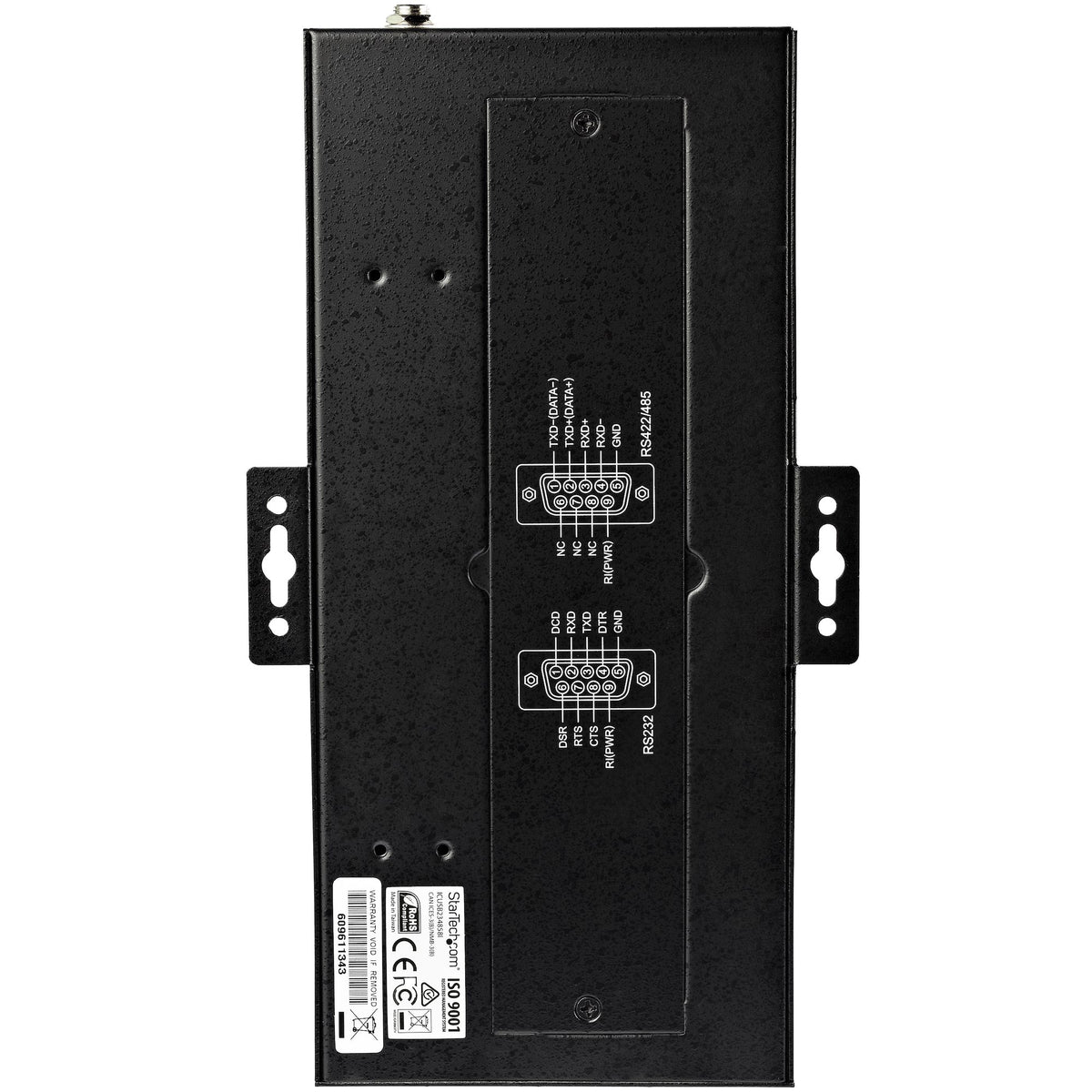

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols
The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.
The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Host interface: USB 2.0
- Ports quantity: 8
- Hub interfaces: Serial
- Operating temperature (T-T): 0 - 55 °C
- Products per master (outer) case: 14 pc(s)
- Operating relative humidity (H-H): 5 - 95%
- Master (outer) case height: 32.2 cm
- Master (outer) case length: 51.4 cm
- Master (outer) case width: 39.8 cm
- Housing material: Steel
- DC-in jack: Yes
- Chipset: FTDI - FT4232H, Genesys Logic - GL825
- Harmonized System (HS) code: 84719000
- Card reader integrated: No
- LED indicators: Power
- Cables included: USB
- Compliance certificates: CE, RoHS
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Features
- Surge protection
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 85 °C

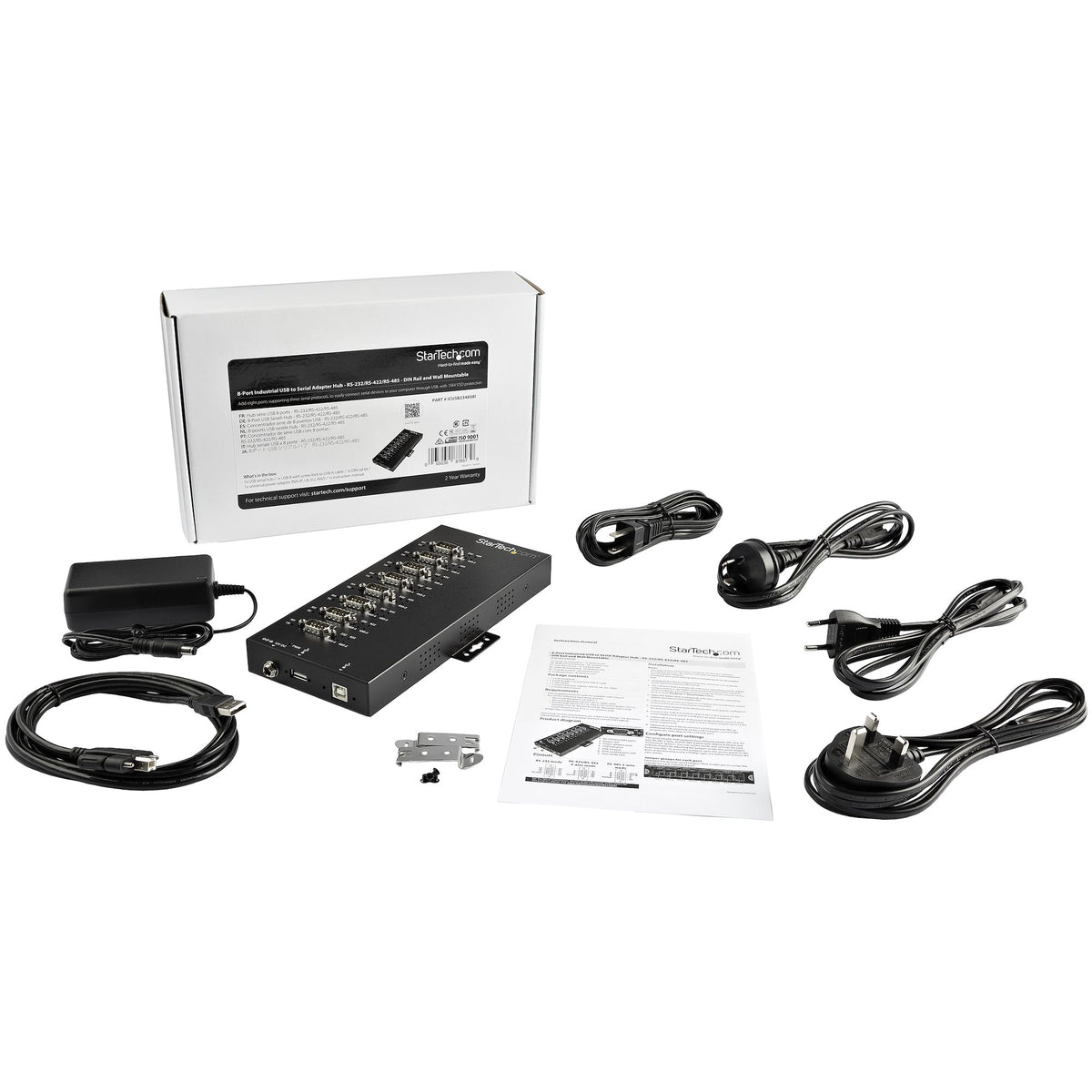

Packaging content
- AC adapter included
- Yes
- DIN rail kit included
- Yes
- Included power plug types
- ANZ, EU, UK, US
Packaging data
- Package depth
- 29.4 cm
- Package height
- 7 cm
- Package weight
- 1.6 kg
- Package width
- 19.5 cm
Performance
- Baud rate
- 921.6 Kbit/s
- Data bits
- 7, 8
- Parity bit
- Even, Mark, No, Odd, Space
- Stop bits
- 1, 2
Ports & interfaces
- RS-232 ports
- 8
- USB 2.0 ports quantity
- 2
Power
- Input current
- 1 A
- Input voltage
- 100 - 240 V
- Output current
- 3 A
- Output voltage
- 12 V
- Power consumption (typical)
- 36 W
- Power plug type
- Type M
- Power source type
- AC
Sustainability
- Sustainability compliance
- Yes
System requirements
- Linux operating systems supported
- Yes
- Server operating systems supported
- Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
- Depth
- 21.9 cm
- Height
- 2.5 cm
- Weight
- 0.69 kg
- Width
- 12.8 cm
AC adapter included
Cables included: USB
DIN rail kit included
Included power plug types: ANZ, EU, UK, US
Cables included: USB
DIN rail kit included
Included power plug types: ANZ, EU, UK, US
Materials
Housing material: Steel
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port. Supports multiple serial protocols The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485. Ideal for harsh environments With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage. The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections. Fast data transfers The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes. The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support. |

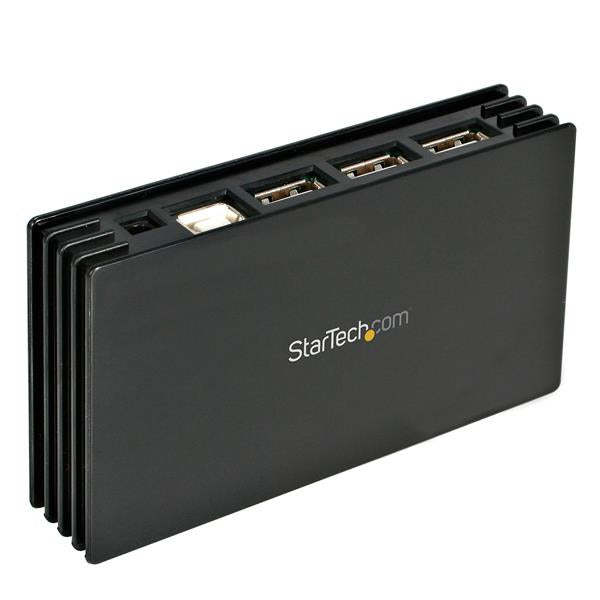

Turn a single USB 2.0 port into 7 external USB 2.0 ports This TAA compliant 7 Port USB 2.0 Hub connects to one USB 2.0 port on a Mac or PC computer, adding seven USB 2.0 ports - allowing you to maximize the number of high speed USB peripherals connected to your computer. The hub supports cascaded installation with other USB 2.0 hubs, supporting up to 127 USB 2.0 device connections - a scalable solution for connecting multiple USB devices to a single host computer. The 7 port hub includes a power adapter, but can be powered through USB bus connection to the host computer - allowing you to install the hub as needed without worrying about the availability of a power outlet. |

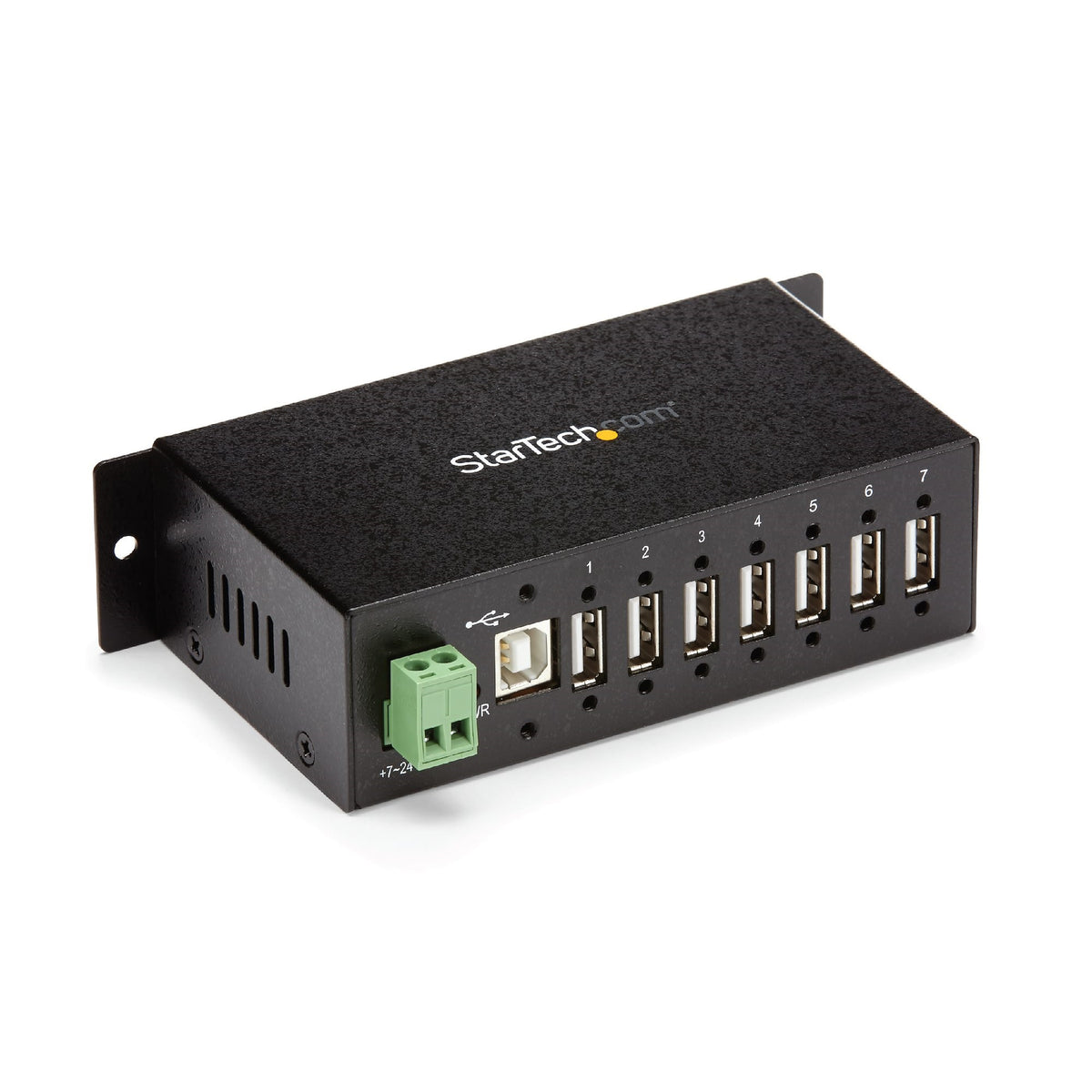

Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments. Perfect for Harsh Environments This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices. Connect More USB Devices Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals. Locate the Hub Where You Need It Most With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack. StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs. Works with Older USB Devices The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices. The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support. |

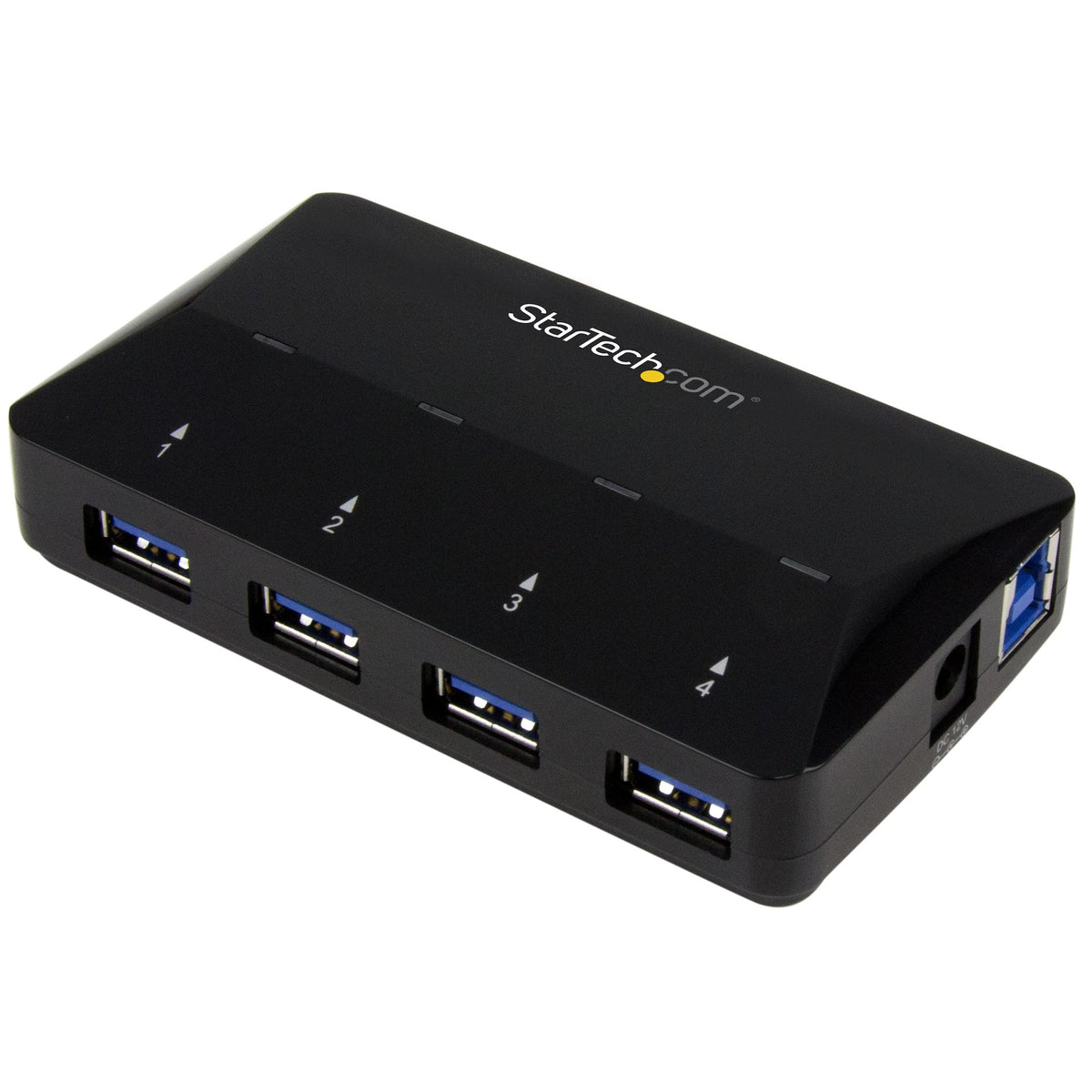

Add four USB 3.2 Gen 1 ports to your computer, plus fast-charge your mobile device Here’s a must-have accessory for any mobile device user. This compact USB 3.2 Gen 1 hub lets you connect an additional four USB devices to your computer, plus, you can easily fast-charge your mobile device using the hub’s dedicated charge port (DCP). Fast-charge your iPad, iPhone, and other mobile devices With a 2.4 amp dedicated charge port, the hub makes it fast and easy to charge your smartphone, tablet, and other USB-charged devices, including Android™, Apple, and Samsung™ devices. The charge and data ports work simultaneously, so you can conveniently fast-charge your mobile device while continuing to use your other USB 3.2 Gen 1 peripherals. The dedicated charge port stays on even if the host computer is turned off, in sleep mode, or disconnected entirely. Expand the connectivity of your computer Boost your system capabilities by adding four USB 3.2 Gen 1 ports, and enjoy fast data transfer speeds up to 5Gbps. The USB 3.2 Gen 1 (also known as USB 3.1 Gen 1, or USB 3.0) hub works with your high-bandwidth devices such as external hard drives, high-resolution webcams, flash drives, video cameras, and more. Designed for easy use The 4-port USB 3.2 Gen 1 hub features a small footprint that takes up little space on your desktop. And with ample space between each USB 3.2 Gen 1 port, it’s easy to plug and unplug the devices you use the most. Setup is easy, with no driver installation required, and, for added flexibility the hub is USB-powered or self-powered using the included power adapter. The ST53004U1C is backed by a StarTech.com 2-year warranty and free lifetime technical support. Note: The included power adapter is required to power the dedicated charge port. |

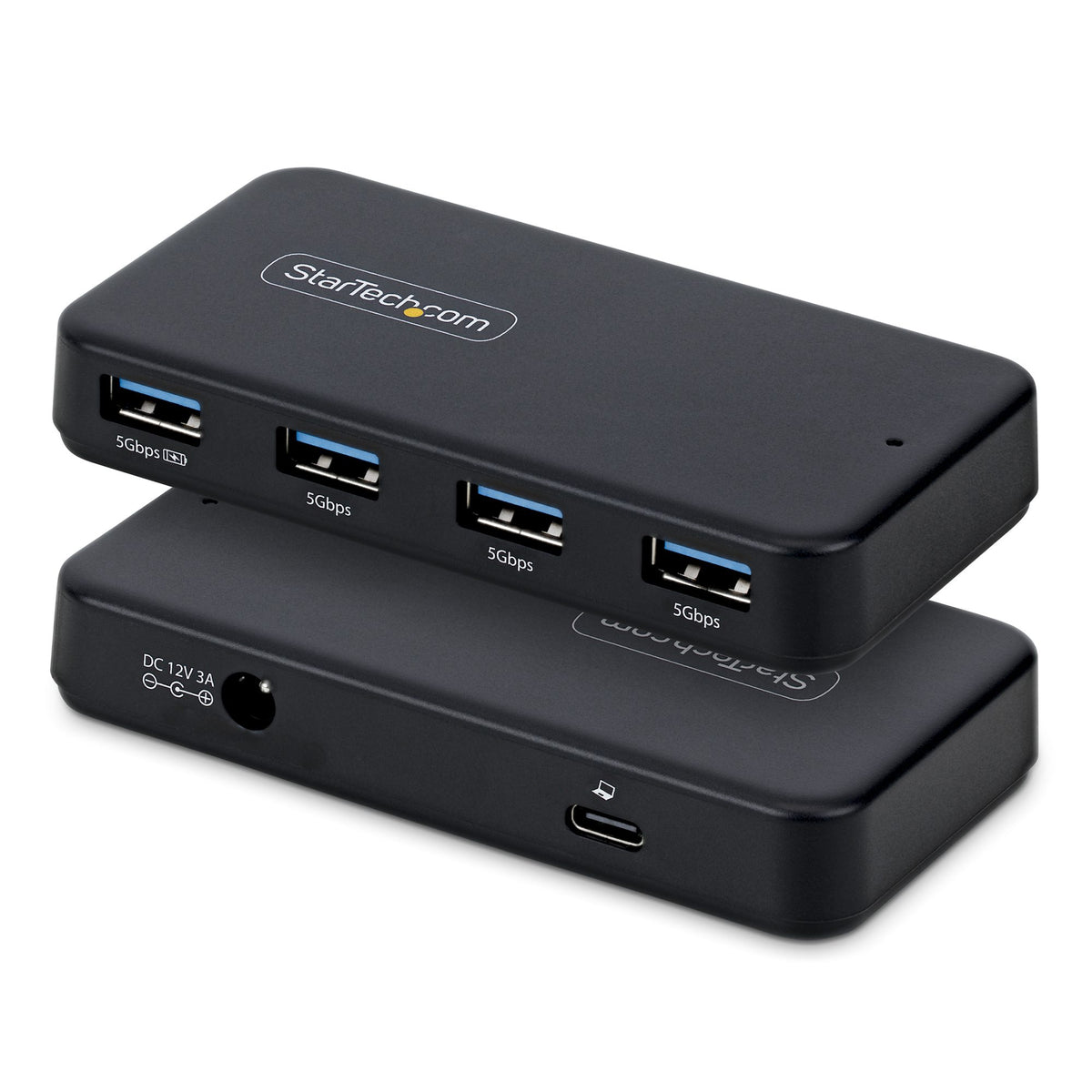

Add four 5Gbps USB-A ports (one with BC 1.2) to your laptop or PC using a single USB-C or USB-A connection This 4‑port SuperSpeed USB hub lets you instantly add four USB‑A 3.0 ports, including one BC 1.2 charging port, from a single USB connection-ideal for connecting keyboards, mice, flash drives, and external storage devices at the same time. Fast Charge, Even Without a Host The dedicated BC 1.2 fast‑charge port delivers up to 1.5A (7.5W) and supports CDP for data and charging or DCP for charging when the hub isn't connected to a computer. A 24W total power budget is shared across all ports for reliable device charging. Reliable, Self‑Powered Operation Powered by the included 24W external adapter, the self‑powered hub ensures stable performance even with multiple devices connected. Built‑in overcurrent and overvoltage protection helps reduce device dropouts and protects the host system, while support for Wake on USB and USB event monitoring enhances manageability. Easy Integration A removable 2‑in‑1 USB‑C/USB‑A host cable provides flexible connectivity with modern and legacy systems. Sustainable Design The hub features a 70% post‑consumer recycled (PCR) plastic enclosure and a 35% PCR TPE jacket, helping reduce environmental impact and support ESG requirements. |
