StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension
Available in stock (31)

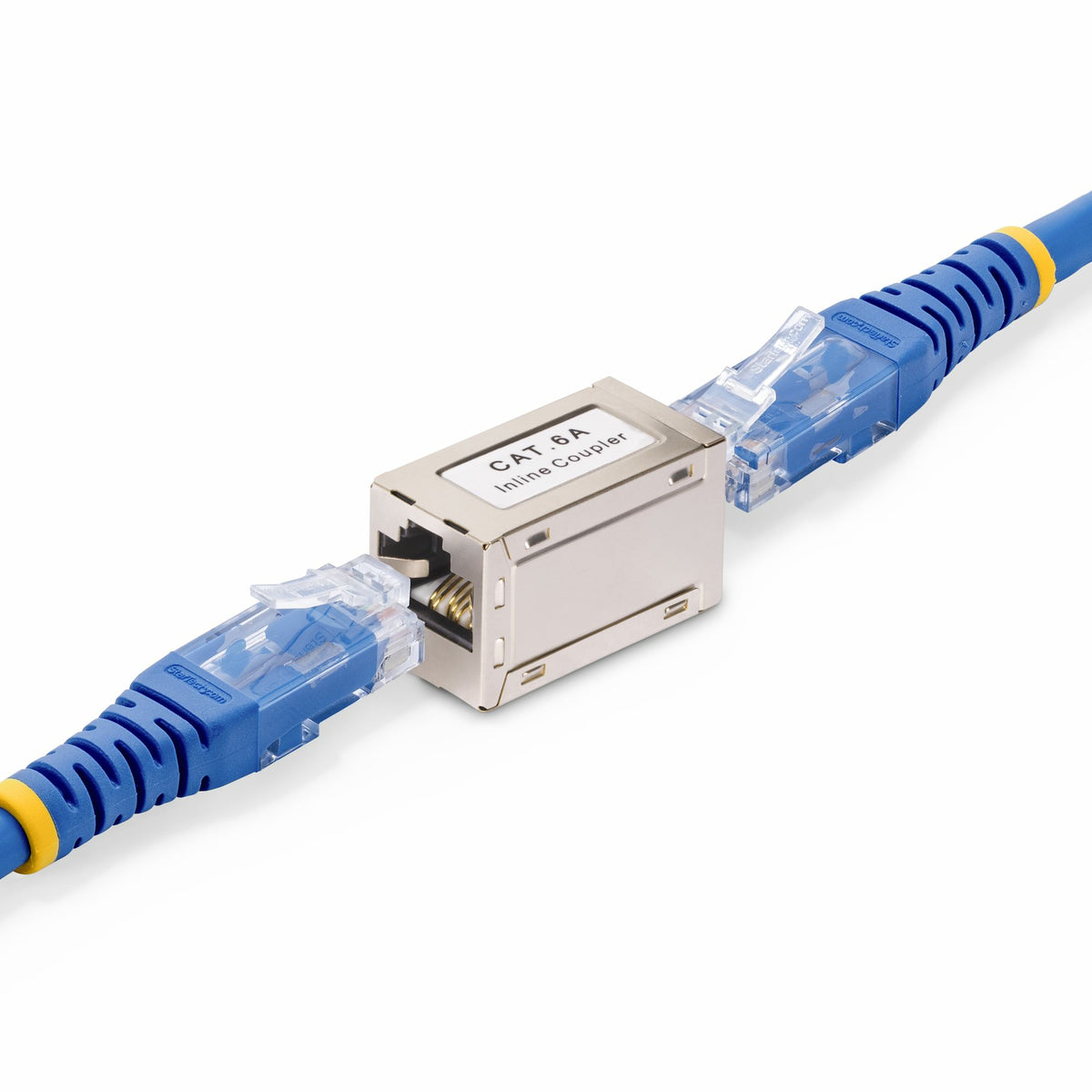

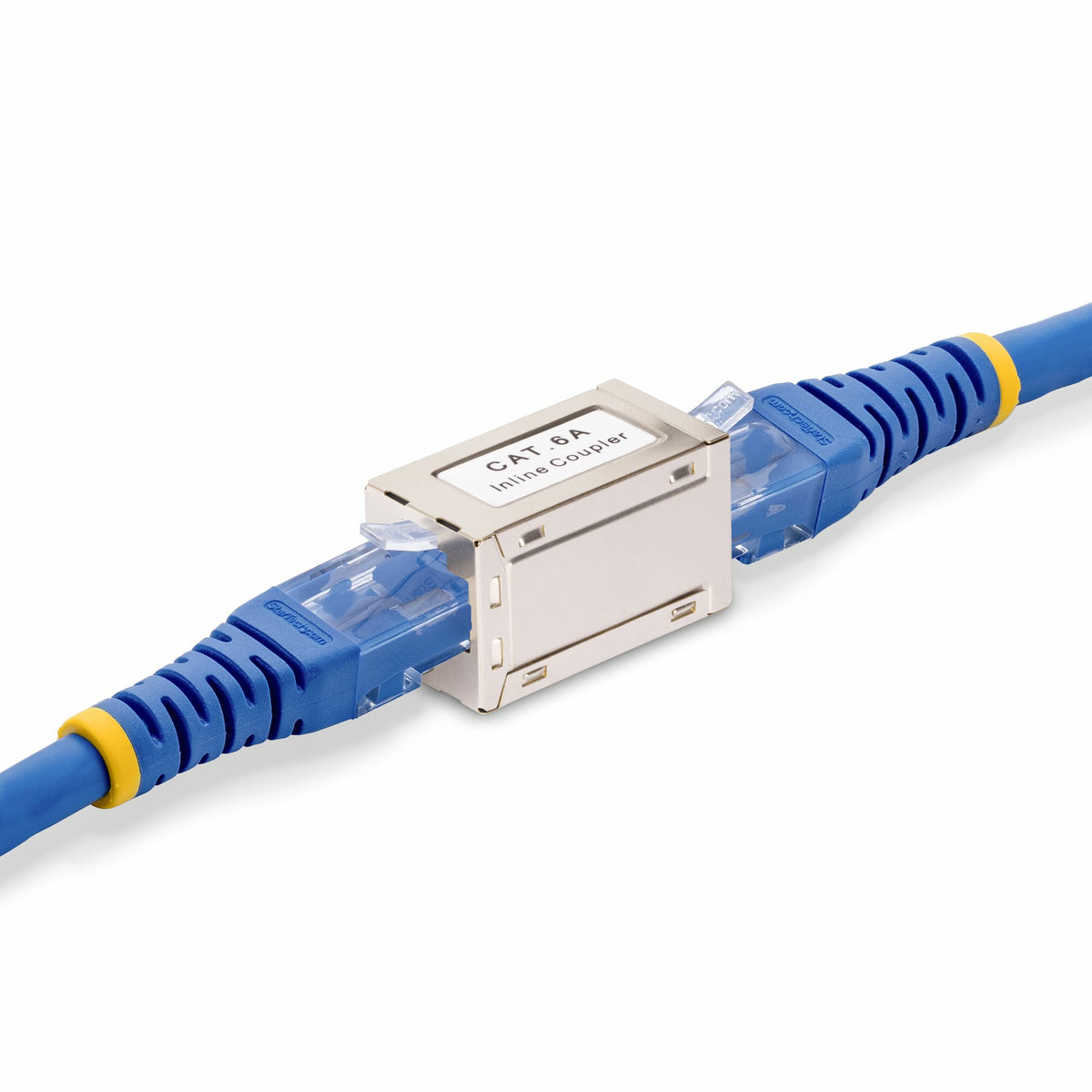

Connect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.
Durable Construction
The Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Female
- Connector 2 gender: Female
- Master (outer) case height: 27 cm
- Master (outer) case length: 52 cm
- Master (outer) case width: 35.5 cm
- Products per master (outer) case: 500 pc(s)
- Compliance certificates: CE
- Operating temperature (T-T): -20 - 65 °C
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Relative humidity: 30 - 70%
- Certification: TIA/EIA-T568B
- Connector contacts plating: Gold
- Housing material: Acrylonitrile butadiene styrene (ABS), Metal
- Sustainability compliance: Yes
- Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Operational conditions
- Storage temperature (T-T)
- -25 - 75 °C
Packaging data
- Package depth
- 5.7 cm
- Package height
- 2.6 cm
- Package weight
- 0.01 kg
- Package width
- 9 cm
Technical details
- Data transfer rate
- 10 Gbit/s
Weight & dimensions
- Depth
- 3.1 cm
- Height
- 2 cm
- Width
- 1.6 cm
Materials
Housing material: Acrylonitrile butadiene styrene (ABS), Metal
