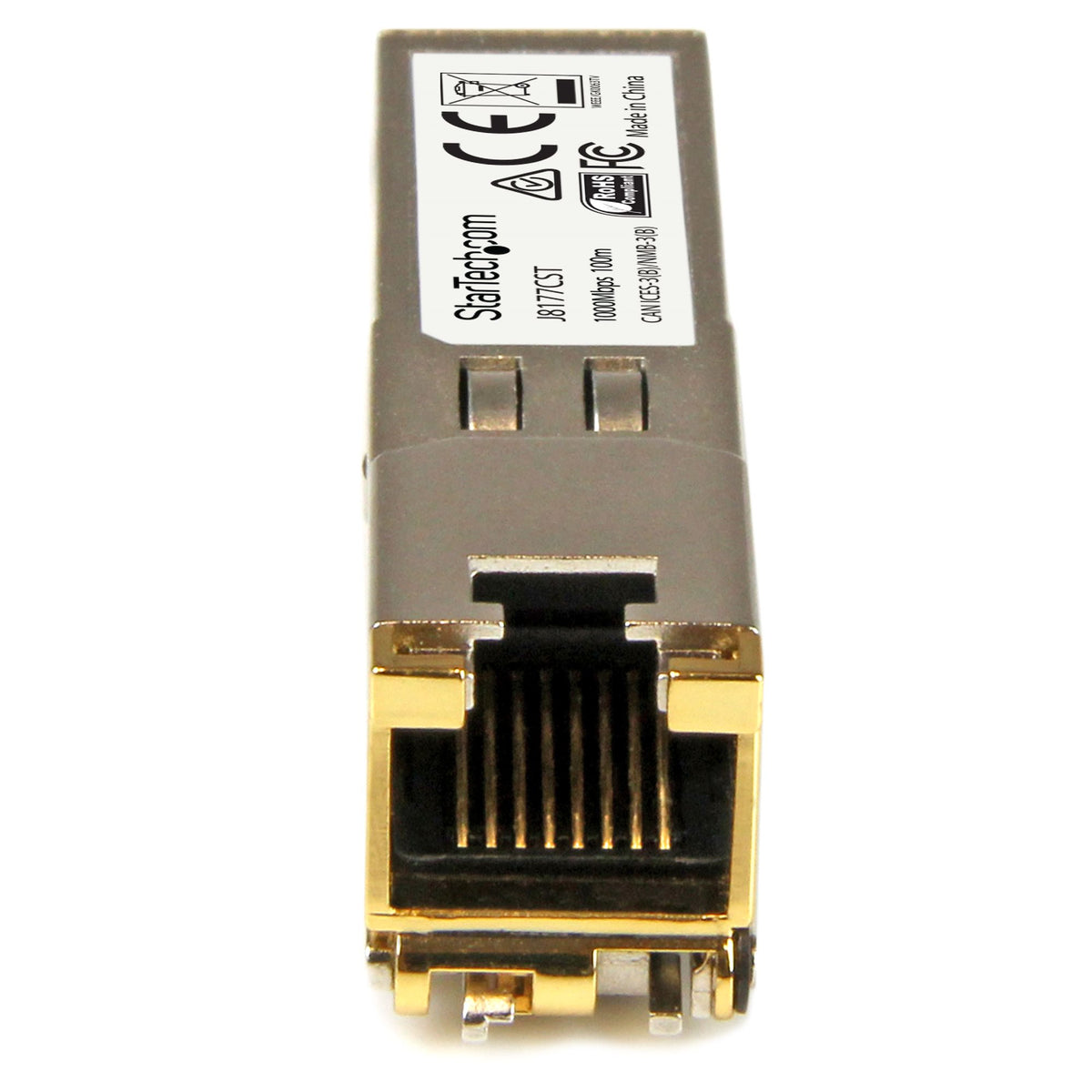

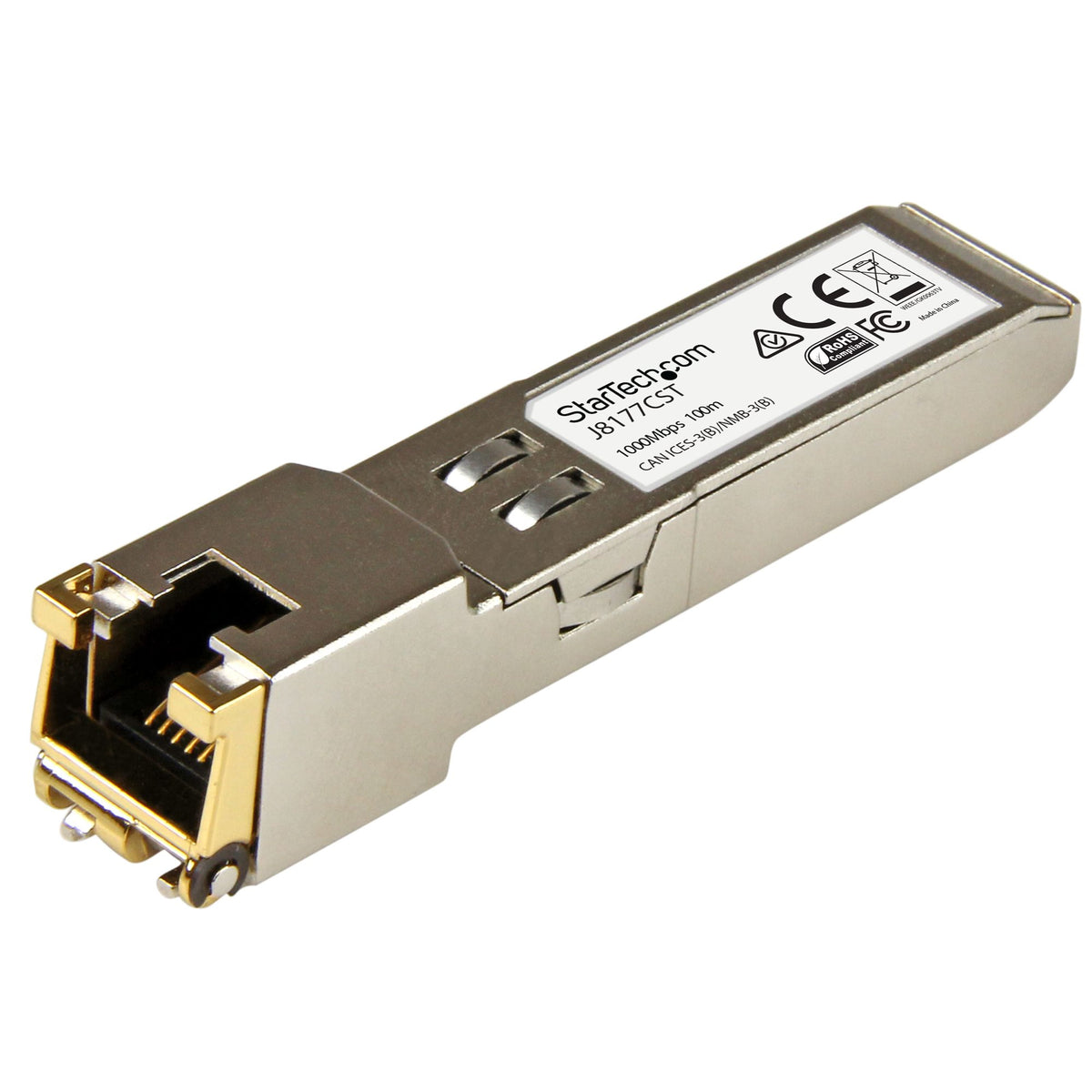

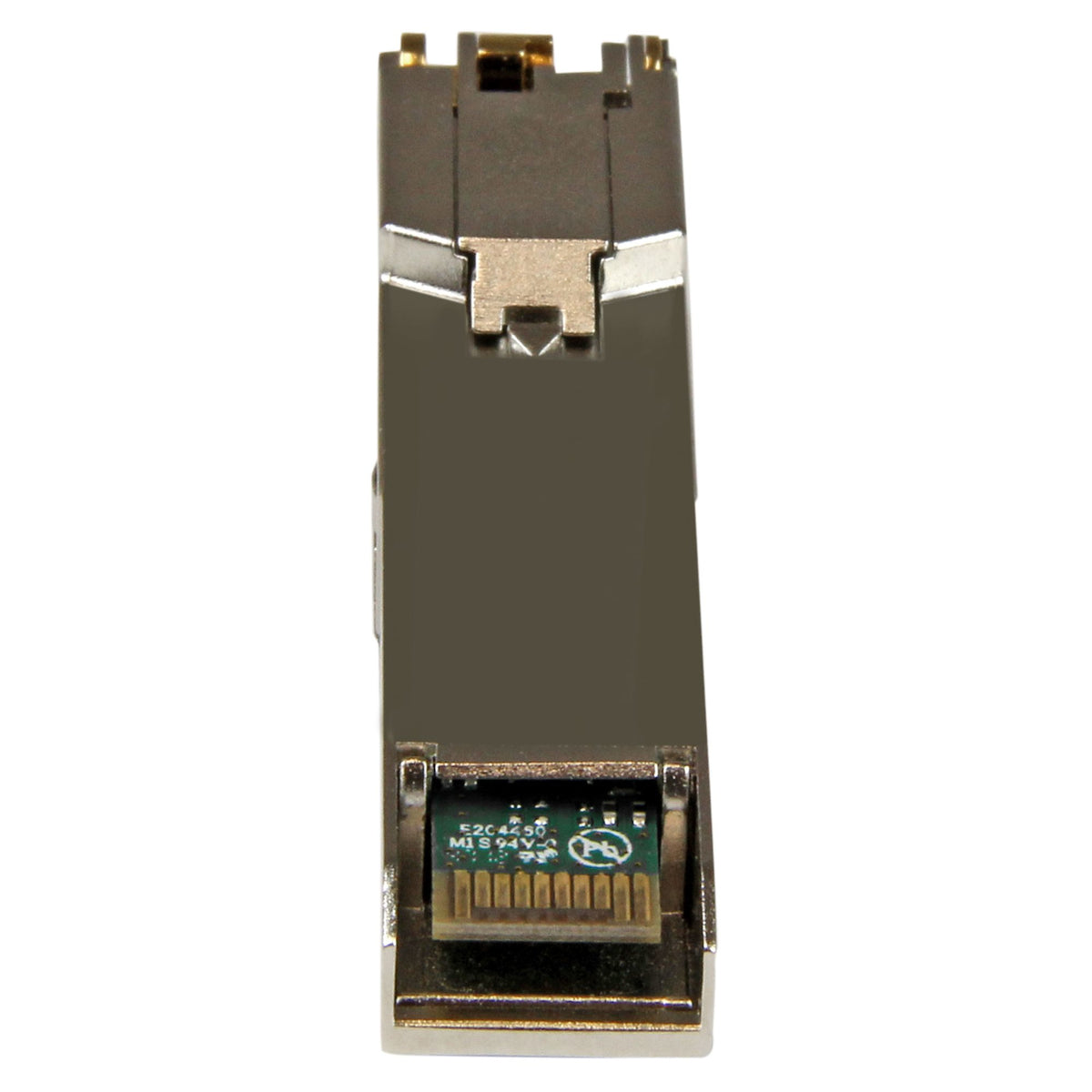

StarTech.com HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530
Hurry up, only 6 items left in stock.
The J8177CST is an HPE J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Interface type: SFP
- SFP transceiver type: Copper
- Maximum transfer distance: 100 m
- Harmonized System (HS) code: 85369010
- Digital Diagnostics Monitoring (DDM): No
- Master (outer) case height: 34 cm
- Master (outer) case length: 41 cm
- Master (outer) case width: 35.5 cm
- Products per master (outer) case: 100 pc(s)
- Fiber optic connector: MiniGBIC
- Hot-swap: Yes
- Mean time between failures (MTBF): 4655371 h
- Certification: CE, FCC
- Power consumption (typical): 1.3 W
- Compliance certificates: RoHS
- Networking standards: IEEE 802.3ab
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 30 - 75%
- Housing material: Aluminium
Logistics data
- Country of origin
- China
Operational conditions
- Storage temperature (T-T)
- -40 - 85 °C
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 11.2 cm
- Package height
- 3.3 cm
- Package weight
- 0.05 kg
- Package width
- 9.3 cm
Performance
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN (RJ-45) ports
- Yes
- Maximum data transfer rate
- 1000 Mbit/s
Weight & dimensions
- Depth
- 6.8 cm
- Height
- 1.4 cm
- Weight
- 0.03 kg
- Width
- 1.4 cm
Materials
Housing material: Aluminium
Compare With Similar Items
|
|
|
|
|
|
|
| Description | 1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The J8177CST is an HPE J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |

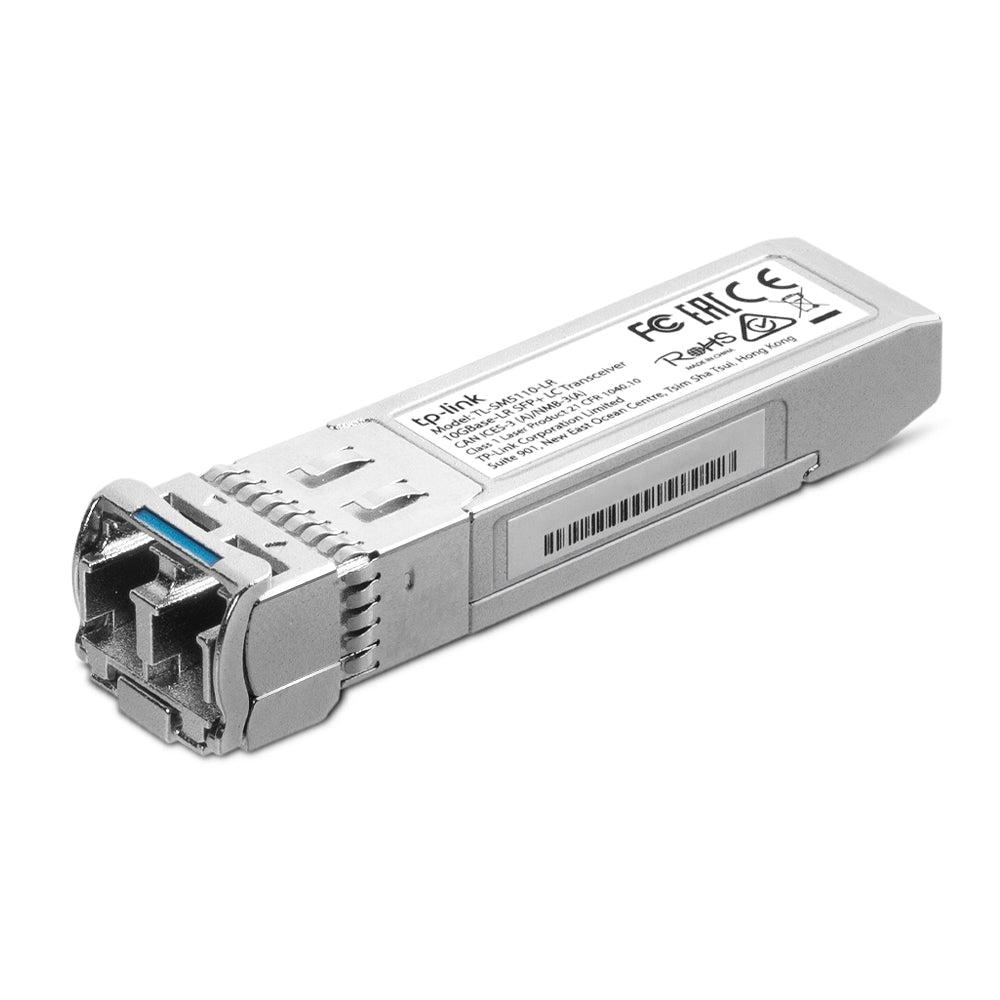

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively. |

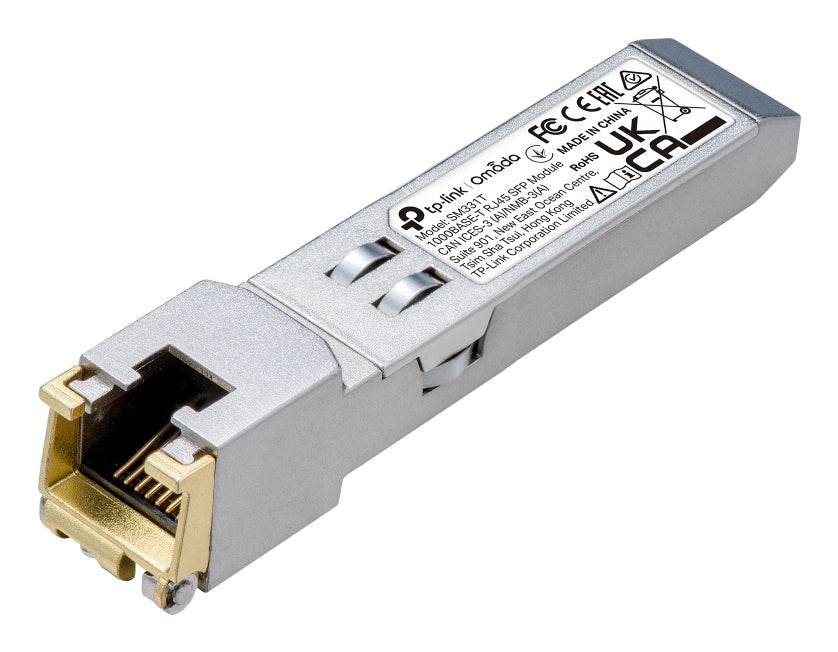

TP-Link Omada 1000BASE-T RJ45 SFP Module SPEC: 1000Mbps RJ45 Copper Transceiver, Plug and Play with SFP Slot, Up to 100 m Distance (Cat5e or above). SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 67.4 mm, Depth: 13.8 mm, Height: 13.8 mm |
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability. |

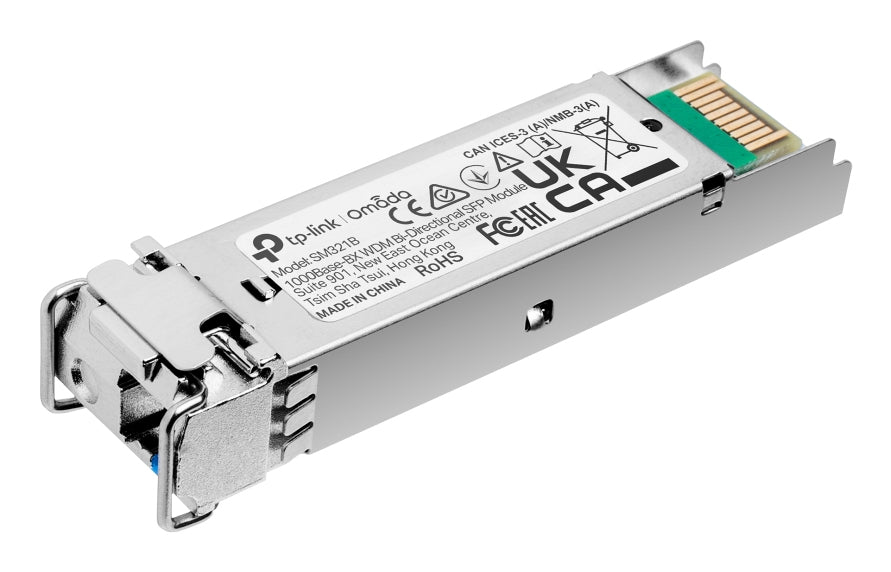

TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability. |
