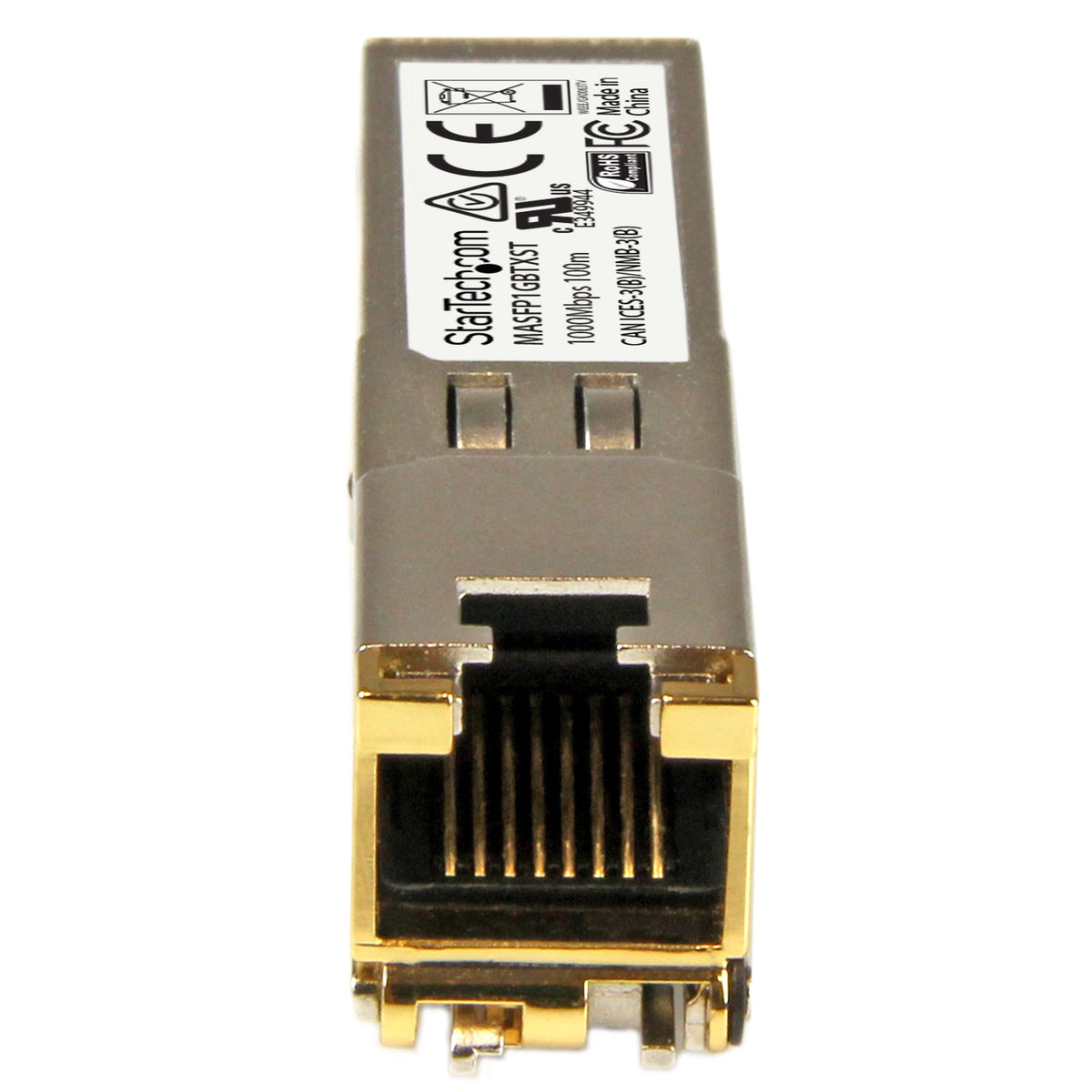

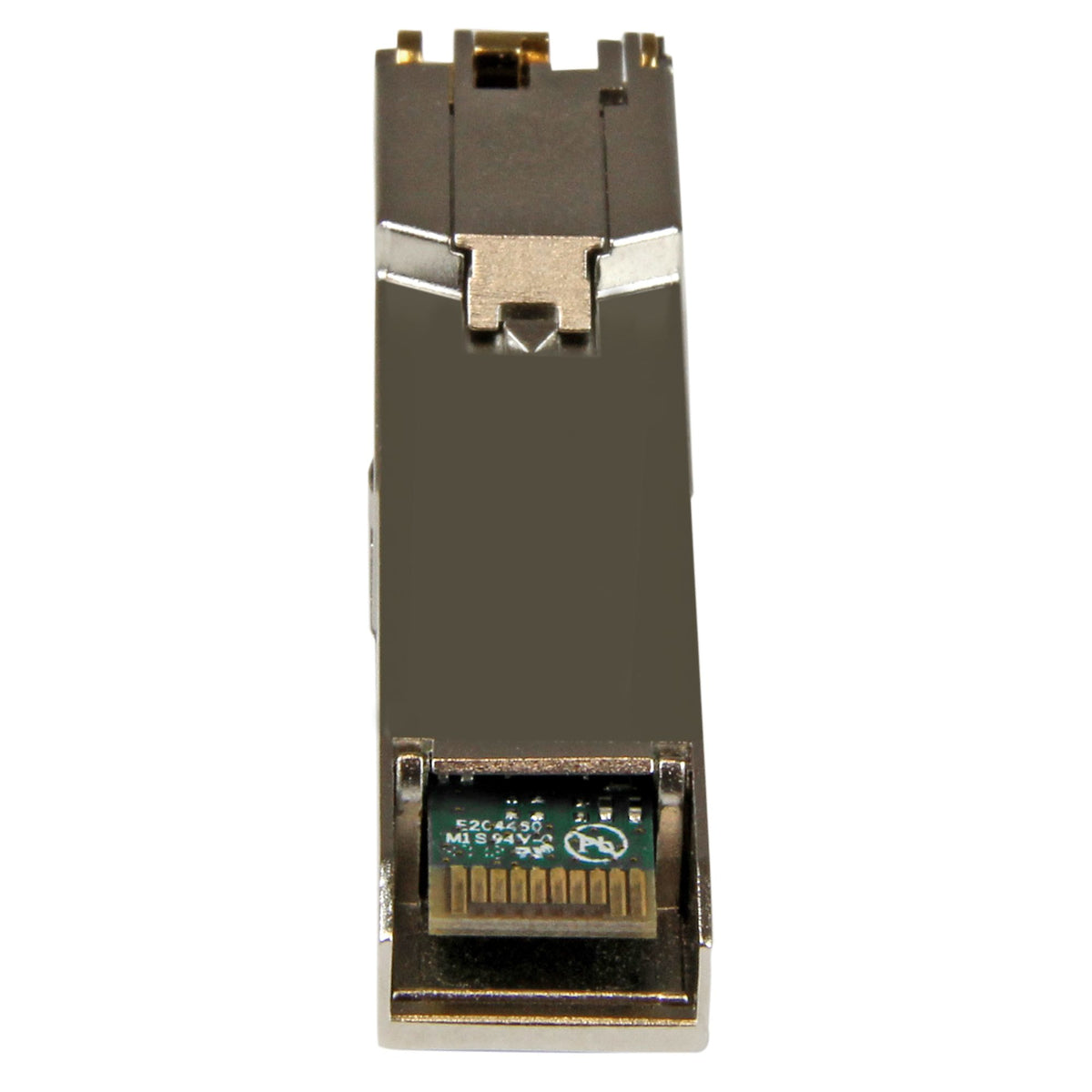

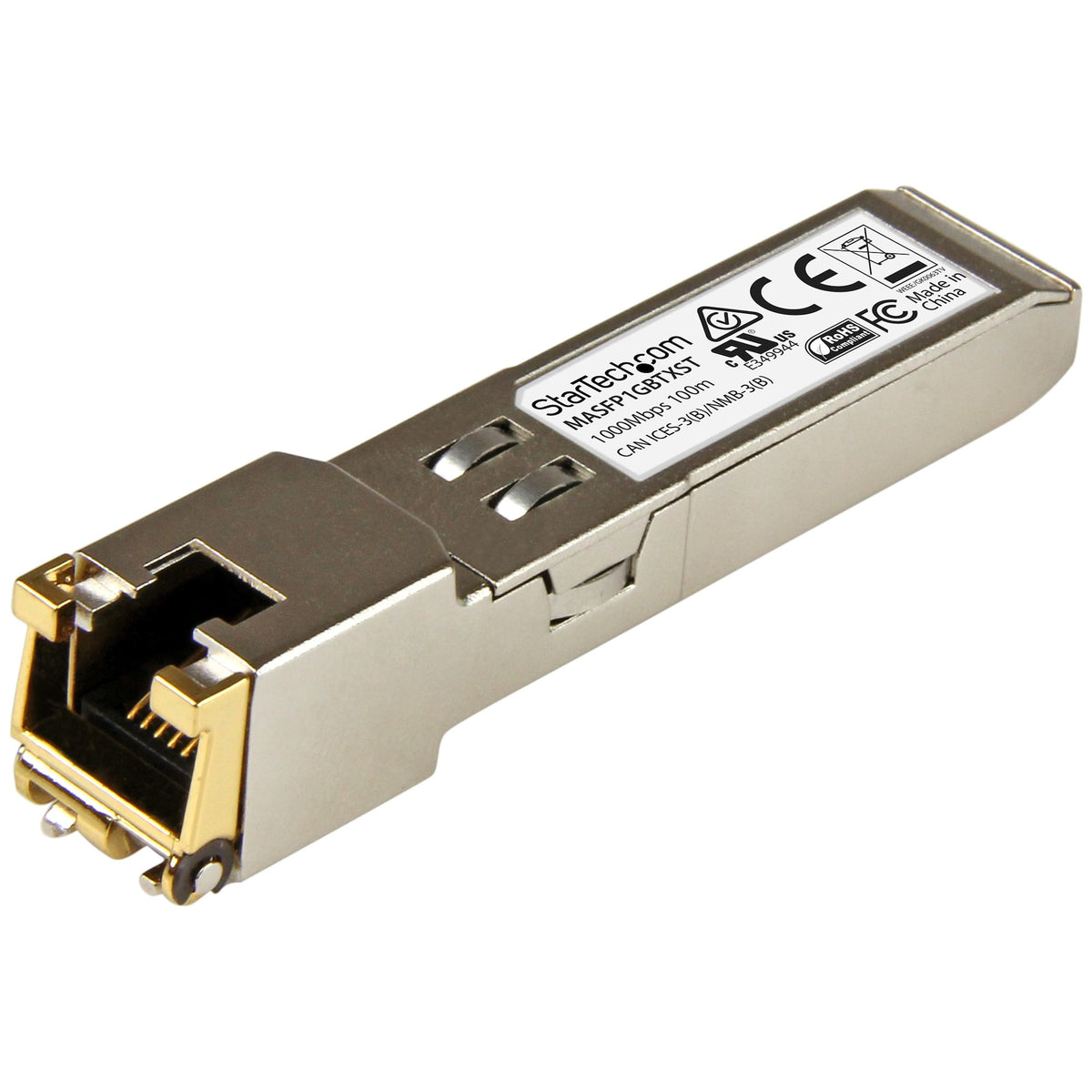

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250
Regular price
$108.46
Sale price
Regular price
Tax included.
Available in stock (35)
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Interface type: SFP
- SFP transceiver type: Copper
- Maximum transfer distance: 100 m
- Harmonized System (HS) code: 85369010
- Digital Diagnostics Monitoring (DDM): No
- Master (outer) case height: 35.8 cm
- Master (outer) case length: 43.1 cm
- Master (outer) case width: 34.9 cm
- Products per master (outer) case: 120 pc(s)
- SFP transceiver standard: TX
- Mean time between failures (MTBF): 4655371 h
- Power consumption (typical): 1.3 W
- Compliance certificates: CE, RoHS
- Duplex system: Full
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Housing material: Aluminium
- Country of origin: China
Features
- Hot-Plug support
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 85 °C
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 11.4 cm
- Package height
- 3.3 cm
- Package weight
- 0.05 kg
- Package width
- 9.3 cm
Performance
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- Yes
- Maximum data transfer rate
- 1000 Mbit/s
Weight & dimensions
- Depth
- 6.8 cm
- Height
- 1.38 cm
- Weight
- 0.02 kg
- Width
- 1.8 cm
Materials
Housing material: Aluminium
