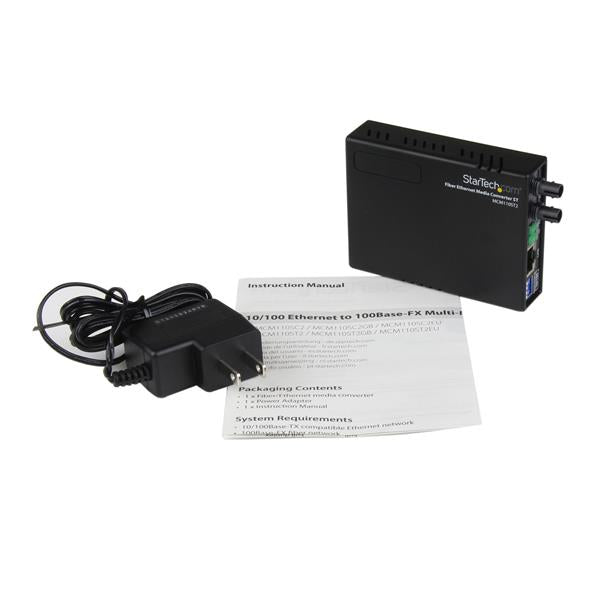

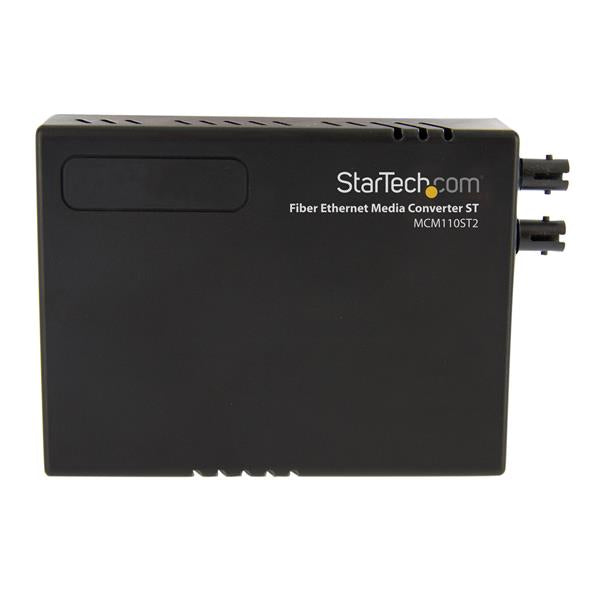

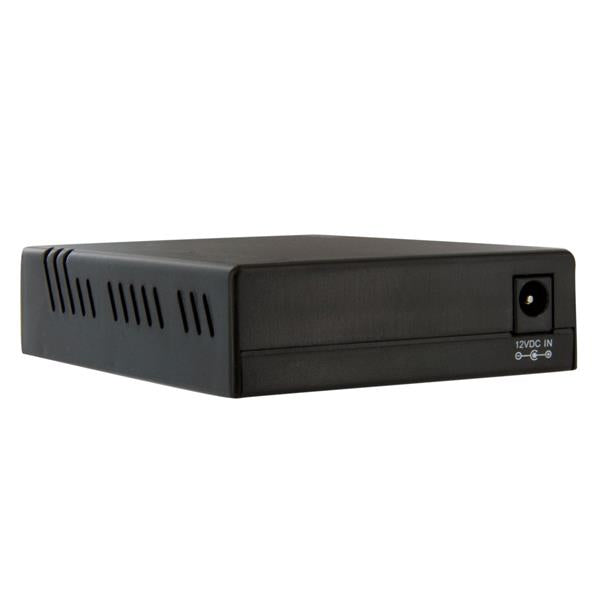

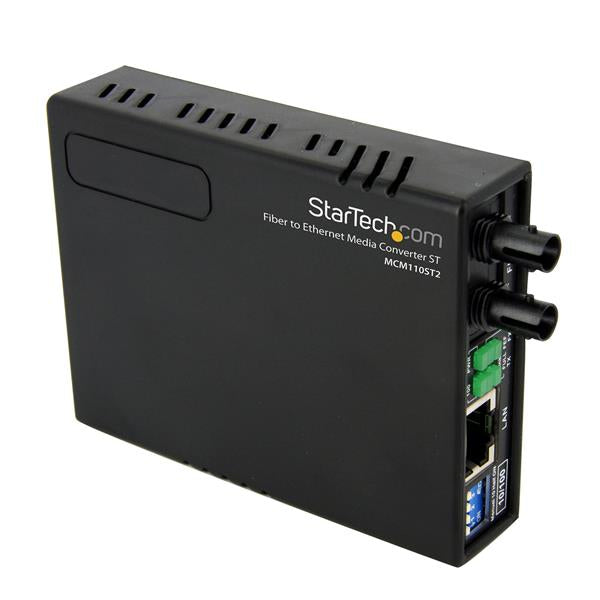

StarTech.com Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM Fiber Media Converter, 1310nm, 2km - TAA
Regular price
$156.51
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 4 items left in stock.
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

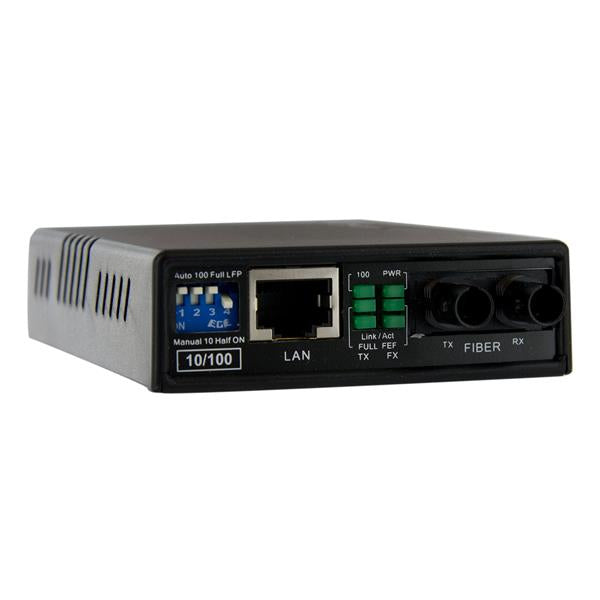

Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal: No
- Fiber optic connector: ST
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Ethernet LAN (RJ-45) ports: Yes
- Connectivity technology: Wired
- Duplex system: Full, Half
- Compliance certificates: RoHS
- Networking standards: IEEE 802.3, IEEE 802.3u
- LED indicators: Yes
- Maximum transfer distance: 2000 m
- Ethernet LAN data rates: 10,100 Mbit/s
- Wavelength: 1310 nm
- Certification: CE, FCC, TAA, REACH
- Manual: Yes
- Converter input interface: 10Base-T, 100BASE-FX, 100Base-TX
- Housing material: Plastic
- Mean time between failures (MTBF): 65000 h
- Wavelength-division multiplexing (WDM): No
- AC adapter included: Yes
Network
- Data transfer rate
- 100 Mbit/s
- Maximum data transfer rate
- 100 Mbit/s
Operational conditions
- Storage temperature (T-T)
- -10 - 70 °C
Packaging data
- Package depth
- 17.5 cm
- Package height
- 6.1 cm
- Package weight
- 0.27 kg
- Package width
- 14.5 cm
Performance
- Link budget
- 11 dB
- Sensitivity
- -31 dBmW
Power
- Input voltage
- 100 - 240 V
- Output current
- 0.2 A
- Output voltage
- 12 V
- Power consumption (typical)
- 2.4 W
- Power over Ethernet (PoE)
- No
- Power plug type
- Type M
Weight & dimensions
- Depth
- 9.5 cm
- Height
- 2 cm
- Weight
- 0.08 kg
- Width
- 7.5 cm
AC adapter included
Manual
Manual
Materials
Housing material: Plastic
