StarTech.com 3-Port Multi Monitor Adapter - DisplayPort 1.2 to 3x HDMI MST Hub - Triple 1080p HDMI Monitors - Video Splitter for Extended Desktop Mode on Windows PCs Only - DP to 3x HDMI
Regular price
$176.06
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

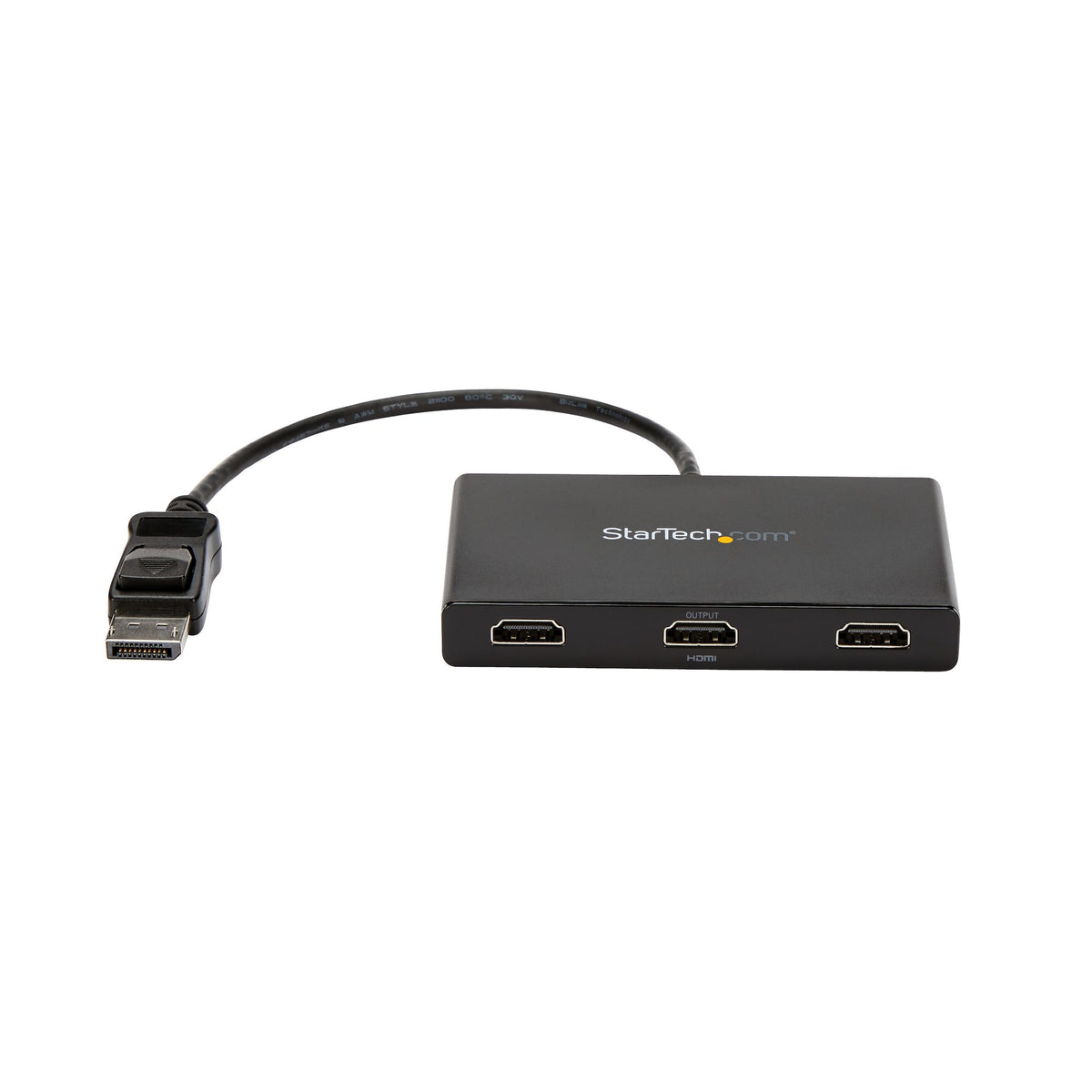

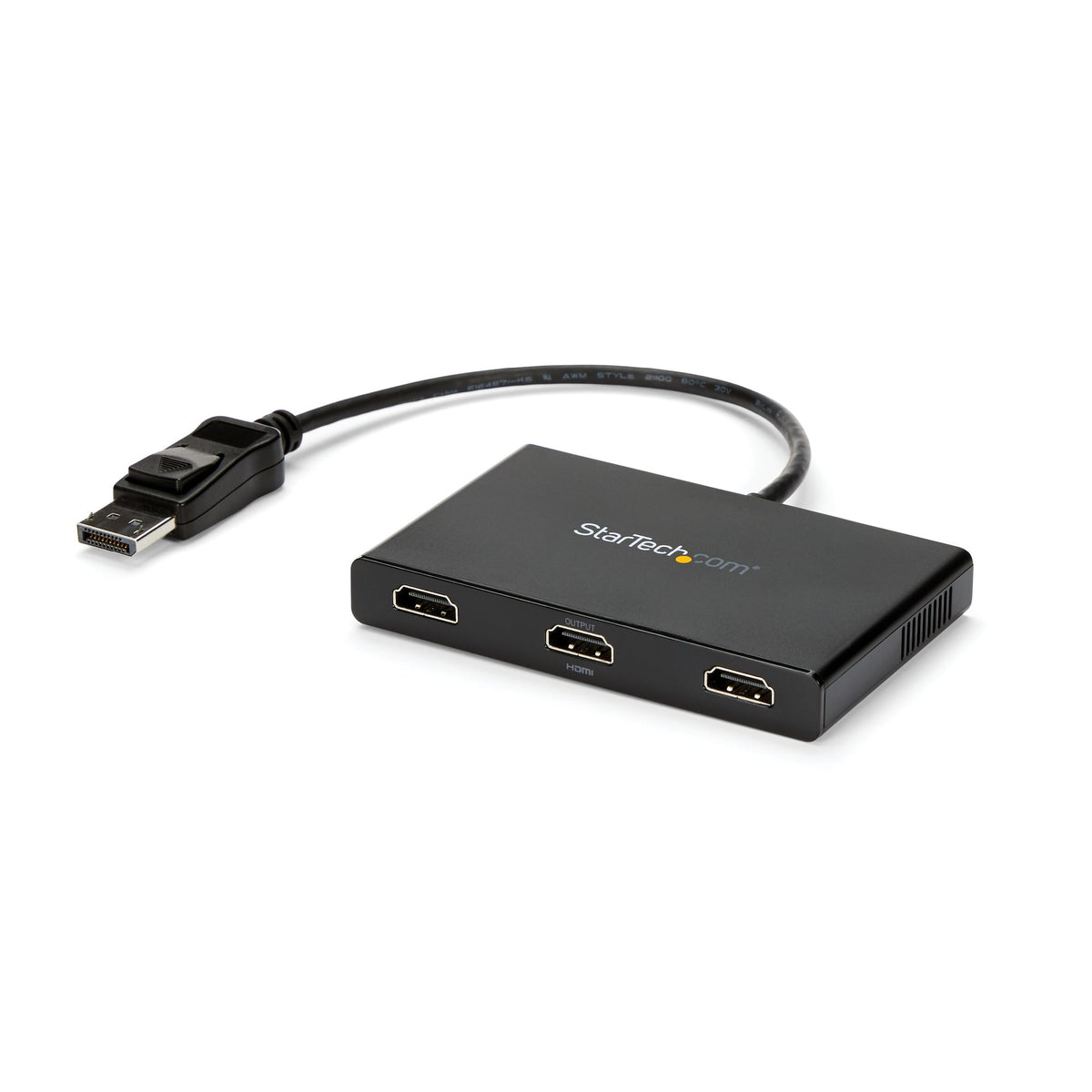

Use this adapter to connect three independent displays to a single DP 1.2 port
This MST hub lets you connect three HDMI® monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Configure your displays for any environment

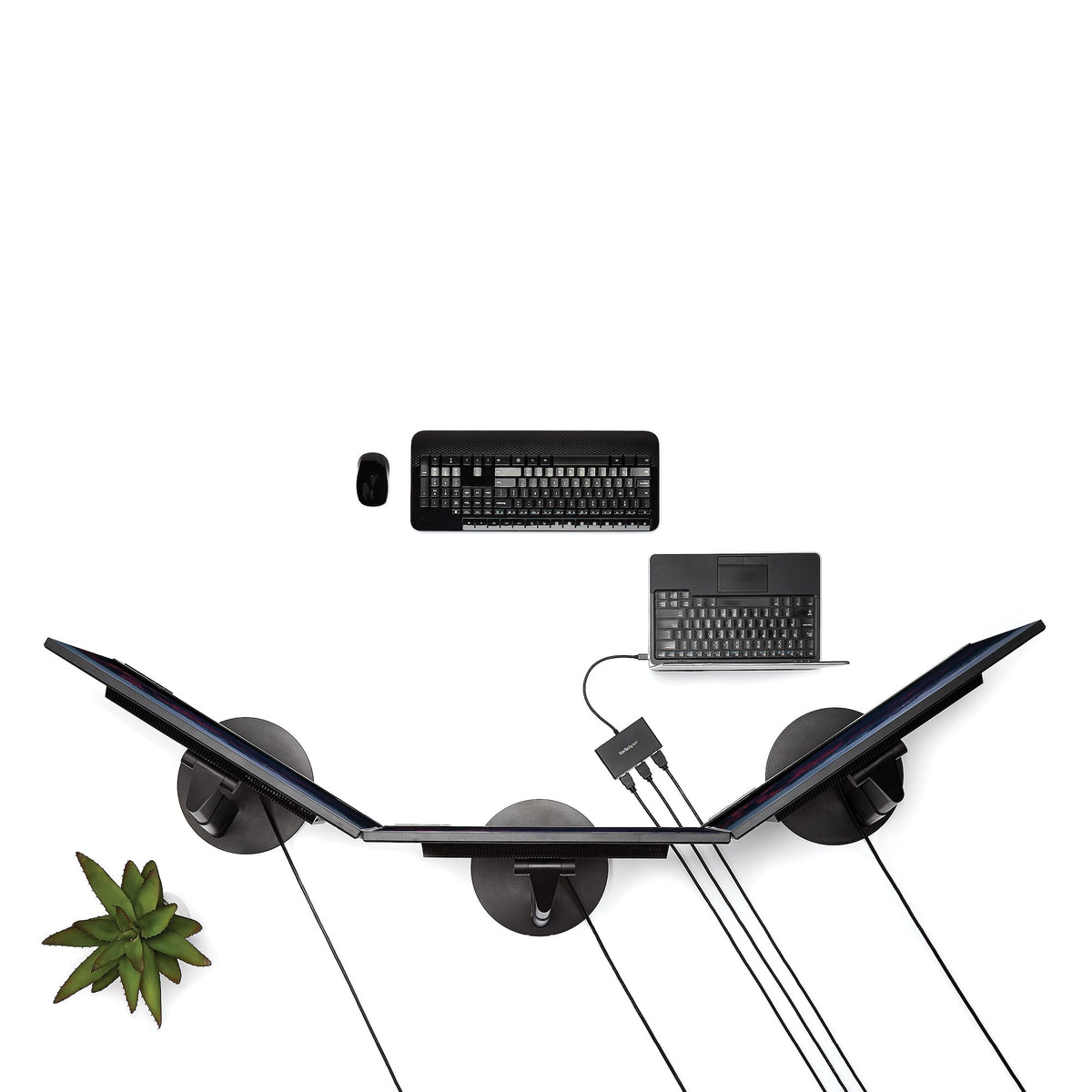

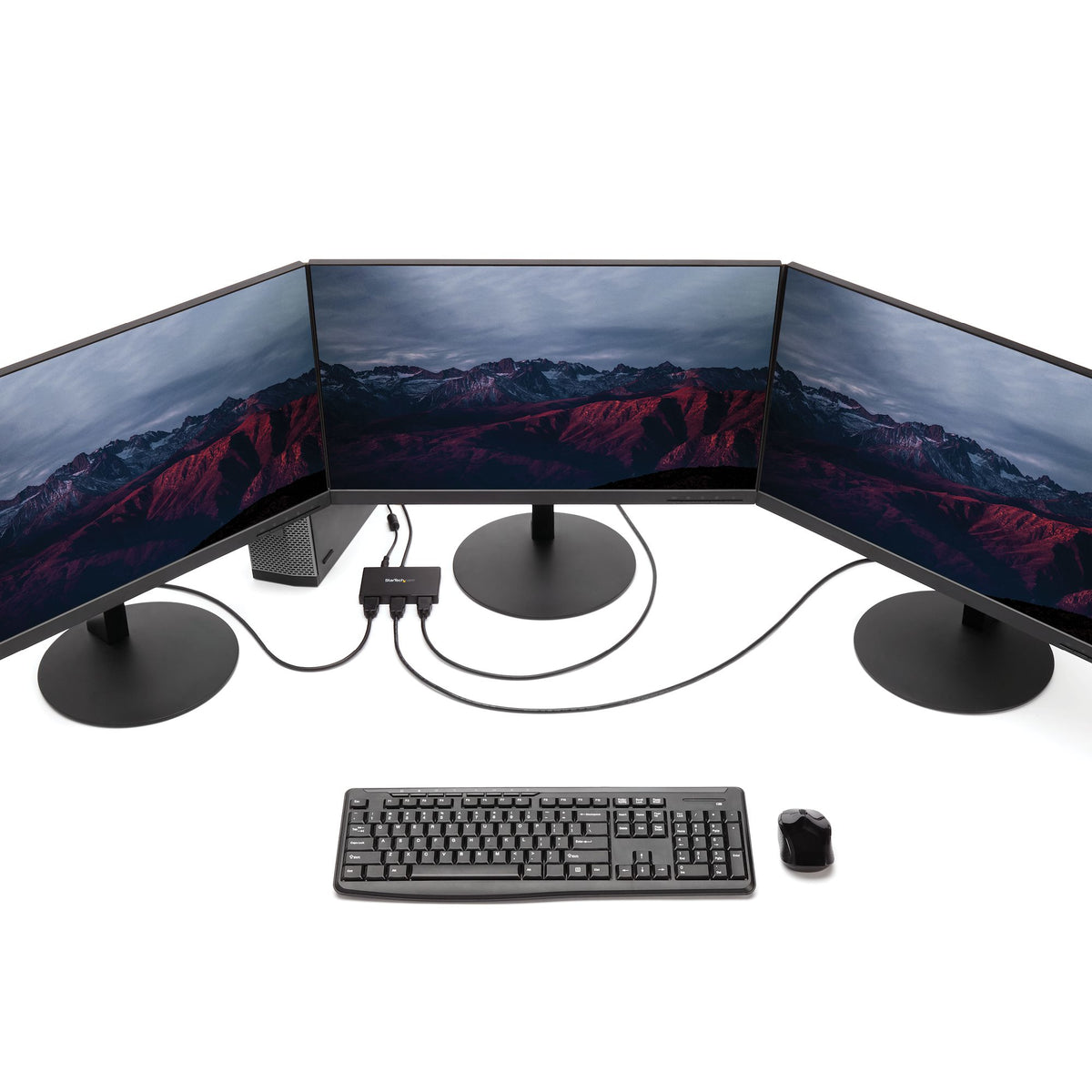

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123HD will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 43%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
90%
2560x1440 @60hz (35%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
92%
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (43%)
1920x1200 @60hz (30%)
1920x1080 @60hz (22%)
95%
3840x2160 @30hz (43%)
3840x2160 @30hz (43%)
None
86%
Examples of Unsupported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (43%)
2560x1600 @60hz (43%)
1920x1200 @60hz (30%)
116%
3840x2160 @30hz (43%)
2560x1600 @60hz (43%)
2560x1440 @60hz (35%)
121%
3840x2160 @30hz (43%)
3840x2160 @30hz (43%)
3840x2160 @30hz (38%)
124%
The StarTech.com Advantage
This MST hub lets you connect three HDMI® monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTDP123HD will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolution
Average Resolution Bandwidth Allocation
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 43%
Note: Exceeding 100% will reduce functionality.
Examples of Supported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
90%
2560x1440 @60hz (35%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
92%
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1080 @60hz (22%)
98%
3840x2160 @30hz (43%)
1920x1200 @60hz (30%)
1920x1080 @60hz (22%)
95%
3840x2160 @30hz (43%)
3840x2160 @30hz (43%)
None
86%
Examples of Unsupported Resolution Configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
106%
3840x2160 @30hz (43%)
2560x1600 @60hz (43%)
1920x1200 @60hz (30%)
116%
3840x2160 @30hz (43%)
2560x1600 @60hz (43%)
2560x1440 @60hz (35%)
121%
3840x2160 @30hz (43%)
3840x2160 @30hz (43%)
3840x2160 @30hz (38%)
124%
The StarTech.com Advantage
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Video ports quantity: 3
- Video port type: DisplayPort
- Maximum resolution: 3840 x 2160 pixels
- Video out: 3x HDMI
- Harmonized System (HS) code: 85176990
- Operating relative humidity (H-H): 50 - 90%
- Products per master (outer) case: 10 pc(s)
- Power consumption (typical): 15 W
- Master (outer) case height: 22.4 cm
- Master (outer) case length: 50.4 cm
- Master (outer) case width: 33.7 cm
- Certification: CE, FCC, REACH
- Manual: Yes
- AC adapter included: Yes
- Maximum refresh rate: 60Hz
- Compliance certificates: RoHS
- AC input voltage: 110 - 240 V
- Plug and Play: Yes
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Features
- Cable length
- 0.19 m
General
- Video/mp4
- https://youtu.be/YZSDLKhdMd8
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Storage temperature (T-T)
- -20 - 70 °C
Packaging data
- Package depth
- 15.4 cm
- Package height
- 6.4 cm
- Package weight
- 0.5 kg
- Package width
- 24.1 cm
Power
- Input current
- 0.5 A
- Output current
- 3 A
- Output voltage
- 5 V
Weight & dimensions
- Depth
- 33 cm
- Height
- 1.4 cm
- Weight
- 0.13 kg
- Width
- 10.5 cm
